Ertekin World of Sound

Neutrik

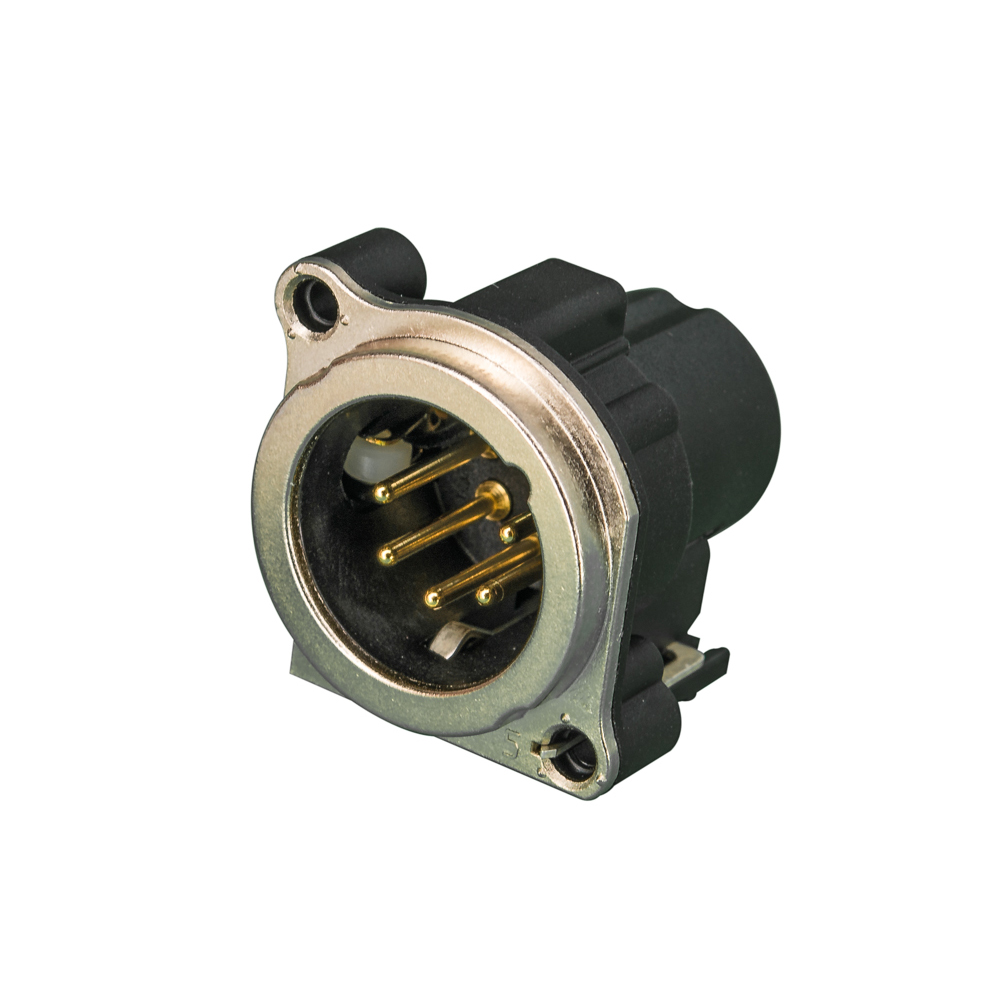

NC5MBV-SW

5 pole male XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount

Marka:	Neutrik
Ürün Kodu:	NC5MBV-SW
Kategori:	XLR
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

DETAYLAR

5 pole male XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact. Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice.

DÖKÜMANLAR

RESİMLER

ETİKETLER

ÜRÜN AİLESİ
