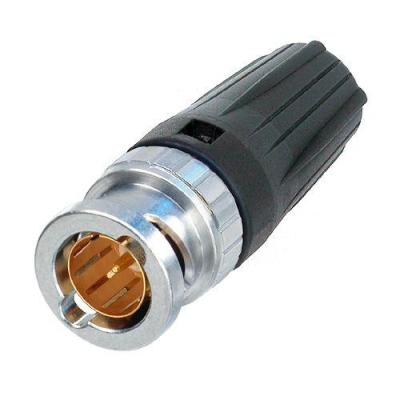

The rearTWIST HD Large BNC cable connector is designed for large cable diameters as used on long runs and high data rates (HD). Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications. Suitable cables: Belden 7731A (ANH), CAE HD16720LSZH, Draka 1.6/7.3AF, RG 11, Klotz V16/72, Canford SDV-HD, Nexans HF 75 1,6/7,2 02Y(ST)C(ST)H, Percon VK9, Tesca Sphere Crimp size: Pin: 1.8 mm Shield: 10.0 mm (hex)

The rearTWIST HD Large BNC cable connector is designed for large cable diameters as used on long runs and high data rates (HD). Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications. Suitable cable: Draka 1.4/6.6 AF, Percon VK8, Tesca Massimo Crimp size: Pin: 1.75 mm (hex) Shield: 9.73 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra Crimp size: Pin: 1.6 mm (square) Shield: 5.0 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Kansai 3C-5S, Proel HPC 820 Crimp size: Pin: 1.6 mm (square) Shield: 5.0 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cable: Canare V(3-5)-3C Crimp size: Pin: 1.6 mm (square) Shield: 5.0 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 1506A, CommScope 2065V, Cordial CVM 08-32 HD-FLEX Crimp size: Pin: 1.6 mm (square) Shield: 5.41 mm (hex)

The rearTWIST BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cable: Canare V(3-5)-4CFB Crimp size: Pin: 1.6 mm (square) Shield: 5.41 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, Draka 0.6L/3.7, Proel HPC 805, RG59B/U, Sommer 600-0051 (M,L,S), Sommer 600-0054 (M,L,S), Klotz V06/37, Nexans HF 75 0,6/3,7 2YCY, Percon VK95 Crimp size: Pin: 1.6 mm (square) Shield: 6.47 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Argosy Image 720, Belden 1505A (ANH), Belden 4505R, Belden 8241F, CAE HD08370LSZH, Canare L-4CFB, Clark Wire CD7559-0, Clark Wire CD7559F-0, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6 Crimp size: Pin: 1.6 mm (square) Shield: 6.47 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: BBC PSF 1/3, Bryant MVC 333C, Draka 0.6/3.7 Dz, Draka 755-801, Draka 755-803, Draka 755-804, Suhner G04233D (PTT 6010) Crimp size: Pin: 1.6 mm (square) Shield: 7.01 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: CAE VCB75, Cordial CVI 08-37 HD-FRNC, Helix 734, Tesca Linea Crimp size: Pin: 1.6 mm (square) Shield: 6.47 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 1695A, CommScope 2279V Crimp size: Pin: 1.6 mm (square) Shield: 6.47 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Canare V(3-5)-5C, Bryant BD SD50 Crimp size: Pin: 1.6 mm (square) Shield: 7.01 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cable: Hirschmann KOKA 712Cu Crimp size: Pin: 1.6 mm (square) Shield: 7.01 mm (hex)

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cable: CAE HD10460LSZH, Eupen 705 CRT 5V-HS, Tesca Prima Crimp size: Pin: 1.6 mm (square) Shield: 7.01 mm (hex)
