JBL Professional

VLA-C125S

Subwoofer Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Response (-10dB) 52 Hz – 210 Hz
Frequency Response (±3 dB) 62 Hz – 123 kHz
System Power Rating 1600 W Continuous Pink Noise (6400 W peak), 2 hrs800 W Continuous Pink Noise (3200W peak), 100 hrs
Maximum Input Voltage 80 V Rms (2 hrs), 160 V peak
Maximum SPL (1m) 127 dB Cont. Ave (2 hrs), 133 dB Peak
Sensitivity 98 dB (52 Hz – 210 Hz, 2.83V)
Impedance 4Ω, 3.0Ω min @ 195 Hz
Amplifiers Crown DCi Family with DSP on-board
Recommended Crown DCi 2 | 2400N Crown DCi 4 | 2400N
LF Driver 2 x 2275H, 304 mm (15 in) diameter , each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C125S to VLA-C125S: 0° using VLA-C125S Bracket Plate (included with VLA-C125S)VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S)VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water).
Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers. Full set of terminals on back panel, plus optional-use inter-cabinet connection terminals located on top and bottom panels of cabinet.
Colors -GR: Gray (similar to Pantone 428C), -BK: Black
Dimensions (H x W x D) 508 x 848 x 634 mm (20.0 x 33.4 x 24.9 in)
Net Weight (each) 56.7 kg (125 lbs)
Shipping Weight (ea) 62.6 kg (138 lbs)
Included Accessories 2 x VLA-C125S Bracket Plates 8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates 2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via 4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts.
Optional Accessories VLA-C-SB Suspension Bar Kit -- For top & bottom of the array, includes 2 identical Suspension Bars (for top/bottom), 4 pcs ¾-inch Class 2 Screw Pin Shackles (must use 2 Shackles for each Suspension Bar, located at end channels, not in the center).VLA-C125S-ACC kit – For adding terminal cup to front to allow easy and neat cardioid subwoofer wiring. VLA-C-ACC kit – For adding front baffle terminals for cardioid subwoofer configuration.
DETAYLAR
DETAYLAR

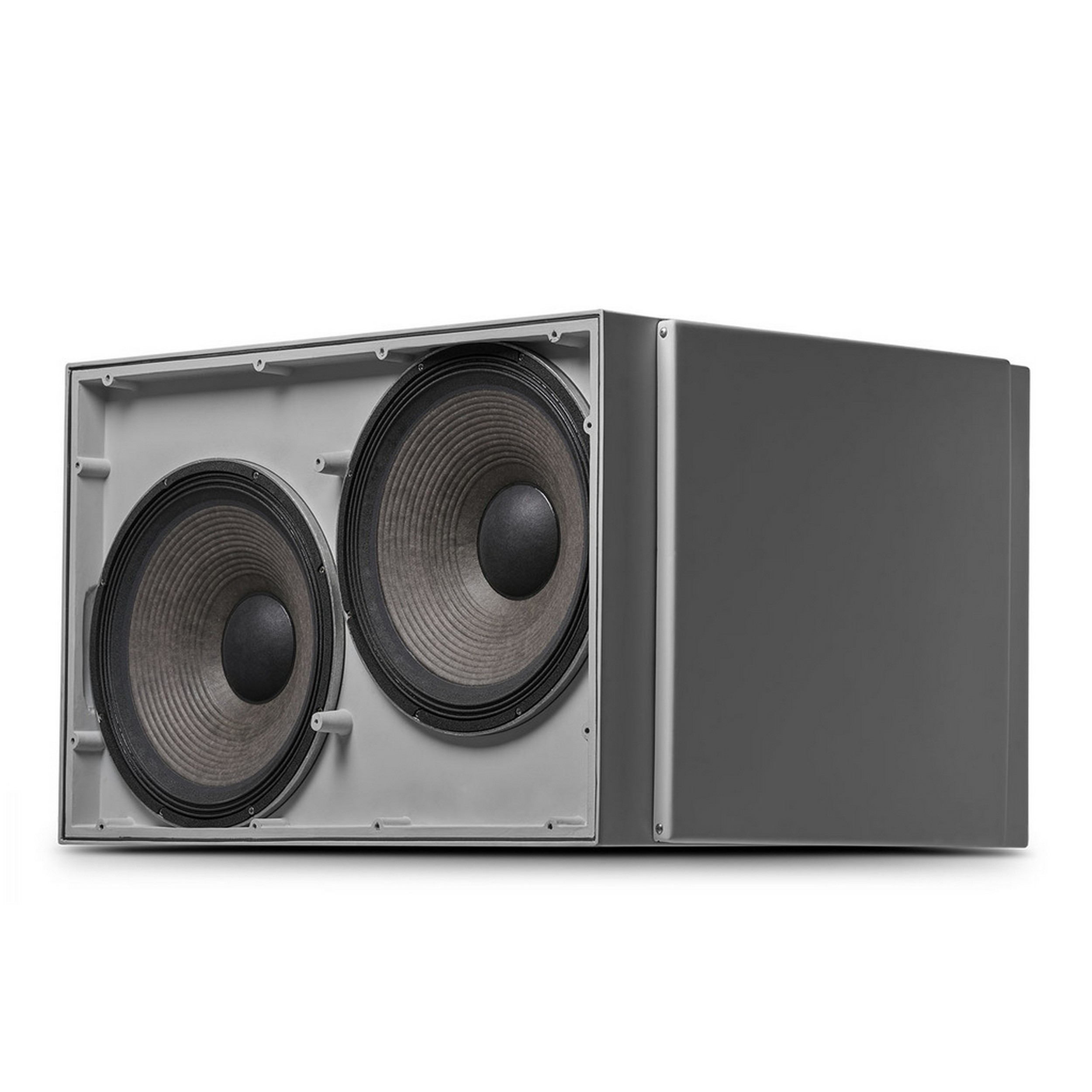

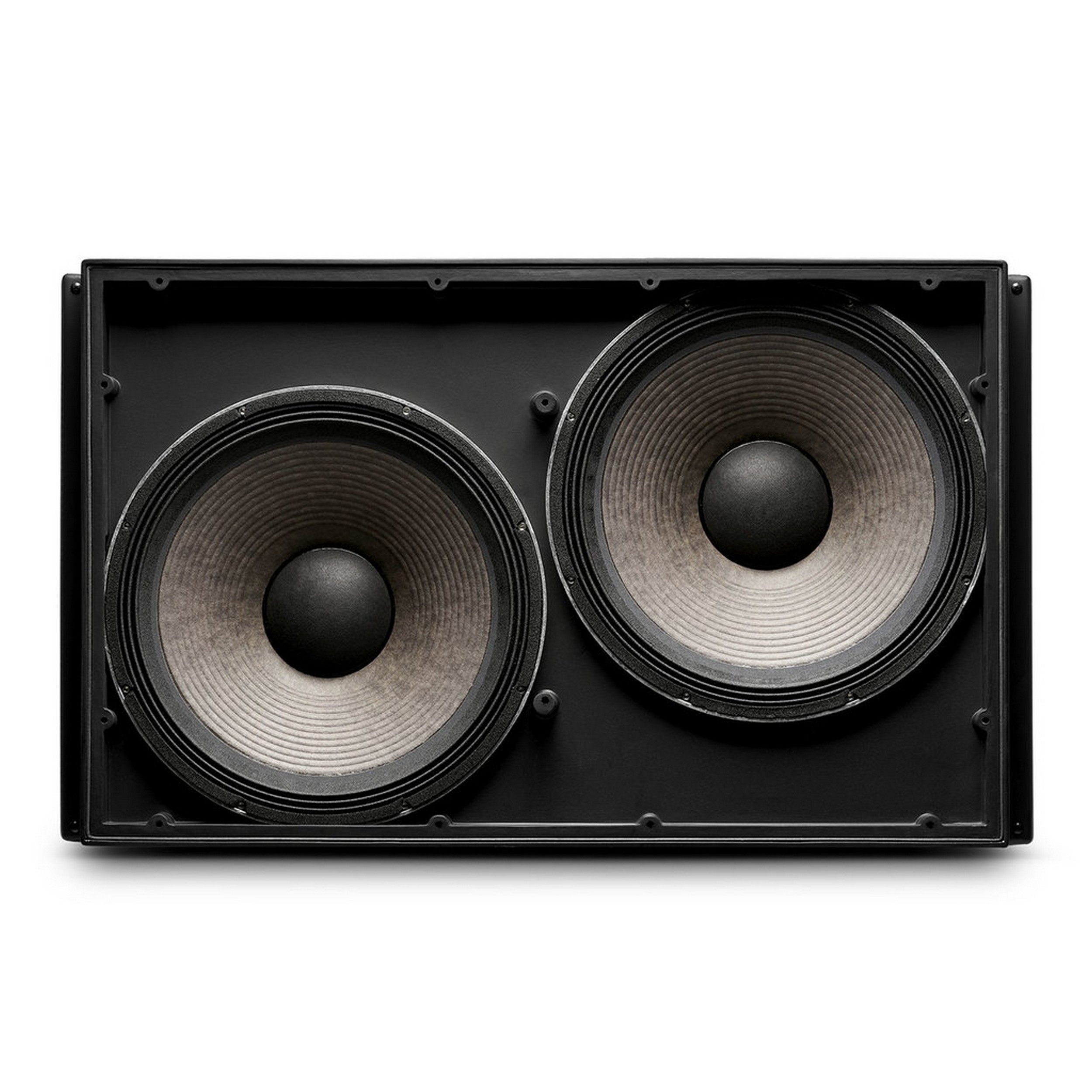

Dual 15" Subwoofer with Differential Drive®

The VLA-C125S uses JBL proven technology components, featuring dual 15” Differential Drive® transducers.

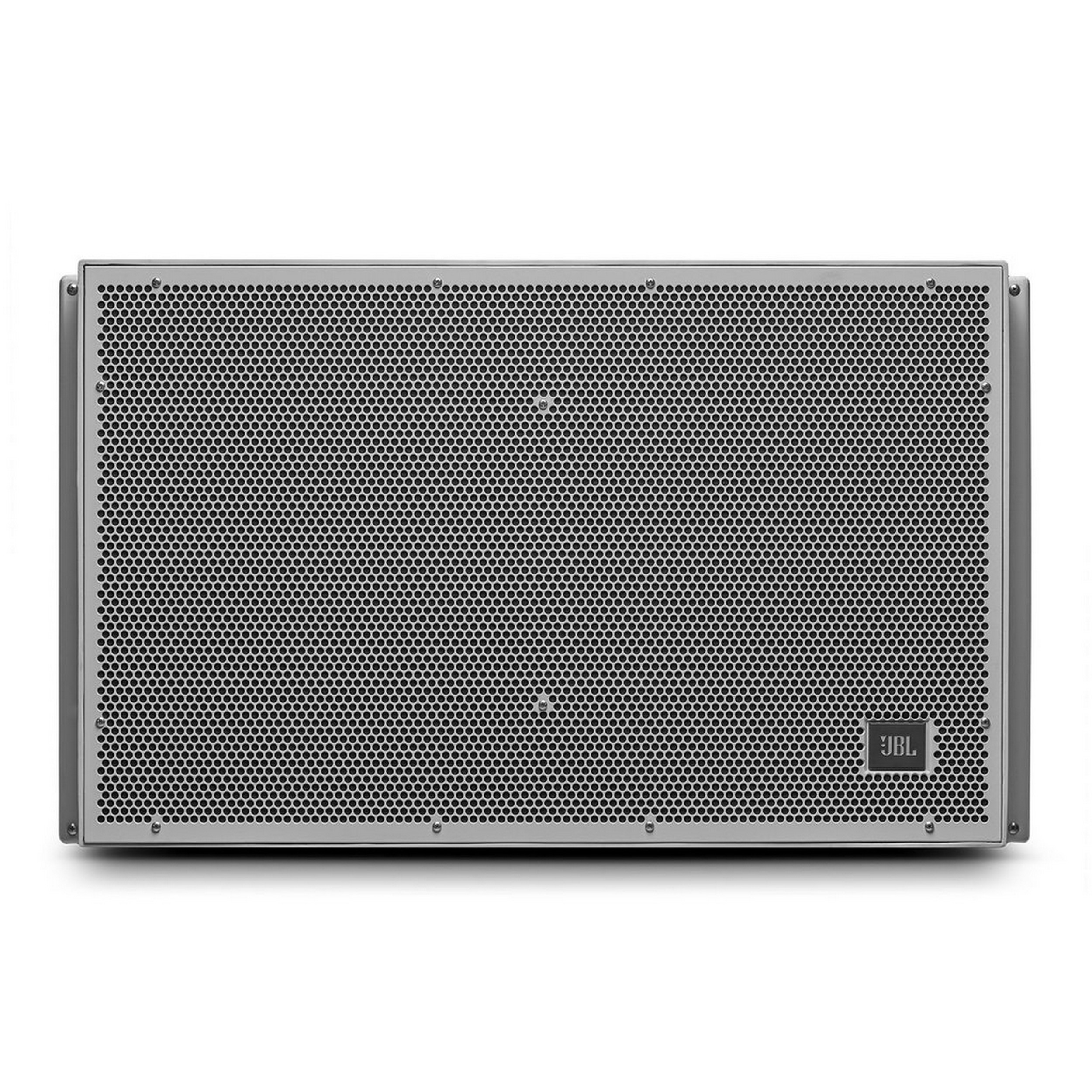

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

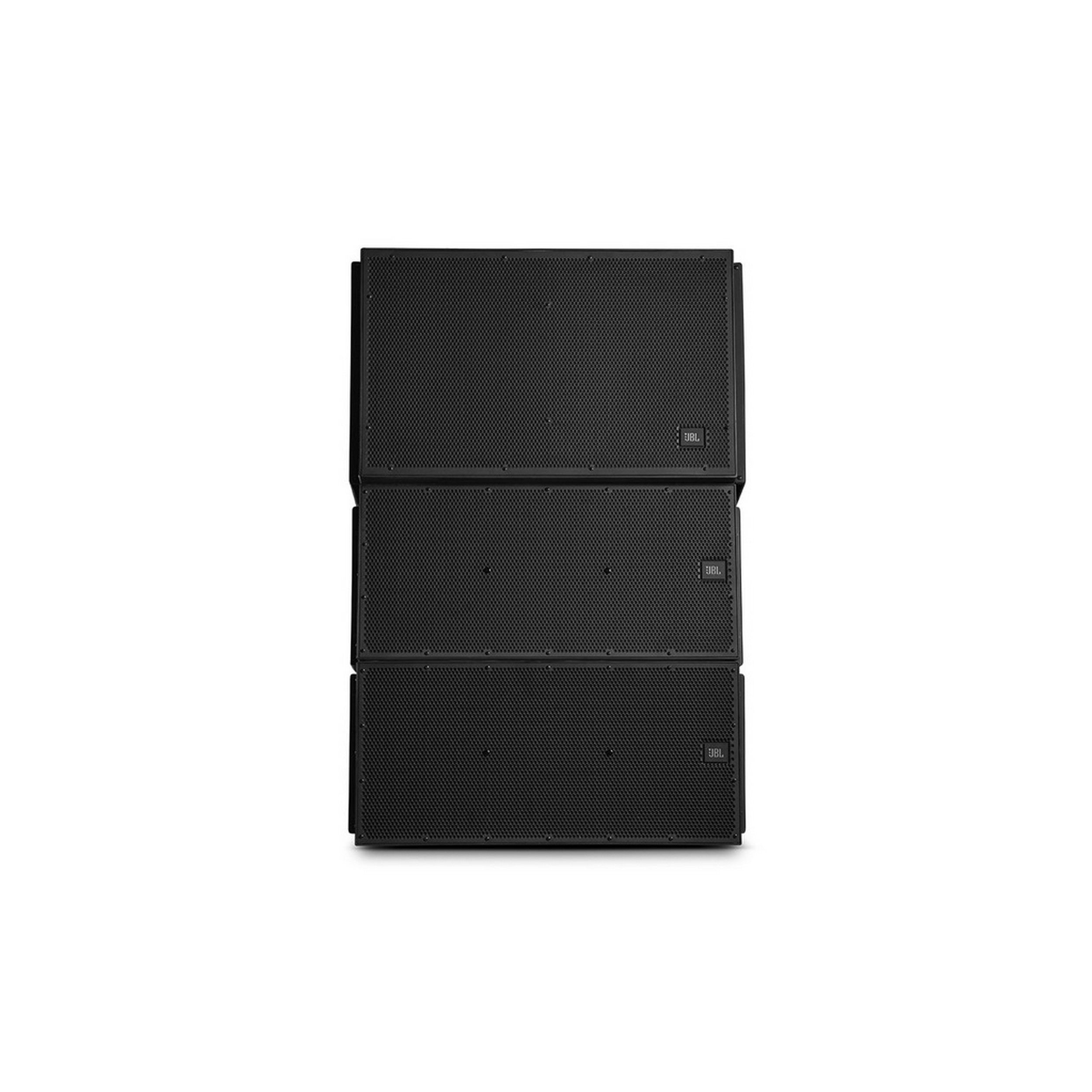

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit.
