| Frequency Response (-10dB) |
86 Hz - 18 kHz
|
| Frequency Response (±3 dB) |
109 Hz – 15.3 kHz
|
| Full Range |
800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
|
| Bi-amp LF |
800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
|
| Bi-amp HF |
150 W Continuous Pink Noise (600 W peak), 2 hrs 50 W Continuous Pink Noise (200 W peak), 100 hrs
|
| Full-Range |
80 V Rms (2 hrs), 160 V peak
|
| Maximum SPL (1m) |
131 dB Cont. Ave (2 hrs), 137 dB Peak
|
| Coverage Pattern (-6 dB) |

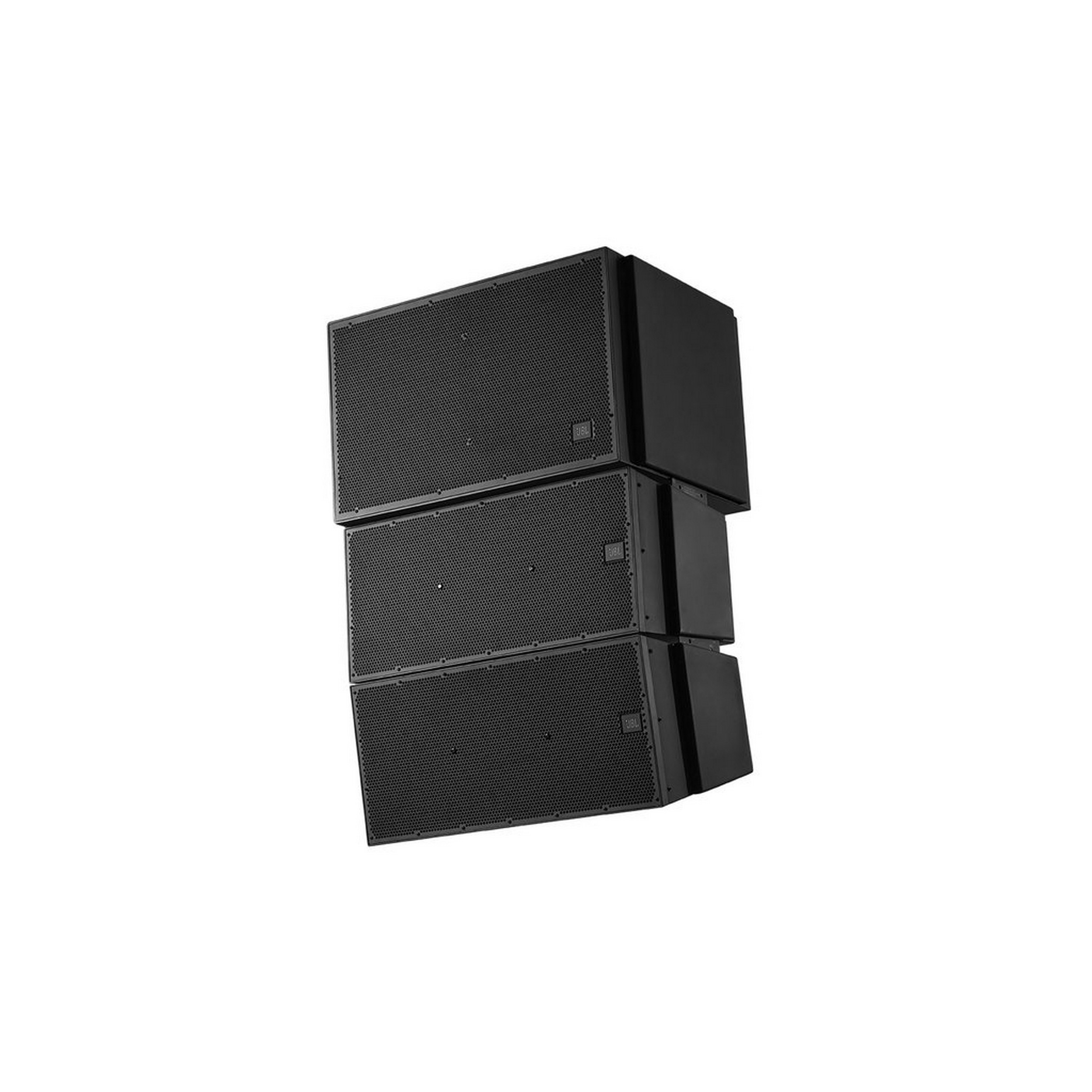

Horizontal: 100° (+5°/-15°, 1.5 kHz to 15 kHz) Vertical: Varies with array size and configuration
|
| Amplifiers |
Crown DCi Family with DSP on-boardRecommended: Crown DCi 2 | 1250N Crown DCi 4 | 1250N/ND/DA Crown DCi 2 | 2400N Crown DCi 4 | 2400N
|
| LF Driver |
2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
|
| HF Driver |
3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
|
| Enclosure Material |
Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
|
| Grille |
Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
|
| Inter-Enclosure Angles |
VLA-C2100 to VLA-C2100: 2.4°, 3.8°, 6.0°, 9.5°, 15° using VLA-C2100 Bracket Plate (included with VLA-C2100)VLA-C2100 to VLA-C265 (either model on top/bottom): 1.9°, 3.0° using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°, 7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
|
| Environmental |
IP-55 rating per IEC529 (dust protected and protected against jets of water)
|
| Terminals |
CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers
|
| Colors |
-GR: Gray (similar to Pantone 428C), -BK: Black
|
| Dimensions (H x W x D) |
381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
|
| Net Weight (each) |
37.7 kg (83 lbs)
|
| Shipping Weight (ea) |
44.0 kg (97 lbs)
|
| Included Accessories |
2 x VLA-C2100 Bracket Plates 8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hexdrive) for attaching Bracket Plates 2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via 4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts
|
| Optional Accessories |
VLA-C-SB Suspension Bar Kit for the array, includes 2 identical Suspension Bars (for top/bottom), 4 pcs ¾-inch Class 2 Screw Pin Shackles (must use 2 Shackles for each Suspension Bar, located at end channels, not in the center).
|
