Ertekin World of Sound

JBL Professional

AC115S

15" High Power Subwoofer

Marka:	JBL Professional
Ürün Kodu:	AC115S
Kategori:	Hoparlörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Frequency Range (-10 dB)	32 Hz - 250 Hz
Frequency Response (±3 dB)	40 Hz - 250 Hz
System Sensitivity (1w @ 1m)	94 dB
Nominal Impedance	8 ohms
Maximum SPL(1m)	120 dB (126 dB peak)
Power Rating (Continuous/Program/Peak)	400 W/800 W/1600 W

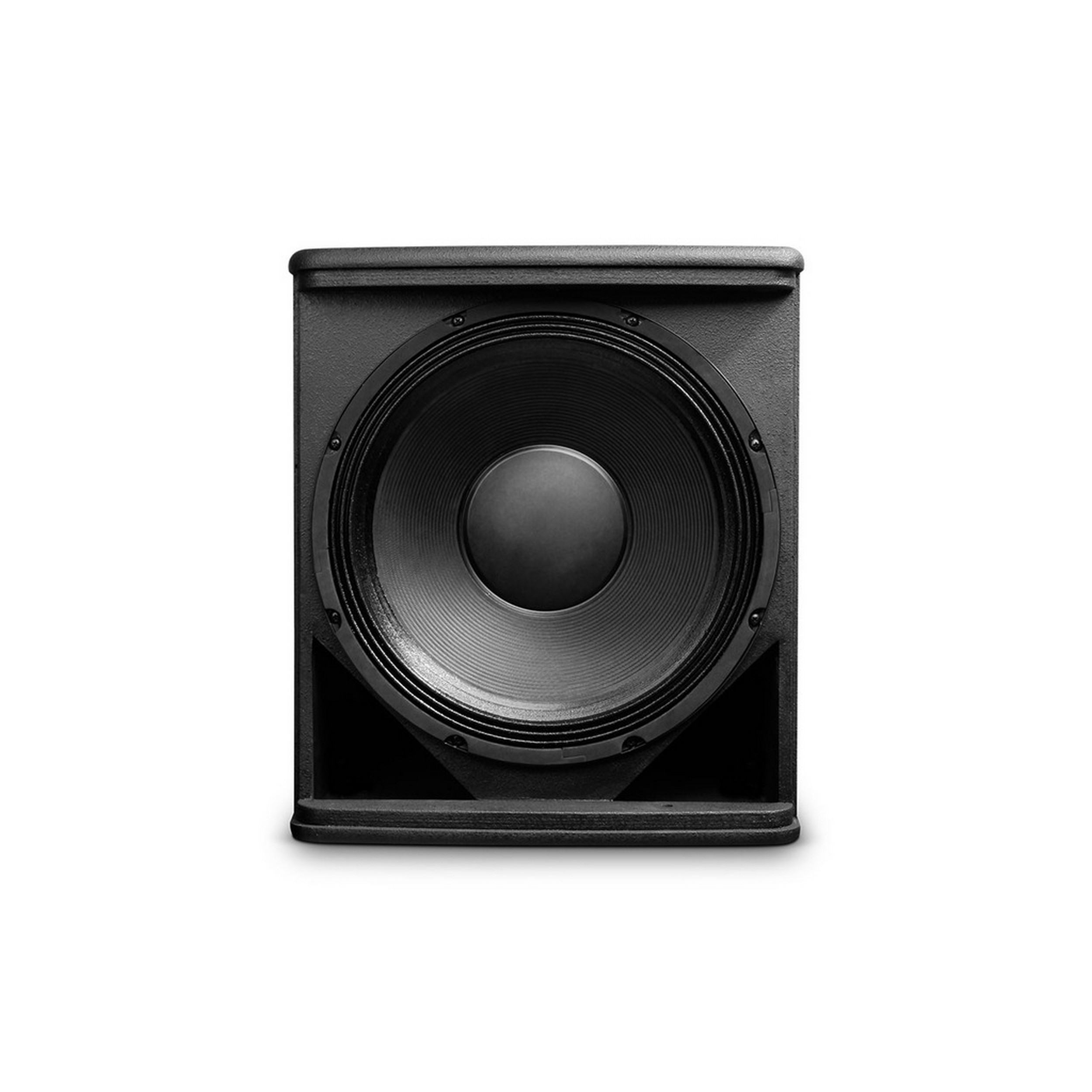

Low Frequency Driver	1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil

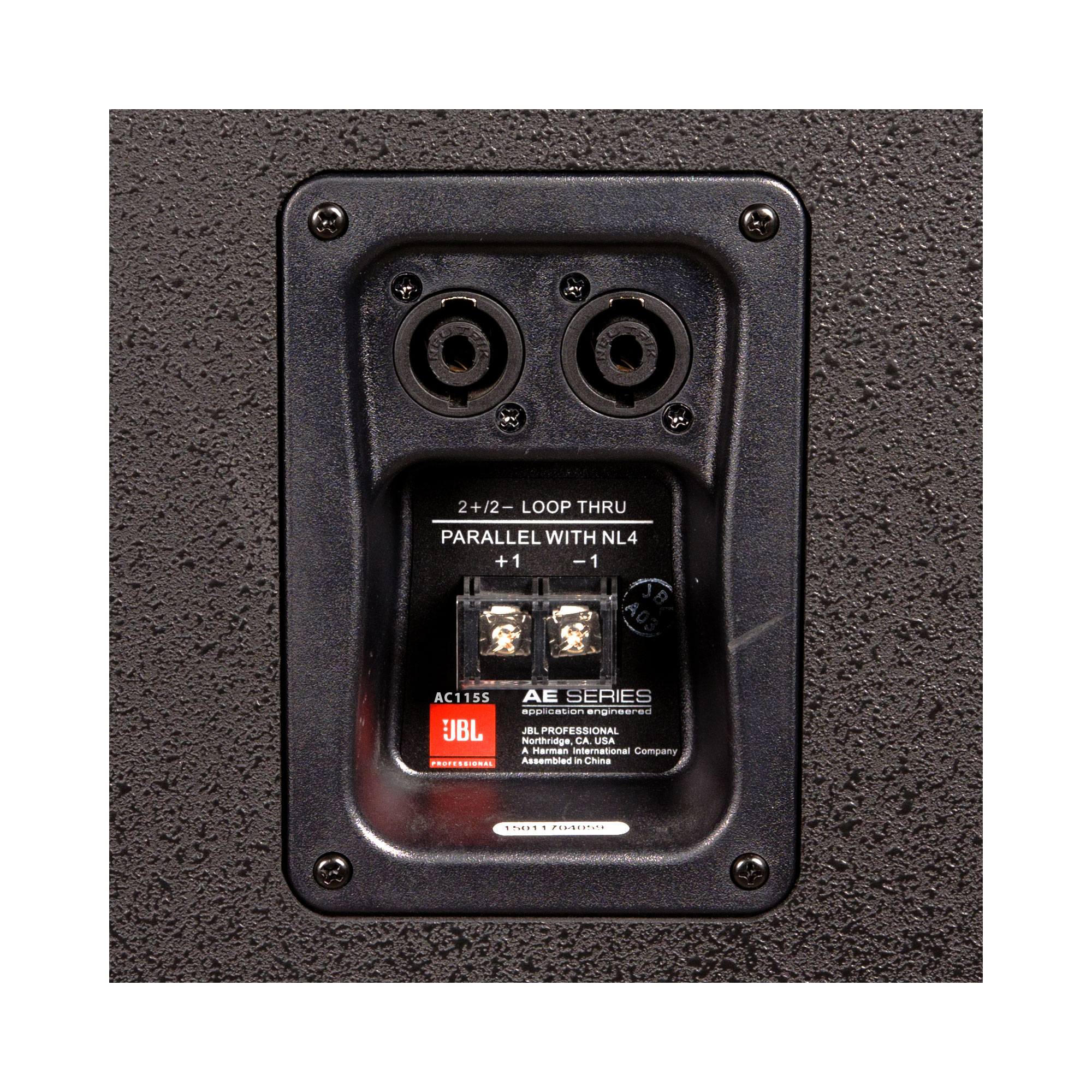

Input Connector	Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure Material	18 mm multi-ply hardwood plywood
Grille	Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish	Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting	12 x M10 threaded suspension points
Dimensions (H x W x D)	483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in
Net Weight	24 kg (52.9 lbs)

DETAYLAR

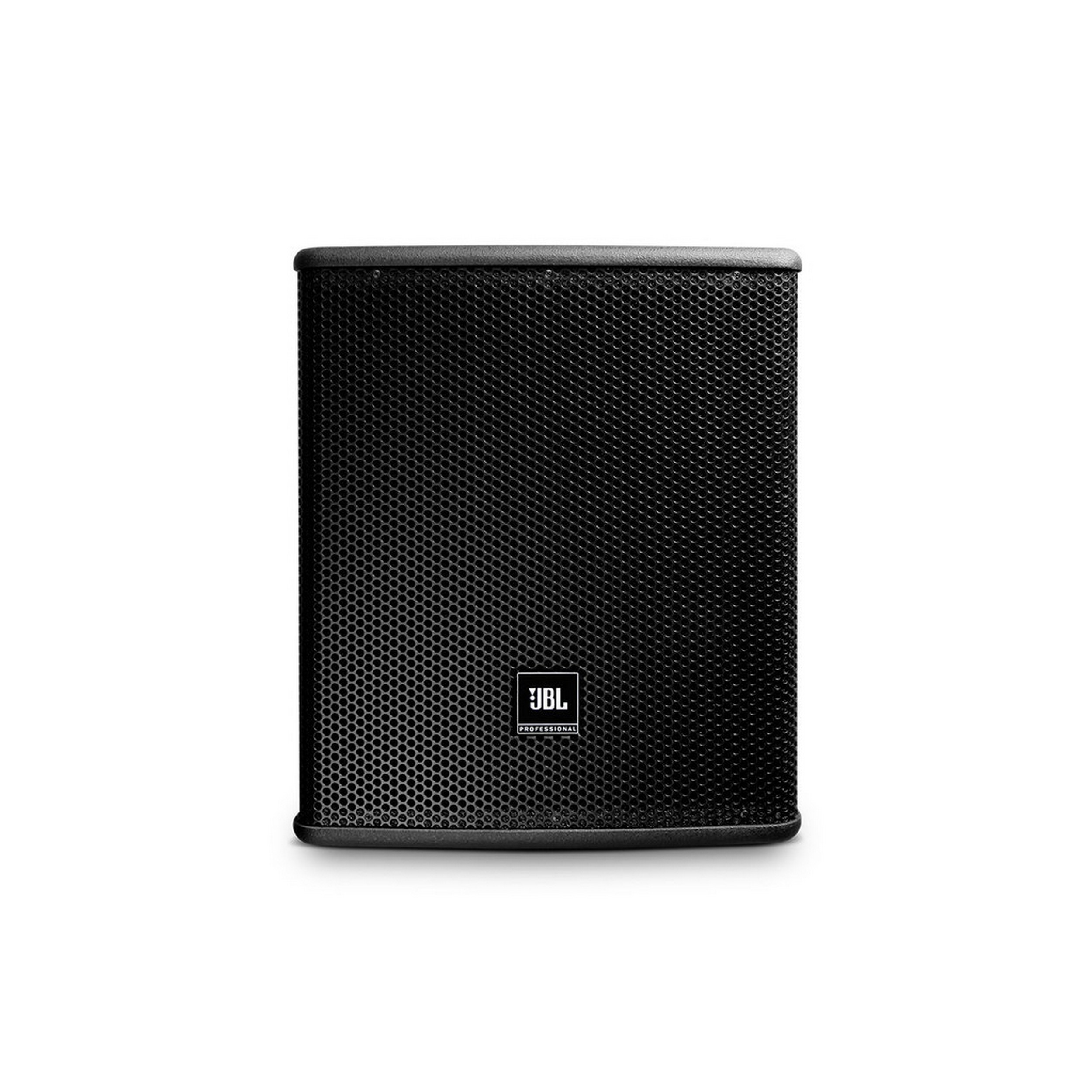

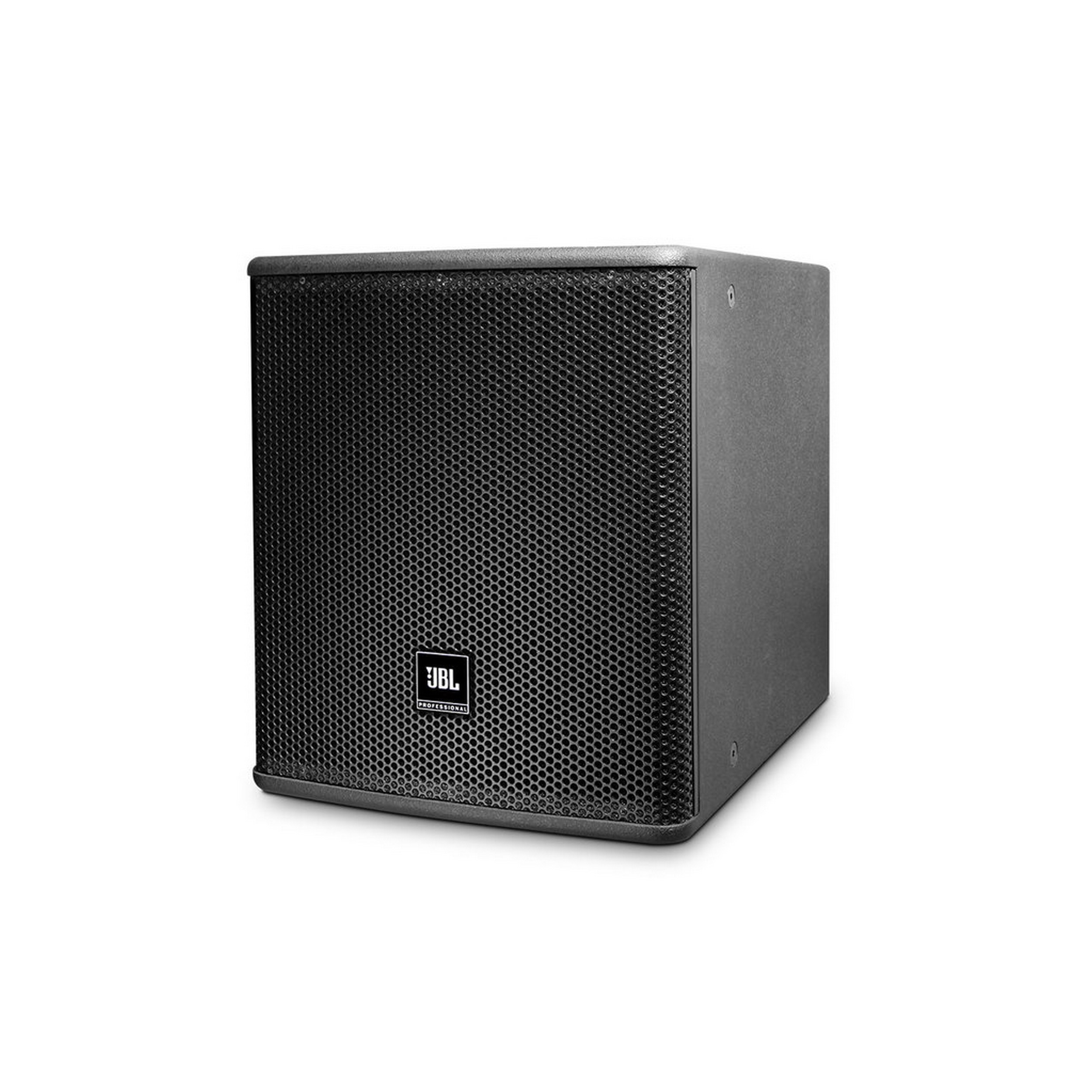

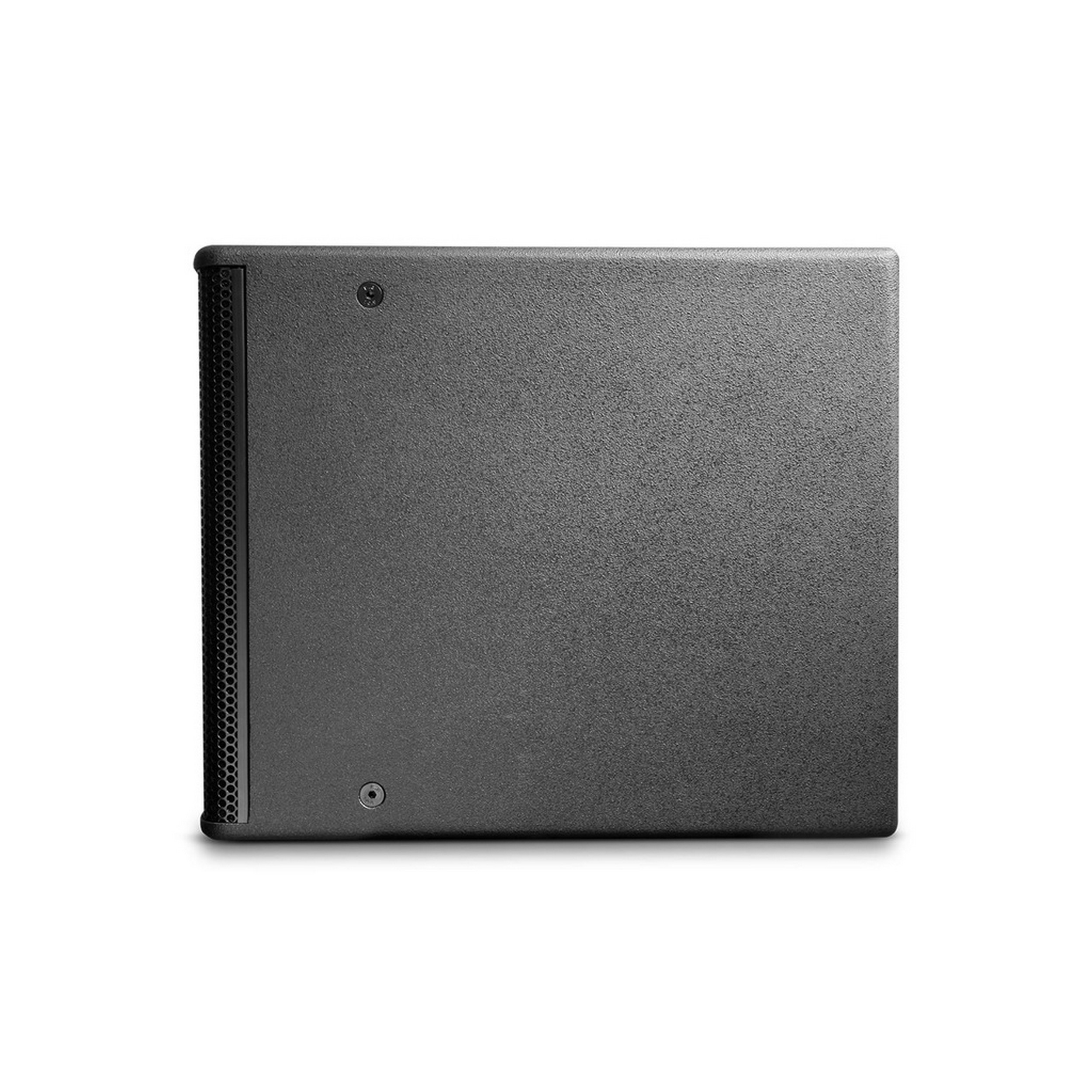

15" High Power Subwoofer System

AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.
