Ertekin World of Sound

JBL Professional

PD525S

Subwoofer Hoparlörler

Marka:	JBL Professional
Ürün Kodu:	PD525S
Kategori:	Hoparlörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Frequency Response (-10dB)	28 Hz to 3.8kHz
Frequency Response (±3 dB)	40 Hz to 1.1kHz
Transducer Power Ratings (AES)	2000 W (8000 W peak) 2 hrs
System Power Rating	TBD
Sensitivity (1W, 1m)	102 dB (avg 40-1kHz)
Maximum SPL (1m)	135 dB cont (141 dB peak)
Input Modes	Drivers Parallel/Drivers Discrete
Nominal Impedance	4 ohms in parallel-drive mode, 2 x 8 ohms in discrete drive mode
LF Driver	2 x JBL 2275H 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® drivers with 75 mm (3 in) voice coils.
Enclosure	Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
Suspension Attachment	20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish	Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions	WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.

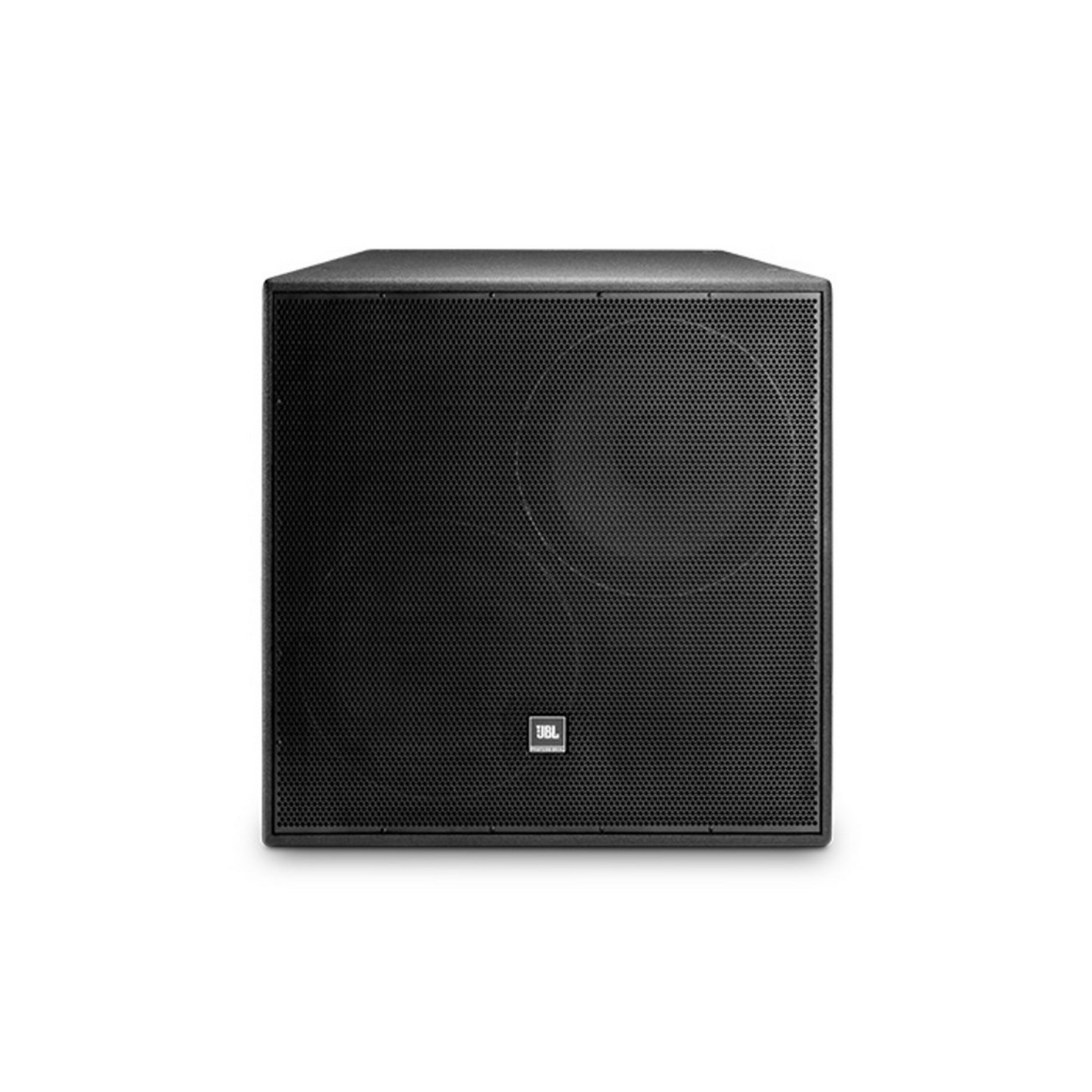

Grille	Powder coated 14 gauge perforated steel, acoustically transparent backing
Input Connectors	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental	Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation)	782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
Net Weight	53.4 kg (118 lb)
Optional Accessories	229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.

DETAYLAR

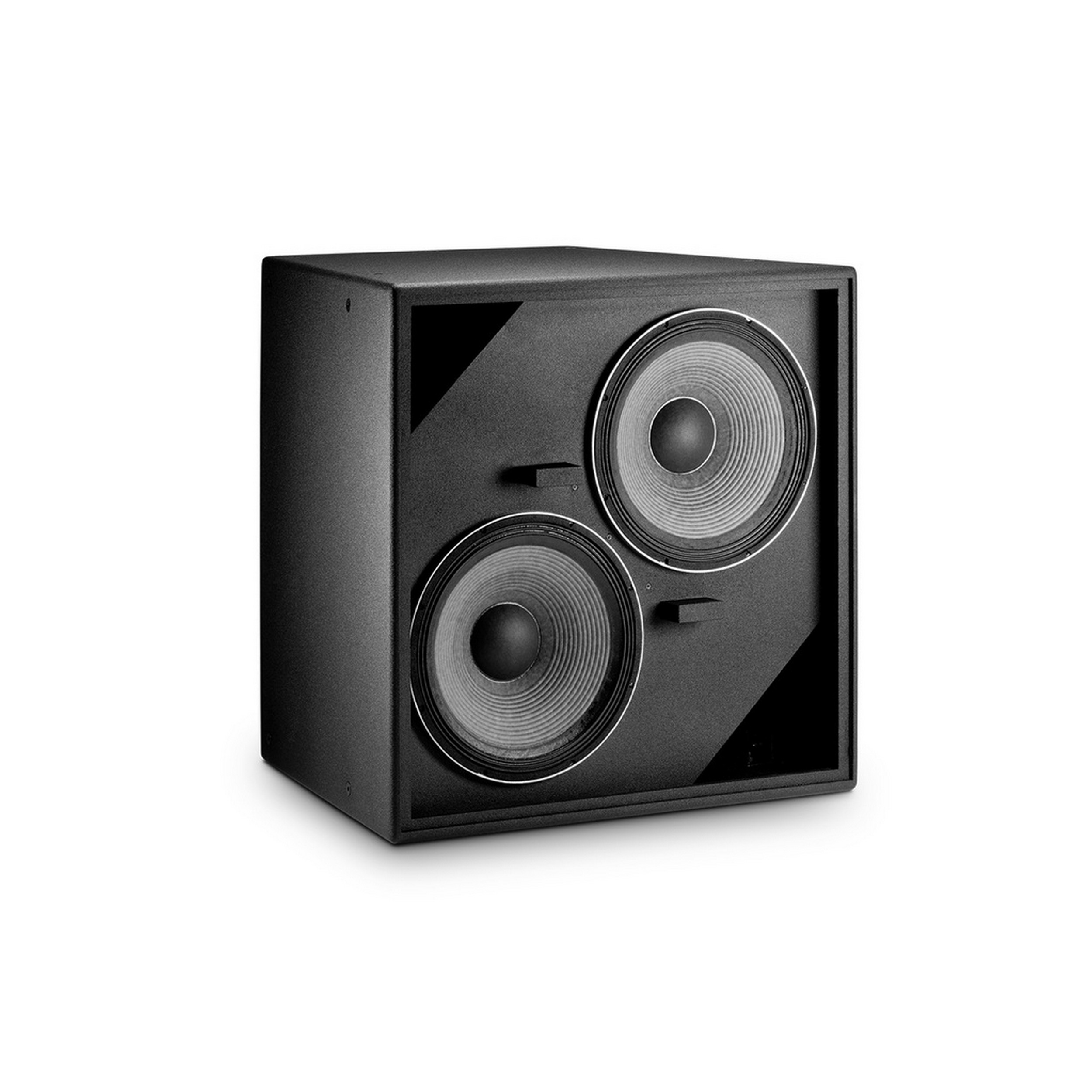

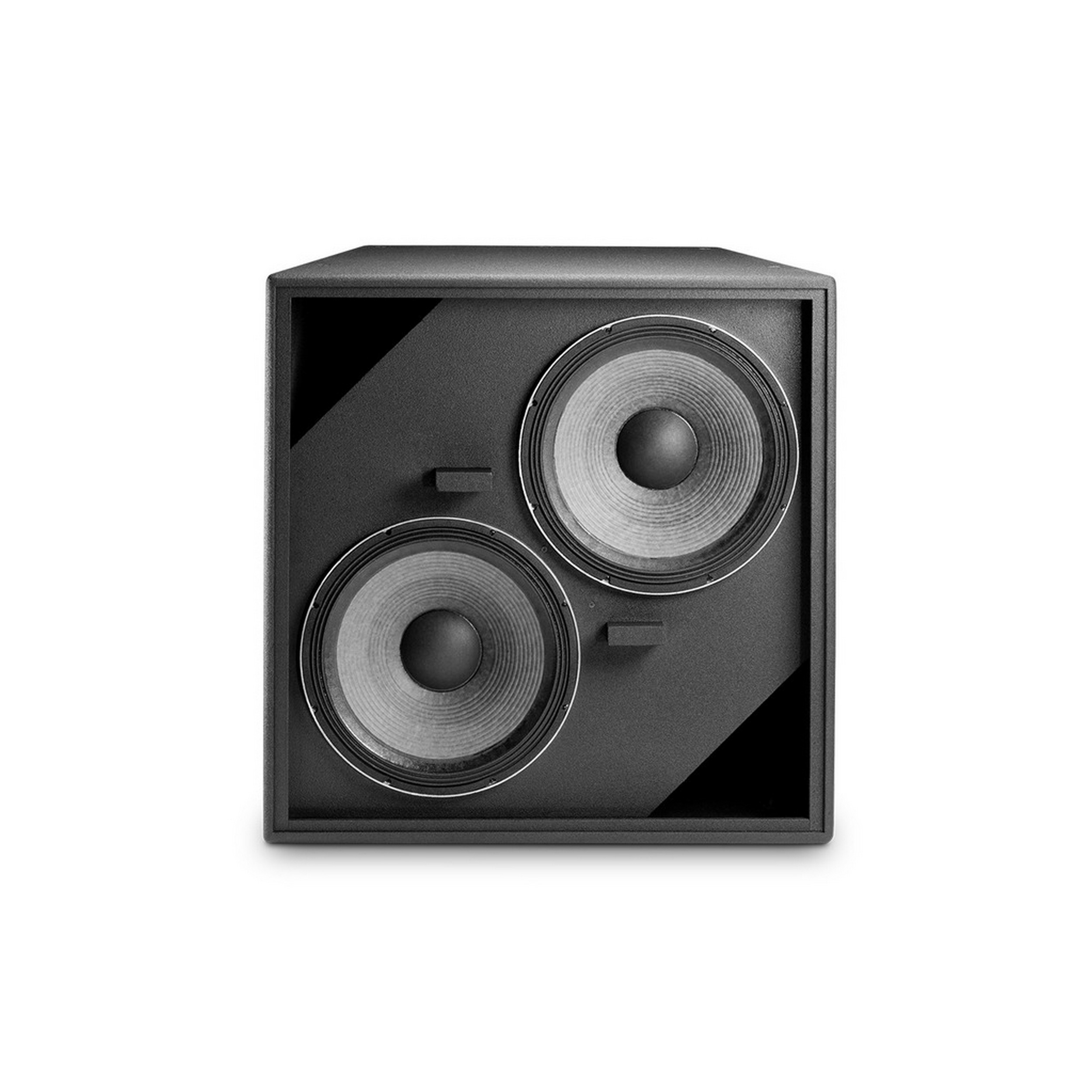

High Output, Dual 15" Low-Frequency / Subwoofer Loudspeaker

The PD525S is a high power low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points.
