| Drivers |
Eight (8) 130 mm (5 in) LF drivers Sixteen (16) 25 mm (1 in) HF drivers
|
| Frequency Range (-10 dB) |
45 Hz – 20 kHz
|
| Coverage Angle |
Vertical (selectable via switch) Narrow Mode: 25° (2 kHz – 16 kHz) (±10°) Broad Mode: 45° (350 Hz – 16 kHz) (±10°) Horizontal 150° (500 Hz – 18 kHz, ±20°)
|
| Sensitivity (1W, 1m) |
Narrow: (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz – 8 kHz) (music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz – 18 kHz) Broad: (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 – 8 kHz) (music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz – 18 kHz)
|
| Impedance |
4 ohms
|
| Power Rating |
1000 W (4000 W peak), 2 hrs 700 W (2800 W peak), 100 hrs
|
| Rated Maximum SPL (1m) |
Narrow: (speech mode) 125 dB cont ave (131 peak) (music mode) 121 dB cont ave (127 peak) Broad: (speech mode) 124 dB cont ave (130 peak) (music mode) 120 dB cont ave (126 peak)
|
| Low Frequency Drivers |
8 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV and salt resistance, shielded.
|
| High Frequency Drivers |
16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
|
| Enclosure |
Fiberglass-reinforced ABS cabinet, painted aluminum grille.
|
| Outdoor Capability |
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
|
| Color |
Black or white (-WH)
|
| Insert Points |
20 insert points total, 8 utilized for coupler plate, M6 (16 mm deep) on back panel
|
| Mounting |

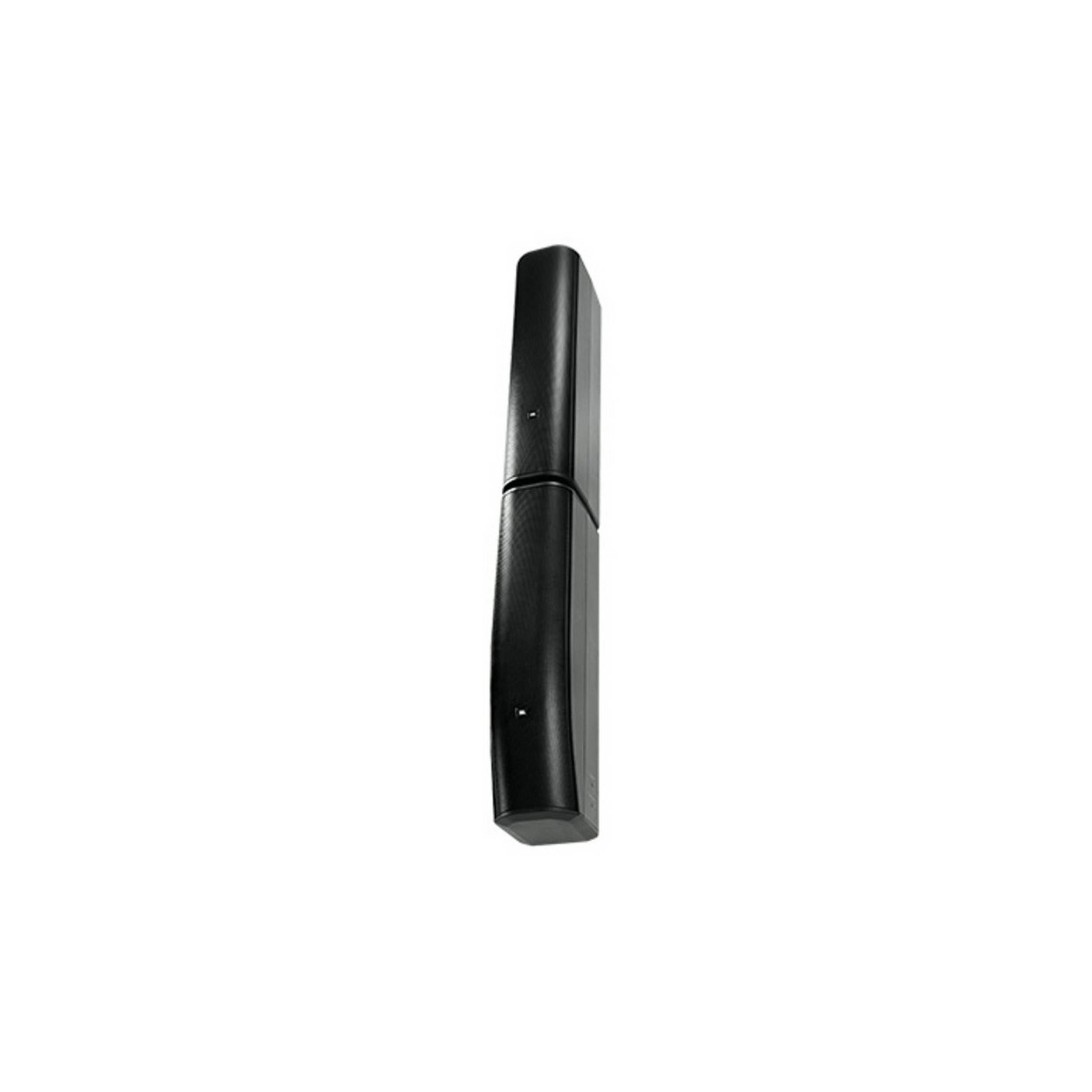

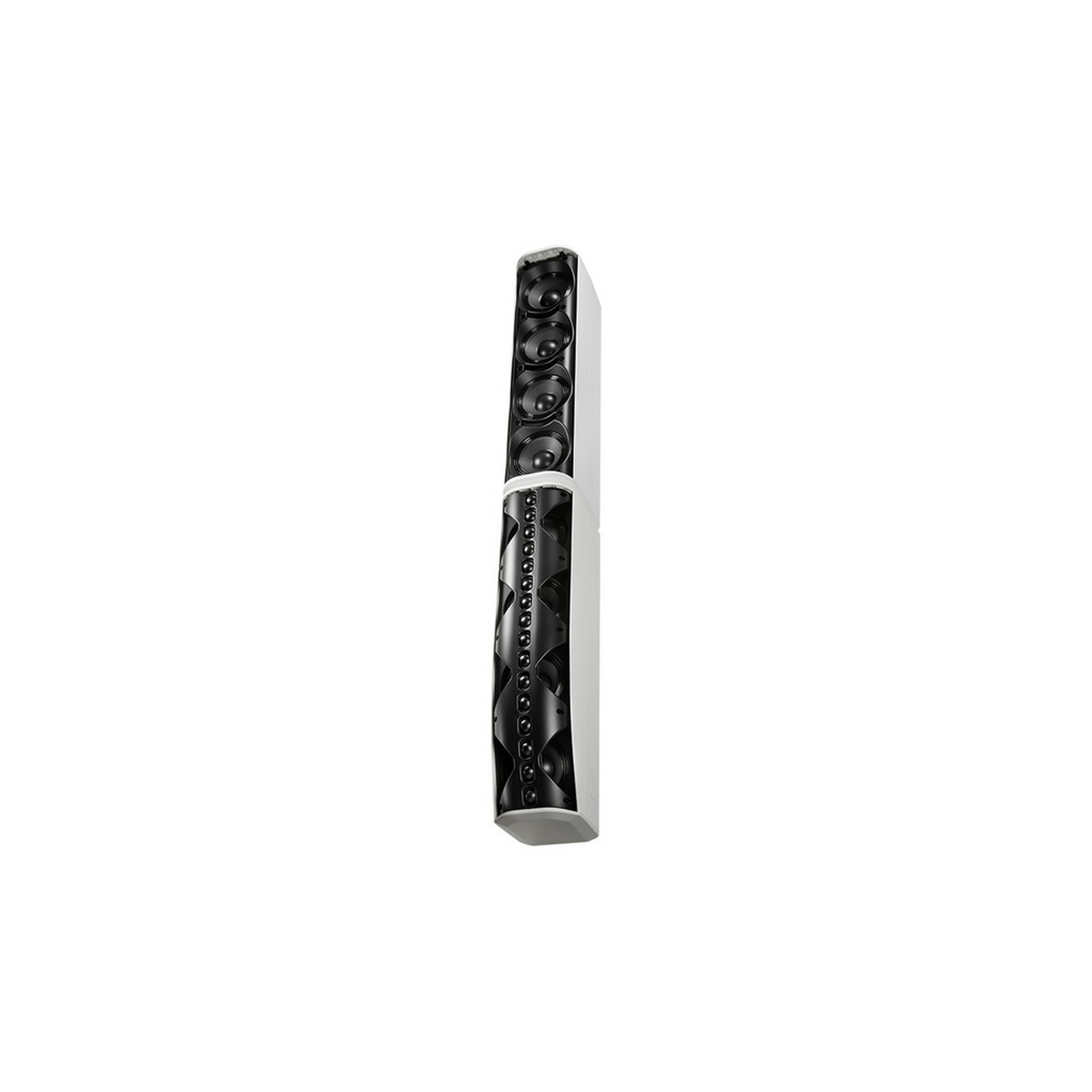

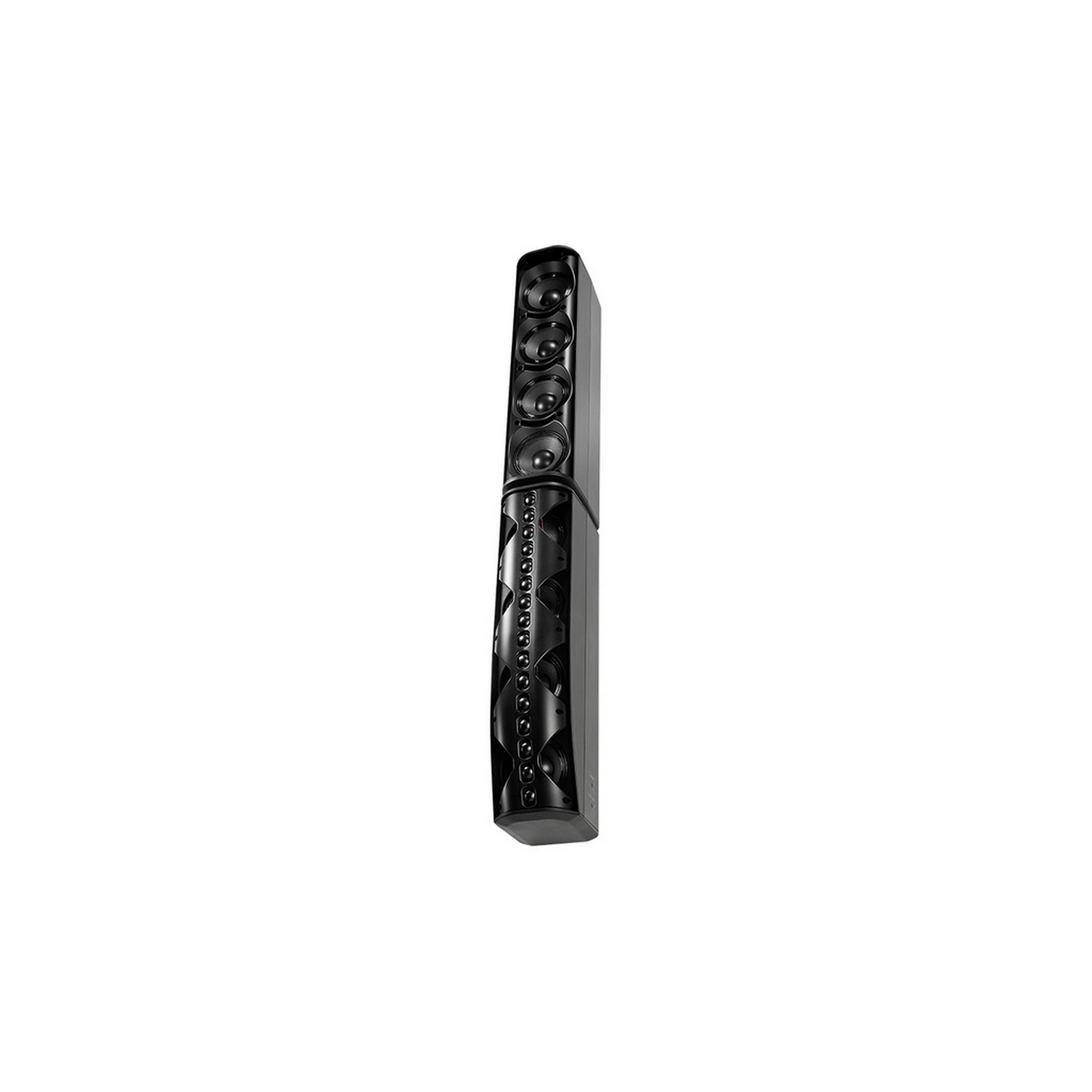

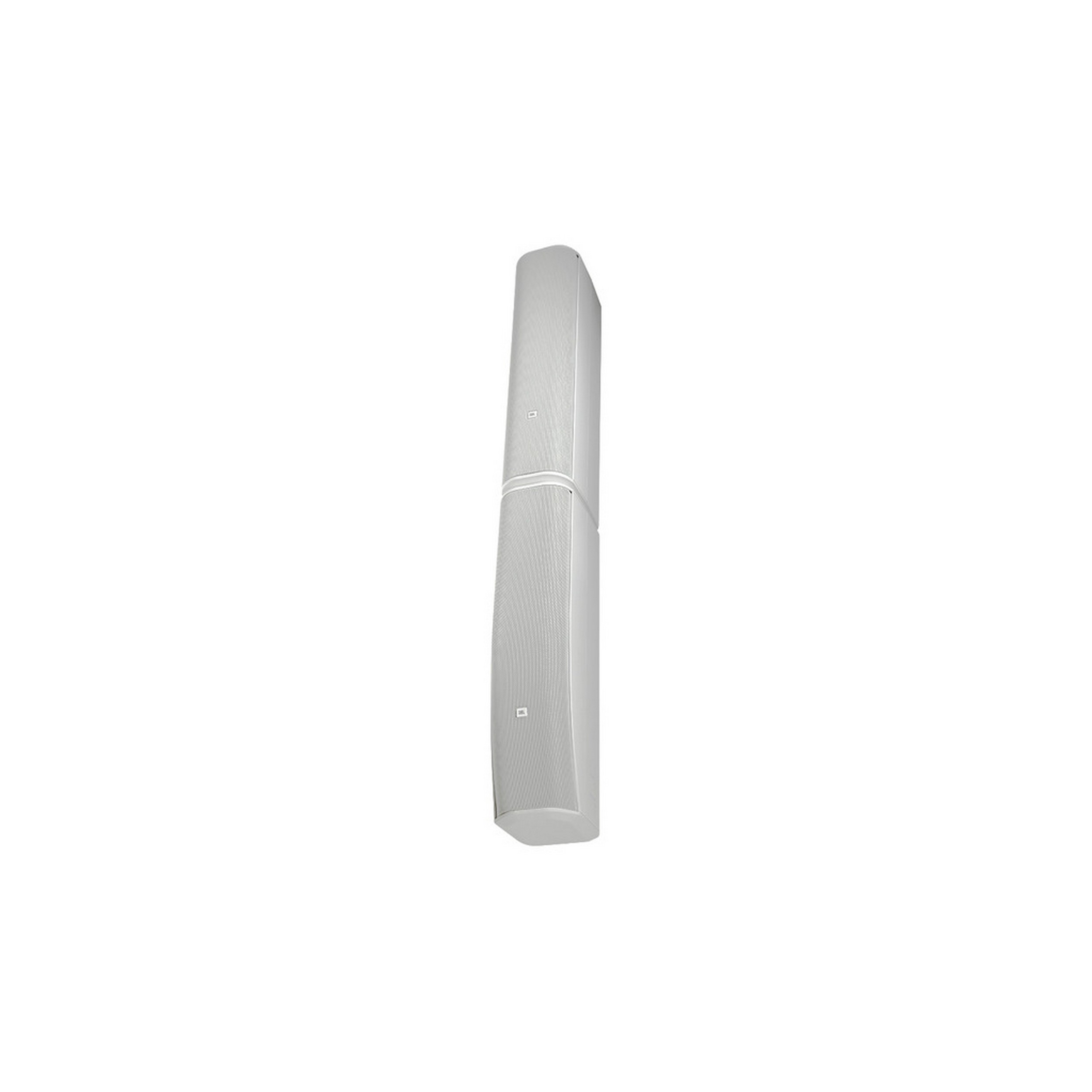

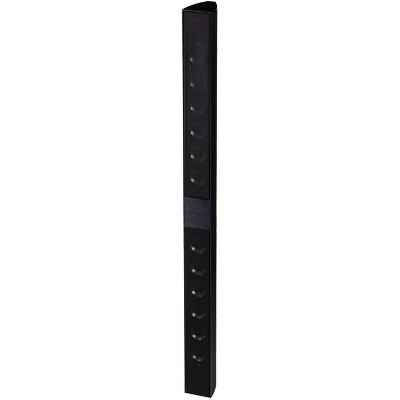

Coupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount™ 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.
|
| Dimensions (H x W x D) |
1388 x 170 x 237 mm(54.8 x 6.7 x 9.3 in)
|
| Net Weight |
20.4 kg (45 lb)
|
| Included Accessories |
Coupler plate (included with 70JE-1) Swivel (pan) / tilt wall bracket (included with 70J-1)
|
| Optional Accessories |
MTC-PC2 terminal panel cover MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand (must be heavy-duty stand for stability with this array) MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
|
| Components - 70JE-1 |
Four (4) 130 mm (5 in) LF drivers
|
| Frequency Range (-10 dB) - 70JE-1 |
45 Hz – 700 Hz
|
| Sensitivity (2.83V @ 1m) - 70JE-1 |
90 dB full space, 96 dB half-space (65 Hz - 300 Hz)
|
| Nominal Impedance - 70JE-1 |
8 ohms
|
| Power Capacity - 70JE-1 |
500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs
|
| Max SPL - 70JE-1 |
117 dB
|
| Net Weight - 70JE-1 |
8.2 kg (18 lb)
|
