JBL Professional

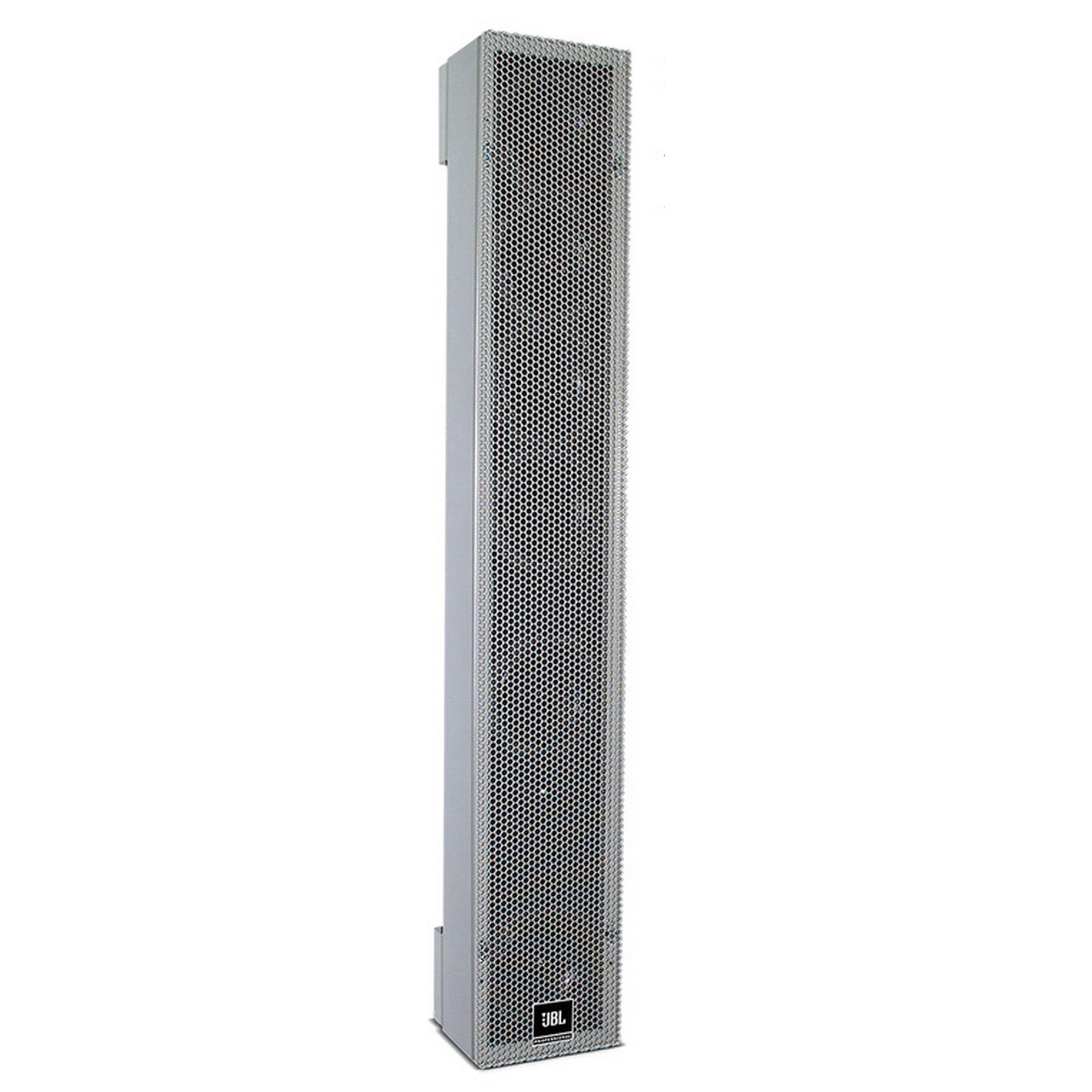

ADC-V90-MARK-II

Sütun Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 220 - 10k Hz (+/-3 dB) 120 - 12k Hz (-10 dB)
Sensitivity (1 W / 4 m) 80 dBSPL
Maximum SPL (100 W / 4 m) 100 dBSPL
Coverage - Horizontal 130º (-6 dB)
Coverage - Vertical 30º (-6 dB)
Coverage - Steering Angle Vertical -4º
Coverage - Typical Throw 15 m
Rated Impedence (100 W tap) 100 Ω
Rated Impedence (50 W tap) 200 Ω
Rated Impedence (25 W tap) 400 Ω
Rated Noise Power 100 Wrms(100 W tap)
Rated Noise Voltage 100 Vrms
Control switches (Tap setting) 100 W / 50 W / 25 W
Control switches (Highpass filter) HPF active / Flat
Control switches (Correction EQ) EQ active / Flat
Pilot tone detection (Indicator) Green LED on front
Pilot tone detection (Frequency range) 20k - 23k Hz
Pilot tone detection (Minimum level) 6 Vrms
Suggested amplifiers JBL 100 V IndustryAmp series
Material Steel, powder coated
Mounting Points 4 x M5 left and 4 x M5 right
Dimension (H x W x D) 865 x 134 x 92 mm (34.1” x 5.3” x 3.6”)
Standard Colours (Enclosure and grill) RAL 9007 (grey) or RAL 9010 (white)
Standard Colours (Speaker baffle) RAL 9011 (black)
Weight 10 kg (22 lbs)
Impedance 100 W tap : 100 Ω
50 W tap : 200 Ω
25 W tap : 400 Ω
Rated Maximum SPL (1m) 92 dBSPL (100 W tap / HPF flat / EQ flat)
89 dBSPL (100 W tap / HPF active / EQ active)
Drivers 6 x 4” full range
Transformer Taps 100 W, 50 W, 25 W (100v only)
Enclosure Steel, powder coated
Outdoor Capability EN 54-24 Type B (outdoor)
Colors Enclosure and grill : RAL 9007 (grey), applies to part number 576125 : RAL 9010 (white), applies to part number 577125 : Custom color, applies to part number 577135
Speaker baffle : RAL 9011 (black), applies to all part numbers
Optional Accessories Multiple optional accessories available. Please see spec sheet or your local dealer for more info.
DETAYLAR
DETAYLAR
To improve intelligibility, the Model V90, utilises a preset vertical opening angle with a -4º steering angle to accurately cover the listening plane when mounted flat to a vertical surface. This results in a reduction of incoherent reflections from the mounting surface.

An additional advantage of vertical or even recessed mounting is that the Model V90 becomes architecturally unobtrusive.

Applications

  • Transport Hubs
  • Places of Worship
  • Atriums
  • Shopping Centers
  • Any reverberant space where high quality speech reproduction is required
