JBL Professional

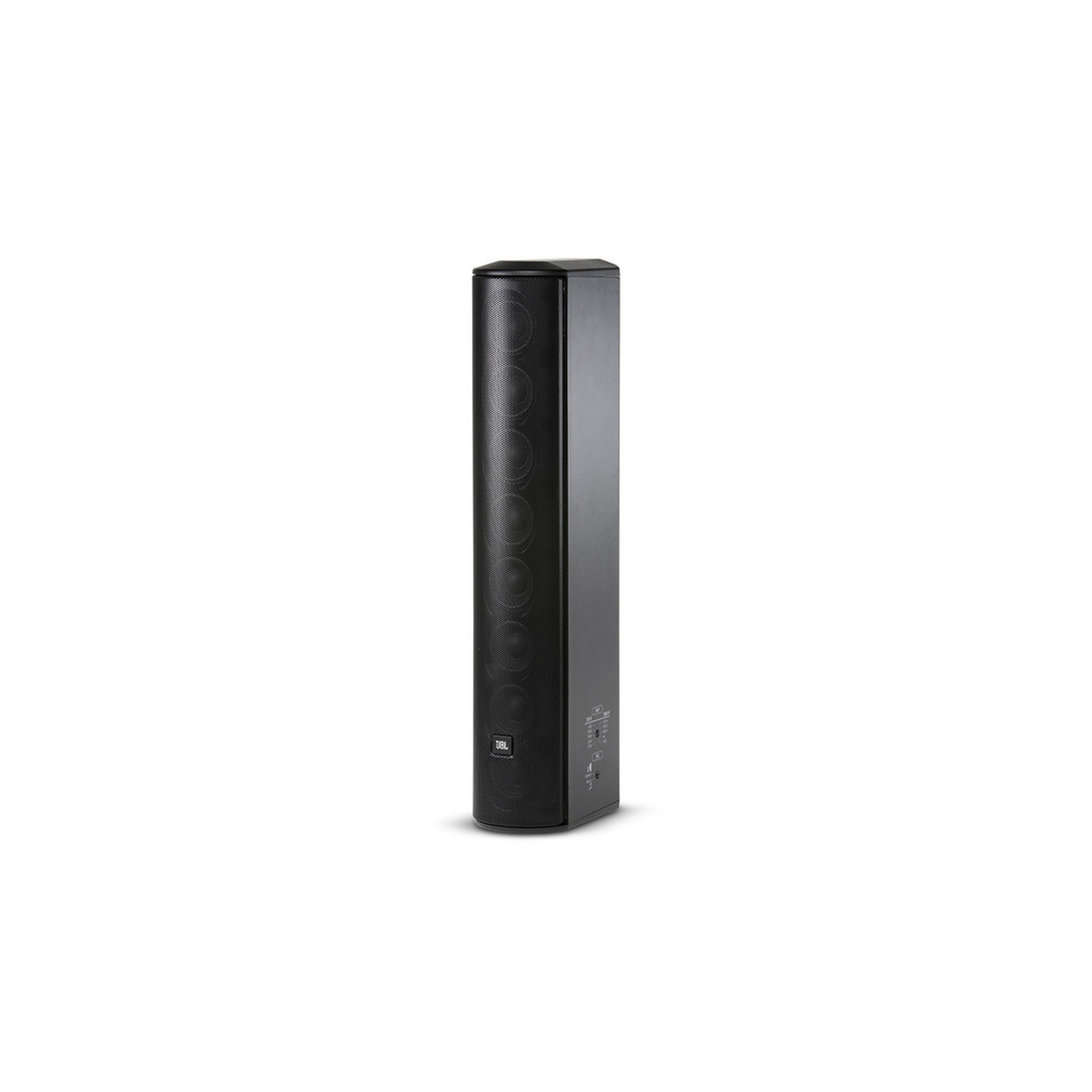

CBT-50LA-LS

Sütun Hoparlörler

Marka:	JBL Professional
Ürün Kodu:	CBT-50LA-LS
Kategori:	Hoparlörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

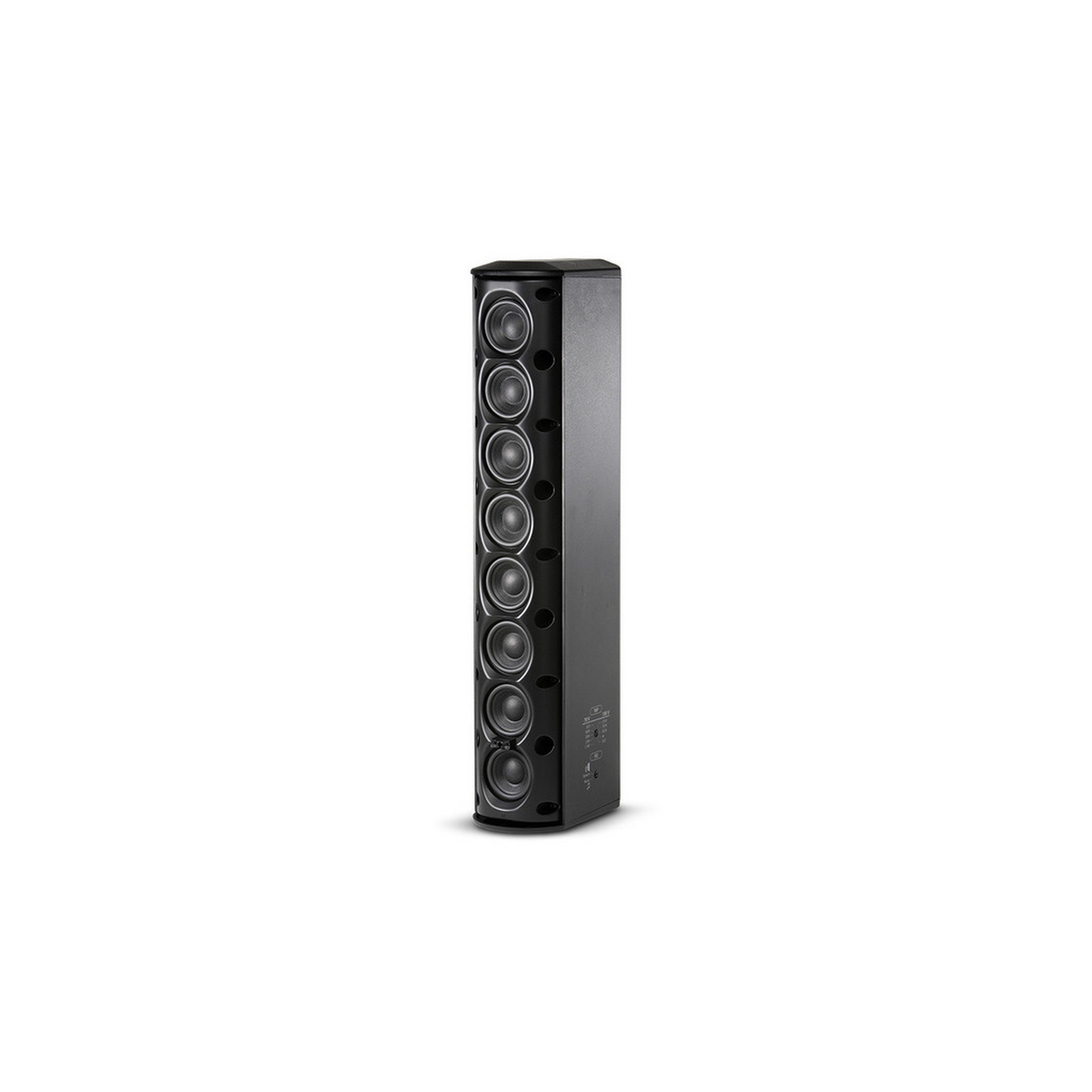

Drivers	Eight 50 mm(2 in) Full-Range
Frequency Range (-10 dB)	120 Hz – 20 kHz
Coverage Angle	Vertical 20° (1.5 kHz - 16 kHz, ±10°) Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (1W, 1m)	93 dB (speech mode, 2 kHz - 14 kHz) 89 dB (music mode, 300 Hz - 18 kHz)
Impedance	8 ohms
Power Rating	150W (600W peak), 2 hrs100 W (400W peak), 100 hrs
Rated Maximum SPL (1m)	Speech mode: 115 dB cont ave (121 peak)Music mode: 111 dB cont ave (117 peak)

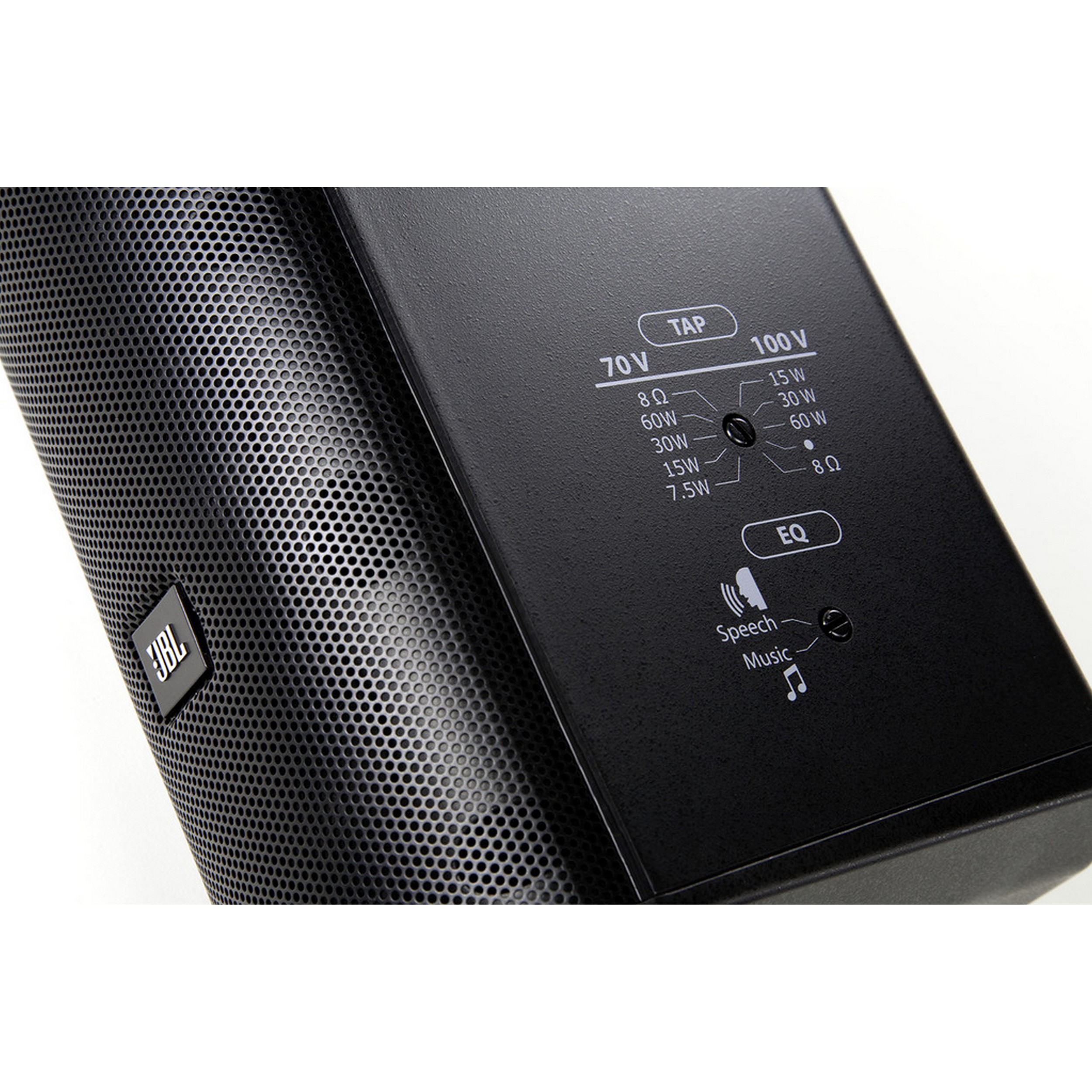

Transformer Taps	60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)
Insert Points	Ten M6 insert points on back panel.
Mounting	Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Safety Agency Rating	EN54-24:2008 certified (Certificate No. 0359-CPR-00238), when installed with MTC-PC2 terminal panel cover. In accordance with the requirements of IEC60849/EN60849.
Dimensions (H x W x D)	528 x 99 x 153 mm(20.8 x 3.9 x 6.0 in)
Net Weight	4.1 kg (9.0 lb)
Included Accessories	Swivel (pan) / tilt wall bracketMTC-PC2 terminal panel cover
Optional Accessories	MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand

DETAYLAR

Line Array Column Loudspeaker with with Eight 50 mm (2 in) Drivers and EN54:24 Certification

The CBT 50LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beamforming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.
