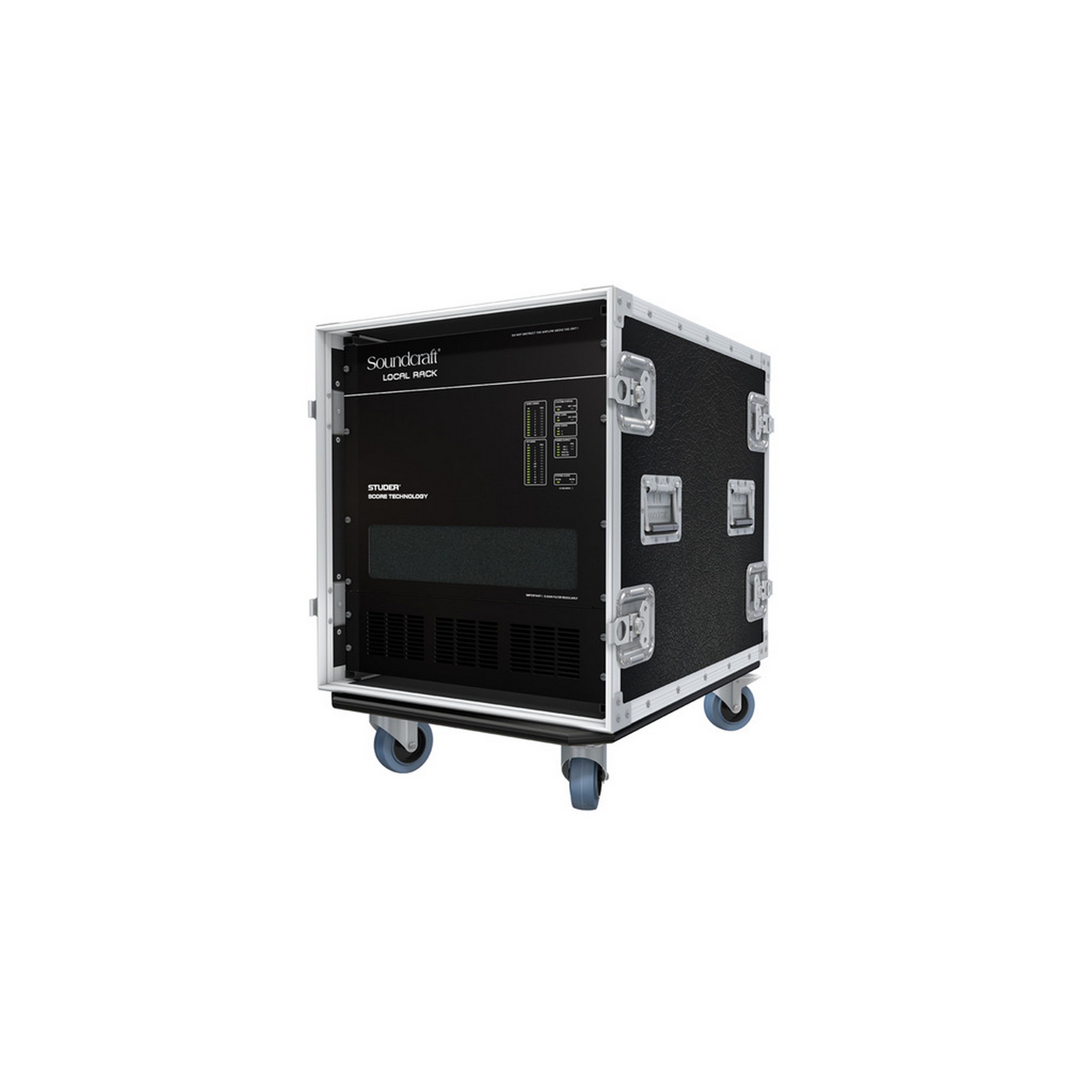

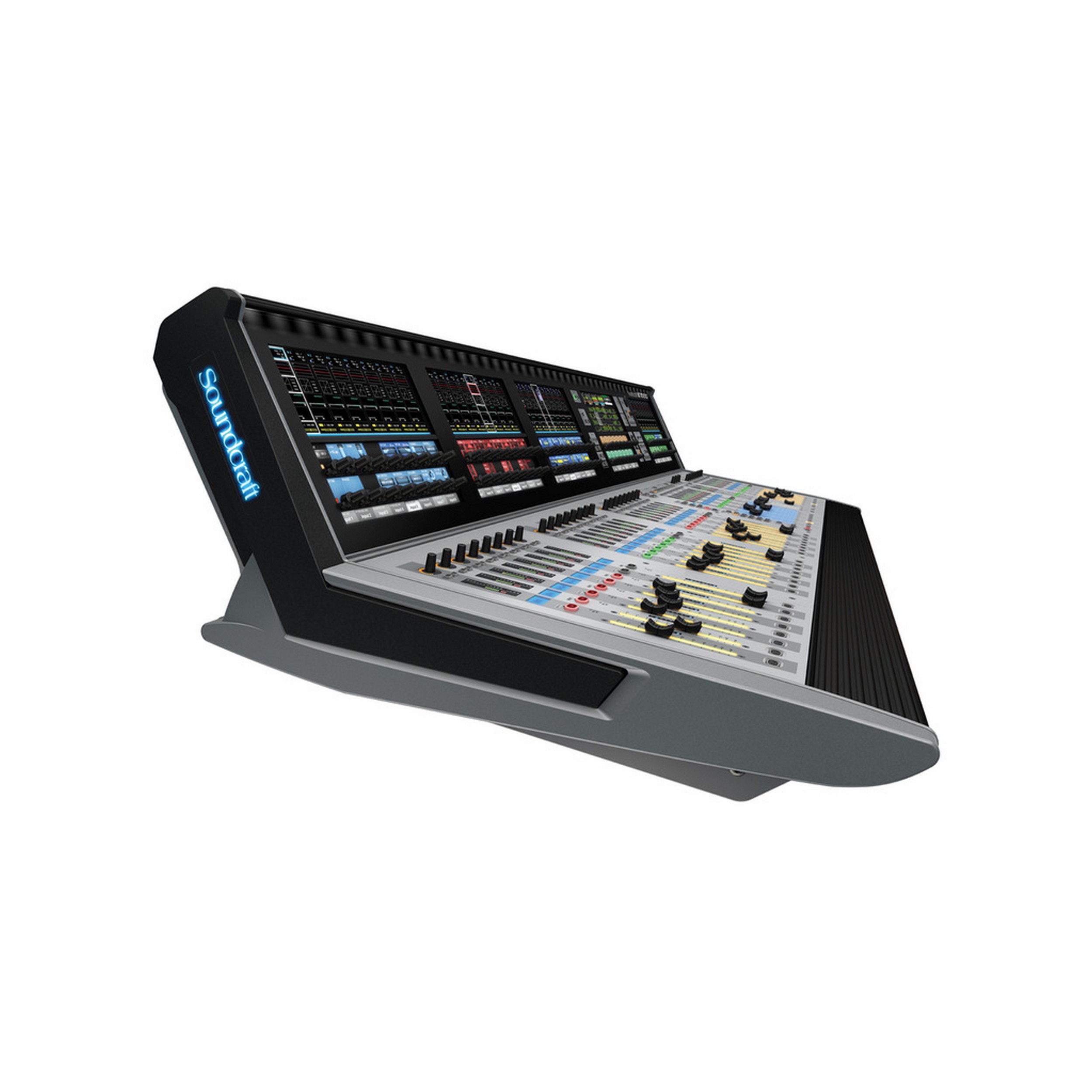

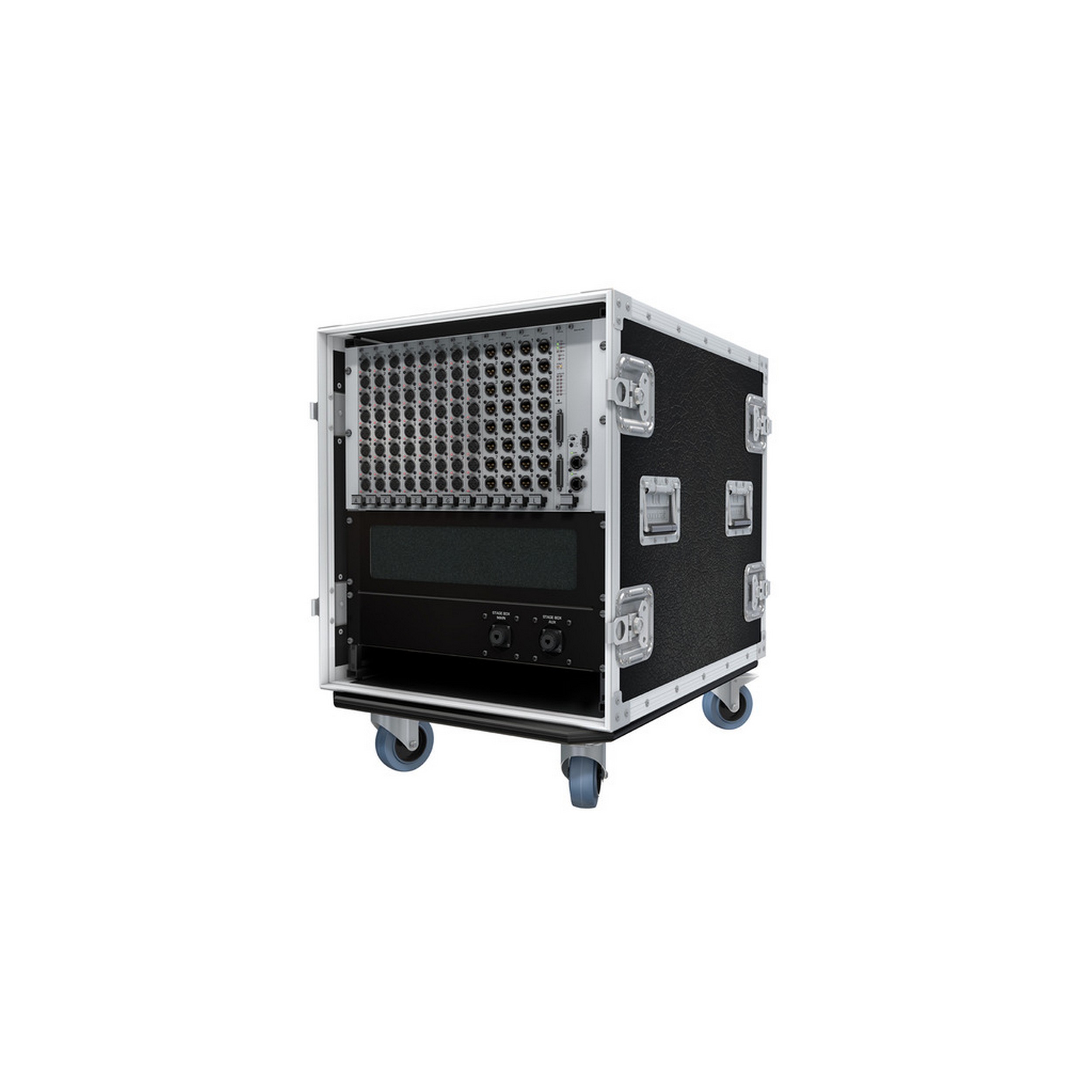

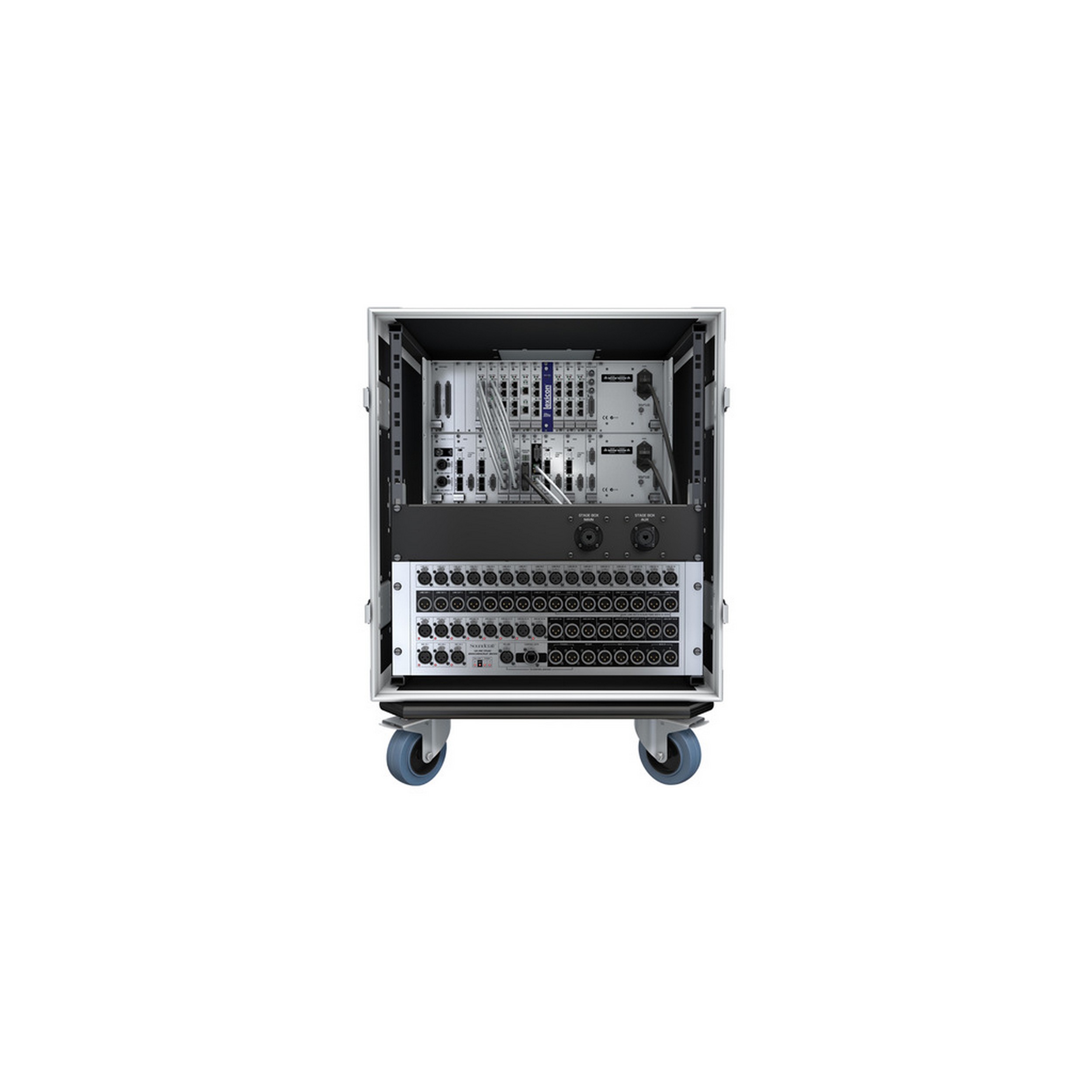

| Frequency Response - Stagebox Mic input to Line output |
+0/-1dB, 20Hz-20kHz
|
| AES/EBU In to AES/EBU Out |
+0/-0.2dB, 20Hz-20kHz
|
| Stagebox Mic In (min gain) to Local Line Out |
<0.003% @ 1kHz
|
| Stagebox Mic In (max gain) to Local Line Out |
<0.020% @ 1kHz
|
| Local Line In to Line Out |
<0.003% @ 1kHz
|
| Mic Input E.I.N |
<-126dBu (150Ω source)
|
| Residual Noise |
-91dBu Stagebox line output; no inputs routed, Mix fader @0dB
|
| CMRR, Stagebox Mic input |
80dB @ 1kHz
|
| Sampling Frequency |
48kHz or 96kHz
|
| Latency: Stagebox Mic Input to Local Line output |
<2ms @48kHz
|
| AES/EBU Input Sample Rate |
32–108kHz (with SRC enabled)
|
| DSP Resolution |
40-bit floating point
|
| Internal Clock Accuracy |
<+/-50ppm
|
| Internal Clock Jitter |
<+/-5ns
|
| External Sync |
BNC Wordclock
|
| Input & Output Levels - Mic Inputs |
+28dBu max
|
| Input & Output Levels - Line Inputs |
+22dBu max
|
| Input & Output Levels - Line Outputs |
+22dBu max
|
| Nominal Operating Level |
+4dBu (-18dBFS)
|
| Input & Output Impedances - Mic Inputs |
10kΩ
|
| Input & Output Impedances - All other analogue Inputs |
>10kΩ
|
| Input & Output Impedances - Line Outputs |
<75Ω
|
| Input & Output Impedances - AES/EBU Outputs |
110Ω
|
| Oscillator |
20Hz to 20kHz/Pink/White Noise, variable level
|
| Stagebox HP Filter |
80Hz fixed, 12dB per octave
|
| Channel HP filter |
20Hz-600Hz, 18dB per octave
|
| Channel LP filter |
1kHz-20kHz, 18dB per octave
|
| EQ (Inputs and Bus Outputs) - HF |
20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
|
| EQ (Inputs and Bus Outputs) - Hi-Mid |
20Hz-20kHz, +/-18dB, Q=0.3-8.7
|
| EQ (Inputs and Bus Outputs) - Lo-Mid |
20Hz-20kHz, +/-18dB, Q=0.3-8.7
|
| EQ (Inputs and Bus Outputs) - LF |
20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
|
| Metering |
Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
|
| Mains Voltage Operating Range |
90-264V, 47-63Hz, autoranging
|
| Mains Power Consumption |
300W
|
| Operating Temperature |
0°C – 45°C (32°F – 113°F)
|
| Relative Humidity |
0% – 90%, non-condensing Ta=40°C (104°F)
|
| Storage Temperature |
-20°C – 60°C (-4°F – 140°F)
|
