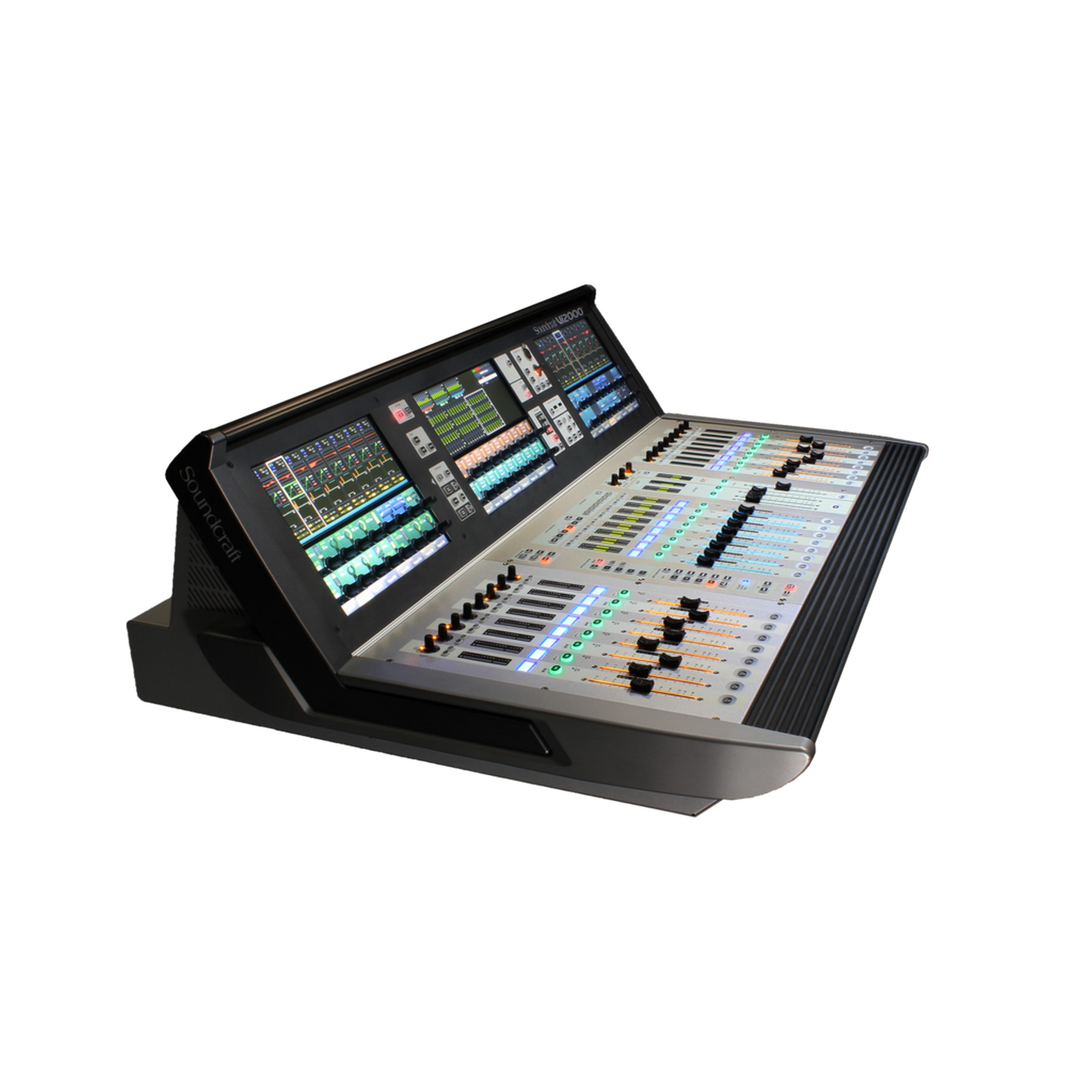

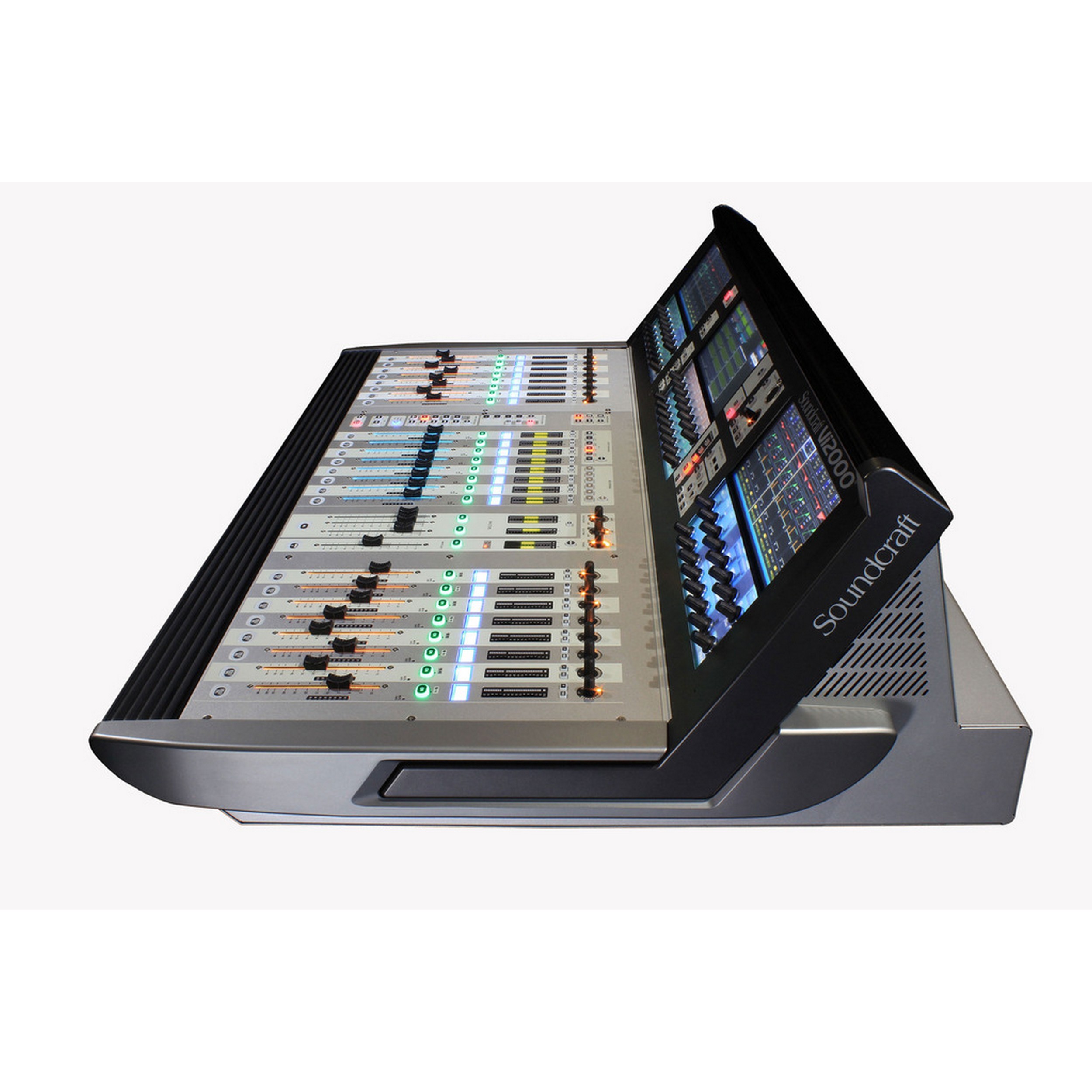

VI2000

48 Giriş 16 Çıkışlı Dijital Mixer

Marka:	Soundcraft
Ürün Kodu:	VI2000
Kategori:	Ses Mikserleri ve Preamfiler
Barkod:	688705001623

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Frequency Response - Stagebox Mic input to Line output	+0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out	+0/-0.2dB, 20Hz-20kHz
THD+Noise	22Hz-22kHz
Stagebox Mic In (min gain) to Local Line Out	<0.003% @ 1kHz
Stagebox Mic In (max gain) to Local Line Out	<0.020% @ 1kHz
Local Line In to Line Out	<0.003% @ 1kHz
Mic Input E.I.N	<-126dBu (150Ω source)
Residual Noise	-91dBu Stagebox line output; no inputs routed, Mix fader @0dB
CMRR, Stagebox Mic input	80dB @ 1kHz
Sampling Frequency	48kHz
Latency: Stagebox Mic Input to Local Line output	< 2ms @48kHz
AES/EBU Input Sample Rate	32-108kHz (with SRC enabled)
DSP Resolution	40-bit floating point
Internal Clock Accuracy	< +/- 50ppm
Internal Clock Jitter	< +/- 2ns
External Sync	BNC Wordclock
Input & Output Levels - Mic Inputs	+28dBu max
Input & Output Levels - Line Inputs	+22dBu max
Input & Output Levels - Line Outputs	+22dBu max
Nominal Operating Level	+4dBu (-18dBFS)
Input & Output Impedances - Mic Inputs	2k7Ω
Input & Output Impedances - All other analogue Inputs	>10kΩ
Input & Output Impedances - Line Outputs	<75Ω
Input & Output Impedances - AES/EBU Outputs	110Ω
Oscillator	20Hz to 20kHz/Pink/White Noise, variable level
Oscillator - Stagebox HP Filter	80Hz fixed, 12dB per octave
Oscillator - Channel HP Filter	20Hz-600Hz, 18dB per octave
Oscillator - Channel LP Filter	1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF	20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid	20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid	20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF	20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
Metering	Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Power Consumption	250W
Temperature/Humidity Range - Operating Temperature Range	0°C to 45°C (32°F to 113°F)
Temperature/Humidity Range - Relative Humidity	0% - 90%, non-condensing Ta=40°C (104°F)
Temperature/Humidity Range - Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
Height (Console Only)	351mm (13.8")
Width (Console Only)	1155mm (45.5")
Depth (Console Only)	803mm (31.6")
Weight (Console Only)	45.2kg (99.6lb)
Height (with standard shipping carton)	610mm (24")
Width (with standard shipping carton)	1280mm (50.4")
Depth (with standard shipping carton)	950mm (37.4")
Weight (with standard shipping carton)	61kg (134.5lb)

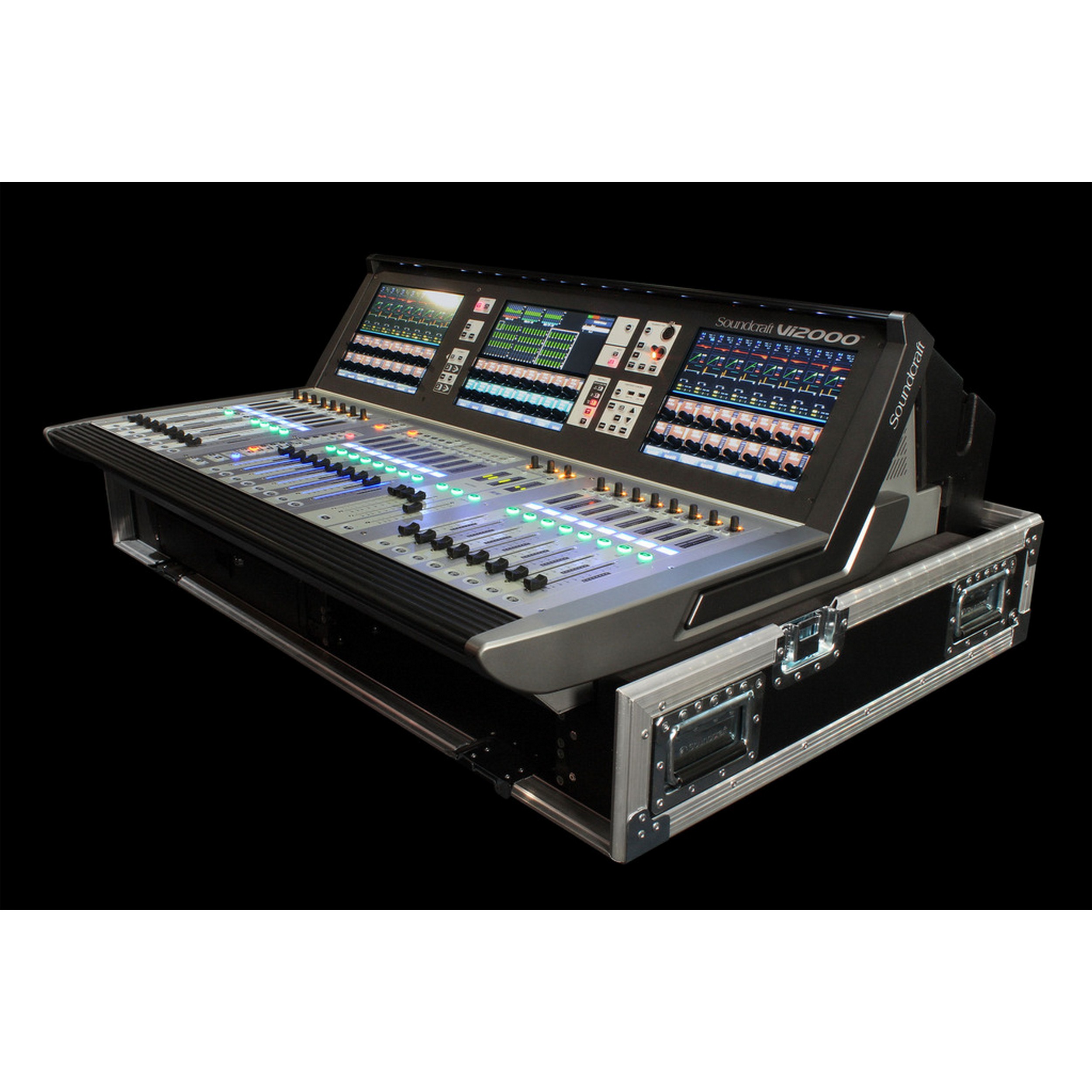

Height (with factory flightcase)	1121mm (44.1")
Width (with factory flightcase)	1243mm (48.9")
Depth (with factory flightcase)	517mm (20.4")
Weight (with factory flightcase)	120kg (265lb)

DETAYLAR

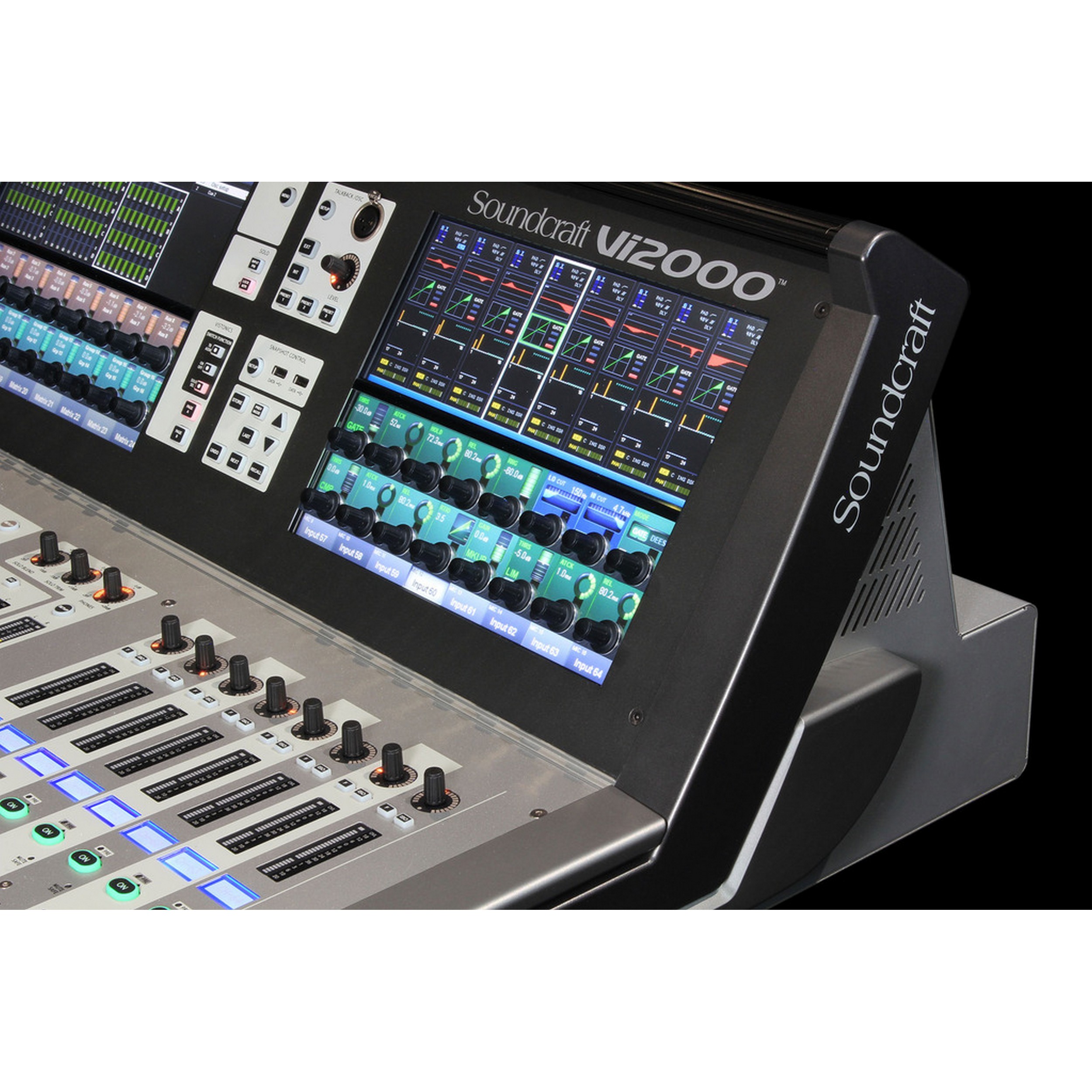

The latest addition to Soundcraft's Vi range of digital live consoles, the new Vi2000 brings unparalleled mixing power to the live touring, install and corporate AV markets in a single-box, cost-effective package. The new console combines the unique Vistonics-based control surface concepts of the highly successful Vi3000, 5000 and 7000 consoles, with Soundcraft® SpiderCore - a powerful integrated DSP and IO engine based on STUDER technology and compact enough to reside inside the control surface itself.

Running the latest V6.3 console software, the Vi2000 now includes vMIX automatic microphone mixing, alongside the acclaimed BSS DPR901ii Dynamic EQ via an insertable processing pool which also includes Lexicon Multi-effects and the ability to insert any external device.

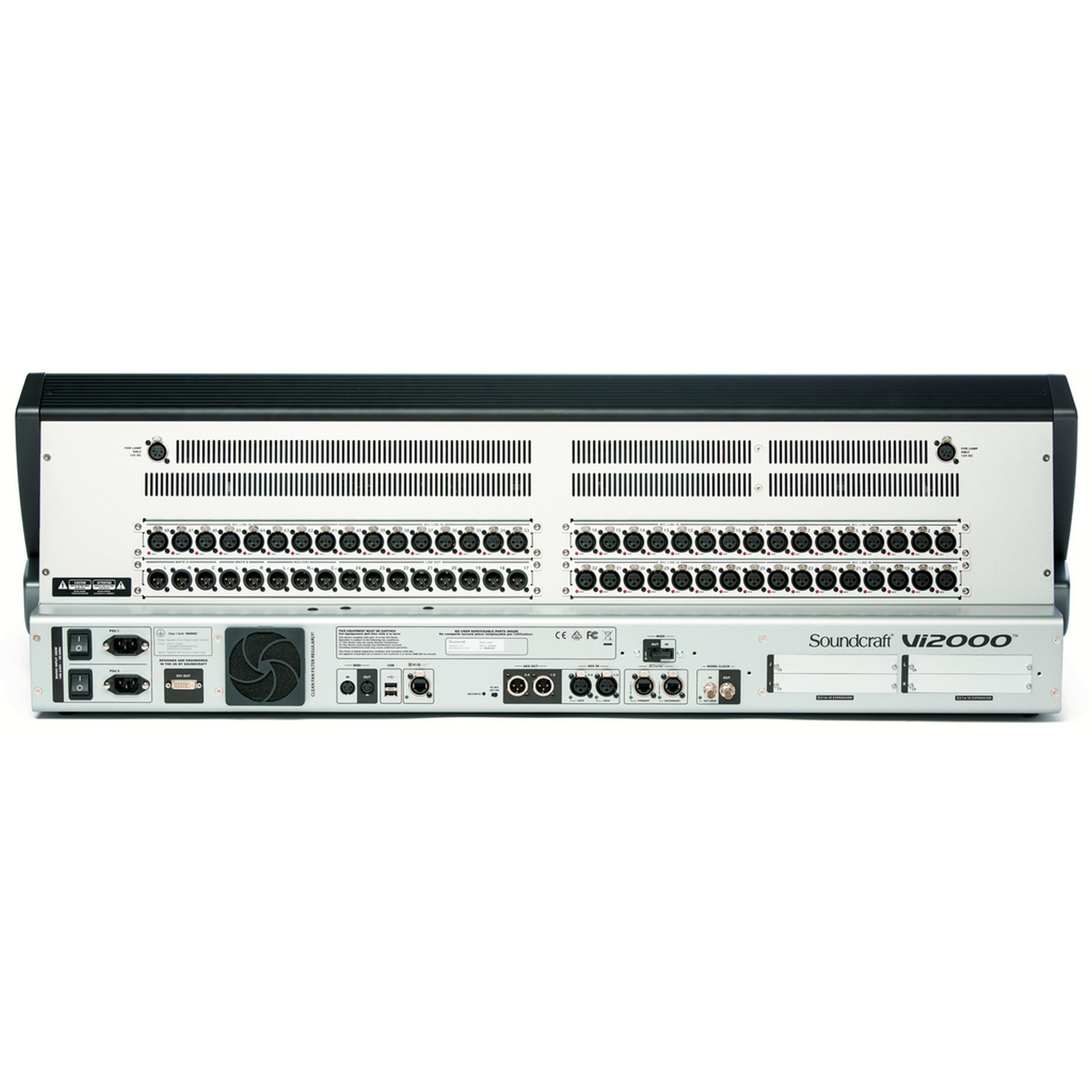

In addition to a full complement of on-board mic and line IO, configurable up to 48 mic line inputs and 16 line outputs using combinations of 16ch XLR modules in 4 rear-mounted slots, the console includes two 64ch expansion slots allowing up to two MADI-based Stageboxes to be connected, or alternatively the slots provide access to the extensive range of D21m IO option cards, addressing all industry standard audio formats. The total I/O count of the console is 246 in 246 out.

In common with other Vi000-series consoles, a built-in 64x64ch Dante interface provides direct recording/playback connection via Ethernet to any PC or Mac-based recording software, or allows the Vi2000 to integrate into an existing Dante network.

The Dante interface is complimented by an additional optical MADI interface designed for either record feeds or connection of the Soundcraft Realtime Rack Plug-in engine, adding the power of Universal Audio UAD-powered plug-ins to the Vi2000's pristine audio quality.

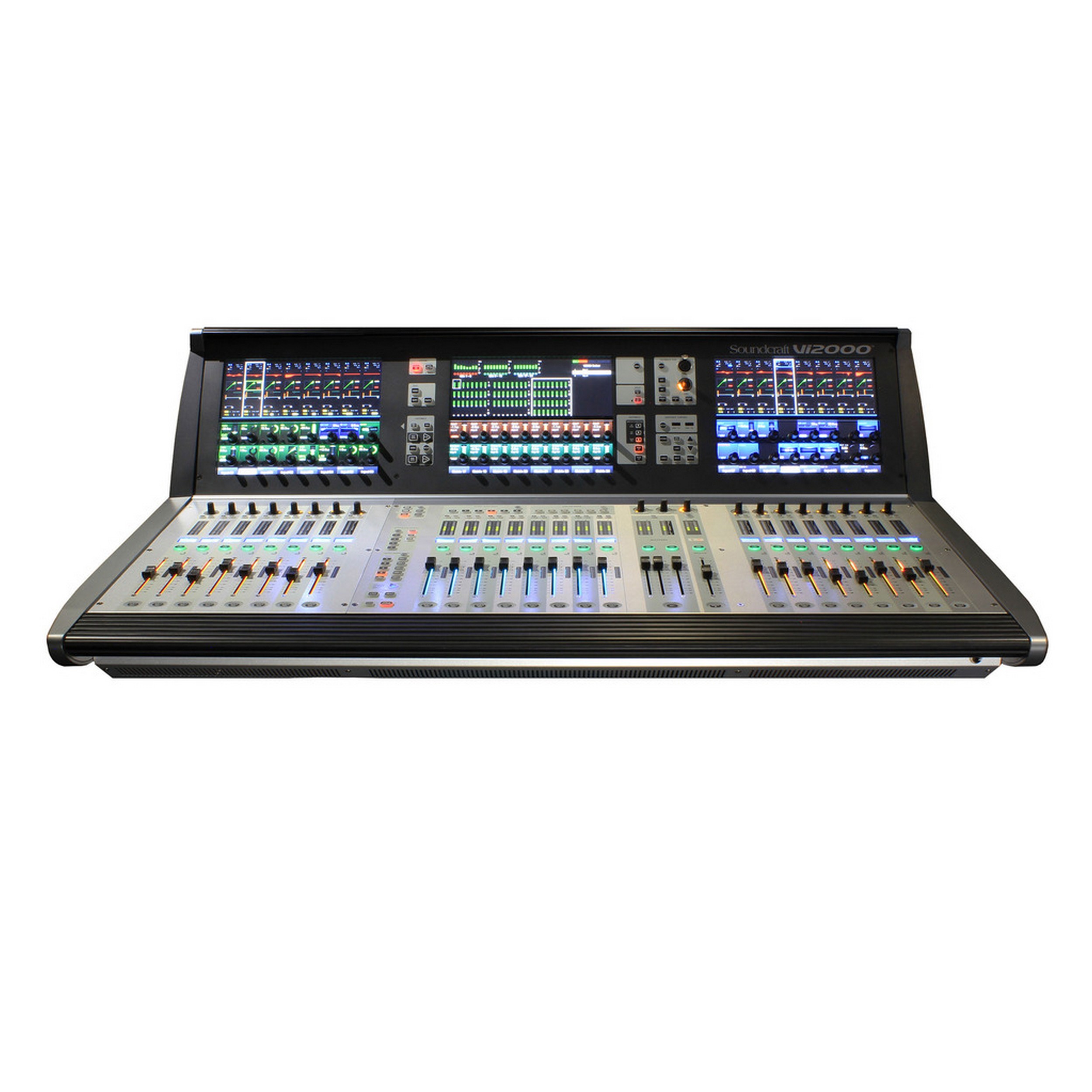

The package is completed by an ultra-compact frame design only 1.15m in width, with 16 input faders and 8 output faders, allowing the console to fit into both space and budget restricted applications. Patented features like Faderglow, VM2 microphone monitoring and Vistonics provide a uniquely user-friendly mixing experience and superb sound quality is assured by a 40-bit floating-point DSP environment, running STUDER, BSS, Lexicon and dbx algorithms.
