JBL Professional

PD6212/95

Kabin Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 80 Hz to 18 kHz (-10 dB)
Frequency Response 90 Hz to 16 kHz ( ± 3 dB)
Coverage Pattern /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
System Power Rating Passive Mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak)
System Sensitivity Passive Mode: 109 dB-SPL
LF Driver M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil
HF Driver 2453H, 38 mm (1.5 in) exit compression driver with 100 mm (4 in) voice coil
Nominal Impedance 8 ohms
Enclosure Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware
Finish Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam

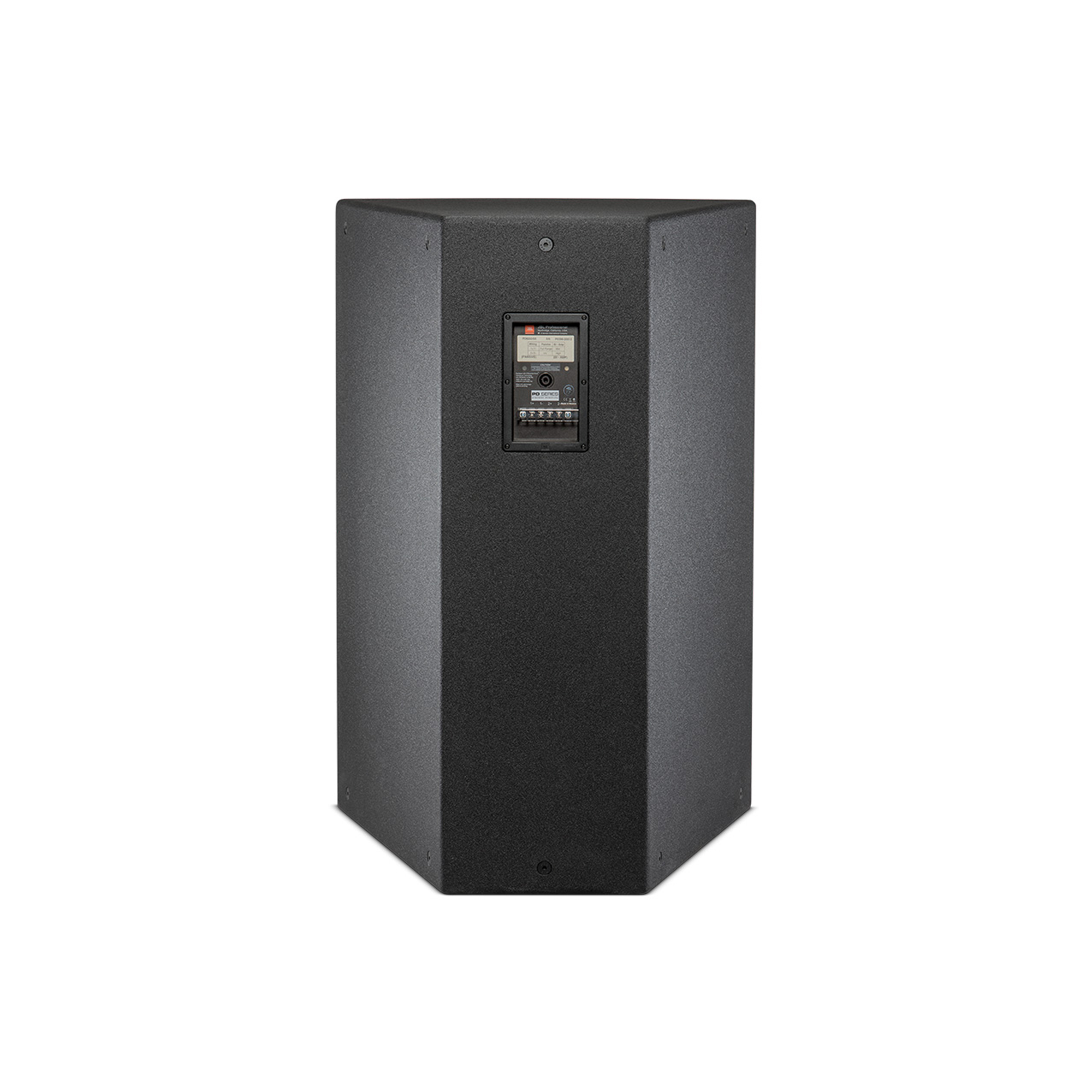

Input Connectors Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm
Net Weight 79.5 kg (175 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
DETAYLAR
DETAYLAR

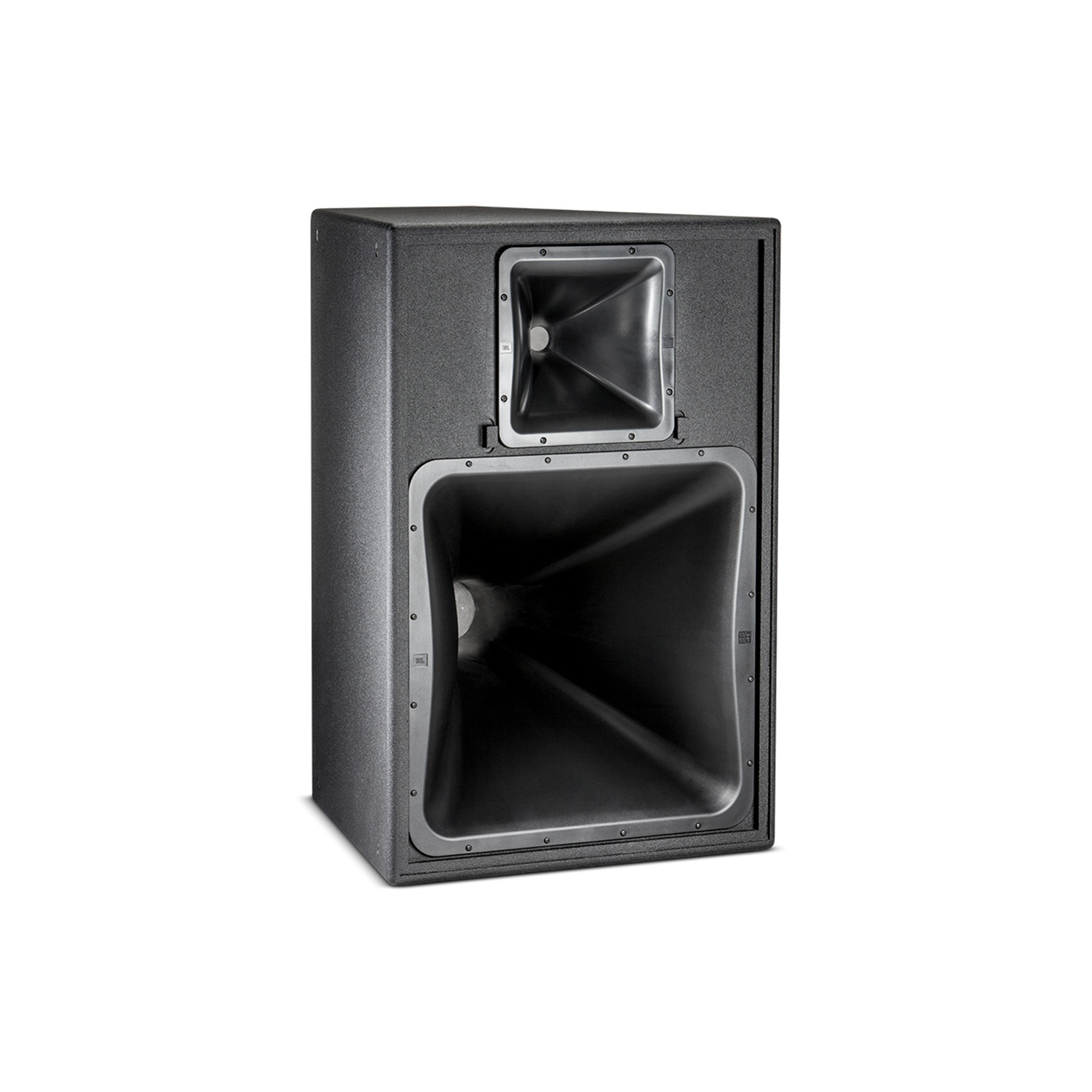

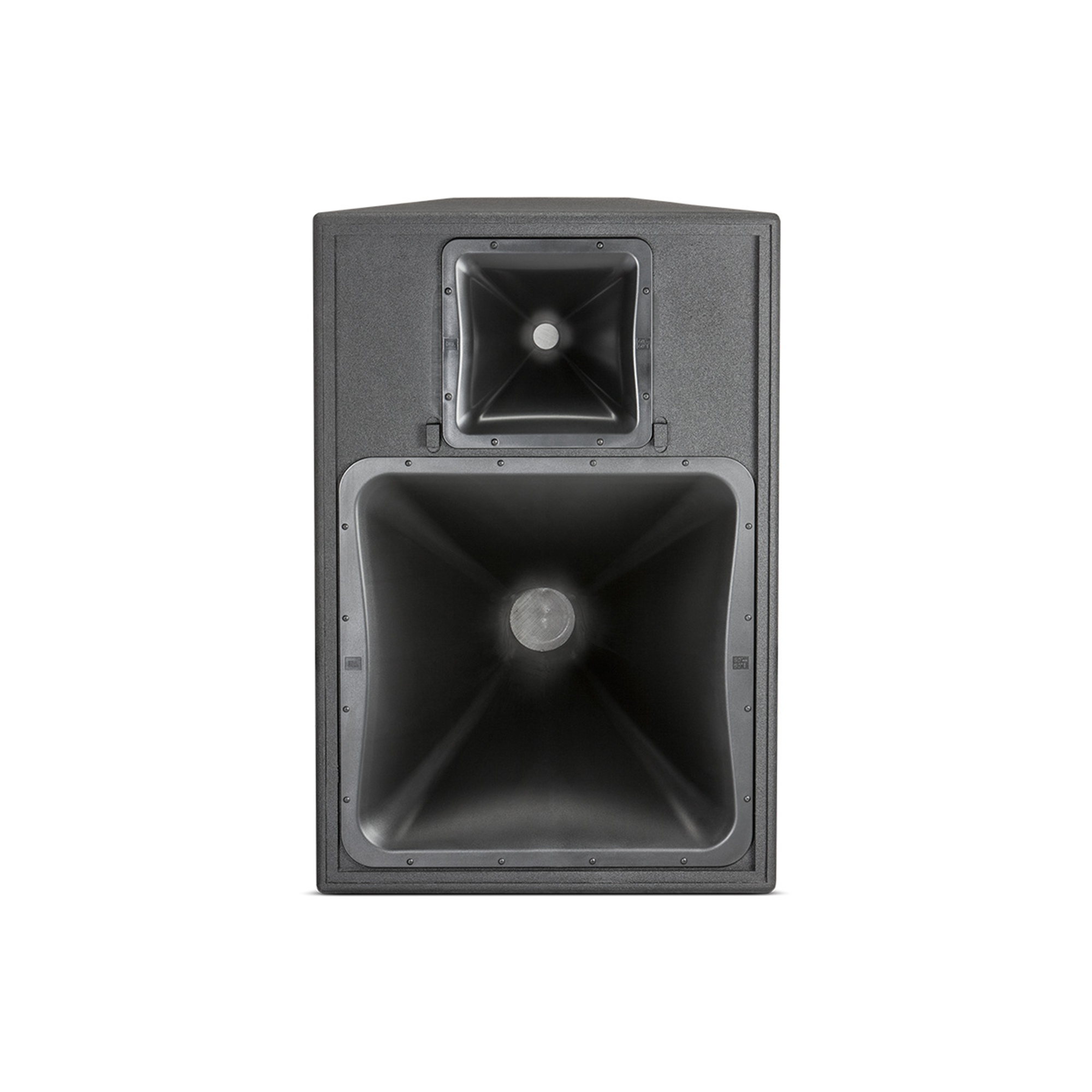

Precision Directivity Full Range Two-Way Loudspeakers

The PD6212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full range systems.
