JBL Professional

AC599

Kabin Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range (-10 dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 75 Hz - 18 kHz
System Sensitivity (1w @ 1m) 98 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 122 dB (128 dB peak)
Power Rating (Continuous/Program/Peak) 250 W/500 W/1000 W
Coverage Pattern 90° x 90° (H x V)
Crossover 1.5 kHz
Low Frequency Driver 1 x 15" woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil
High Frequency Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket
DETAYLAR
DETAYLAR

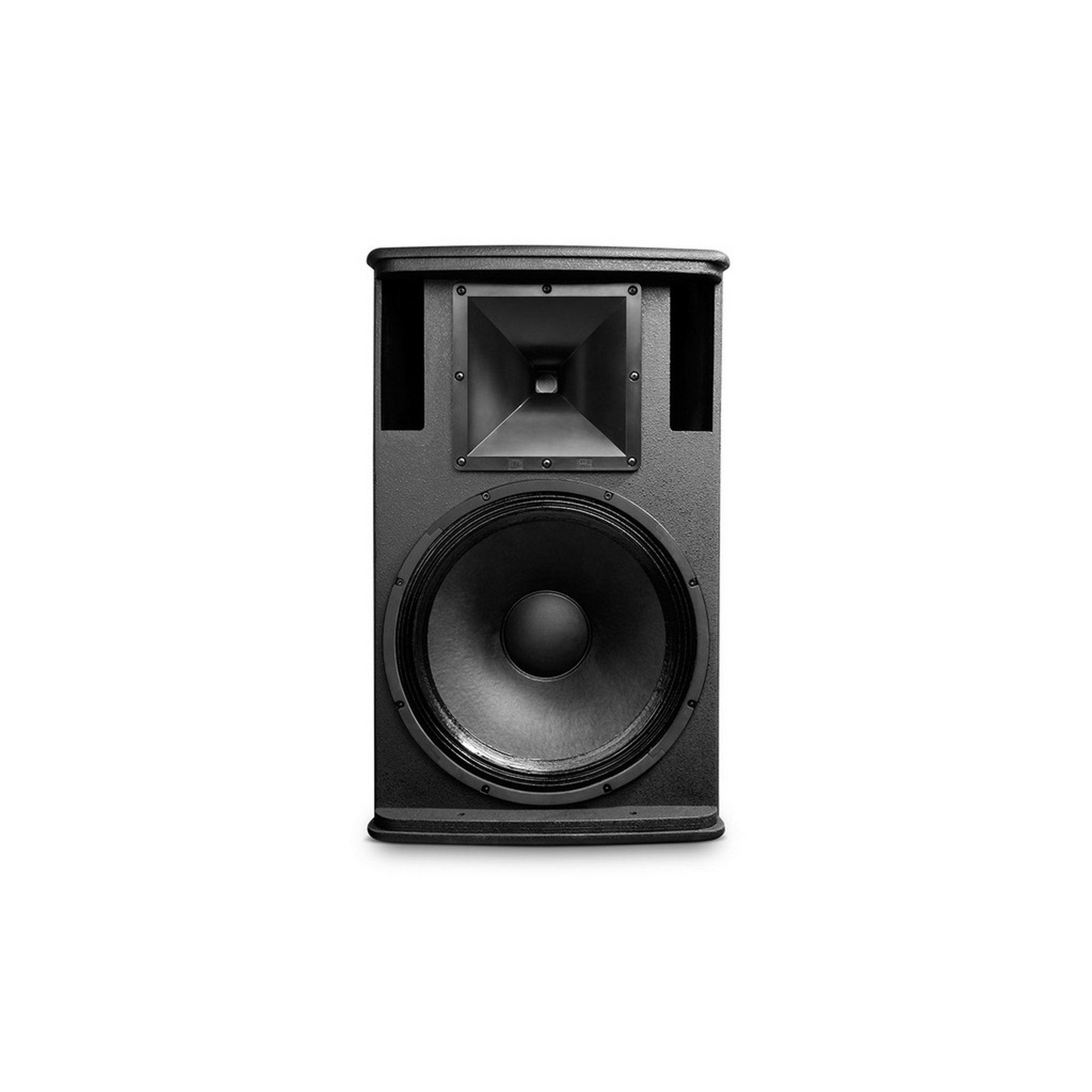

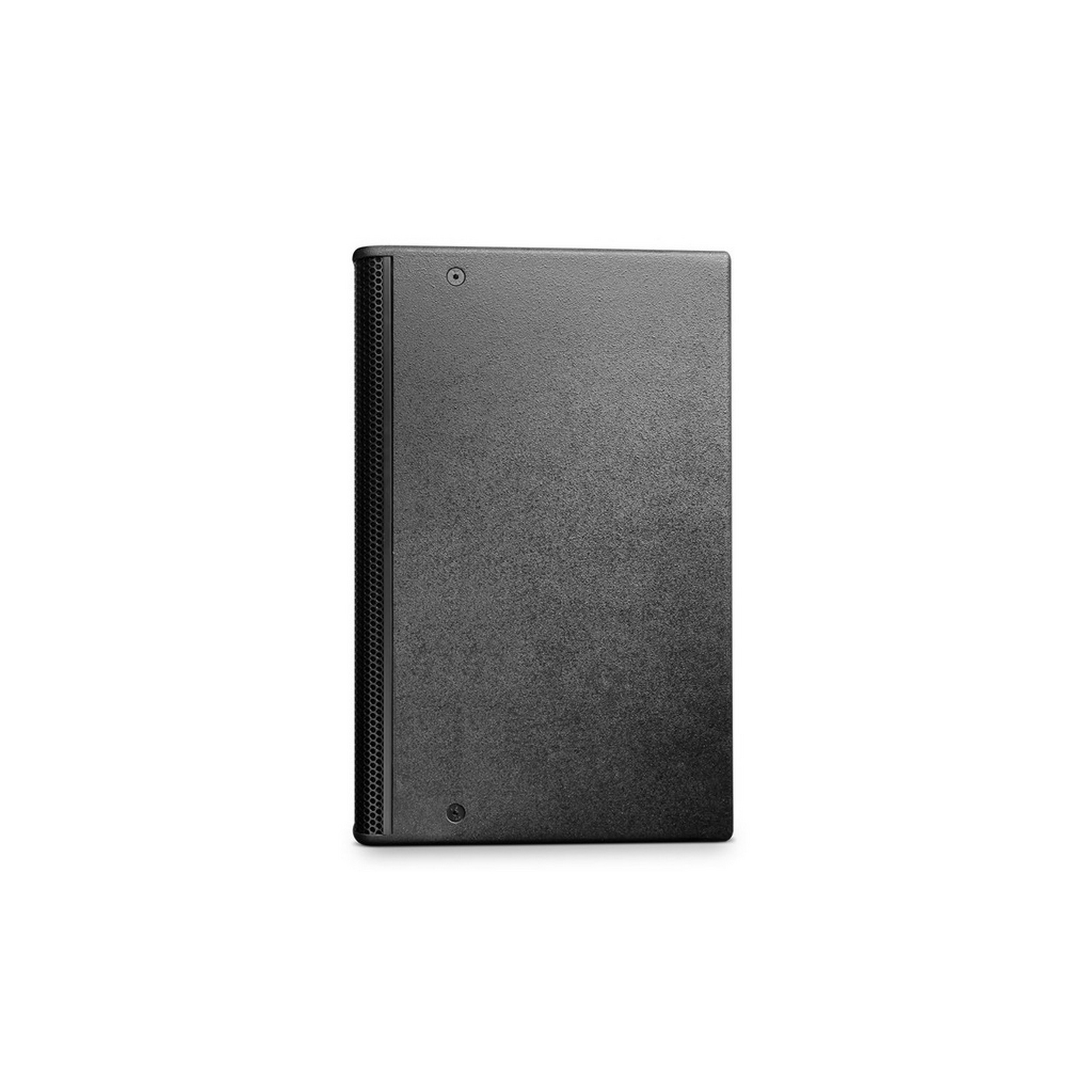

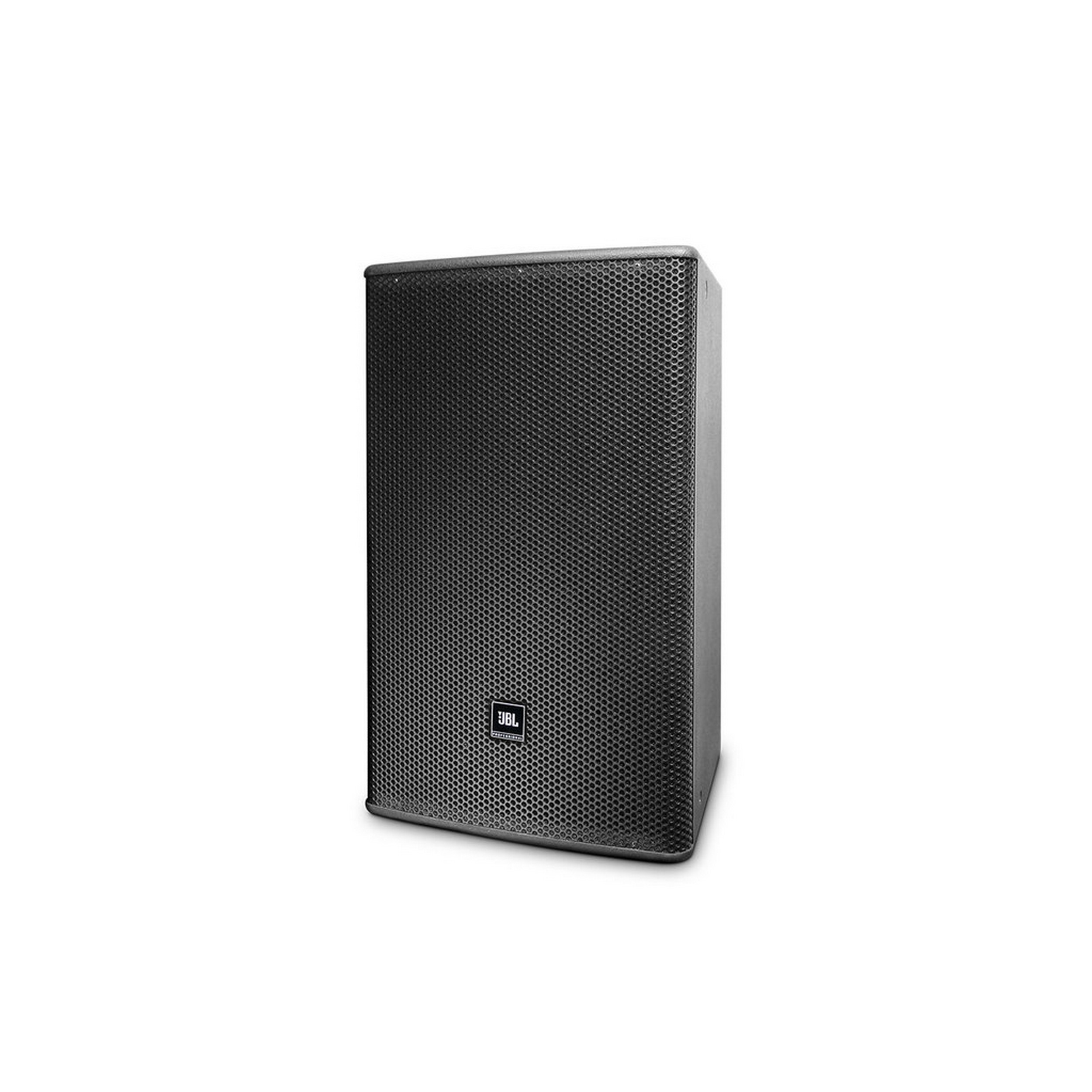

Two-Way Full-Range Loudspeaker System with 1 x 15" LF

AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
