JBL Professional

ASB7118

Kabin Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range (-10 dB) 22 Hz - 1 kHz
Frequency Response (± 3 dB) 34 Hz - 1 kHz
Transducer Power Rating 2000 W (8000 W peak), 2 hrs
Long-Term System Power Rating 1200 W (4800 W peak), 100 hrs.
Maximum SPL (1m) 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8 ohms
Low Frequency Driver 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
Finish Black DuraFlex™ finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D invertical cabinet orientation) 546 x 560 x 815 mm(21.5 x 22.0 x 32.1 in)
Net Weight 42.9 kg (94.5 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
DETAYLAR
DETAYLAR

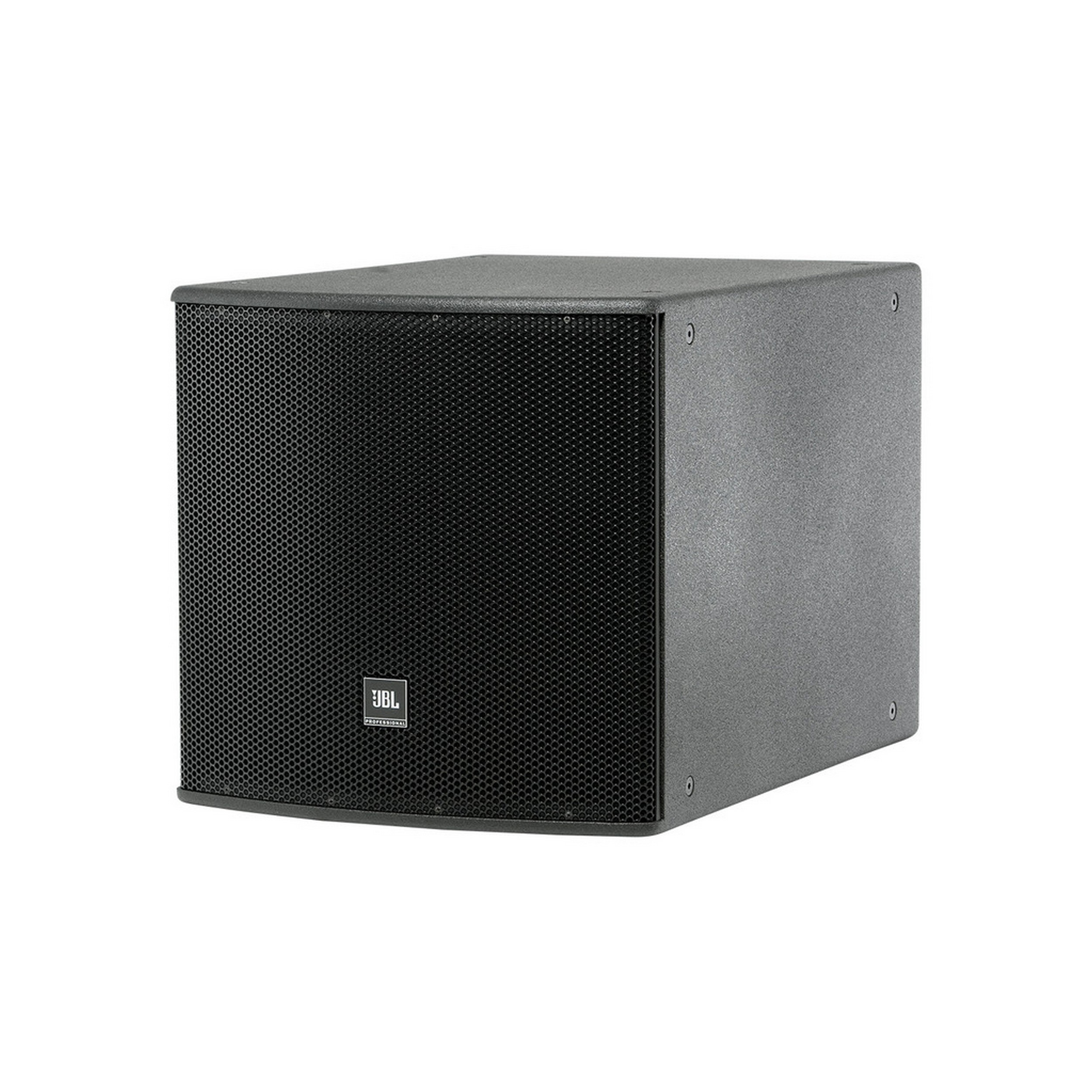

Ultra Long Excursion High Power Single 18" Subwoofer

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").
