Element |
MB 4k: Condenser MB 5k: Dynamic MB 6k: Dyanmic
|
Polar Pattern |
Cardioid
|
Frekans Tepkisi |
MB 4k: 80-20,000 Hz MB 5k: 100-12,000 Hz MB 6k: 60-12,000 Hz
|
Açık Devre Duyarlılığı |
MB 4k (Phantom/Battery): -46 dB (5.0 mV)/ -48 dB (3.9 mV) re 1V at 1 Pa MB 5k: -58 dB (1.2 mV) re 1V at 1 Pa MB 6k: -59 dB (1.1 mV) re 1V at 1 Pa
|
Pil Ömrü |
MB 4k: 0.4 mA/ 1200 hours typical
|
Pil Tipi |
MB 4k: 1.5V AA/UM3
|
Anahtarlar |
MB 4k: On/Off
|
Empedans |
MB 4k (Phantom/Battery): 200 ohms/ 250 ohms MB 5k: 500 ohms MB 6k: 500 ohms
|
Maksimum Ses Giriş Seviyesi |
MB 4k (Phantom/Battery): 137 dB SPL/ 125 dB SPL, 1 kHz at 1% T.H.D.
|
Dinamik Aralık |
MB 4k (Phantom/Battery): 113 dB/ 101 dB, 1 kHz at Max SPL
|
Sinyal Gürültüsü |
MB 4k: 70 dB, 1 kHz at 1 Pa
|
Phantom Power Gereksinimi |
MB 4k: 11-52V DC, 2 mA typical
|
Ağırlık |
MB 4k: 6.4 oz (182 g) MB 5k: 11.4 oz (324 g) MB 6k: 11.2 oz (317 g)
|
Ölçüler |
MB 4k: 8.10" (205.7 mm) long, 1.64" (41.7 mm) head diameter MB 5k: 4.46" (113.2 mm) long, 1.63" (41.5 mm) head diameter MB 6k: 4.59" (116.5 mm) long, 2.11" (53.5 mm) head diameter
|
Çıkış Konnektörü |
ntegral 3-pin XLRM-type
|
Dahili Aksesuarlar |

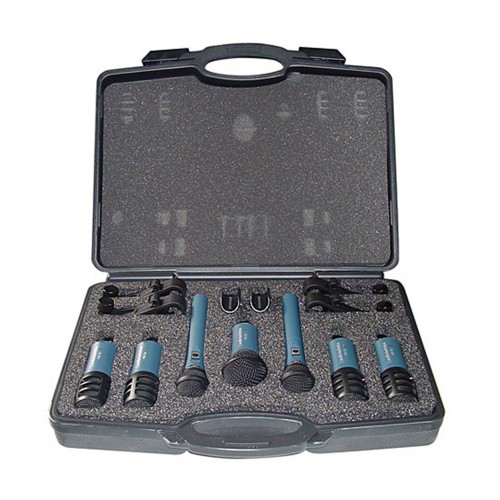

4) MB 5k snare/tom mics; (1) MB 6k kick mic; (2) MB 4k condenser mics; (4) drum mic mounts; (2) AT8405a stand clamps; durable carrying case
|
