Audio-Technica

ES945LED

Omnidirectional Kondenser Boundary Mikrofon Buton ve Ledli
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Element Kalıcı Yüklü Arka Panel, Kalıcı Polarize Condenser
Polar Pattern Omnidirectional
Frekans Tepkisi 40 Hz - 19 kHz
Açık Devre Duyarlılığı -40 dB (10 mV) re 1V @ 1Pa
Anahtarlar Dokunmaya Hassas Kontrol: On/Mute
Empedans 200 Ohm
Maksimum Ses Giriş Seviyesi 142 dB SPL, 1kHz @ %1 T.H.D.
Dinamik Aralık 113 dB, 1kHz @ Maks. SPL
Phantom Power Gereksinimi 11-52V DC, 5.7 mA
Ağırlık 65 gr
Ölçüler 84.8 x 38 x48 mm
Çıkış Konnektörü 3 Pin XLR
Dahili Aksesuarlar 2 x İzolatör
DETAYLAR
DETAYLAR

ES945/LED

This phantom-powered omnidirectional condenser microphone is designed for clear, highly intelligible sound reinforcement, conferencing, professional recording, television and other demanding sound pickup applications. Tabletop mounting keeps the microphone unobtrusive. LED ring indicates muting status. Equipped with UniGuard® RFI-shielding innovations. Contractor-exclusive line.

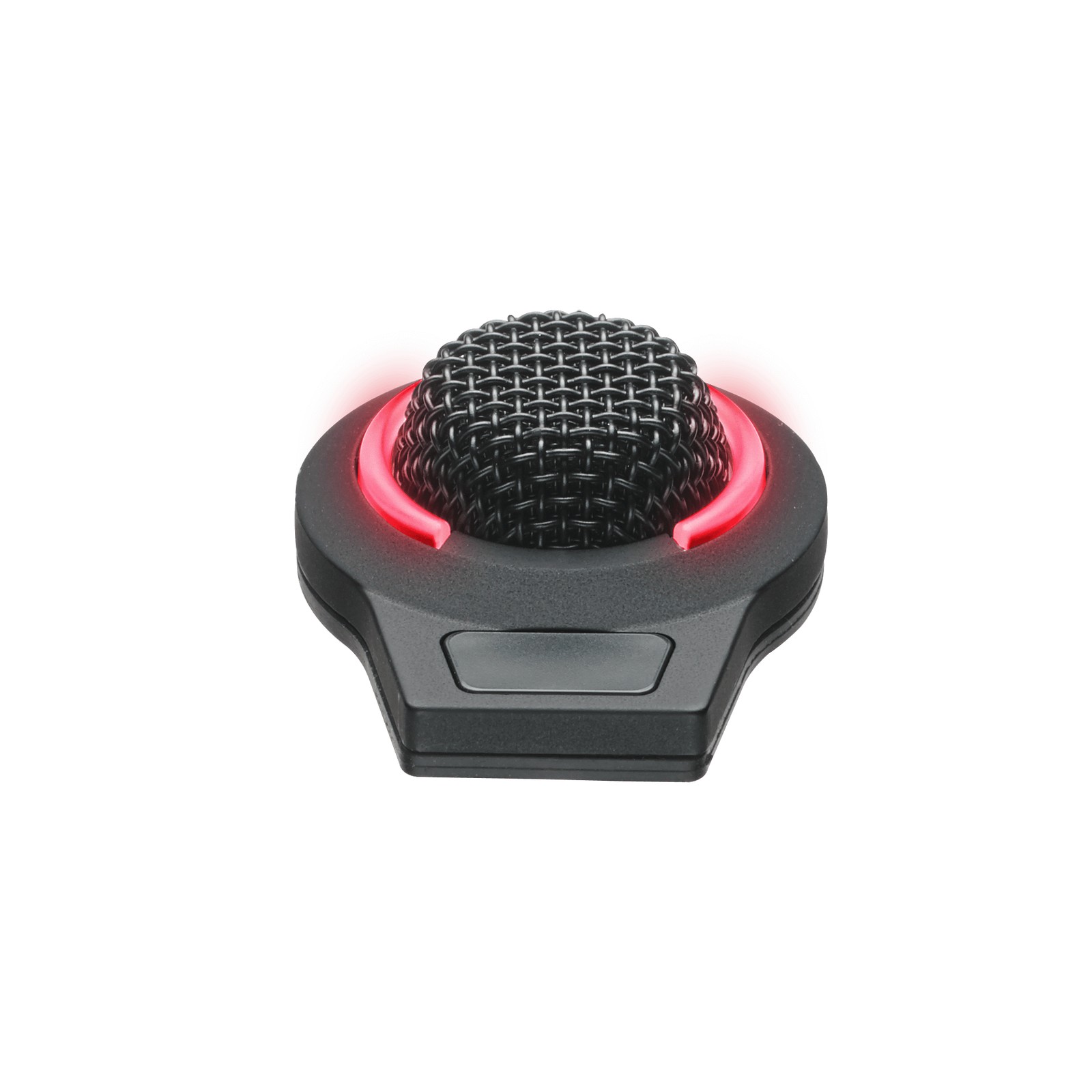

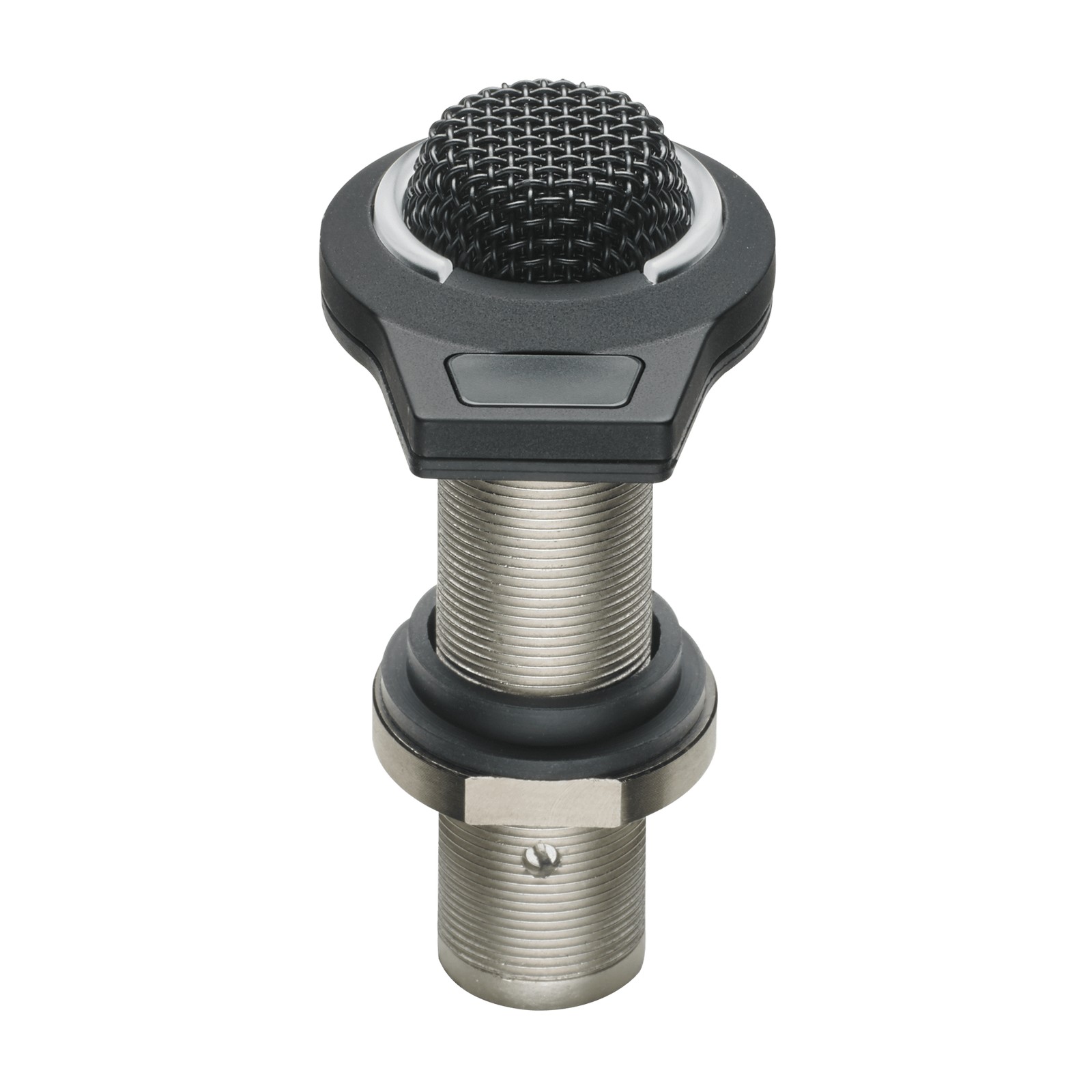

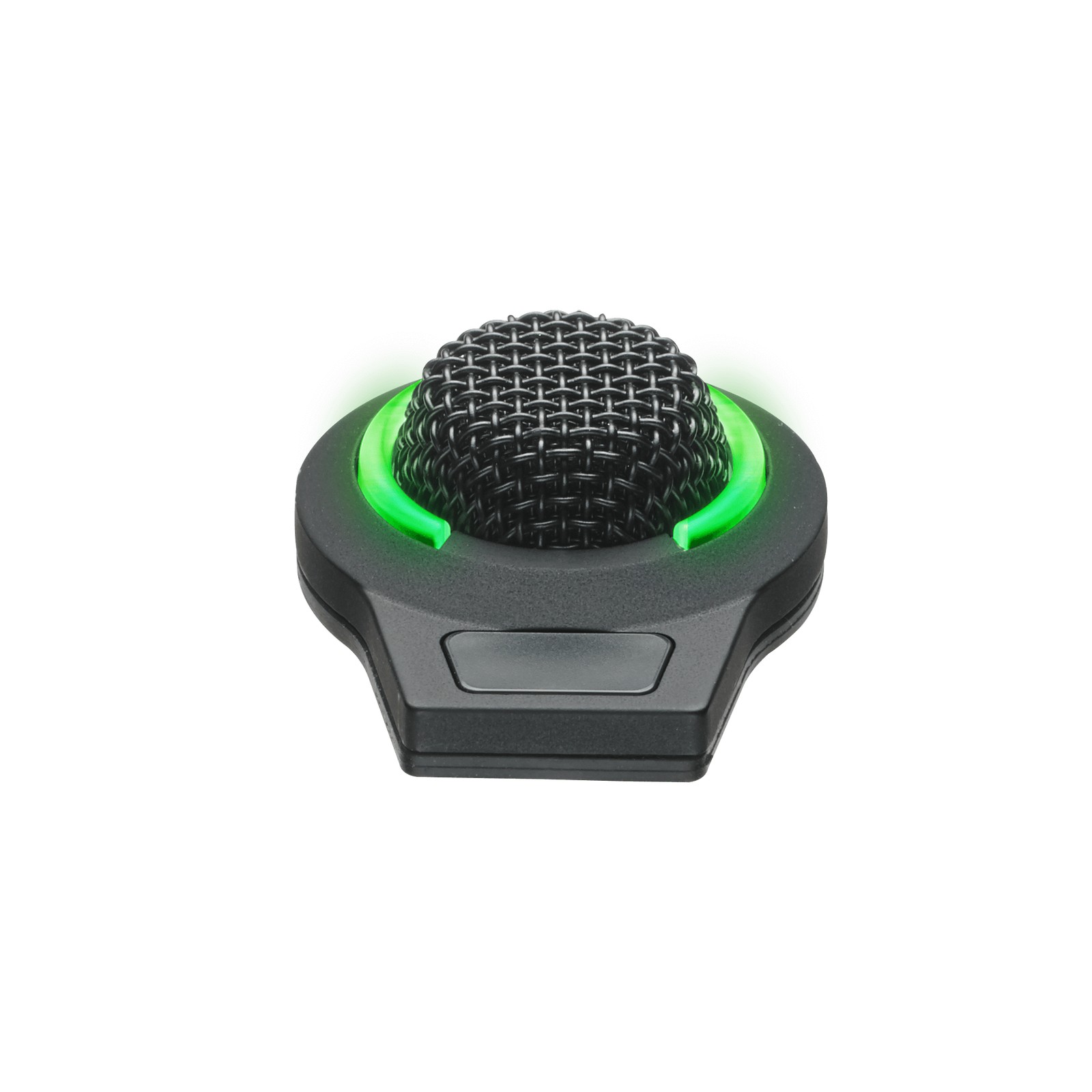

With its low-profile design that mounts unobtrusively in tabletops for minimum visibility, the ES945/LED omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for sound reinforcement, professional recording and teleconferencing, television and other demanding sound pickup applications. Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone's omnidirectional polar pattern affords a 360° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). Users can easily toggle between mute and live audio thanks to the microphone's capacitive-type touch-sensitive switch. An integral Red/Green LED ring indicates the mute status, staying green when the microphone is live and turning red when it is muted. Additionally, the ES945/LED is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone is available in two colors: black (ES945/LED) and silver (ES945SV/LED). A pair of isolators is included for optional mechanical isolation from the mounting surface.
