The DXLite 4K 4:4:4 Receiver is a 4K and Ultra High Definition (UHD) capable distance transport solution designed to work with AMX Incite Digital Video Presentation Switchers. The DXLite receives audio, video, power, and control* from the distance transport (RJ-45) output on the Incite Switcher and connects to the output display, projector, or other output device via HDMI.

*For integrated central control use NCITE-813AC, the other models do not include an integrated central controller.

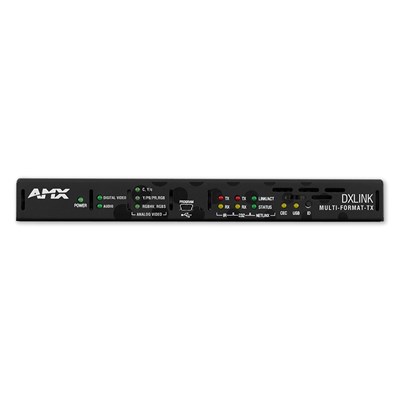

The DXLink Multi-Format Transmitter sends analog and digital audio and video signals including HDMI with HDCP, control, and Ethernet up to 100 meters over one standard twisted pair cable. Use the DXLink Transmitter with the Enova DGX DXLink Twisted Pair Input Boards or compatible Enova DVX All-In-One Presentation Switchers. The DXLink Transmitter can also be used as a point-to-point solution with a DXLink HDMI Receiver. The DXLink Transmitter can be powered from any DXLink power source such as the Enova DGX DXLink Twisted Pair Input Board, Enova DVX-3155HD, DVX-3156HD, PS-POE-AT-TC or PDXL-2. It also includes a local power supply. The transmitter features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.

The DXLink Multi-Format Transmitter sends analog or digital video, audio and control to a remote display across the room, on the other side of the house or to a classroom down the hall. The transmitter's built-in control ports can be used to control a source and the ICSLan port provides an IP access point.

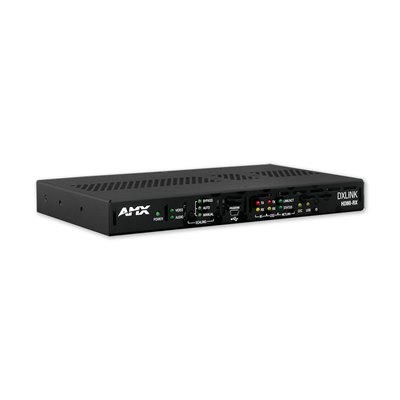

The DXLink HDMI Receiver is a distance transport solution that features built-in SmartScale^®Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio, video, control and Ethernet over one standard twisted pair cable up to 100 meters away from a compatible Enova DVX All-In-One Presentation Switcher, Solecis Digital Switcher, DXLink Transmitter Module or DXLink Wallplate; it accepts all this plus power over the same twisted pair cable when used in conjunction with the Enova DGX 8/16/32/64 Digital Media Switchers, Enova DVX-2150HD or DVX-2155HD. Mount the low-profile DXLink Receiver behind a display or above a ceiling mounted projector and control it using the built in RS-232 or IR ports. Plus monitor the connected display's settings, and send IR control signals back to the head end using the same twisted pair cable.

DXLink HDMI Receiver Modules is perfect for receiving HDMI and control signals over long distances from a remote DXLink Transmitter Module, DXLink Wallplates, Solecis Digital Switchers, Enova DGX or compatible Enova DVX. The receiver’s built-in control ports can be used to control a destination device and the ICS Lan port provides IP an access point with used in conjunction with the Enova DGX or compatible Enova DVX.

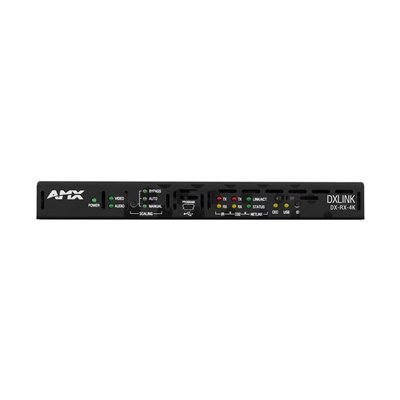

The DXLink 4K HDMI Receiver is a 4K and Ultra High Definition (UHD) capable distance transport solution that features built-in SmartScale® Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio, video, control and Ethernet over one shielded Cat6A or Cat7 standard twisted pair cable up to 70 meters.

DXLink HDMI Receiver Modules are the perfect for receiving HDMI and control signals over long distances from a remote DXLink Transmitter Module or other compatible AMX Transmitter such as Solecis. The receiver's built-in control ports can be used to control a destination device and the ICS Lan port provides IP an access point with used in conjunction with the Enova DGX 100 Series.
