AMX

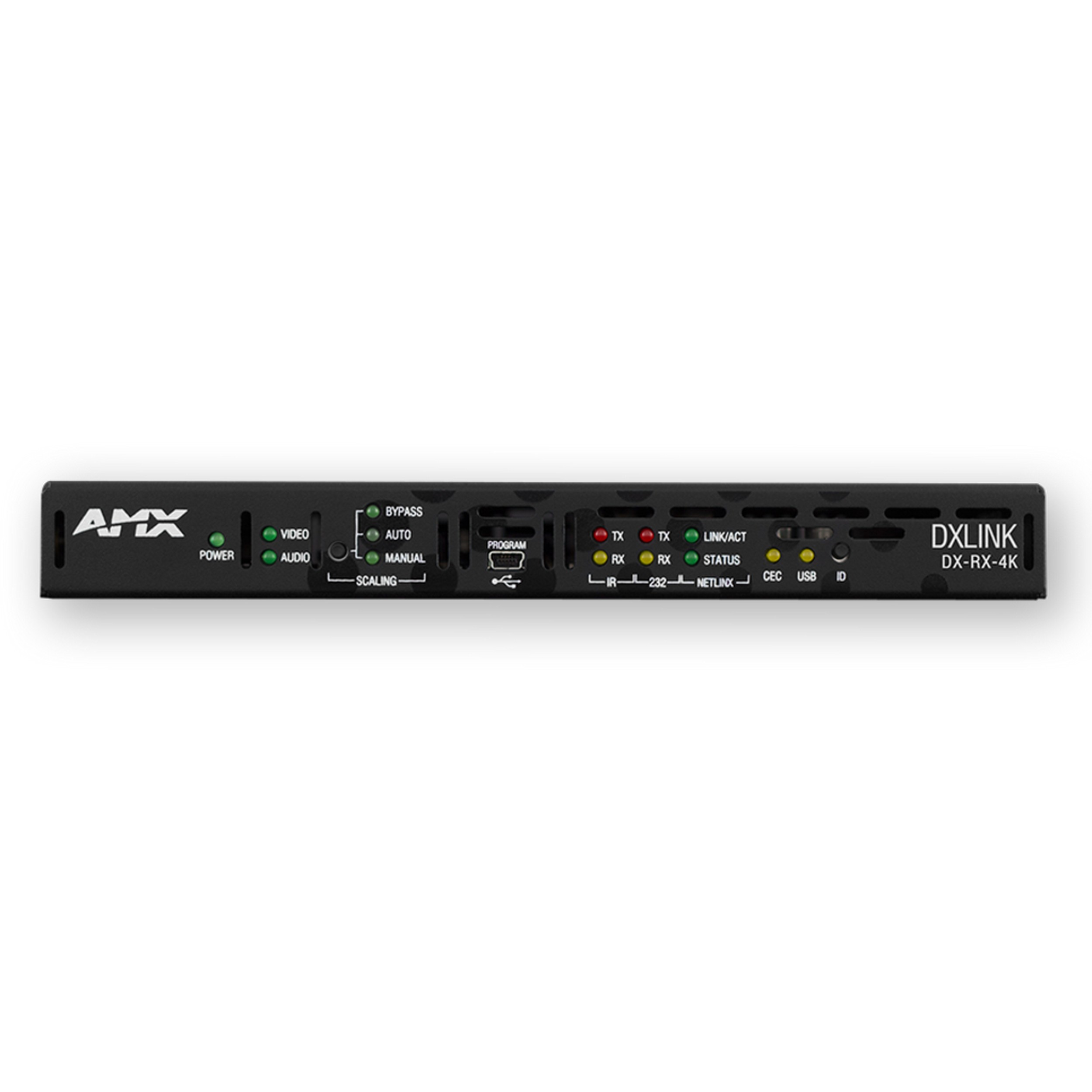

DX-RX-4K

DXLink 4K HDMI Alıcı Modülü

Marka:	AMX
Ürün Kodu:	DX-RX-4K
Kategori:	Networked AV Systems
Barkod:	FG1010-510-01EKFX

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Dimensions (HWD)	1" x 8 3/4" x 5 3/16" (2.54 x 22.22 cm x 13.18 cm)
Twisted Pair Cable Type & Length	Shielded Cat6A and Cat7; Up to 262 ft. (80 m) for full 4K format support; Up to 328 ft. (100 m) for 1080p and below format support
USB (HID)	USB Type A Connector ("Device")
Front Connectors	Advanced Configuration Interface: USB Mini-B Connector (This feature will be available upon release of a future firmware update)
Back Connectors	Local Power: 2.1 mm DC Power Jack; DXLink Input: RJ-45; ICSLAN/Ethernet Port: RJ-45 Connector, TCP/IP Port (ICSLAN 10/100)
HDMI	Compatible Formats: HDMI, HDCP, DVI
HDMI Resolution Support	Progressive Resolution Support: 480p up to 4096 x 2160 @ 60 Hz* (Y/Cb/Cr 4:2:0); 4K Resolution Support: 3840 x 2160p @ 24/25/30 Hz through 4096 x 2160p @ 60 Hz, 4:2:0 (*supported by DX-RX-4K when in Bypass Scaling mode)
HDMI Audio Support	Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
HDCP	HDCP Compliant
Stereo Audio	n/a
Power Supply	External, Included: Desktop power supply (ENERGY STAR® qualified): 1 per module; External, Optional: Power can also be supplied by a DXLink Power sourcing device
Compatible AMX Products	Enova DGX 800/1600/3200/6400 Digital Media Switchers; Enova All-In-One Presentation Switchers; DXLink Multi-Format/Decor Style Wallplate Transmitters; Solecis Multi-format/HDMI Digital Switcher; High Power PoE Injector; Power over DXLink Controller
FG Numbers	FG1010-510

DETAYLAR

The DXLink 4K HDMI Receiver is a 4K and Ultra High Definition (UHD) capable distance transport solution that features built-in SmartScale® Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio, video, control and Ethernet over one shielded Cat6A or Cat7 standard twisted pair cable up to 70 meters.

DXLink HDMI Receiver Modules are the perfect for receiving HDMI and control signals over long distances from a remote DXLink Transmitter Module or other compatible AMX Transmitter such as Solecis. The receiver's built-in control ports can be used to control a destination device and the ICS Lan port provides IP an access point with used in conjunction with the Enova DGX 100 Series.
