JBL Professional

SCS 8

Sinema Hoparlörleri

Marka:	JBL Professional
Ürün Kodu:	SCS 8
Kategori:	Hoparlörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Frequency Response (-10dB)	70 Hz – 20 kHz
Frequency Response (±3 dB)	90 Hz – 20 kHz
Coverage Pattern	120° x 120°
Directivity Factor (Q)	8.1 (1 k – 16 kHz)
Directivity Index (DI)	8.4 dB (1 k – 16 kHz)
System Power Rating	250 W 2 hrs.200 W 100 hrs
Sensitivity (2.83V @ 1m)	94 dB (Ave. 90 Hz – 20 kHz)
Maximum SPL (1m)	118 dB (peaks of 124 dB) @ 1m
Crossover Network	2.1 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance	8 ohms
LF Driver	Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
HF Driver	25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluidcooling.
HF Driver Protection	Minimum audibility SonicGuard™ HF overload protection
Enclosure	ABS with Glass enclosure, heavily braced
Attachment	Two M10 points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille	Corrosion-resistant zinc-rich steel grille.
Input Connection	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside openlug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs.
Dimensions	300 x 300 x 305 mm (11.8 x 11.8 x 12.0 in), cabinet 359 mm (14.2 in) including bracket extending to back
Colors	Black
Net Weight	8.2 kg (18 lb), 10.0 kg (22.0 lb) with U-Bracket
Shipping Weight	11.4 kg (25.0 lb)
Included Accessories	U-bracket, steel.

DETAYLAR

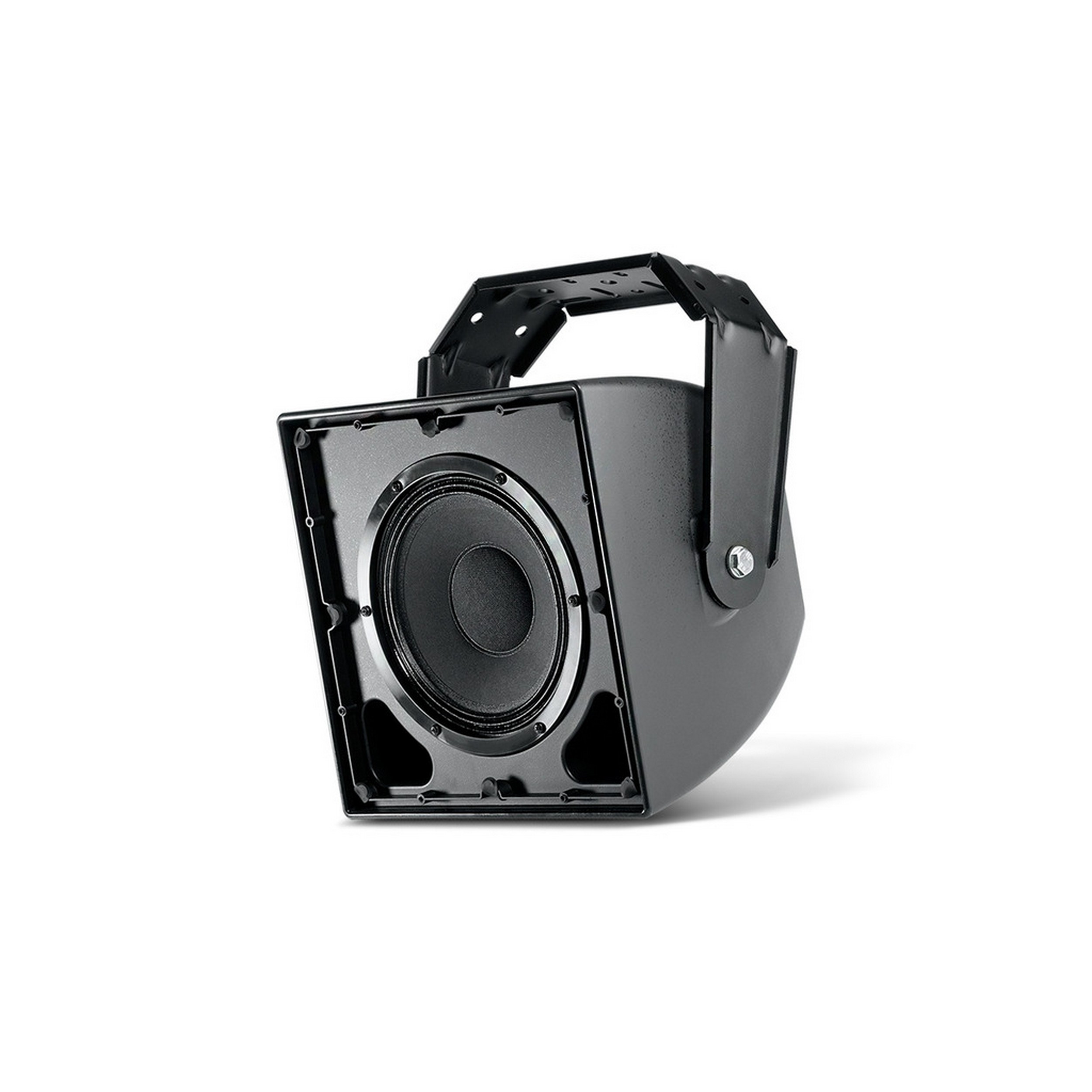

Spatially Cued Surround Loudspeaker 2-Way Coaxial with 8" LF

The SCS 8 is a coaxial-driver, 2-way, full-range cinema surround loudspeaker ideal for multi-channel surround formats and is designed for overhead installation as well as for standard on-wall installations
