JBL Professional

C222HP

Sinema Hoparlörleri
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Response (-3 dB) 44Hz - 18kHz
Frequency Response (-6 dB) 40Hz - 20kHz
Frequency Response (-10 dB) 36Hz - 20kHz
Max Continuous SPL 135 dB
Horizontal Coverage (-6 dB) 100° @ 4kHz
Vertical Coverage (-6 dB) Asymetrical 600 (+25, -45 @ 4kHz)
LF Nominal Impedance
HF Nominal Impedance
LF Minimum Impedance 3.15Ω @ 140Hz
HF Minimum Impedance 3.89Ω @ 9kHz
LF Power Handling (2Hr AES Rating) 1200W
LF Power Rating (100Hr AES Rating) 720W
HF Power Handling (2Hr AES Rating) 85W
LF Sensitivity 103 dB SPL @ 2.83V
HF Sensitivity 112 dB SPL @ 2.83V
Low Frequency 2 x 2275H-BK
High Frequency 2 x 2515XP-J
Meters 35
Feet 115
Dimensions (H x W x D) - Inches 59 x 33.75 x 14
Dimensions (H x W x D) - CM 149.8 x 85.73 x 35.56
Input Connectors Screw Terminal Barrier Strip
DETAYLAR
DETAYLAR

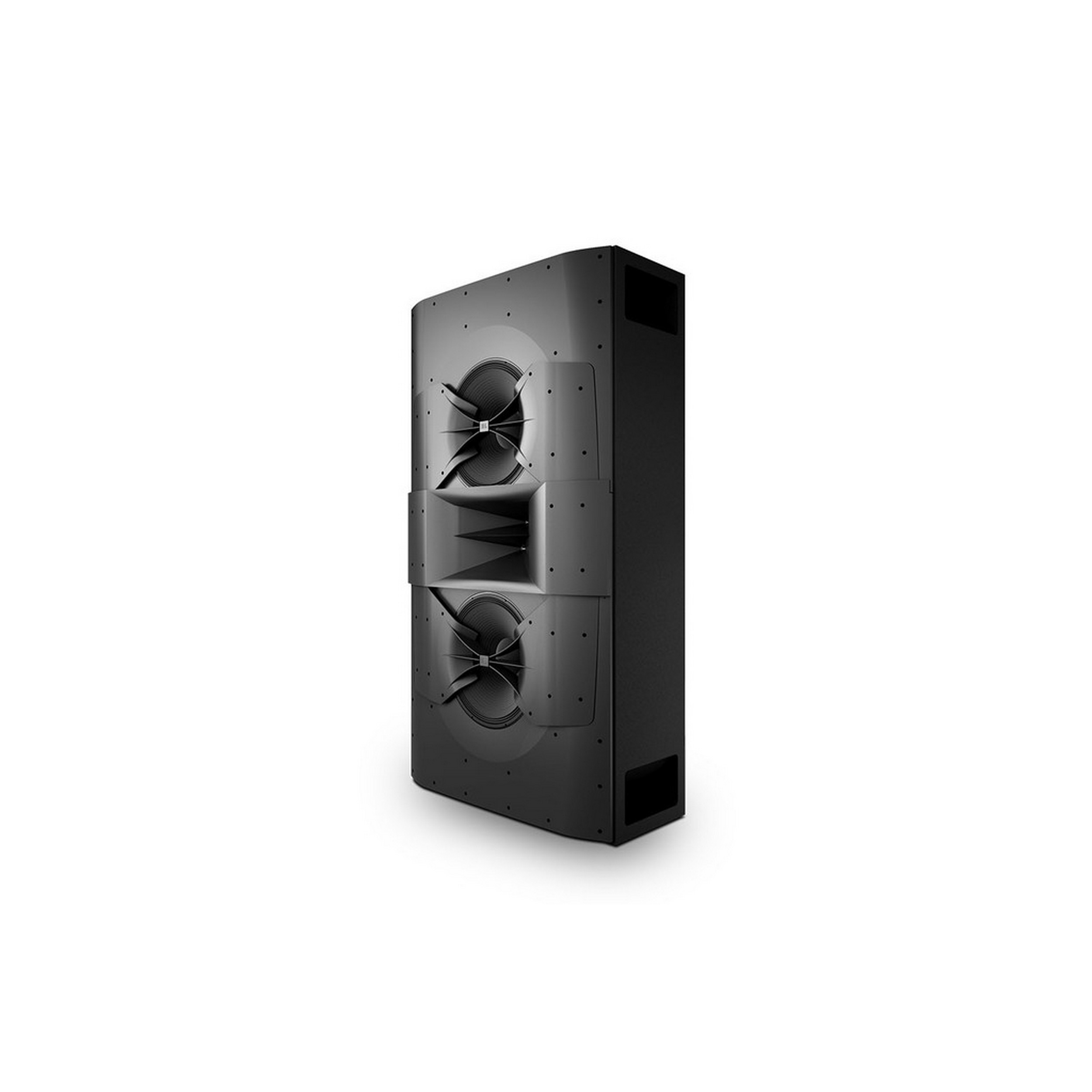

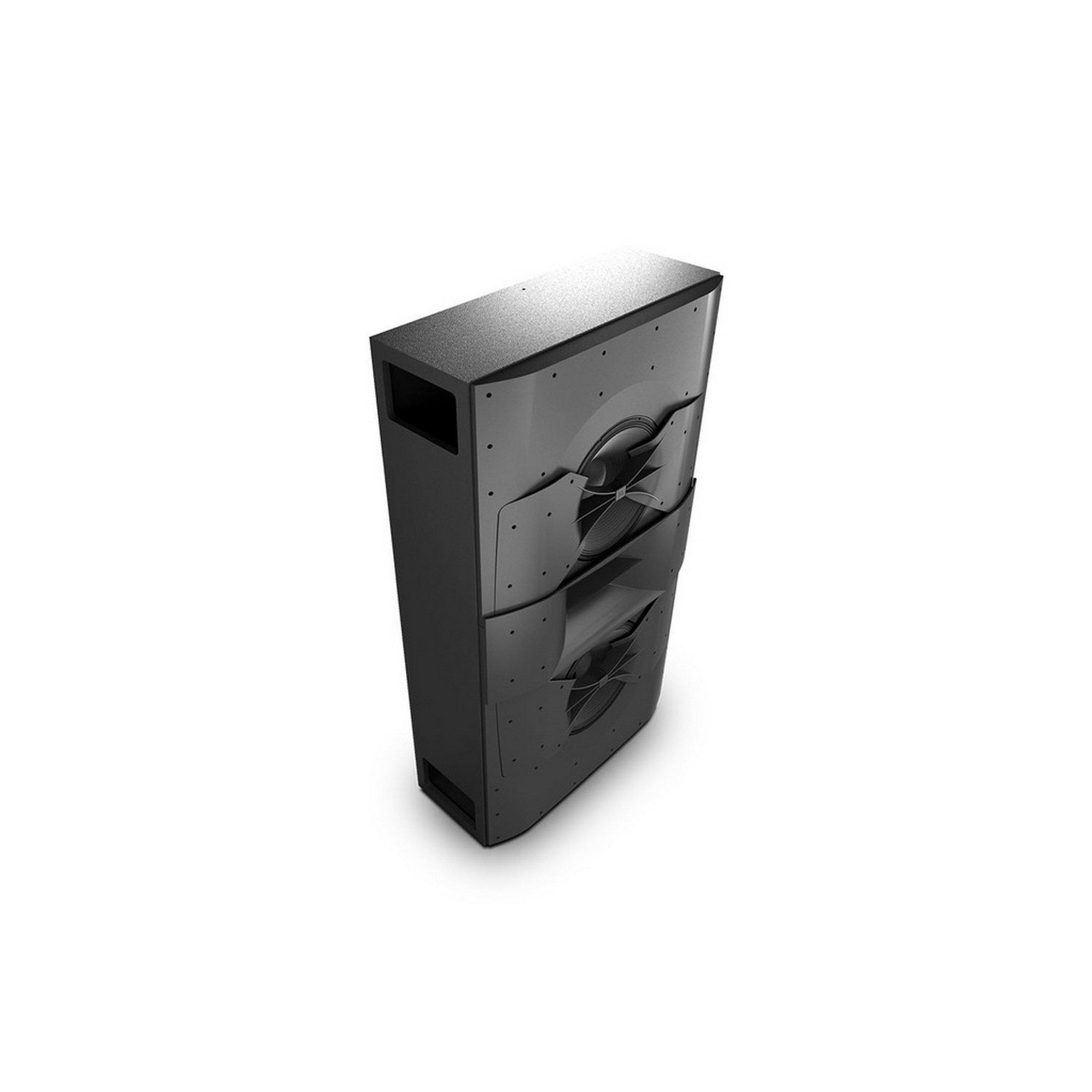

Two-Way High Performance ScreenArray Cinema Loudspeaker

The C222HP Two-Way ScreenArray® Cinema Loudspeaker combines JBL’s latest technological advances with a compact footprint and accessible price point, making it easy to upgrade the sonic experience in your small or mid-sized cinema. Featuring patent-pending Dual Dissimilar Arraying and Acoustic Aperture Technology, the C222HP provides remarkably uniform coverage and smooth, accurate sound reproduction for every member of your audience. The C222HP is perfect for small and medium multiplexes, studios and dubbing stages with space constraints. And since the C222HP uses the same driver technology trusted by top movie studios around the world, your audience will enjoy a more captivating, authentic experience from every seat in the house—just like the creators intended. The C222HP represents JBL's most advanced cinema two-away ScreenArray®.
