PRX815

15" Aktif Hoparlör 1500W WIFI Kontrollü
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
System Type Self Powered 15”, two-way, bass-reflex
Maximum SPL (1m) Normal: 137 dB Boost: 137 dB
Frequency Response (-10dB) Main: 42.9 Hz - 19.5 kHz Monitor: 43.6 Hz - 19.3 kHz
Frequency Response (±3 dB) Main: 58.1 Hz - 17.2 kHz Monitor: 60.7 Hz - 16.7 kHz

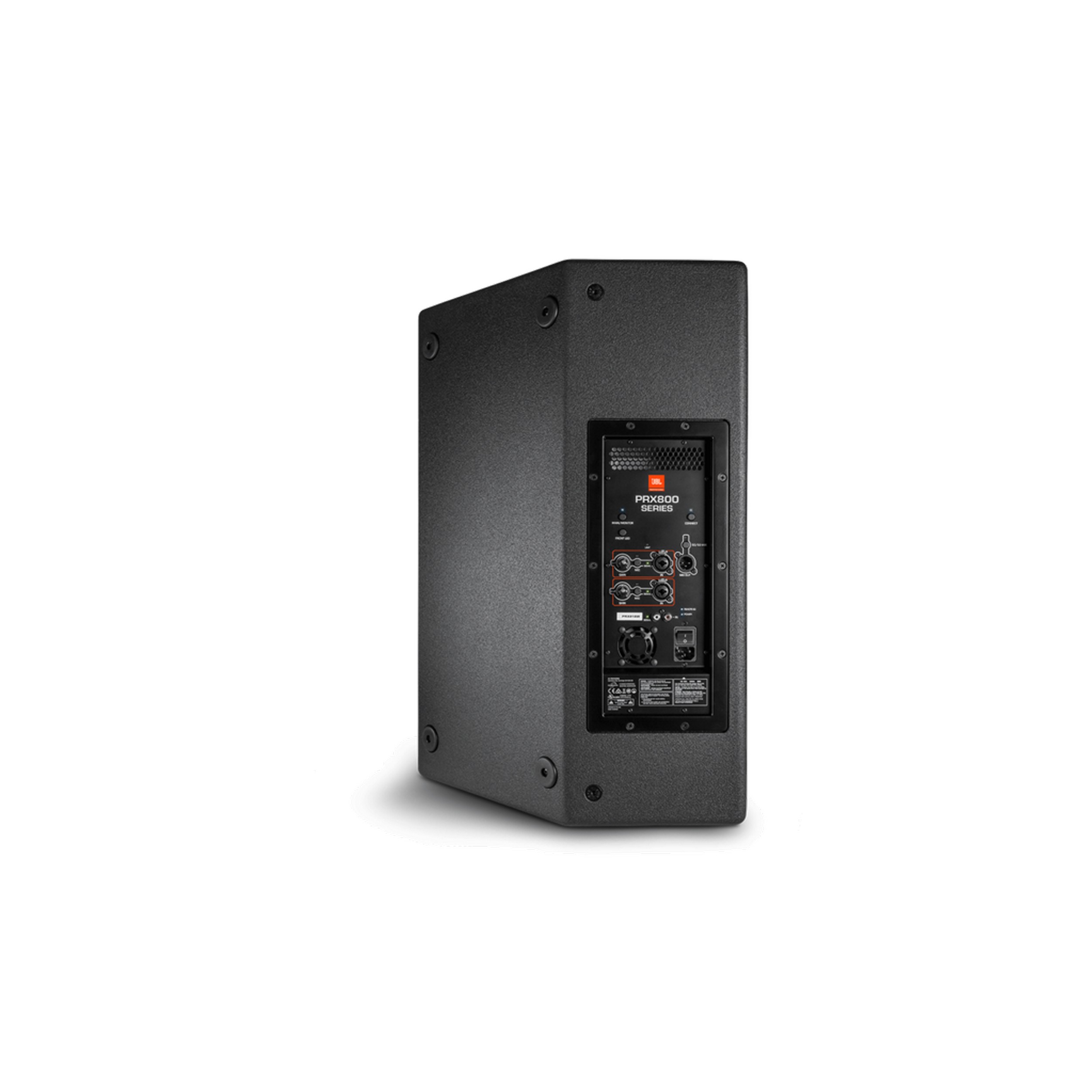

Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio

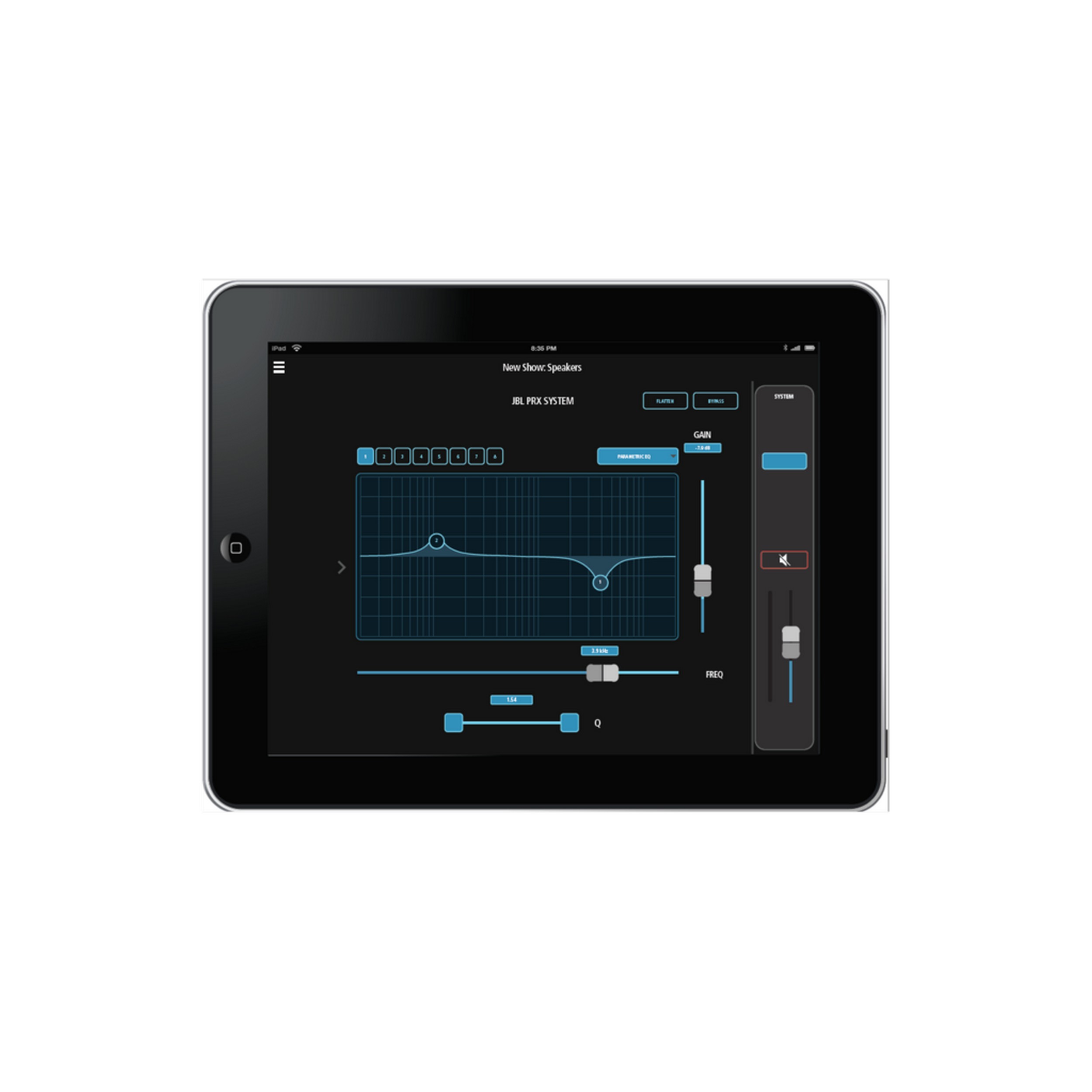

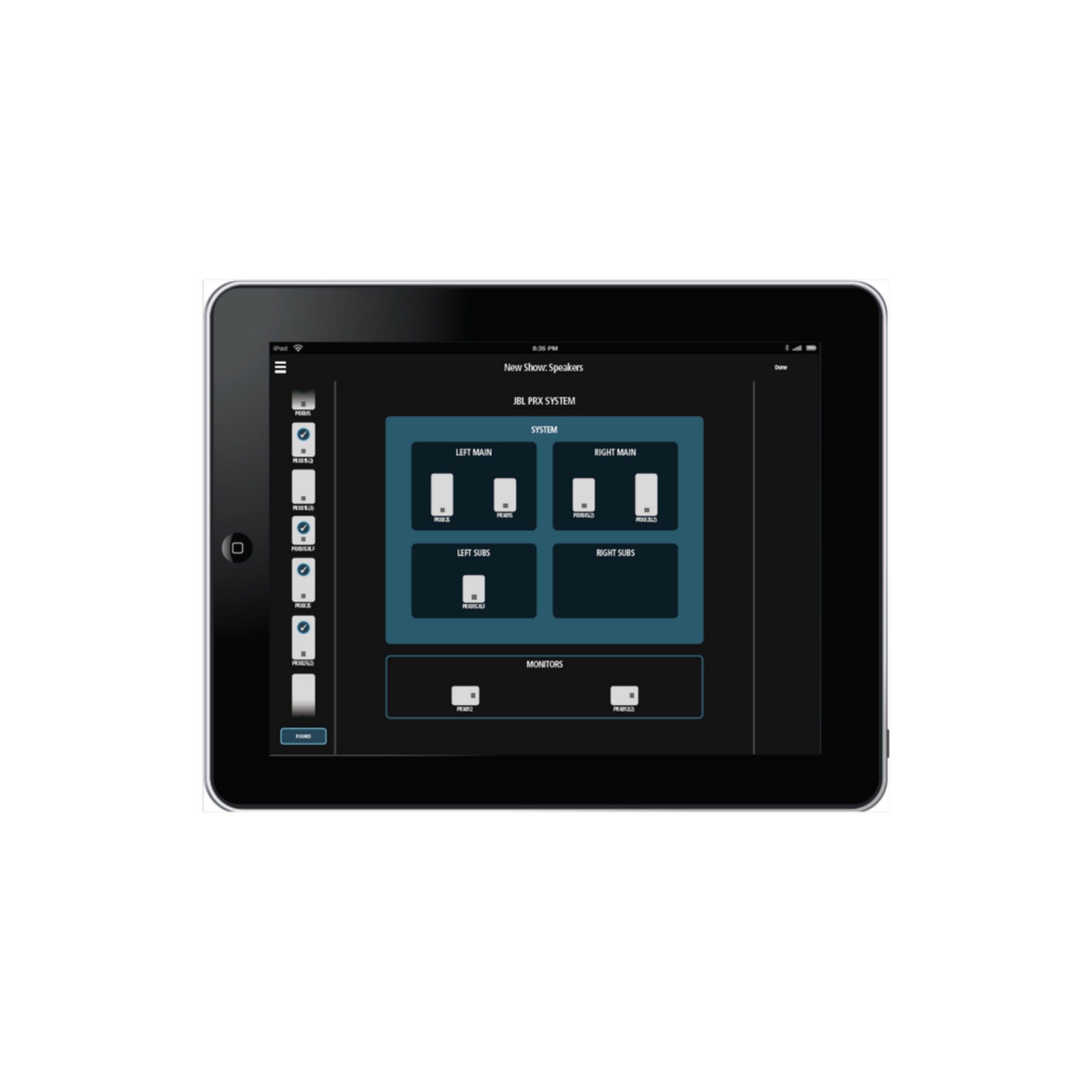

EQ User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input) dbx Type IV™ limiter circuit
Crossover Frequency 2 kHz
Design Highly efficient Class-D amplifier
Power Rating 1500W (750W x 2)
AC power input 100V - 240V ~ 50/60 Hz
LF Driver 1 x JBL 275G (15 in) woofer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern 90° x 50° nominal
Directivity Index (DI) 10.2 dB
Directivity Factor (Q) 10.4
Enclosure Asymmetrical, 18 mm, plywood
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport 1 x injection molded handle with backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D) 701 mm x 446 mm x 359 mm (27.6 in x 17.5 in x 14.1 in)
Net Weight 20.86 kg (46.0 lb)
Gross Weight 26.3 kg (58.0 lb)
DETAYLAR
DETAYLAR

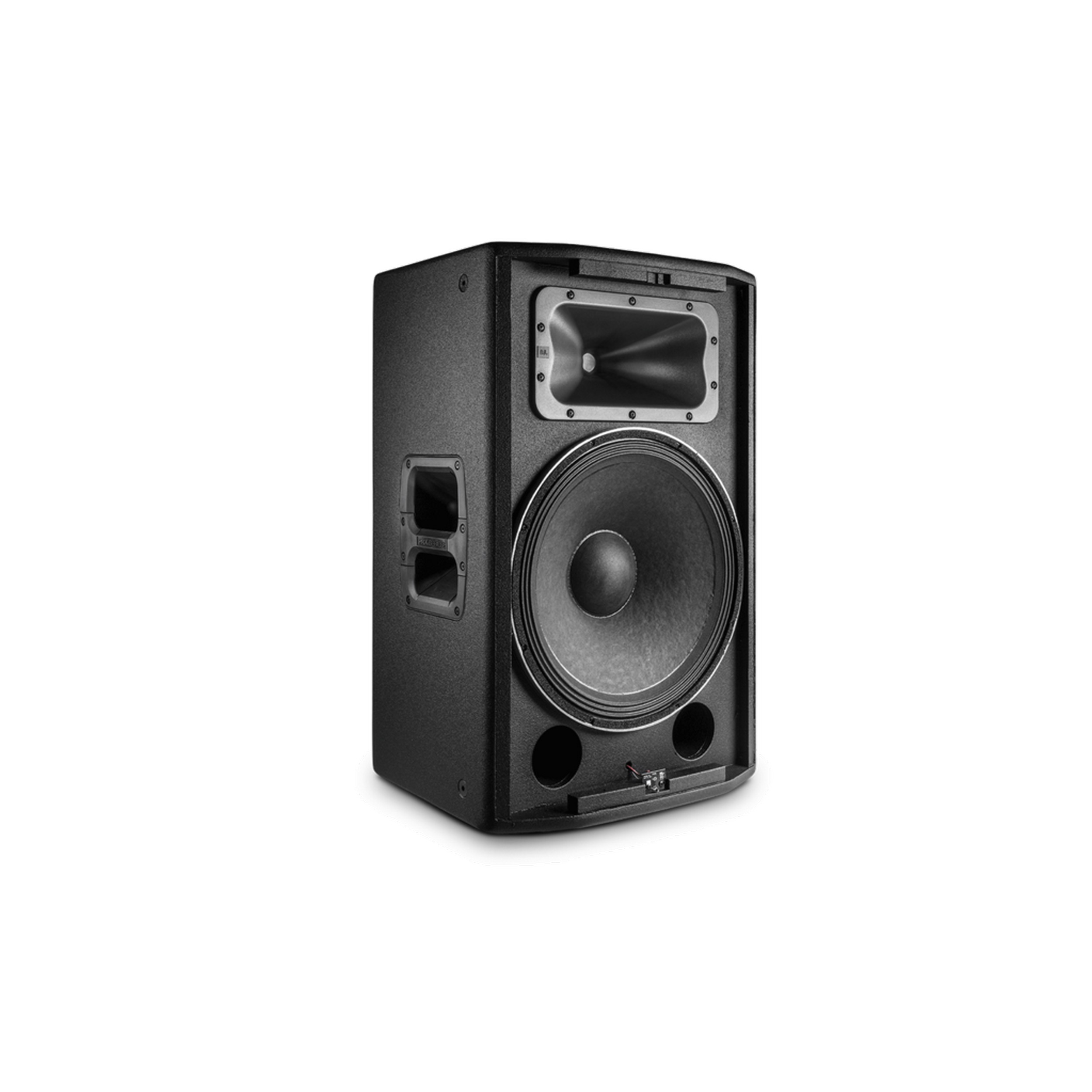

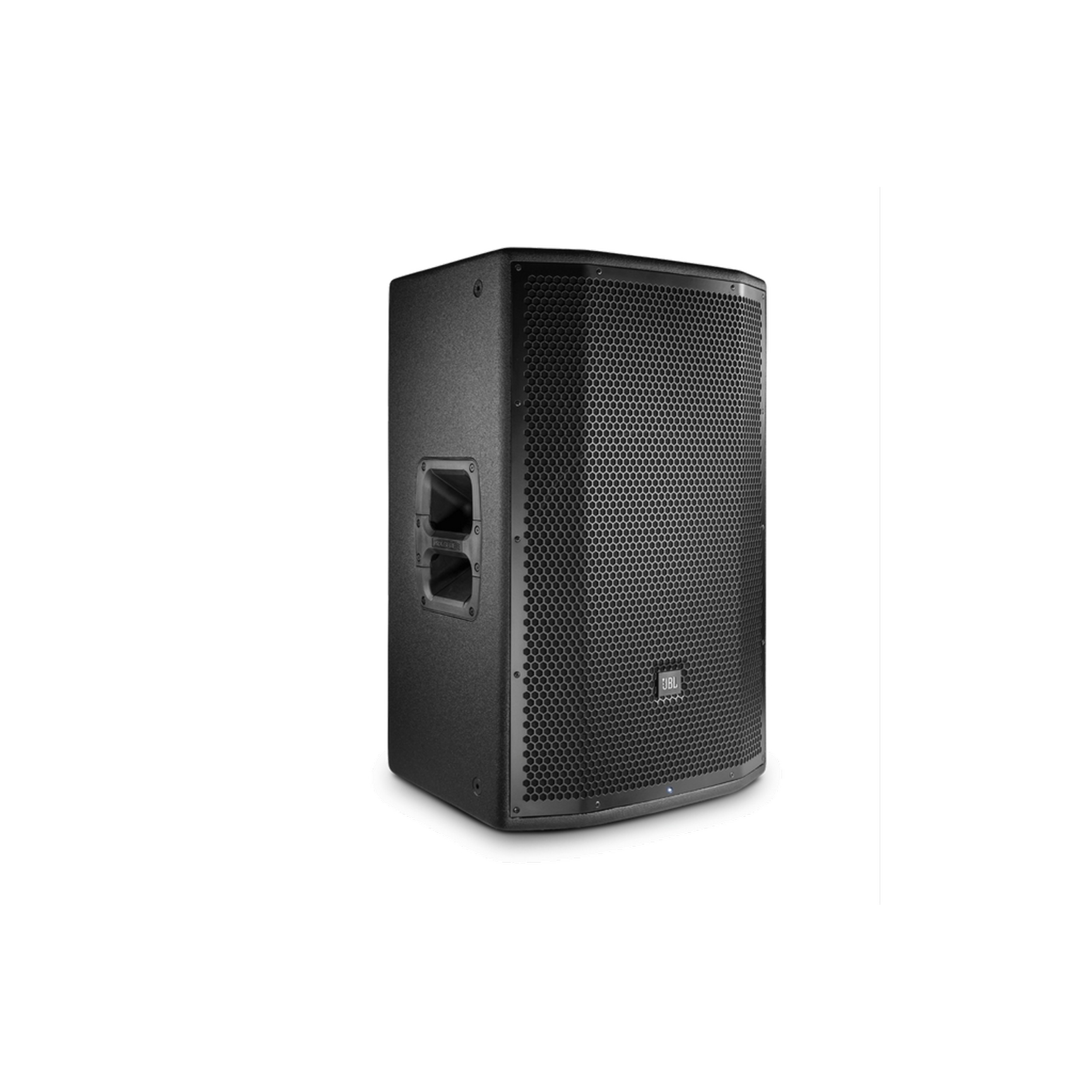

15” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

The JBL PRX815 is a full-range speaker designed for main system and floor monitor applications. Featuring a 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX815 delivers incredible volume in a lightweight and compact form factor.
