Neutrik

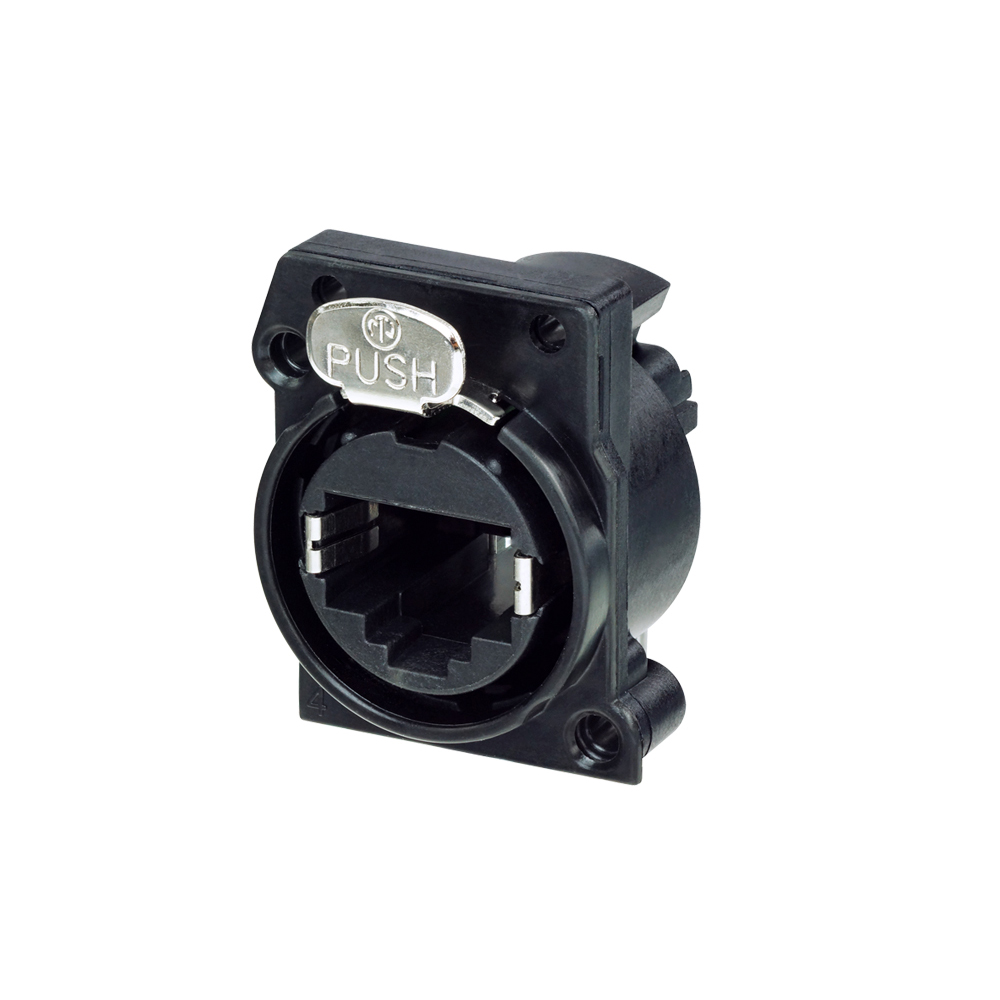

NE8FAV

Şase Tipi Dişi EtherCON Konnektör
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
DETAYLAR
DETAYLAR
Vertical PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3mm. The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The all plastic A-Series offers the most space saving and cost effective design. Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
DÖKÜMANLAR
DÖKÜMANLAR
RESİMLER
RESİMLER
ETİKETLER
ETİKETLER

ÜRÜN AİLESİ

NE8FDY-C6
D-shape CAT6 panel connector with Nickel housing
NE8FDY-C6-B
D-shape CAT6 panel connector with black Chrome housing
NE8FAH
Horizonal PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3 mm
NE8FAV
Şase Tipi Dişi EtherCON Konnektör
NE8FAV-SD
Vertical PCB mount RJ45 receptacle, A-Series cutout with latch lock,  two screw-domes for fixing the connector on the PCB, max. panel thickness 3 mm
NE8FAV-Y110
Panel mount RJ45 receptacle, IDC 110 punch down terminals, A-Series cutout with latch lock system, max. panel thickness 3 mm
NE8FAV-YK
Panel mount RJ45 receptacle with IDC terminals, A-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBV
Vertical PCB mount RJ45 receptacle, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBH
Horizontal PCB mount RJ45 receptacle, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBH-S
Fully shielded, horizontal PCB mount RJ45 receptacle, B-series cutout with latch lock, max. panel thickness 3 mm, closed metal housing to avoid EMI or cross talking
NE8FBH-LED
Fully shielded, horizontal PCB mount RJ45 receptacle with B-Series cutout and latch lock, max. panel thickness 3 mm, closed metal housing to avoid EMI or cross talking, two light pipes for  standard 3 mm LED to indicate data transmission, status, etc.
NE8FDH-C5E
Horizontal C5e component compliant PCB panel mount RJ45 receptacle, D-shape metal flange with latch lock, max. panel thickness 4 mm
NE8FDV
Vertical PCB panel mount RJ45 receptacle, D-shape metal flange with latch lock, max. panel thickness 4 mm
NE8FDV-B
Vertical PCB panel mount RJ45 receptacle, black D-shape metal flange with latch lock, max. panel thickness 4 mm
NE8FDV-Y110
Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm
NE8FDV-Y110-B
Panel mount receptacle with IDC 110 punch down terminals, black D-shape metal flange with latch lock, max. panel thickness 4 mm
NE8FDV-YK
Panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock, max. panel thickness 4 mm
NE8FDV-YK-B
Panel mount receptacle with IDC punch down terminals, black D-sized metal flange with latch lock, max. panel thickness 4 mm
NE8FDP
Şase Tipi Dişi EtherCON Konnektör
NE8FDP-B
RJ45 feedthrough receptacle, black D-shape metal flange with the latch lock
NE8FDV-SE
Vertical PCB panel mount RJ45 receptacle, combined with sealing kit SE8FD, max. panel thickness 4 mm
NE8FDP-R-B
Right angle RJ45 feedthrough receptacle, black D-shape metal flange with latch lock
NE8FDP-R
Right angle RJ45 feedthrough receptacle, D-shape metal flange with latch lock
NE8FAH-C5
Horizonal PCB mount RJ45 receptacle, CAT5e, A-Series cutout with latch lock, max. panel thickness 3 mm
NE8FAV-C5
Vertical PCB mount RJ45 receptacle, CAT5e, A-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBH-C5
Horizontal PCB mount RJ45 receptacle, CAT5e, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBH-C5-S
Horizontal PCB mount RJ45 receptacle, CAT5e, shielded, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBH-C5-LED
Horizontal PCB mount RJ45 receptacle, CAT5e, two light pipes for through hole LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBH-C5-LED1
Horizontal PCB mount RJ45 receptacle, CAT5e, two light pipes for SMD-LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBH-C5-LED-S
Horizontal PCB mount RJ45 receptacle, CAT5e, shielded, two light pipes for through hole LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBH-C5-LED1-S
Horizontal PCB mount RJ45 receptacle, CAT5e, shielded, two light pipes for SMD-LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBV-C5
Vertical PCB mount RJ45 receptacle, CAT5e, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBV-C5-S
Vertical PCB mount RJ45 receptacle, CAT5e, shielded, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBV-C5-LED
Vertical PCB mount RJ45 receptacle, CAT5e, two light pipes for through hole LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBV-C5-LED1
Vertical PCB mount RJ45 receptacle, CAT5e, two light pipes for SMD-LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBV-C5-LED-S
Vertical PCB mount RJ45 receptacle, CAT5e, shielded, two light pipes for through hole LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FBV-C5-LED1-S
Vertical PCB mount RJ45 receptacle, CAT5e, shielded, two light pipes for SMD-LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm
NE8FDH-C5E-SE
Horizontal C5e component compliant PCB panel mount RJ45 receptacle, combined with sealing kit SE8FD, D-shape metal flange with latch lock, max. panel thickness 4 mm
NE8FDP-SE
RJ45 feedthrough receptacle, combined with sealing kit SE8FD, D-shape metal flange with the latch lock
NE8FDX-P6
D-shape CAT6A panel connector, shielded, feedthrough, Nickel housing
NE8FDX-P6-B
D-shape CAT6A panel connector, shielded, feedthrough, black housing
NE8FDX-Y6
D-shape CAT6A panel connector, shielded, IDC termination, nickel housing
NE8FDX-Y6-B
D-shape CAT6A panel connector, shielded, IDC termination, black housing
NE8FDX-P6-W
D-shape CAT6A panel connector, shielded, feedthrough, with rubber sealing, IP65 when mated, nickel housing
NE8FDX-Y6-W
D-shape CAT6A panel connector, shielded, IDC termination with rubber sealing, IP65 when mated, nickel housing
RRE8F-Z-000-1
Cihazınızı veya ekipmanınızı su girişine karşı en iyi şekilde korumak için ön tarafa monte edilebilen D-Boyut flanşlı, altın kaplamalı kontaklı ve IP65 dereceli dişi RJ45 priz.
