Crown

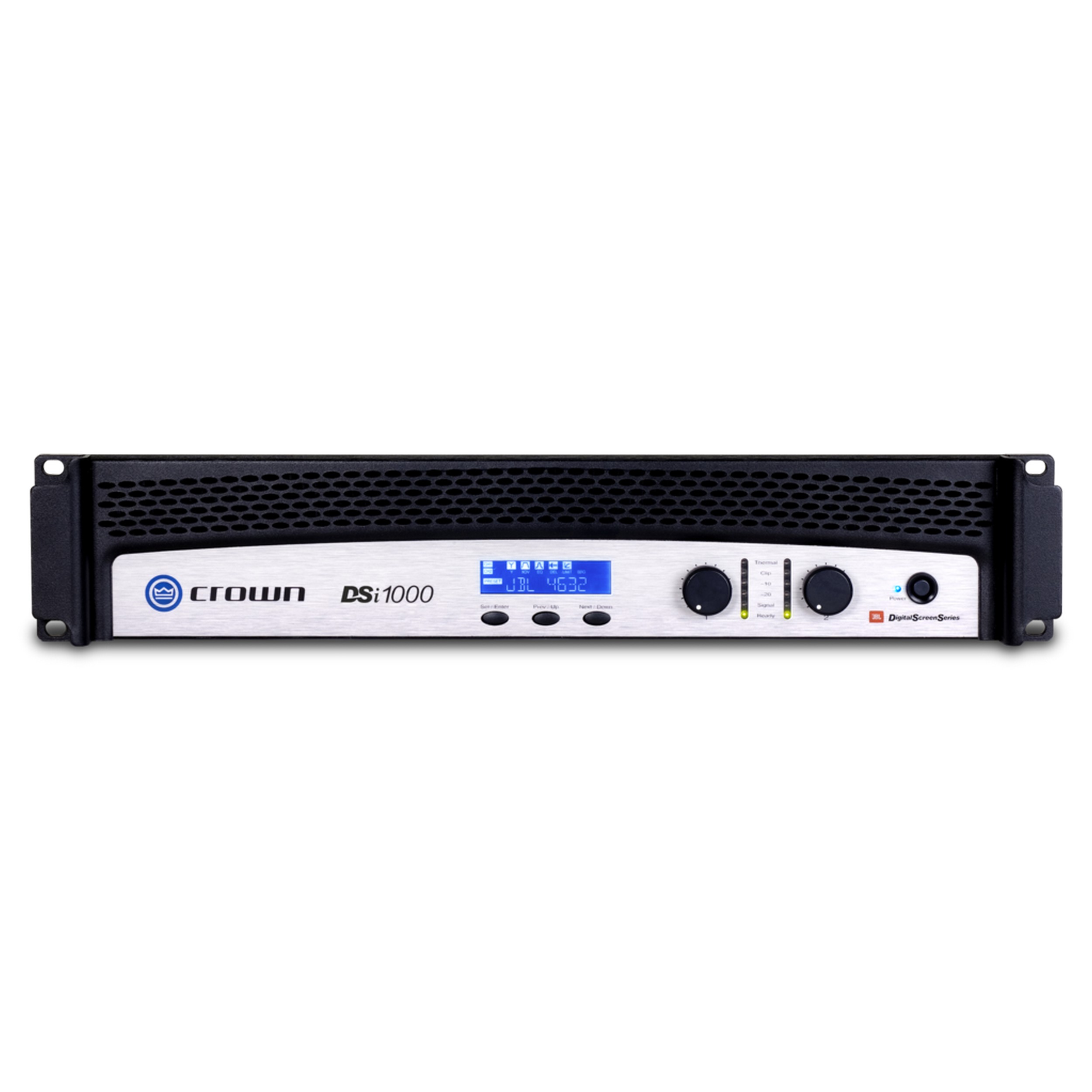

DSI 1000

8 Ohm Amfiler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Voltage Gain 30.5 at 1 kHz
Frequency Response +0/-1 dB from 20 Hz to 20 kHz at 1 watt into 4 ohms
Load Impedance Safe with all types of loads. Rated for 2 to 8 ohms in Stereo mode, 4 to 16 ohms in Bridge-Mono mode. DSi A1 (100V version) is rated for 4 to 8 ohms in Stereo mode, 8 to 16 ohms in Bridge-Mono mode.
Sensitivity at 8 ohm rated output: 1.4V, at 4 ohm rated output: 1.3V, At 2 ohm rated output: 1.1V
Signal to Noise Ratio (below rated 8-ohm power at 1 kHz) 100db (A-weighted)
Damping Factor Better than 500 from 20 Hz to 400 Hz
Crosstalk > 70 dB below rated power, 20 Hz to 1 kHz, A-weighted
Input Stage Input is electronically balanced and employs precision 1% resistors
Input Impedance (nominal) 20 k ohms, balanced; 10 k ohms, unbalanced
AC Line Voltage and Frequency Configurations Available 100V, 120V, 220-240V, 50/60 Hz
IEC Power Connector 15A
DETAYLAR
DETAYLAR

Engineered from the ground up for unmatched quality and performance, the Crown DSi Series of power amplifiers offers four models of 500W, 800W, 1,200W, and 2,100W per channel at 4 ohms. Onboard digital signal processing includes crossovers, EQ filters, delay and output limiting. Rear panel HD-15 connector provides easy input/output connectivity between DSi amplifiers and the new DSi-8M System Monitor. At the touch of a button, Crown’s DSi cinema amplifiers deliver perfectly matched performance with each award-winning JBL ScreenArray® system, making this the ultimate cinema solution.

Power Matrix
