DBX

DI1

Aktif Di-Box
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Input Impedance > 250k Ohm
Max Input +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)

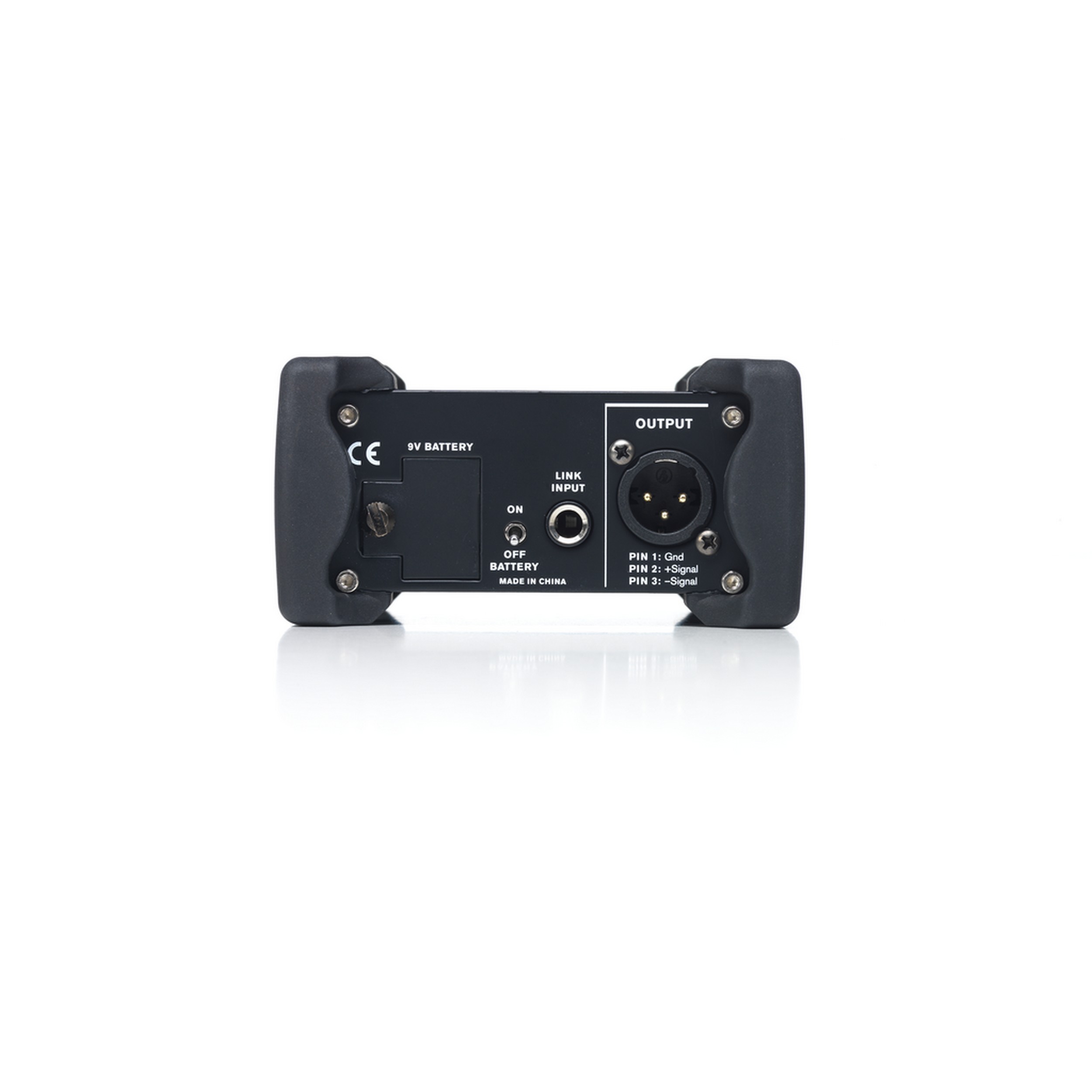

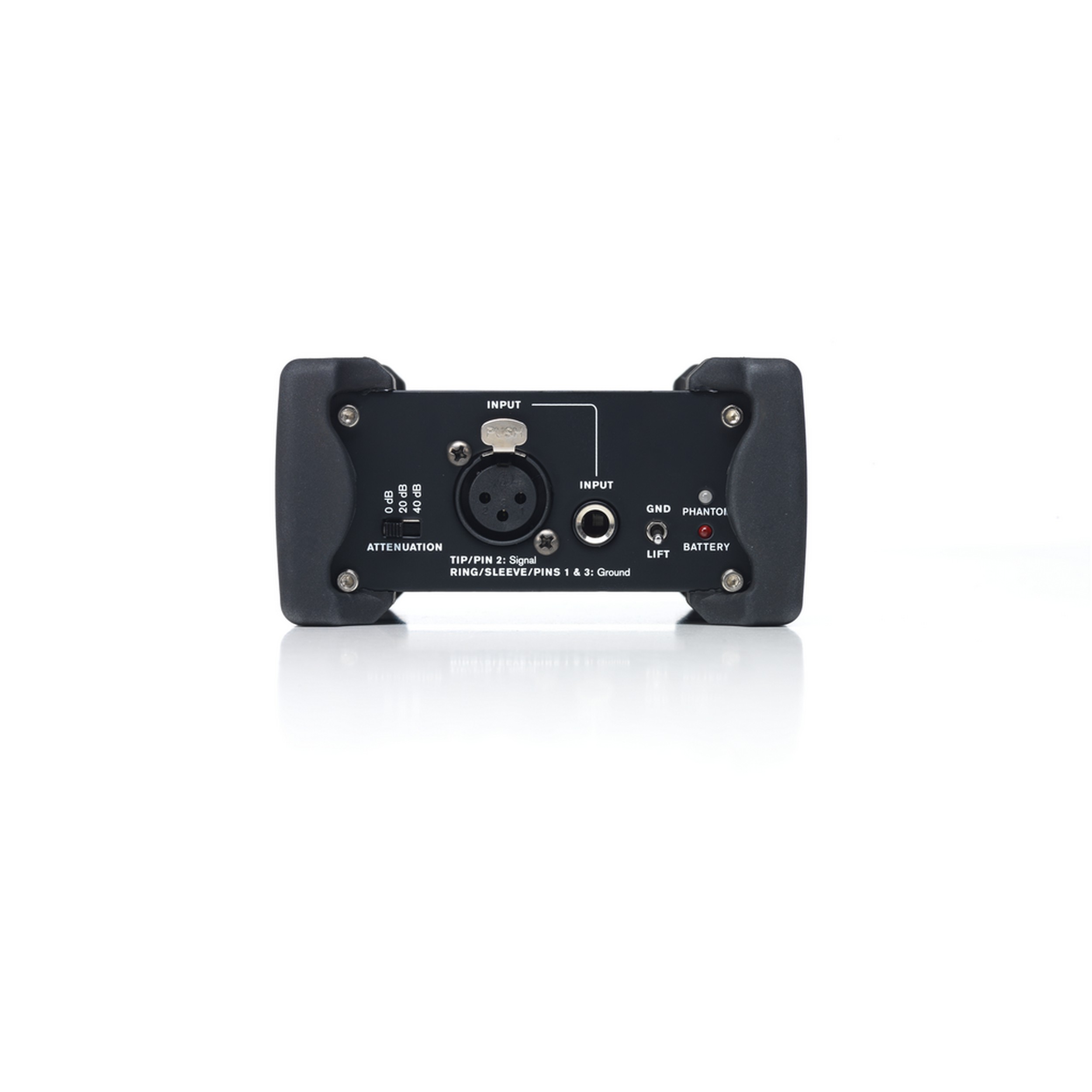

Connectors Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 & 3 Ground
Output Impedance > 600 Ohms
Output Connectors XLR balanced
Distortion (THD) < 0.005% at 1kHz, 0dBu
Output Noise <-100dB unweighted
Frequency Response 10Hz to 70kHz, +0dB/-3dB
Main/Standby 9 Volt battery
Phantom Power +18 Volts DC to +48 Volts DC
DETAYLAR
DETAYLAR

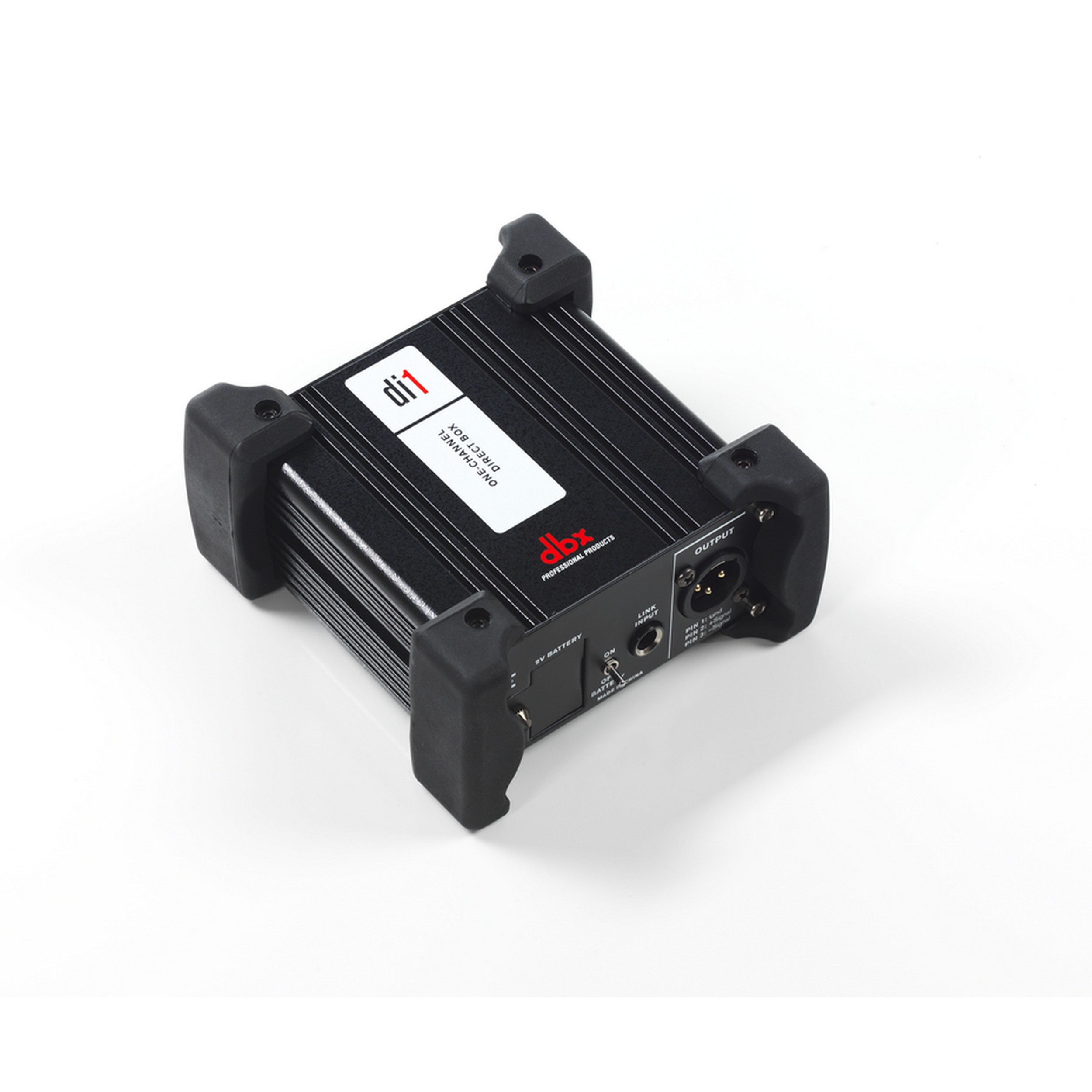

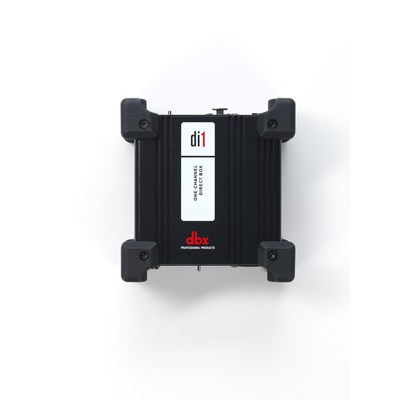

The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.

Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.

Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.
