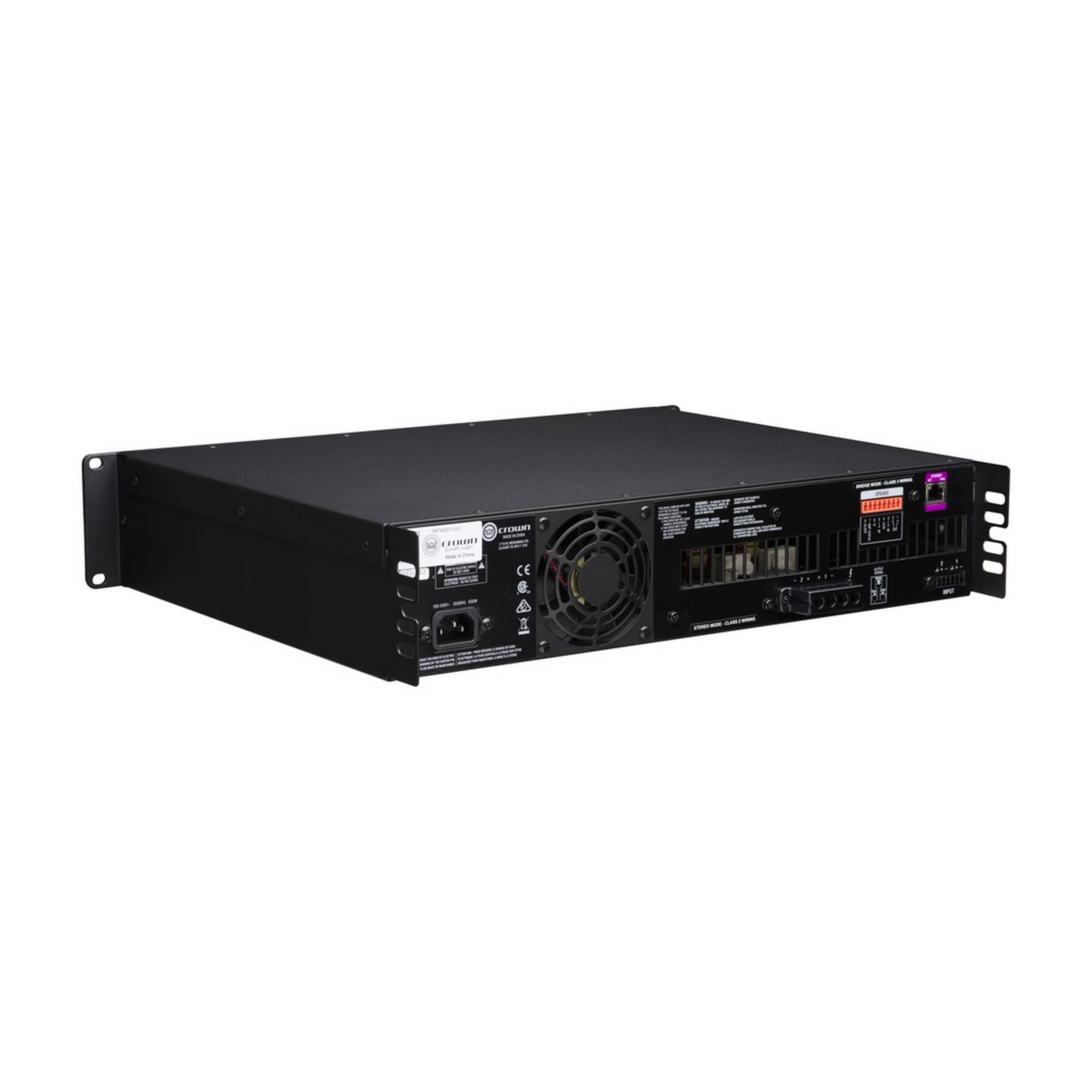

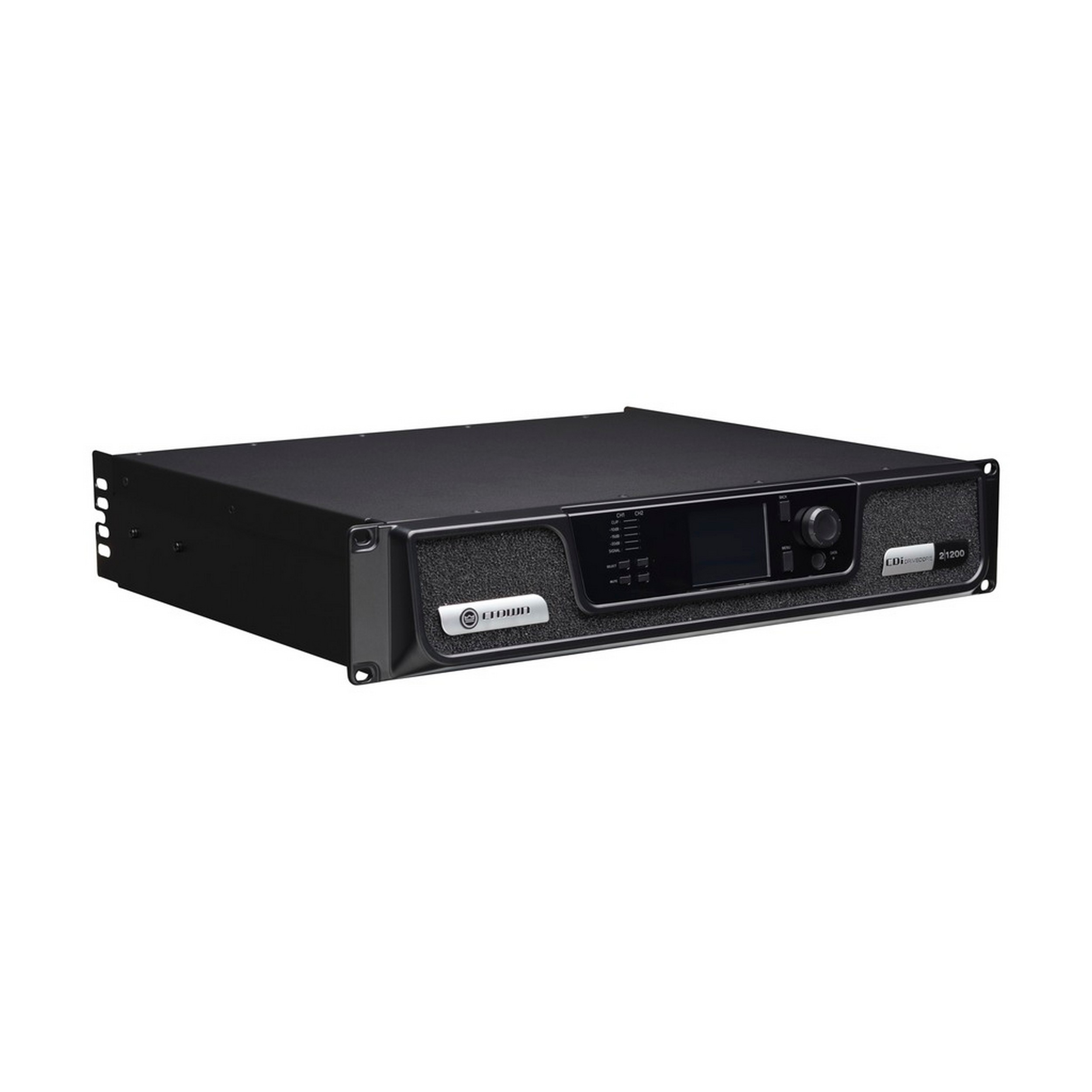

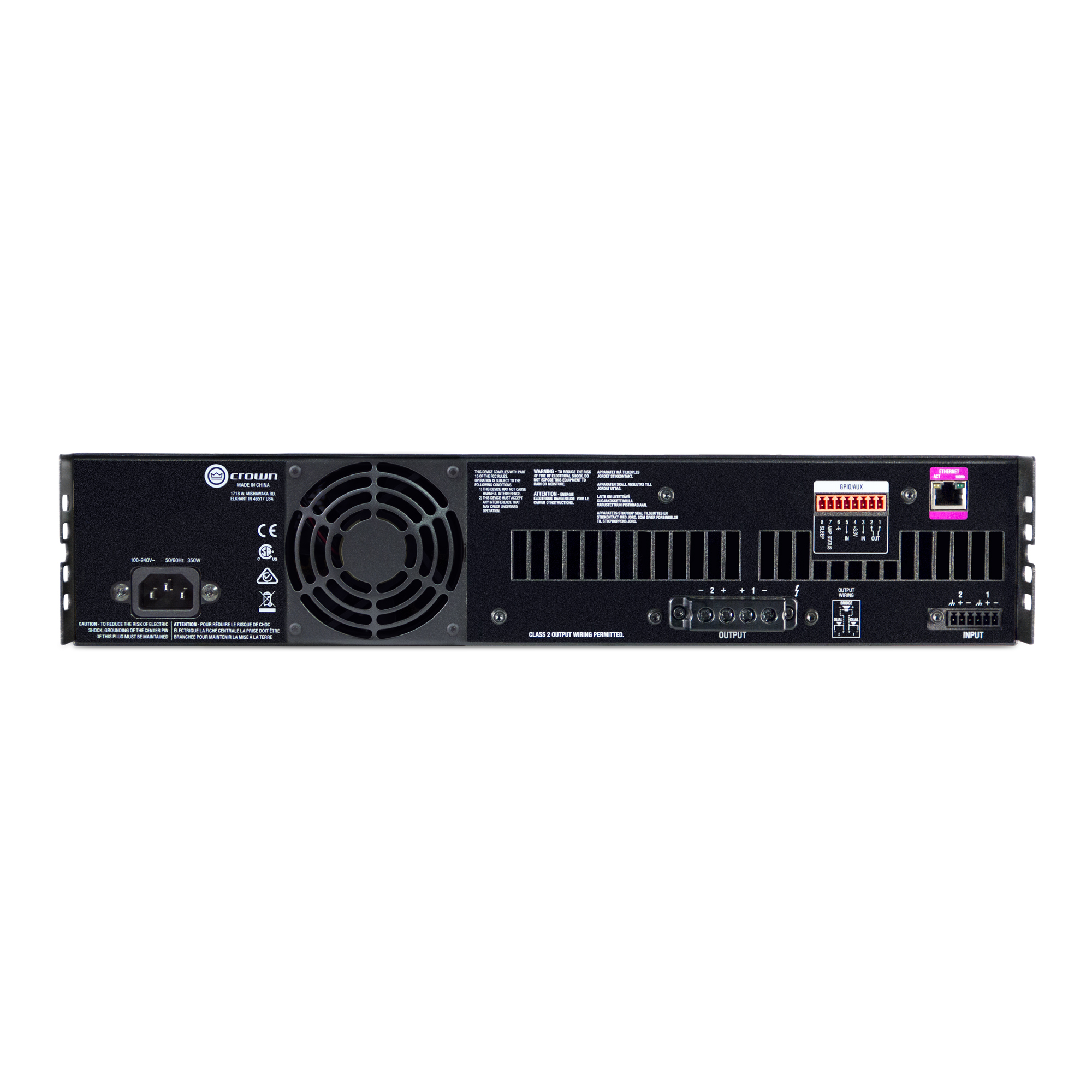

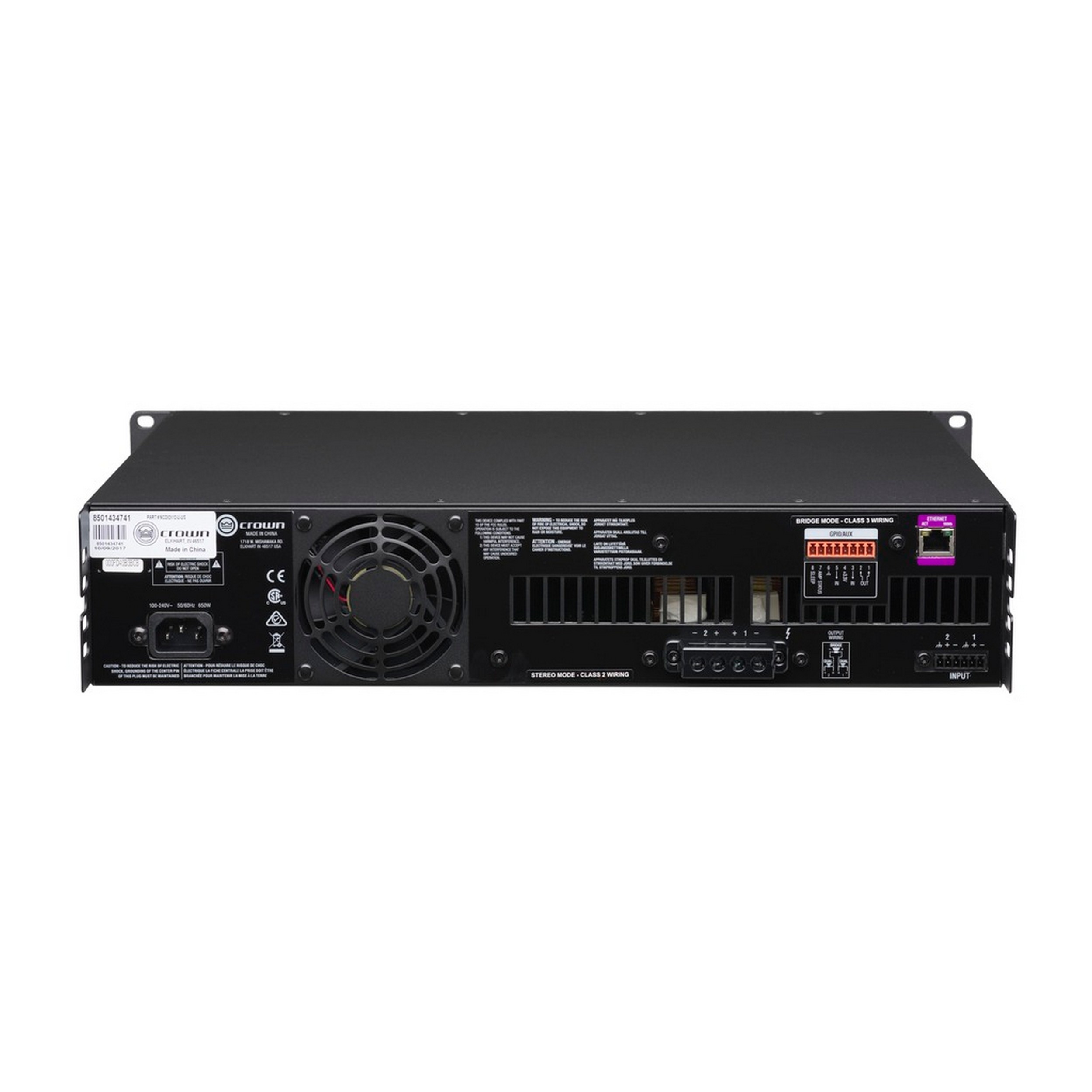

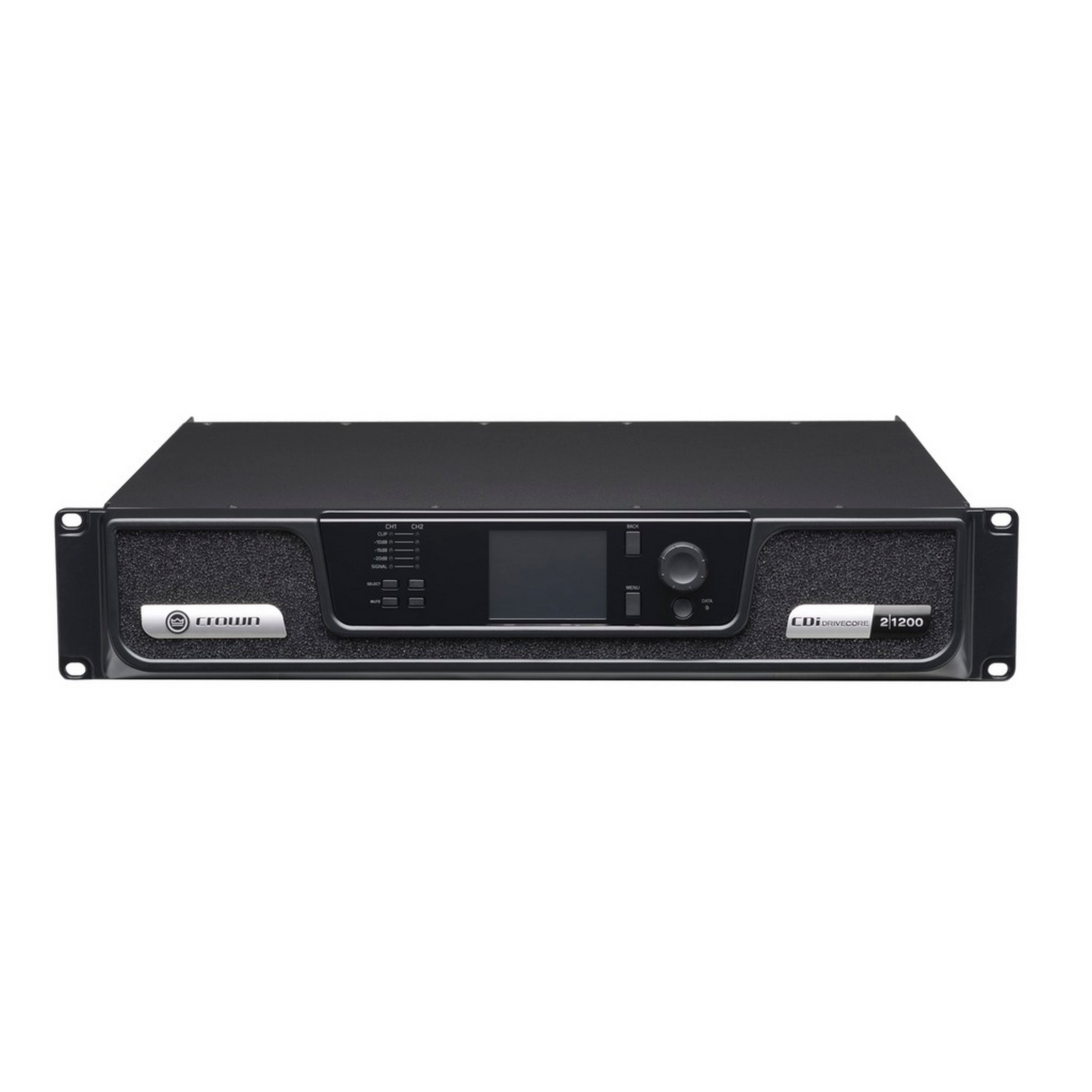

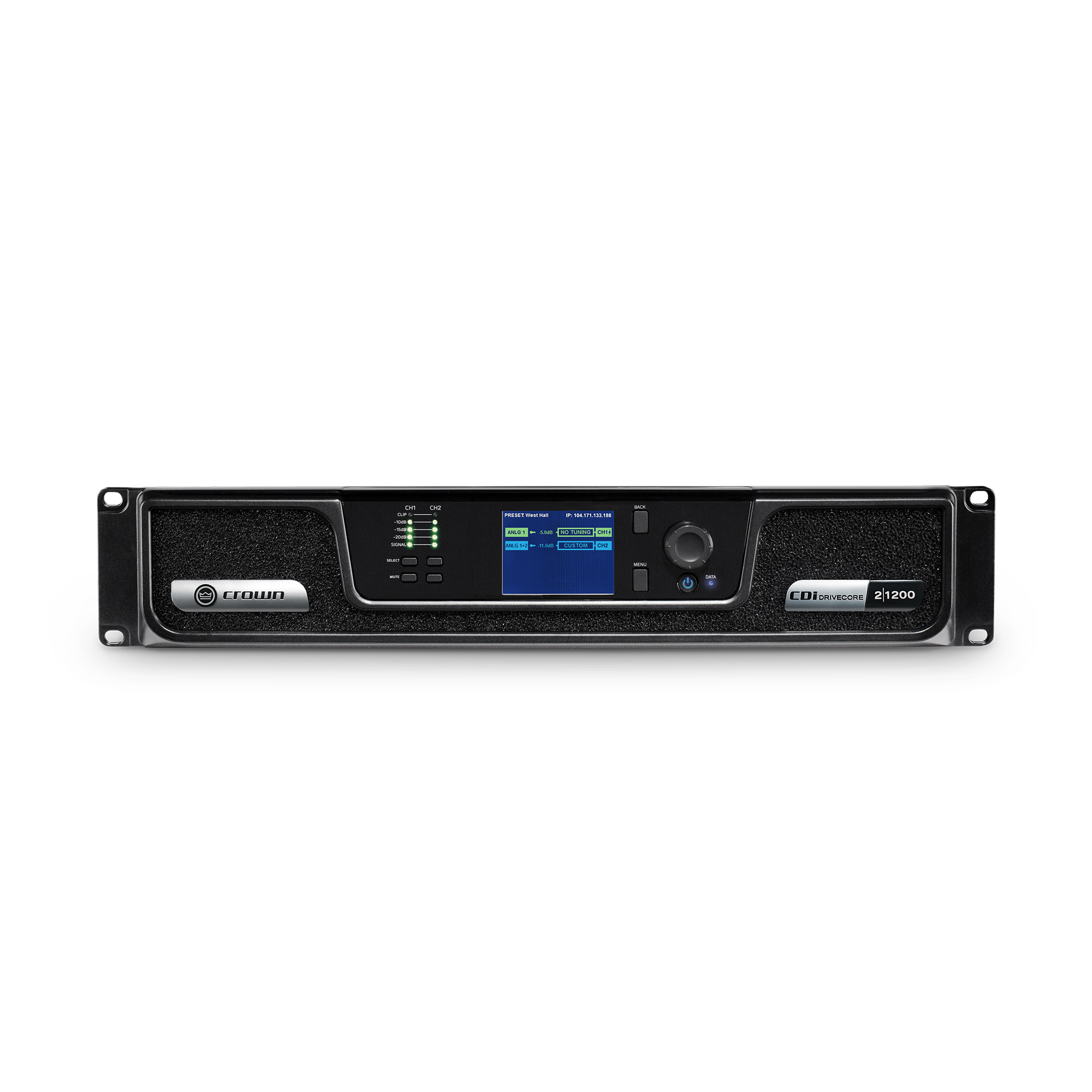

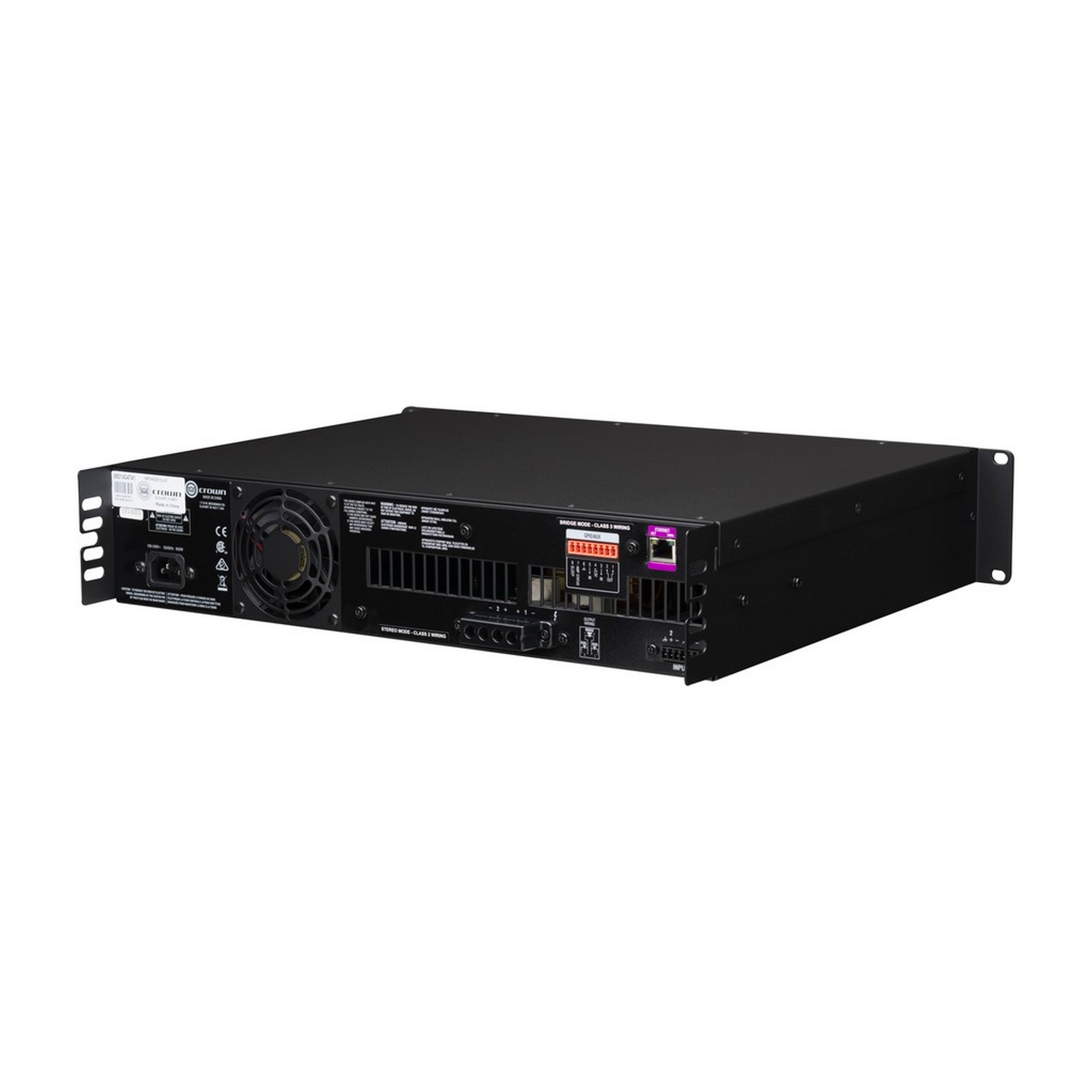

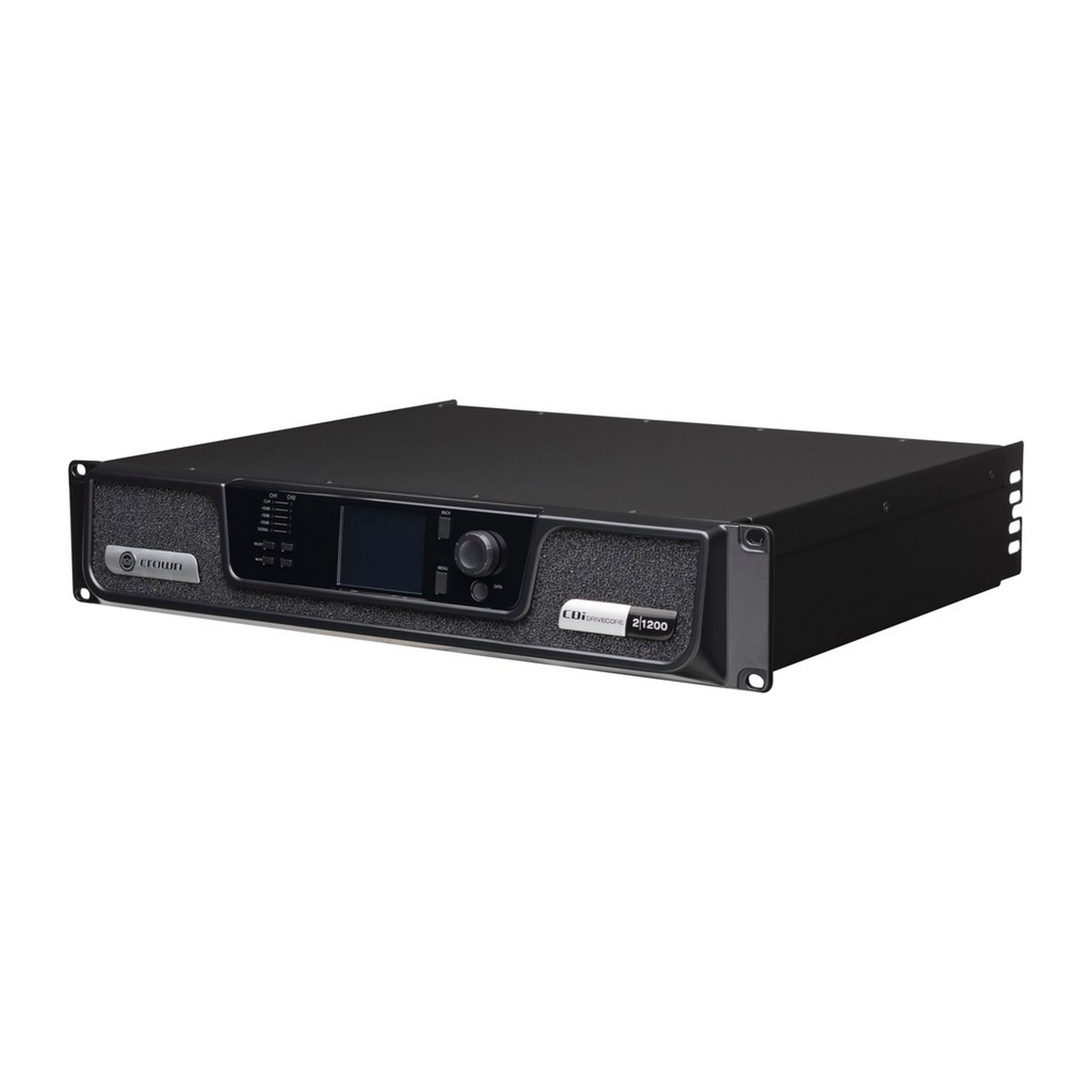

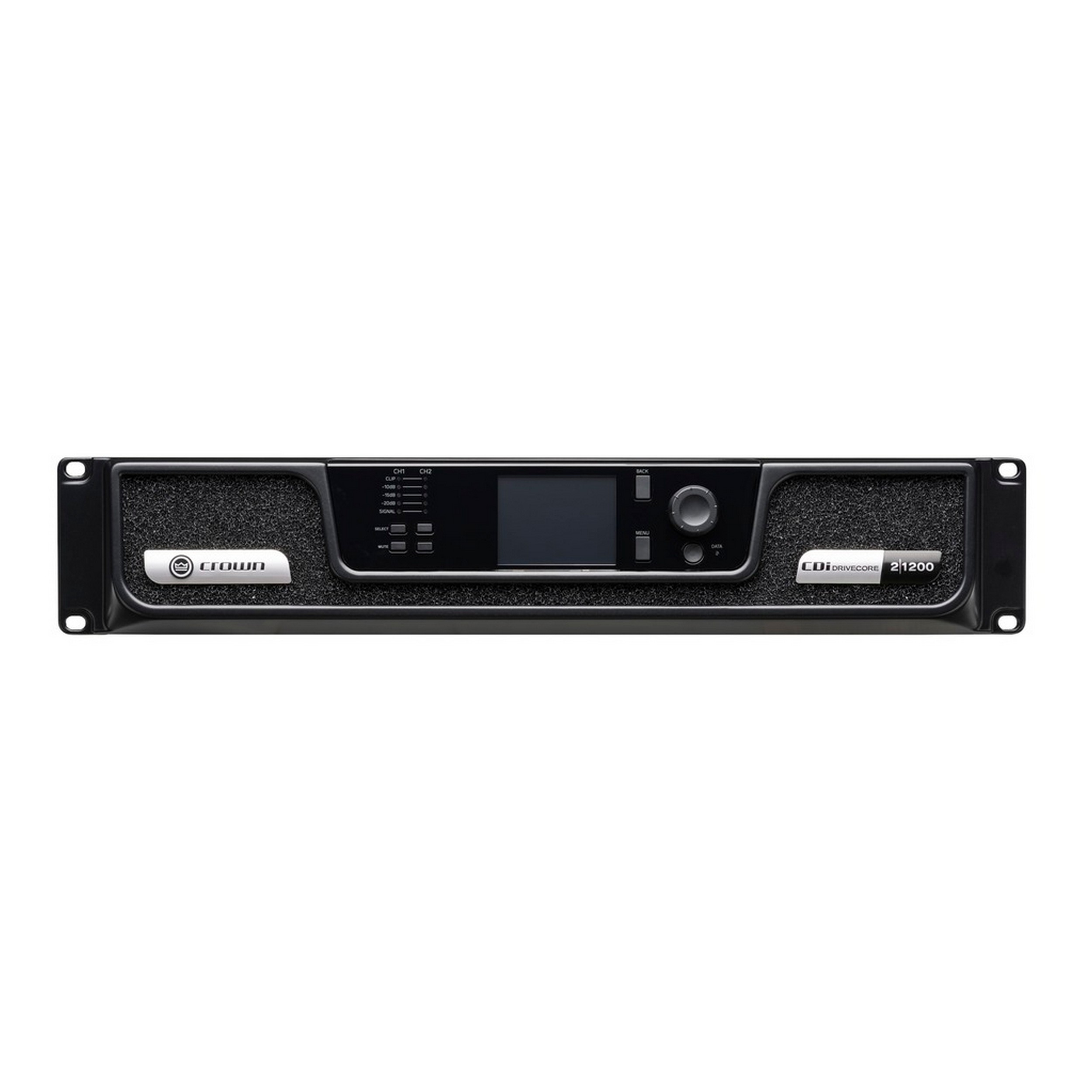

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 2|1200 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
Feature Comparison
| CDi DriveCore Model |
Channels |
Network Control |
DSP |
Control Port |
BLU link |
| 2|300 |
2 |
 |
|
|
|
| 2|300BL |
2 |
|
|
|
|
| 4|300 |
4 |
|
|
|
|
| 4|300BL |
4 |
|
|
|
|
| 2|600 |
2 |
|
|
|
|
| 2|600BL |
2 |
|
|
|
|
| 4|600 |
4 |
|
|
|
|
| 4|600BL |
4 |
|
|
|
|
| 2|1200 |
2 |
|
|
|
|
| 2|1200BL |
2 |
|
|
|
|
| 4|1200 |
4 |
|
|
|
|
| 4|1200BL |
4 |
|
|
|
|
Output Power: Dual Mode - All Channels Driven
| CDi DriveCore Model |
Channels |
2Ω |
4Ω |
8Ω |
16Ω |
70Vrms |
100Vrms |
| 2|300 / 2|300BL |
2 |
150W |
300W |
300W |
150W |
300W |
300W |
| 4|300 / 4|300BL |
4 |
150W |
300W |
300W |
150W |
300W |
300W |
| 2|600 / 2|600BL |
2 |
300W |
600W |
600W |
300W |
600W |
600W |
| 4|600 / 4|600BL |
4 |
300W |
600W |
600W |
300W |
600W |
600W |
| 2|1200 / 2|1200BL |
2 |
850W |
1200W |
1200W |
600W |
1200W |
1200W |
| 4|1200 / 4|1200BL |
4 |
850W |
1200W |
1200W |
600W |
1200W |
1200W |
Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)
Output Power: Bridge Mono Mode - All Channels Driven
| CDi DriveCore Model |
4Ω |
8Ω |
16Ω |
140Vrms |
200Vrms |
| 2|300 / 2|300BL |
300W |
600W |
600W |
600W |
600W |
| 4|300 / 4|300BL |
300W |
600W |
600W |
600W |
600W |
| 2|600 / 2|600BL |
600W |
1200W |
1200W |
1200W |
1200W |
| 4|600 / 4|600BL |
600W |
1200W |
1200W |
1200W |
1200W |
| 2|1200 / 2|1200BL |
1200W |
2400W |
2400W |
2400W |
2400W |
| 4|1200 / 4|1200BL |
1200W |
2400W |
2400W |
2400W |
2400W |
Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)
