dB technologies

B-HYPE 12

12”+1” Aktif Hoparlör 400W
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Hoparlör Tipi 2-Yollu Aktif Hoparlör
Frekans Tepkisi [-10dB] 55 - 20.000 Hz
Frekans Tepkisi [+/- 3dB] 61 - 19.500 Hz
Maks.SPL 126 dB
Voice Coil HF 1 "
Dağılım Açısı asymmetrical 85° up / 120°down
LF 12 "
Voice Coil LF 2 "
Amfi Teknolojisi Custom Made
Amfi Sınıfı Class D - Passice cooling (convection)
Peak Güç 400 W
Kontrol DSP 28/56 bit- 48 kHz
Malzeme Polypropylene
Monitör Açısı Double wedge angle 45°
Ölçüler G: 350 mm Y: 645 mm D: 330 mm
Ağırlık 13.9 kg
DETAYLAR
DETAYLAR

B·H series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.

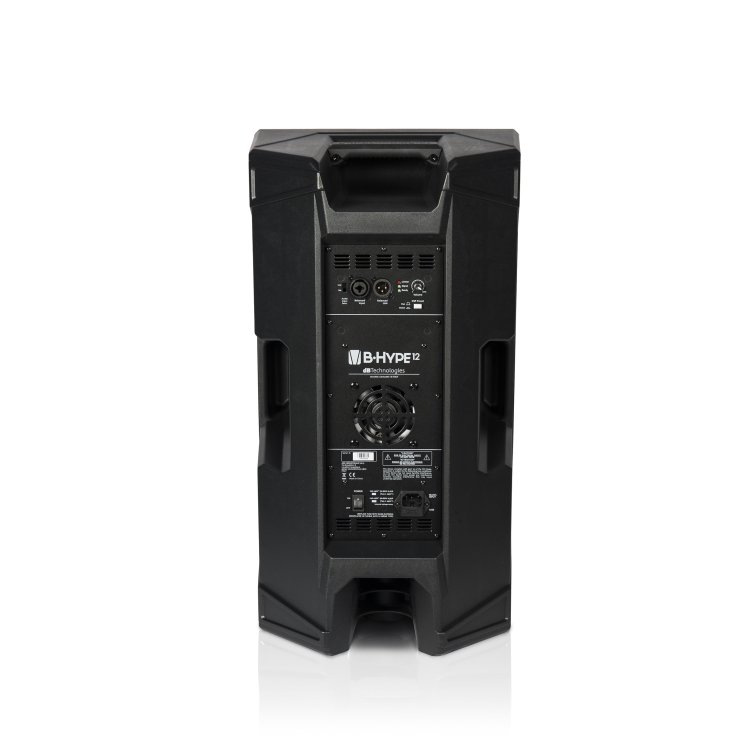

The new B-HYPE 12 is a versatile active speaker. It is equipped with one 1” neodymium compression driver (1” voice coil), and one 12” woofer (2” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

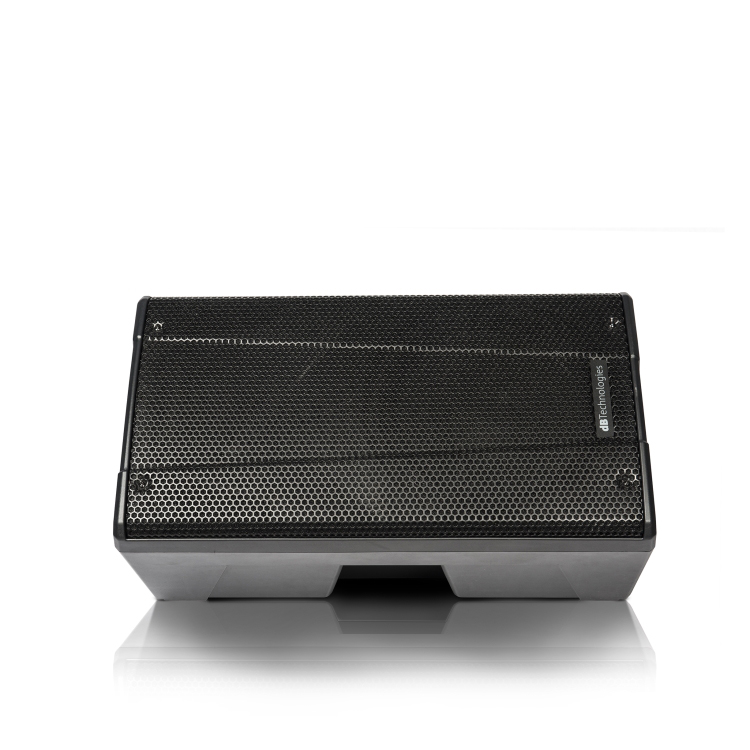

The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1xside and 1 on top-) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.
