| Frequency Range (-10 dB) |
80 Hz – 20 kHz
|
| Frequency Response (±3 dB) |
100 Hz – 20 kHz
|
| Coverage Pattern |
120° x 120°
|
| Directivity Factor (Q) |
8.1 (1 k – 16 kHz)
|
| Directivity Index (DI) |
8.4 dB (1 k – 16 kHz)
|
| Long-Term System Power Rating (IEC) |
250 W 2 hrs. 200 W 100 hrs
|
| Sensitivity (2.83V @ 1m) |
94 dB (Ave. 100 Hz – 20 kHz)
|
| Maximum SPL |
Direct 8Ω: 118 dB (peaks of 124 dB) 200 W Tap: 117 dB
|
| Crossover Network |
1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
|
| Nominal Impedance |
8 ohms
|
| Transformer Taps |
70V: 200W, 100W, 50W, 25W100V: 200W, 100W, 50W
|

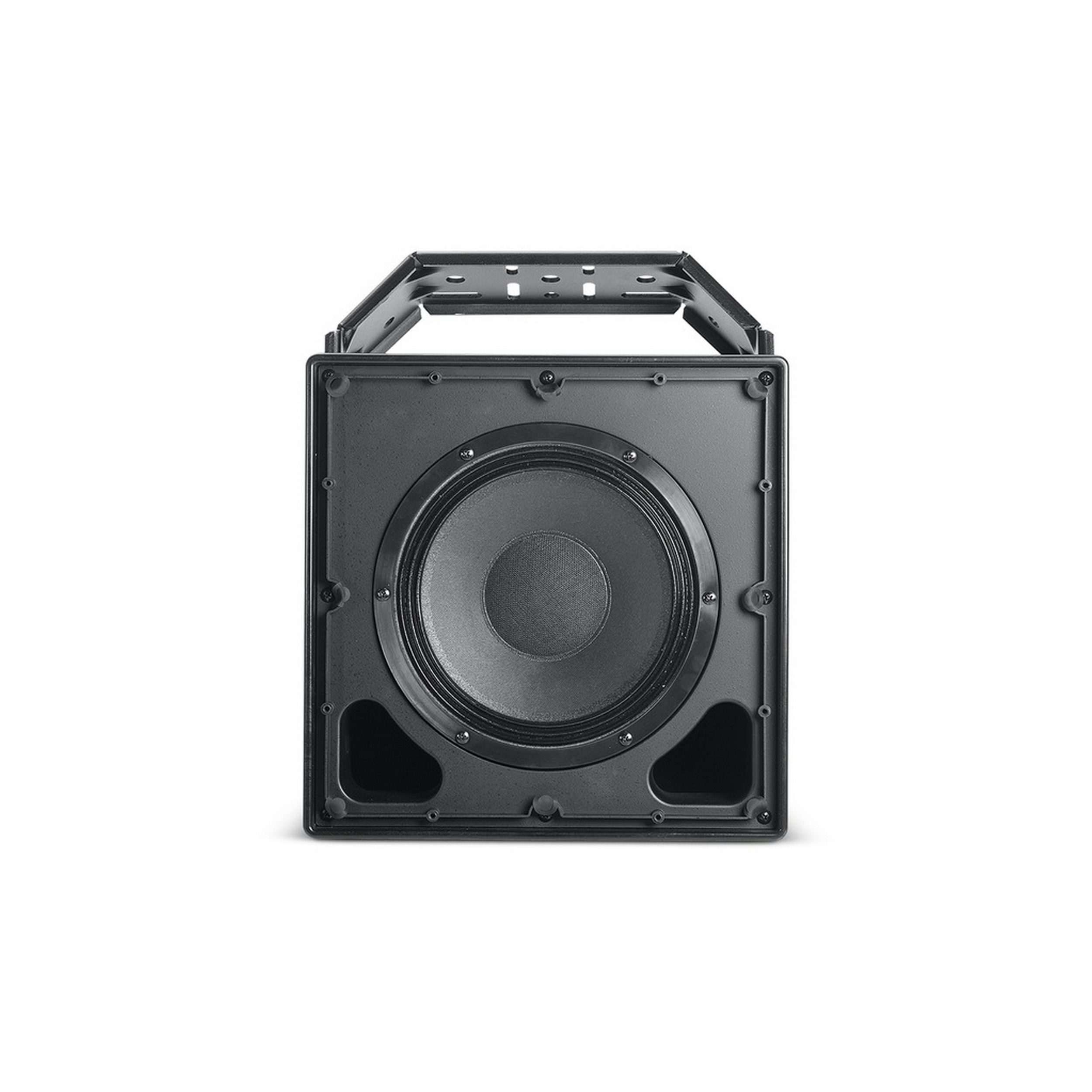

| Low Frequency Driver |
Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
|
| High Frequency Driver |
25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
|
| HF Driver Protection |
Minimum audibility SonicGuard™ HF overload protection
|
| Enclosure |
ABS with Glass enclosure, heavily braced
|
| Attachment |
Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
|

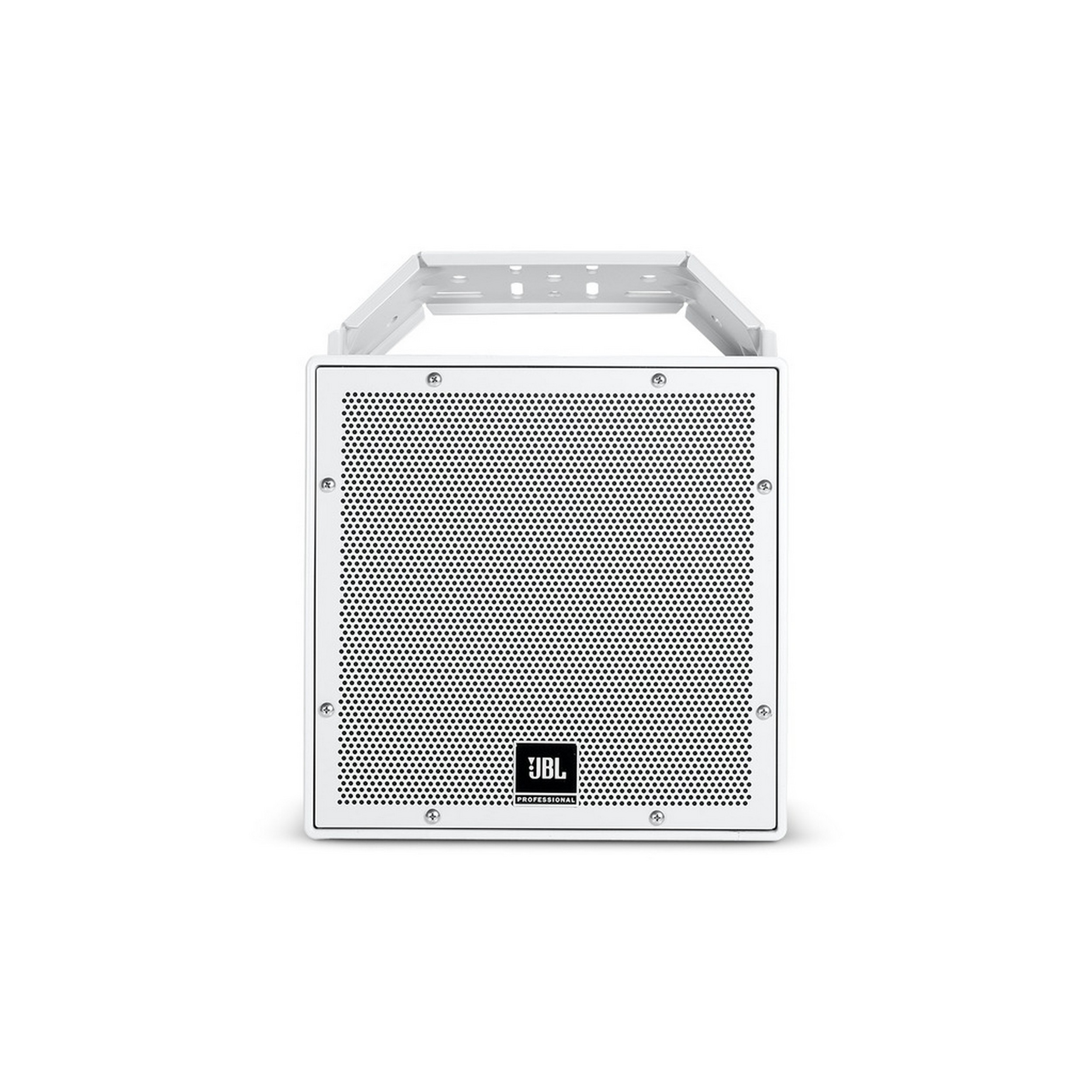

| Grille |
Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
|

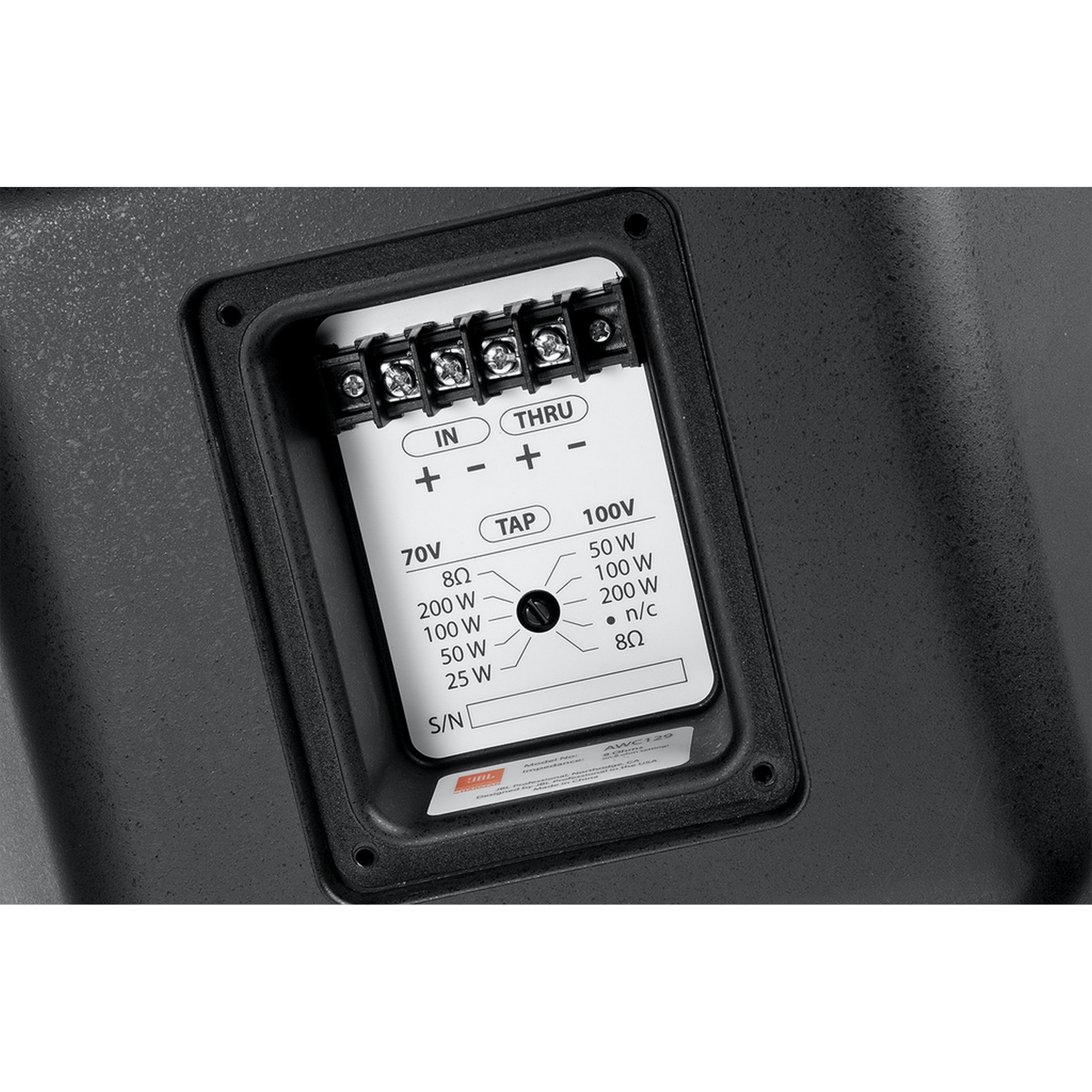

| Input Connection |
CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
|
| Environmental |
IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
|
| Dimensions |
300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back
|

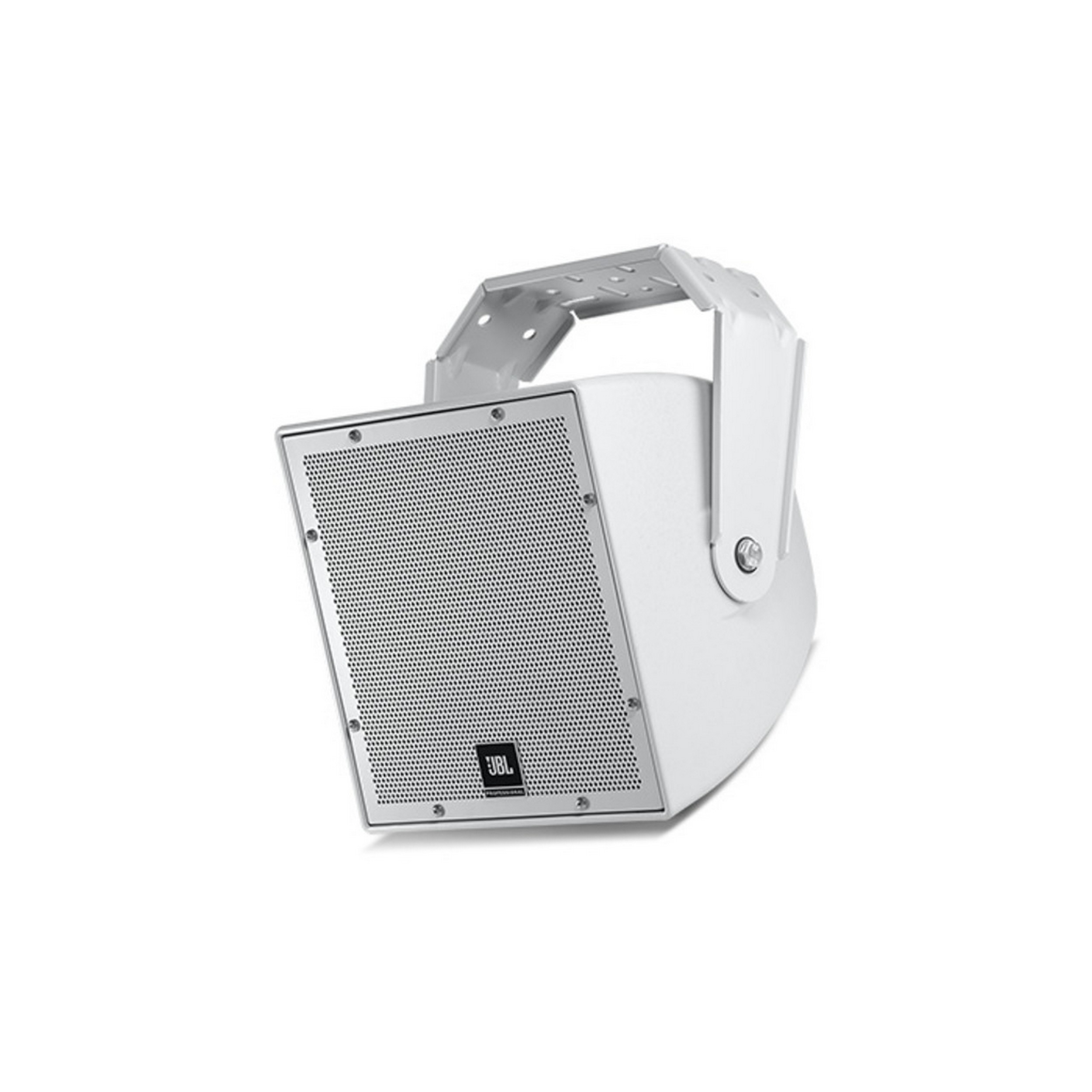

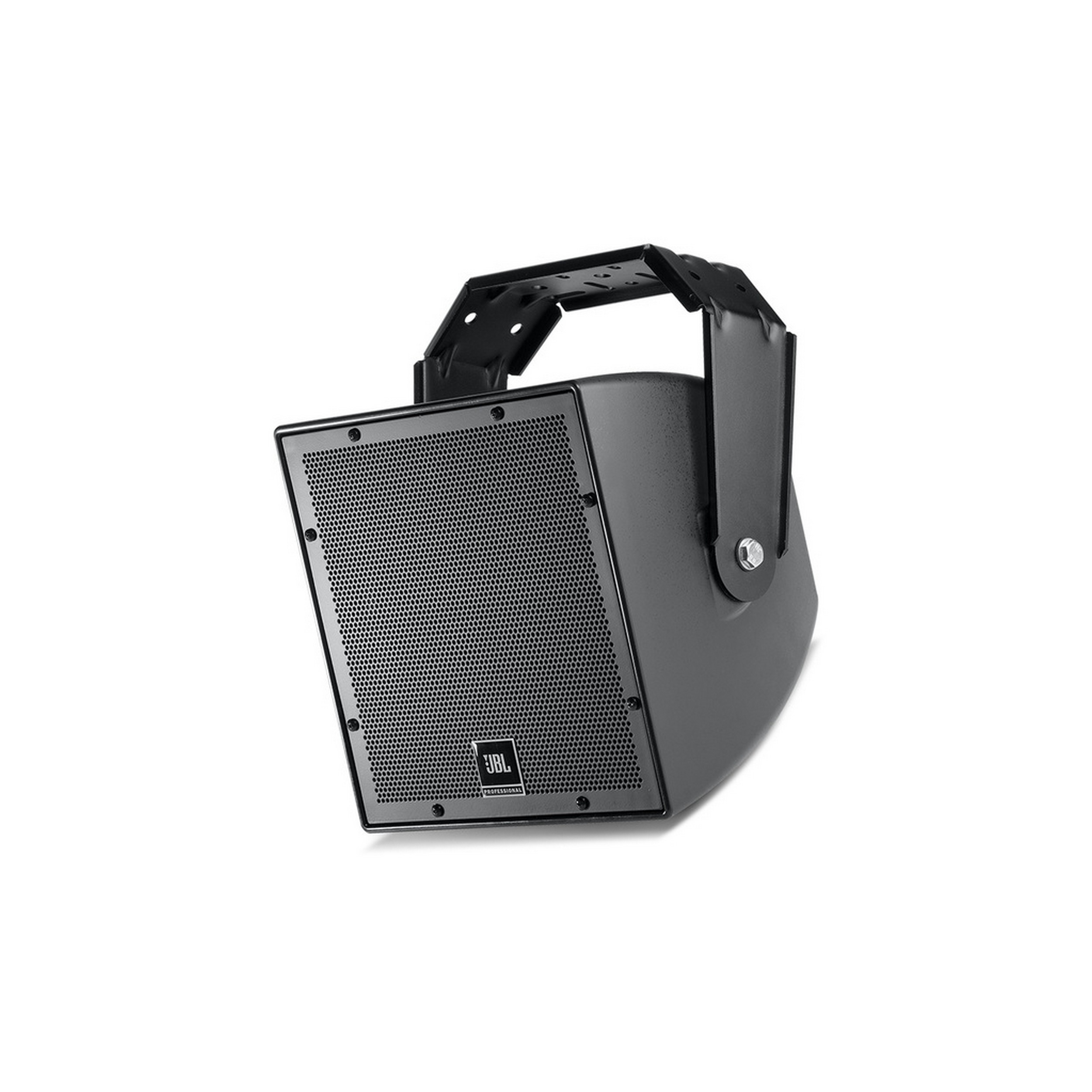

| Colors |
Available in gray (similar to Pantone 420C) and black (-BK)
|
| Net Weight |
9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
|
| Shipping Weight |
14.1 kg (31.0 lb)
|
| Included Accessories |
U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
|
