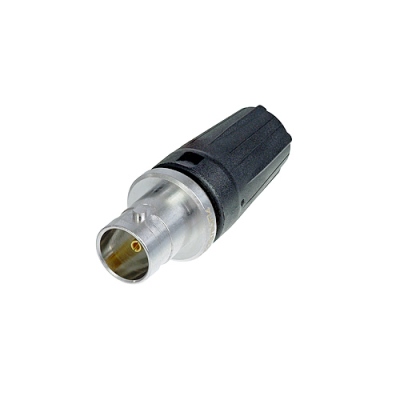

Neutrik's BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny cable jack is the perfect solution for extensions and Y-cables. Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. Suitable cables: CAE MC75, Sommer 600-0701, Sommer 600-20-03 (05), Sommer 600-025-03 (05) Crimp size: Pin: 1.6 mm (square) Shield: 4.06 mm (hex)

Neutrik's BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny cable jack is the perfect solution for extensions and Y-cables. Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. Suitable cables: Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P) (Bulk) Crimp size: Pin: 1.6 mm (square) Shield: 4.53 mm (hex)

Neutrik's BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny cable jack is the perfect solution for extensions and Y-cables. Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. Suitable cables: Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B Crimp size: Pin: 1.6 mm (square) Shield: 4.06 mm (hex)
