Soundcraft

SIGNATURE 22 MTK

22 kanal 14 mono 3 stereo 24x22 USB Mixer
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Height 109mm (4.3")
Width 490mm (19.3")
Length 660mm (26.0")
Weight 11.36kg (25.1lb)
DETAYLAR
DETAYLAR

The Ableton Live 10 Lite software is an included download with all Signature MTK consoles. Feed your creativity with this fast, flexible sequencing and workstation. From built-in instruments, sounds and effects to recording and mixing features, Live 10 Lite gives you everything you need to create, produce and perform.

The Soundcraft Signature 22MTK incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

It includes a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. In addition, the console’s multi-track USB audio interface allows any VST/AU/AAX/TDM/RTAS plug-ins to be inserted on any input channel, enabling studio plug-ins to be seamlessly integrated with live performances. Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 9 Lite.

The console is designed to deliver pristine recordings. Both have an ultra-low-latency USB interface that flawlessly captures every channel, which can then be mixed or transferred to a DAW for further mixdown and production. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

The Soundcraft Signature 22MTK features smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs.

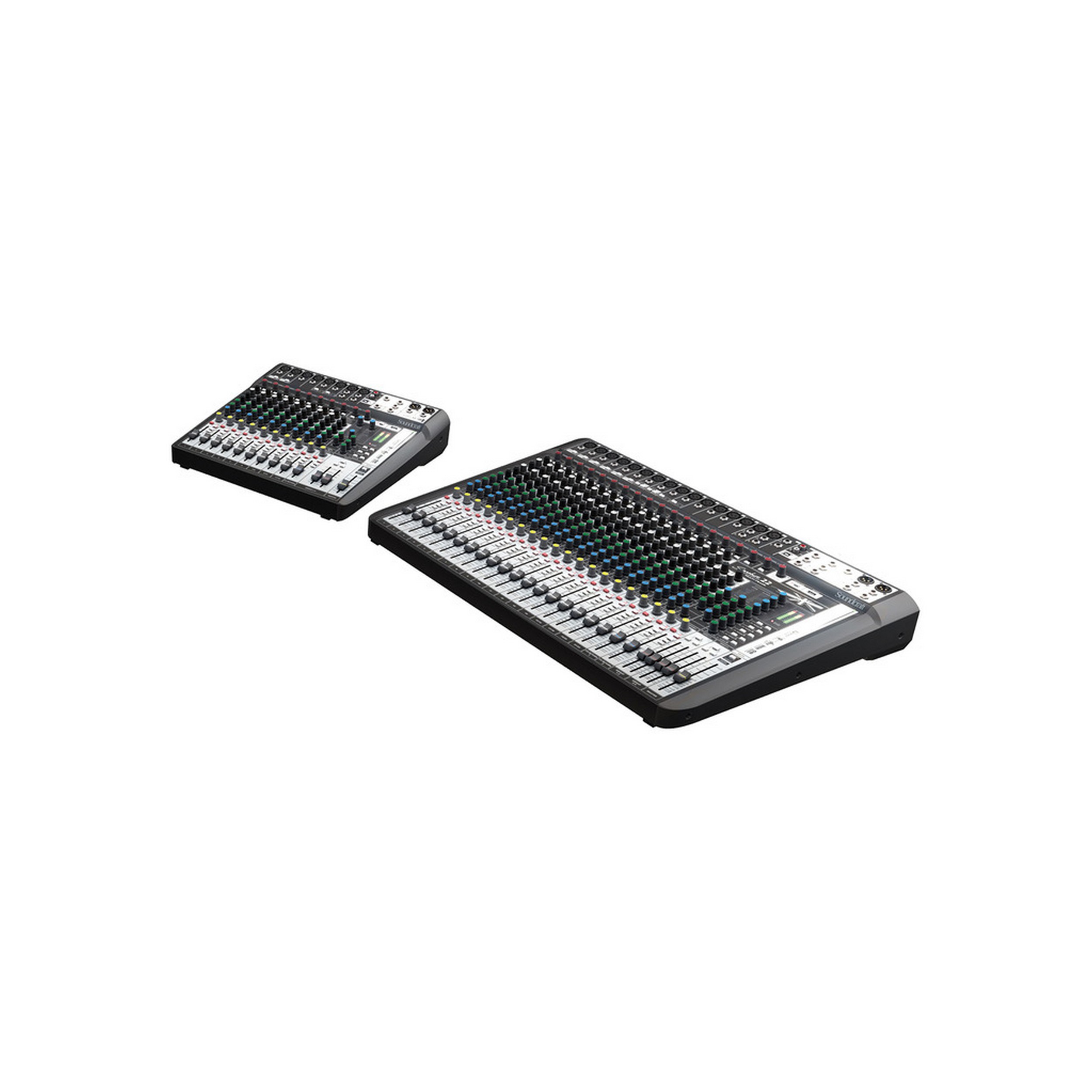

Both the Soundcraft Signature 12MTK and Soundcraft Signature 22MTK are built using tour-grade robust metal construction and top-quality components. Both have an internal universal power supply.

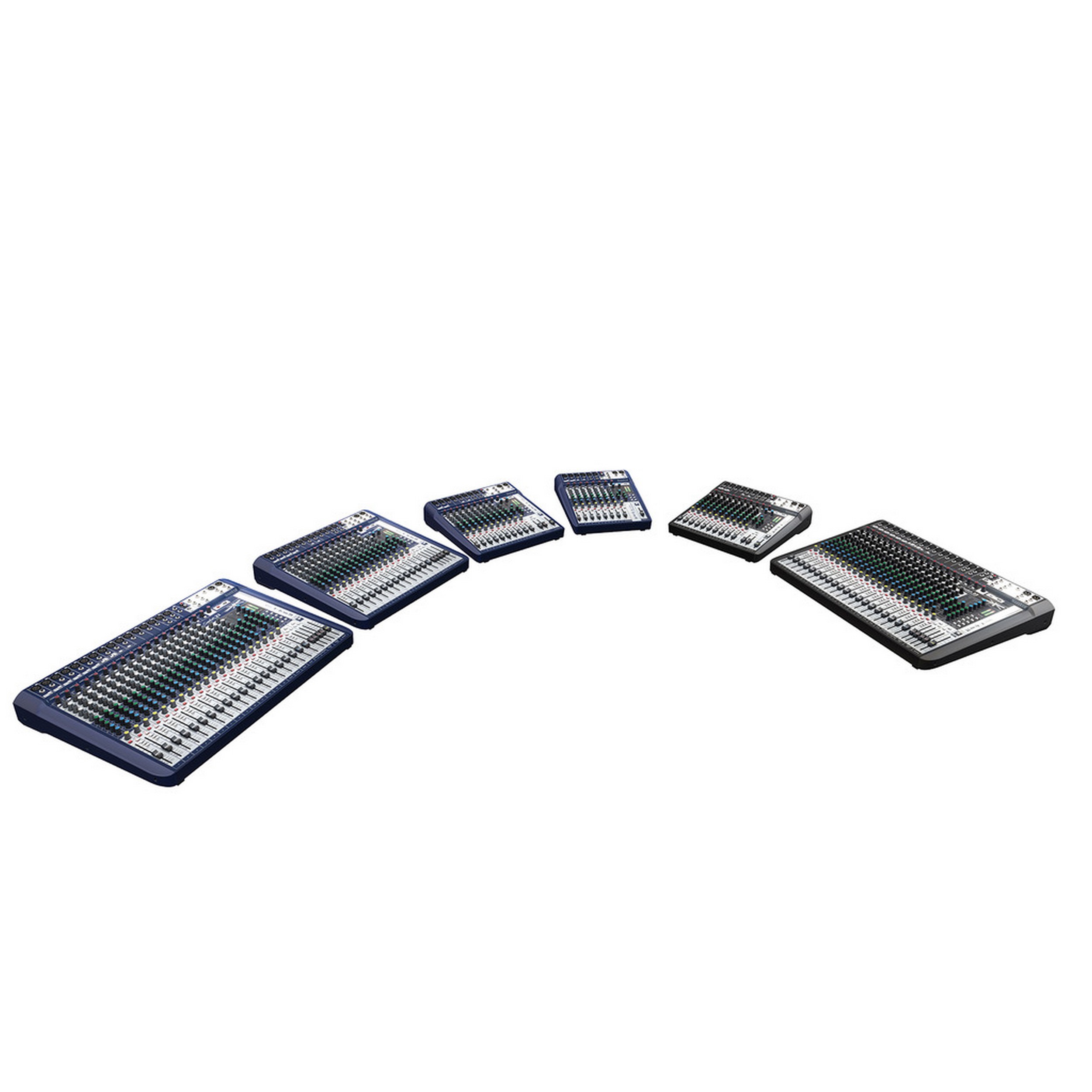

Varients

  Signature 10 Signature 12 / 12 MTK Signature 16 Signature 22 / 22 MTK
Channels 10 12 16 22
Soundcraft® Ghost Preamps 6 8 12 16
Soundcraft® Sapphyre EQ 3-band (1 band of swept mids) 3-band (1 band of swept mids) 4-band (2 bands of swept mids) 4-band (2 bands of swept mids)
dbx® Limiters on inputs 2 2 4 8
Lexicon® Effects Single Engine Single Engine Single Engine Dual Engine
USB Interface 2-in/2-out 2-in/2-out (14-in/12-out on 12 MTK) 2-in/2-out 2-in/2-out (24-in/22-out on 22 MTK)
Auxes 3 3 4 5
Subgroups 0 2 mono/1 stereo 4 mono/2 stereo 4 mono/2 stereo
Faders 60mm 60mm 100mm 100mm
