Ertekin World of Sound

JBL Professional

MTC-81TB8

Hoparlör Aksesuarları

Marka:	JBL Professional
Ürün Kodu:	MTC-81TB8
Kategori:	Install Hoparlörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Material	19 gauge steel, finished in black polymer e-coating for a high level of rust resistance
Attachment Points	4 clip-nuts fit 4 mm tapping screws attaching speaker to tile bridge
Dimensions	23.6" (600 mm) length x 14.0" (359 mm) width
Net Weight	2.0 lbs (0.9 kg)
Material	19 gauge (1.0 mm thickness) steel, finished in black polymer e-coating for a high level of rust resistance.
Attachment Points	4 clip-nuts (ie, speed-clips, tinnerman clips) fit 4 mm tapping screws attaching speaker to tile bridge.
Thru-Holes	4 thru-holes on 286 mm (11.25 in) mounting circle for attaching tile bridge to backcan
Dimensions (L x D)	600 mm (23.6 in) length x 359 mm (14 in) width
Net Weight (each)	0.9 kg (2.0 lbs)
Shipping Weight (ea)	1.3 kg (2.7 lbs)
Associated Models	8138 200 mm (8 in) ceiling speakerMTC-81BB8 backbox

DETAYLAR

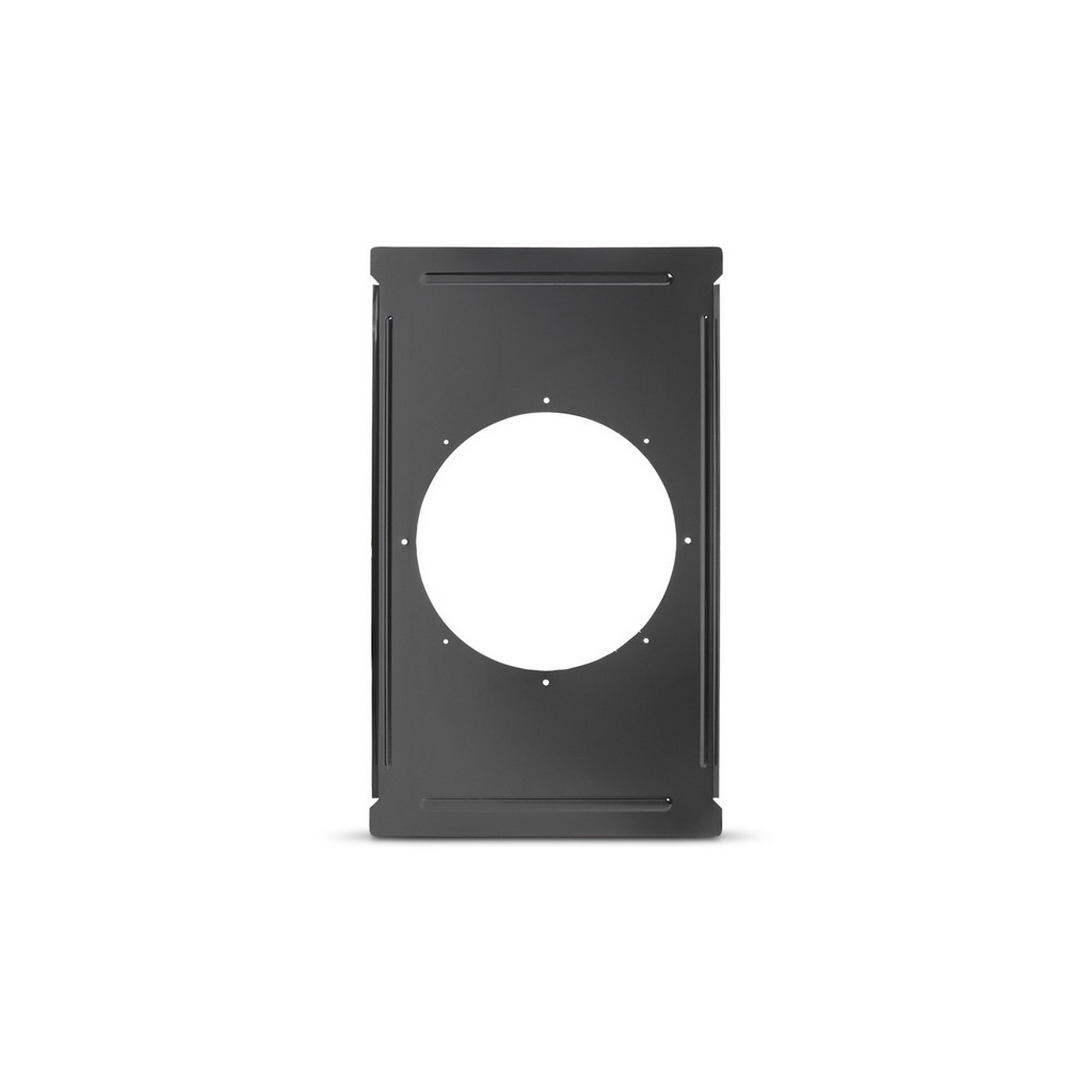

Pre-Install In-Ceiling Tile Bridge for Pre-Install Backbox

The MTC-81TB8 tile bridge is designed for use in applications requiring pre-installed backcans in suspended ceiling applications and is compatible with ceiling speakers having a 286 mm (11.25 in) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81BB8 pre-install backbox.
