| Length |
472 mm (18.6 in.) base 566 mm (22.3 in.) head
|
| Width |
473 mm (18.6 in.) 335 mm (13.2 in.) base
|
| Height |
732 mm (28.8 in.) head straight up 749 mm (29.5 in.) maximum
|
| Weight |
34.1 kg (75.2 lbs.)
|
| Minimum center-to-center distance in side-by-side installation |
650 mm (25.6 in.)
|
| Color mixing |
CMY, independently variable 0 - 100%
|
| Color temperature control |
CTO, variable 6000 - 3200 K
|
| Color wheel |
7 interchangeable dichroic filters + open, indexing, continuous rotation, random color
|
| Beam shaping |
Internal barn doors, continuously variable opening, indexed rotation
|
| Iris |
0 - 100%, pulse effects
|
| Mechanical dimmer/shutter |
0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
|
| Dimming options |
Choice of four dimming curves
|
| Zoom |
Motorized
|
| Pan |
540°
|
| Tilt |
268°
|
| Position correction system |
Absolute position monitoring
|
| DMX channels |
18/24
|
| Setting and addressing |
Control panel with backlit graphic display and jog wheel or via DMX
|
| 16-bit control |
Dimmer, pan, tilt
|
| DMX compliance |
USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20
|
| Receiver |
Opto-isolated RS-485
|
| Firmware update |
USB memory device or USB/DMX hardware interface over DMX link
|
| Type |
1000 W short-arc discharge
|
| CRI (Color rendering index) |
>85
|
| Average lifetime |
750 hours
|
| Socket |
PGJX36
|
| Ballast |
Electronic
|
| Approved lamps |
Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
|
| Color temperature |
6000 K
|
| Zoom range |
13.5° - 59° (1:5)
|
| Output |
33,000 lumens
|
| Fixture identification |
User-settable fixture ID number
|
| Color |
Black
|
| Housing |
UV-resistant fiber-reinforced composite
|
| Reflector |
Glass, cold light
|
| Protection rating |
IP20
|
| Mounting points |
Eight quarter-turn locking points
|
| Orientation |
Any
|
| Minimum distance to illuminated surfaces |
3.4 m (11.2 ft.)
|
| Minimum distance to combustible materials |
0.3 m (1.0 ft.)
|
| AC power input |
Neutrik PowerCon
|
| DMX and RDM data in/out |
5-pin locking XLR
|
| USB memory devices |
USB host socket
|
| AC power |
120-240 V nominal, 50/60 Hz
|
| Power supply unit |
Auto-ranging electronic switch-mode
|
| Typical half-cycle RMS inrush current |
16.2 A
|
| 120 V, 60 Hz |
1225 W, 10.3 A, PF 0.999
|
| 208 V, 60 Hz |
1190 W, 5.8 A, PF 0.996
|
| 230 V, 50 Hz |
1186 W, 5.2 A, PF 0.994
|
| 240 V, 50 Hz |
1194 W, 5.0 A, PF 0.993
|
| Typical Power and Current notes |
Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.
|
| Cooling |
Filtered forced air (temperature-regulated, low noise)
|
| Maximum ambient temperature (Ta max.) |
40° C (104° F)
|
| Minimum ambient temperature (Ta min.) |
5° C (41° F)
|
| Maximum surface temperature, steady state, at 40° C ambient |
150° C (302° F)
|
| Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz) |
4180 BTU/hr
|
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471
|
| EU EMC |
EN 55015, EN 55103-1, EN 55103-2, EN 61547
|
| US safety |
UL 1573 (pending)
|
| US EMC |
FCC Part 15 Class A
|
| Canadian safety |
CSA E598-2-17 (CSA E60598-1) (pending)
|
| Canadian EMC |
ICES-003 Class A
|
| Australia/NZ |
C-TICK N4241
|
| Lamp (installed) |
P/N 97010346
|
| Two Omega clamp attachment brackets with 1/4-turn fasteners |
P/N 91602001
|
| Safety and installation manual |
P/N 35000258
|
| Power Input Cables |
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
|
| Power connectors |
Power Connector PowerCON Female : P/N 91611794
|
| Omega clamp attachment bracket with 1/4-turn fasteners |
P/N 91602001
|
| T-shaped omega clamp attachment bracket with 1/4-turn fasteners |
P/N 91602008
|
| Half-coupler (tube) clamp |
P/N 91602005
|
| G-clamp (suspension with yoke vertically downwards only) |
P/N 91602003
|
| Quick-trigger clamp (suspension with yoke vertically downwards only) |
P/N 91602007
|
| Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black |
P/N 91604006
|
| Flightcase for 2 x MAC Viper |
P/N 91510180
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| Osram HTI 1000/PS Lok-it lamp |
P/N 97010346
|
| Air filter, head, MAC Viper (sold in multiples of 12) |
P/N 20800270
|

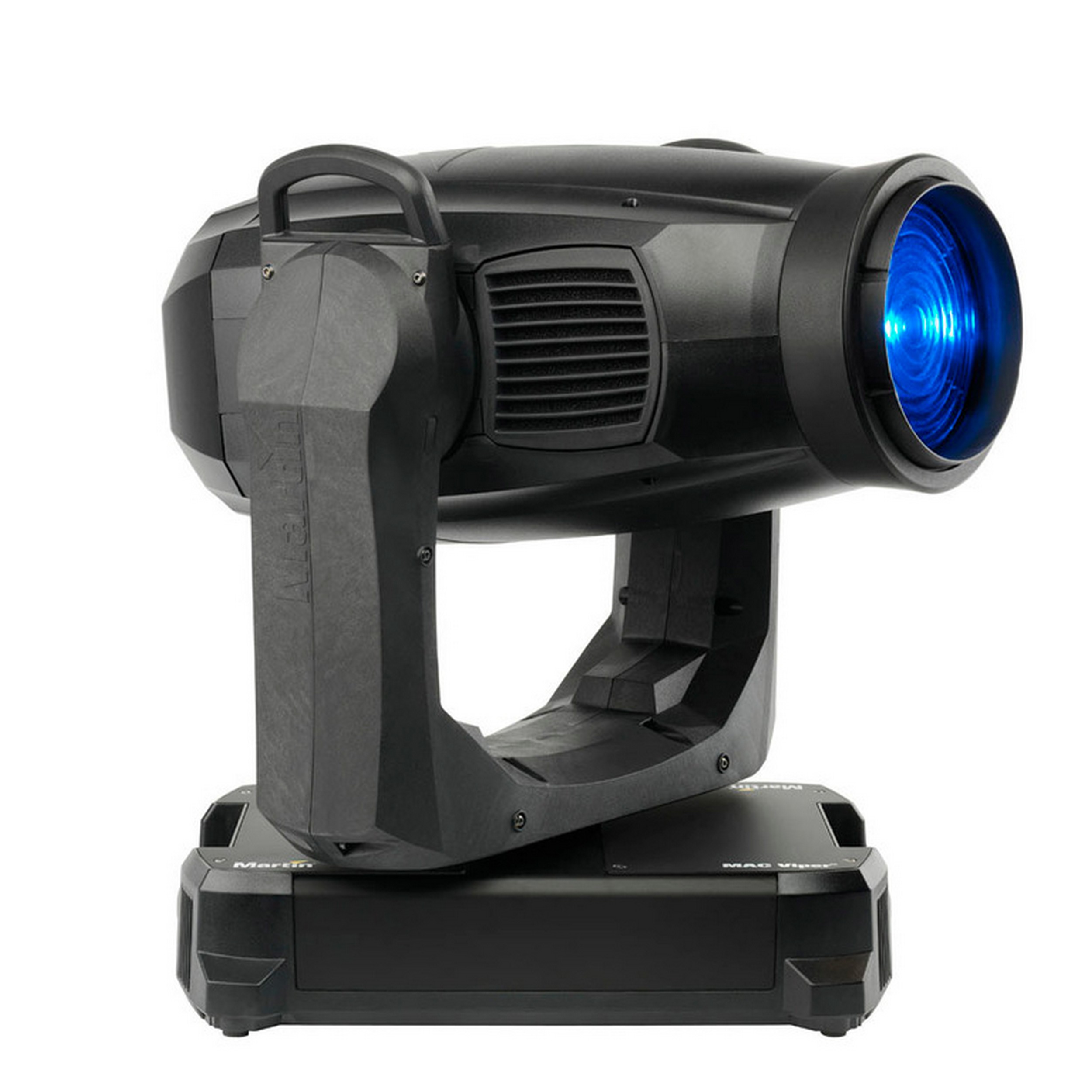

| MAC Viper™ Wash DX in cardboard box |
P/N 90233070
|
| MAC Viper™ Wash DX in 2-unit flightcase |
P/N 90233080
|
| In cardboard carton |
Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
Shipping weight: 39 kg (86.0 lbs.)
Quantity on pallet: 8 fixtures
Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
Pallet weight (incl. pallet): 334 kg (736.4 lbs.)
|
| In double flightcase |
Shipping dimensions (LxWxH): 1200 x 580 x 850 mm (47.3 x 22.9 x 33.5 in.)
Shipping weight: 70 kg (154.4 lbs.)
Quantity on pallet: 4 fixtures
Pallet dimensions (LxWxH): 1200 x 1220 x 1010 mm (47.3 x 48.1 x 39.8 in.)
Pallet weight (incl. pallet): 302 kg (665.8 lbs.)
|
| Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver |
P/N 91604007
|
| PC Lens Kit for MAC Viper™ Wash |
P/N 91614050
|
| Martin Companion Cable |
P/N 91616091
|
| Martin Companion Software Suite (including firmware uploader) |
Free download from www.martin.com
|
