| Length |
452 mm (17.8 in.)
|
| Width |
480 mm (18.9 in.) across yoke
|
| Height |
755 mm (29.8 in.) maximum
745 mm (29.4 in.) head straight up
|
| Weight |
28.5 kg (62.9 lb.)
|
| Minimum center-to-center distance in side-by-side installation |
730 mm (28.8 in.)
|
| Color mixing |
CMY, independently variable 0 - 100%
|
| Color temperature control |
Variable 6000 - 2700 K
|
| Color wheel |
6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
|
| Barn doors |
Internal, two blades with individually controllable insertion, +/- 100° module rotation
|
| Iris |
Variable 0 - 100%
|
| Dimmer/shutter |
0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
|
| Dimming options |
Choice of four dimming curves
|
| Pre-programmed effects |
Two ranges of FX, independent or synchronized/combined
|
| Focus |
Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
|
| Zoom |
Motorized
|
| Pan |
540°
|
| Tilt |
268°
|
| Position correction system |
Absolute position monitoring
|
| DMX channels |
24
|
| Setting and addressing |
Control panel with backlit graphic display and jog wheel or via DMX
|
| 16-bit control |
Dimming, pan and tilt
|
| Movement control options |
Tracking and vector
|
| Fixture Identification |
User-settable ID number
|
| DMX compliance |
USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20
|
| Transceiver |
Opto-isolated RS-485
|
| Fixture software update |
USB memory device or over DMX link
|
| Light source |
6000 K white LEDs
|
| CRI (Color Rendering Index) |
>80
|
| Total LED engine power |
468 W
|
| Minimum LED lifetime |
50,000 hours (to >80% luminous output)*
|

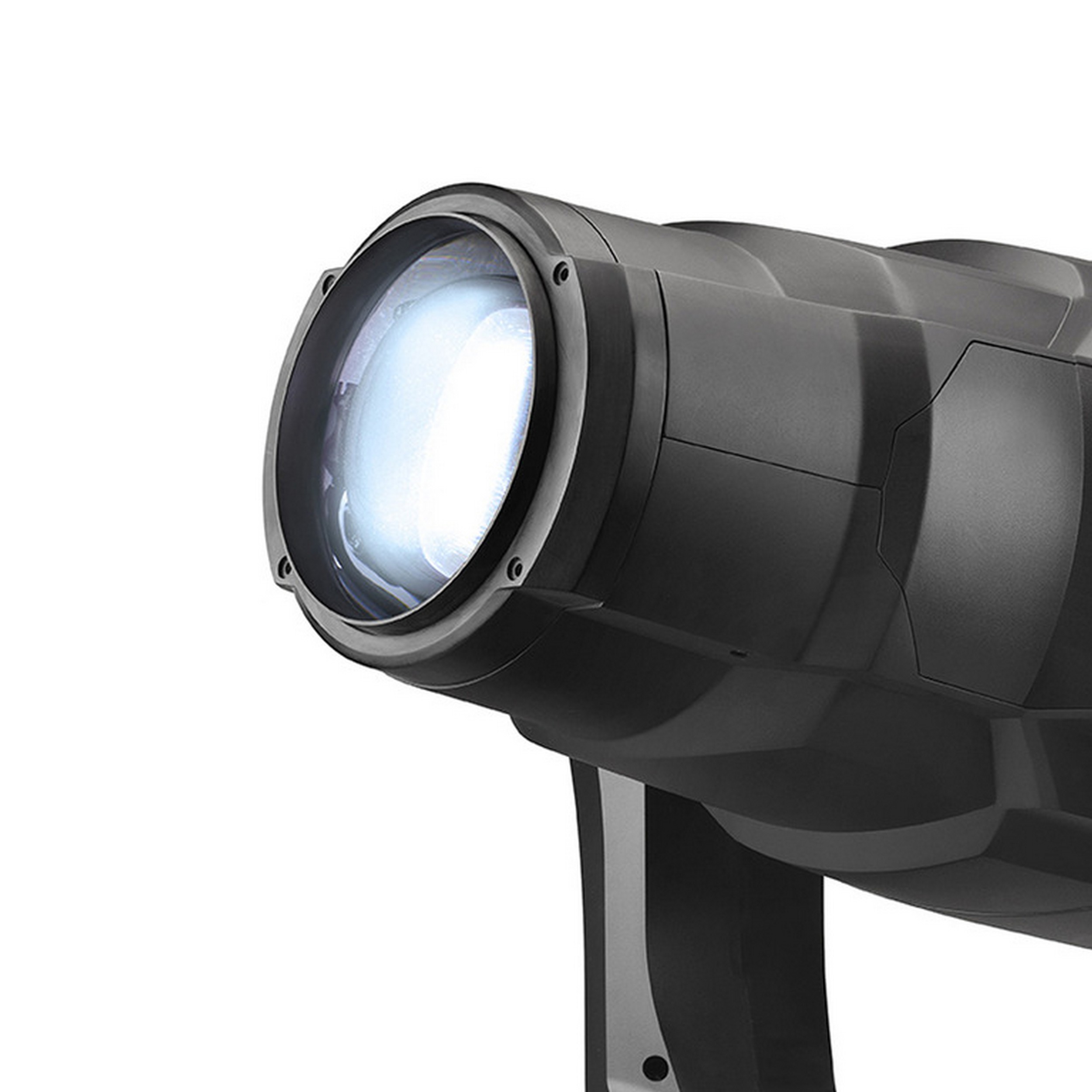

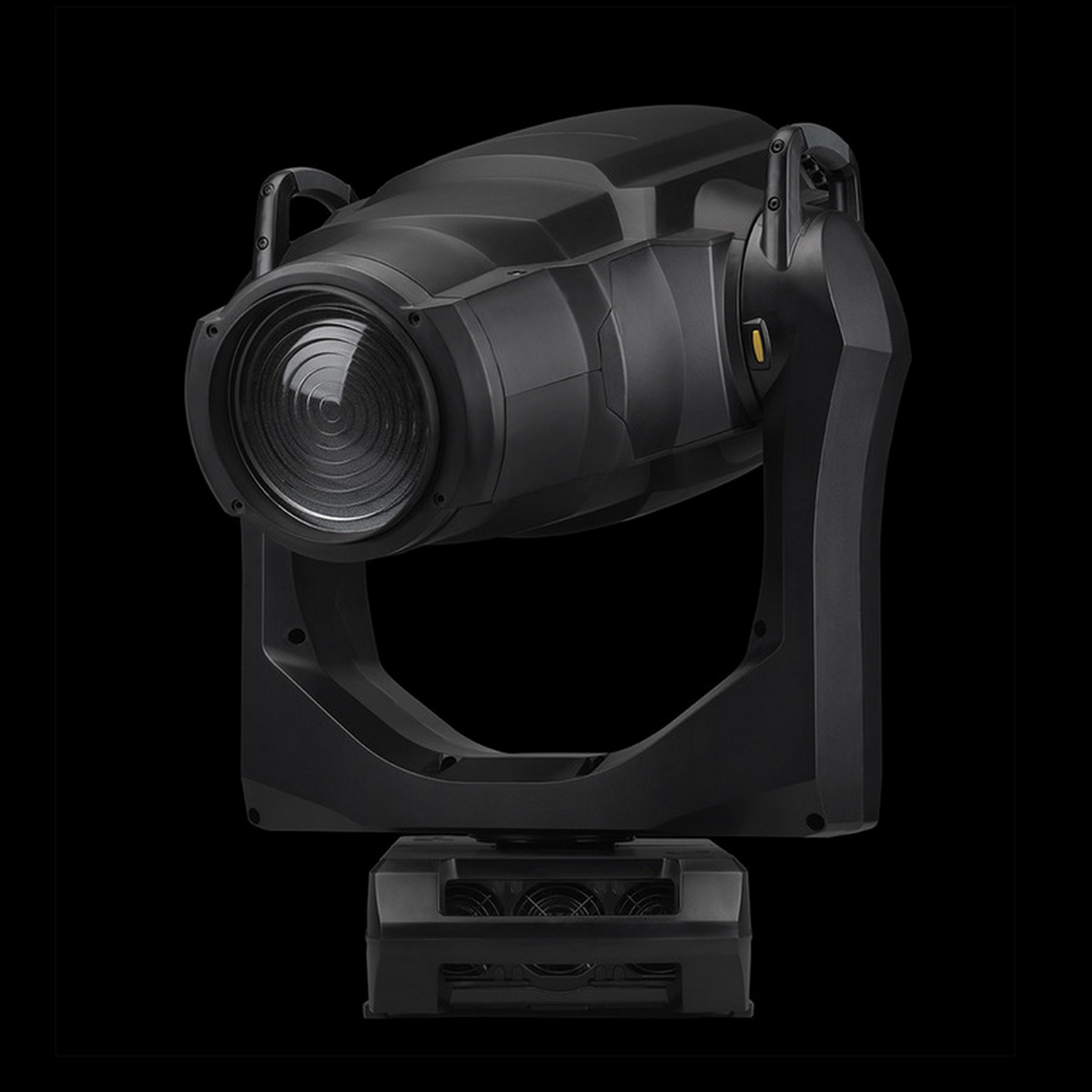

| Zoom range with Fresnel lens (standard) |
14° - 60° one-tenth peak (1:4)
|
| Zoom range with PC lens (optional) |
11° - 58° one-tenth peak (1:5)
|
| Optics notes |
*Figure obtained under manufacturer's test conditions
|
| Light engine luminous output |
≥ 39,400 lumens
|
| Fixture luminous output with Fresnel lens (standard) |
11,000 lumens
|
| Fixture luminous output with PC lens (optional) |
12,000 lumens
|
| CQS (Color Quality Scale) |
>80
|
| TM-30 Rf (IES TM-30-15 Fidelity Index) |
>80
|
| TM-30 Rg (IES TM-30-15 Gamut Index) |
>96
|
| TLCI (Television Lighting Consistency Index) |
>70
|
| Color |
Black
|
| Housing |
High-impact flame-retardant thermoplastic
|
| Protection rating |
IP20
|
| Mounting points |
4 pairs of 1/4-turn locks
|
| Location |
Dry location only, must be fastened to surface or structure
|
| Orientation |
Any
|
| Minimum distance to combustible materials |
0.2 m (8 in.)
|
| Minimum distance to illuminated surfaces |
2.0 m (6.6 ft.)
|

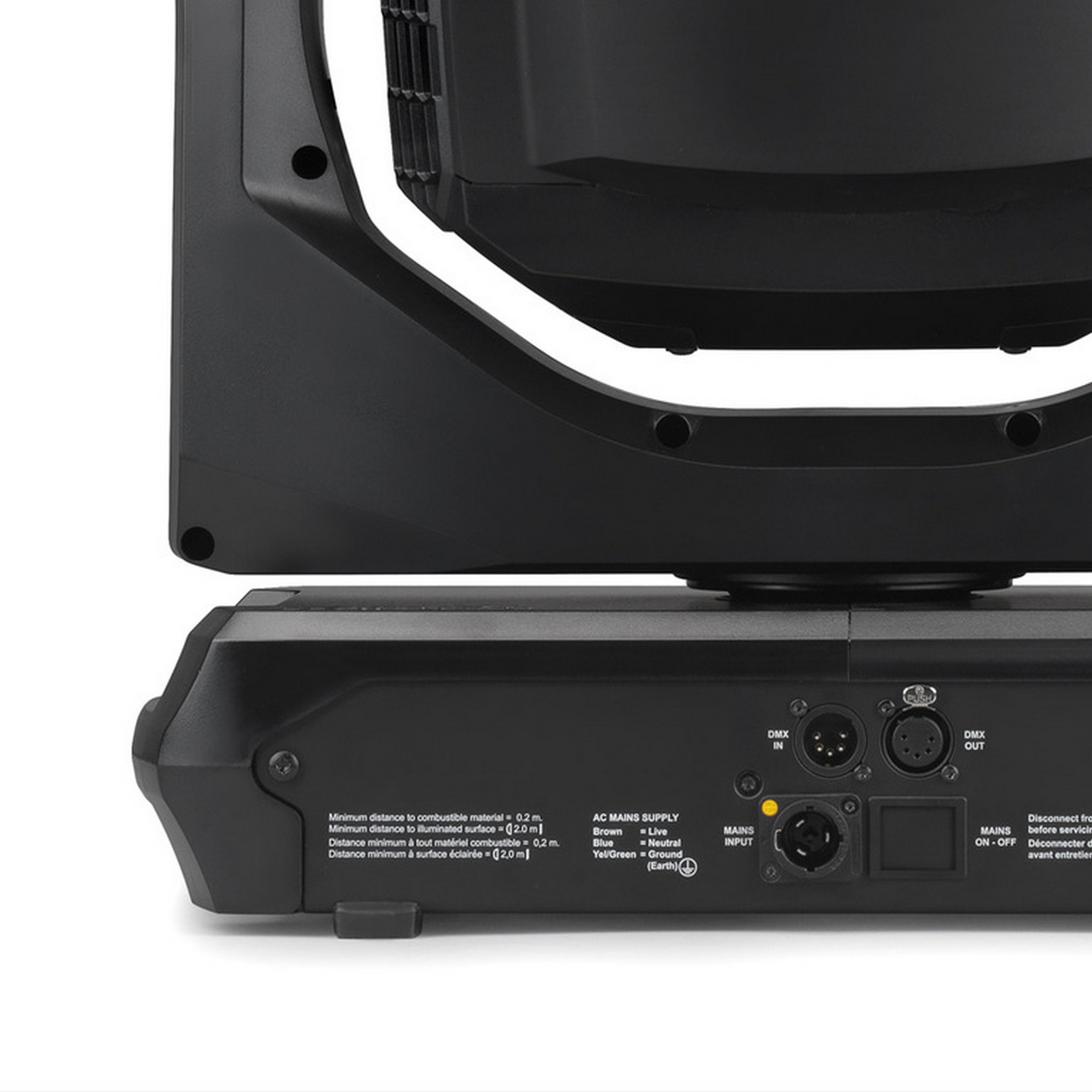

| AC power input |
Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
|
| DMX and RDM data in/out |
5-pin locking XLR
|
| AC power |
120-240 V nominal, 50/60 Hz
|
| Power supply unit |
Auto-ranging electronic switch-mode
|
| Power Consumption |
64 W
|
| Half-cycle RMS inrush current at 230 V, 50 Hz |
10.3 A
|
| 120 V, 60 Hz |
5.0 A, 596 W, PF 0.998
|
| 208 V, 60 Hz |
2.9 A, 581 W, PF 0.988
|
| 230 V, 50 Hz |
2.6 A, 580 W, PF 0.981
|
| 240 V, 50 Hz |
2.2 A, 585 W, PF 0.979
|
| Typical Power and Current notes |
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
|

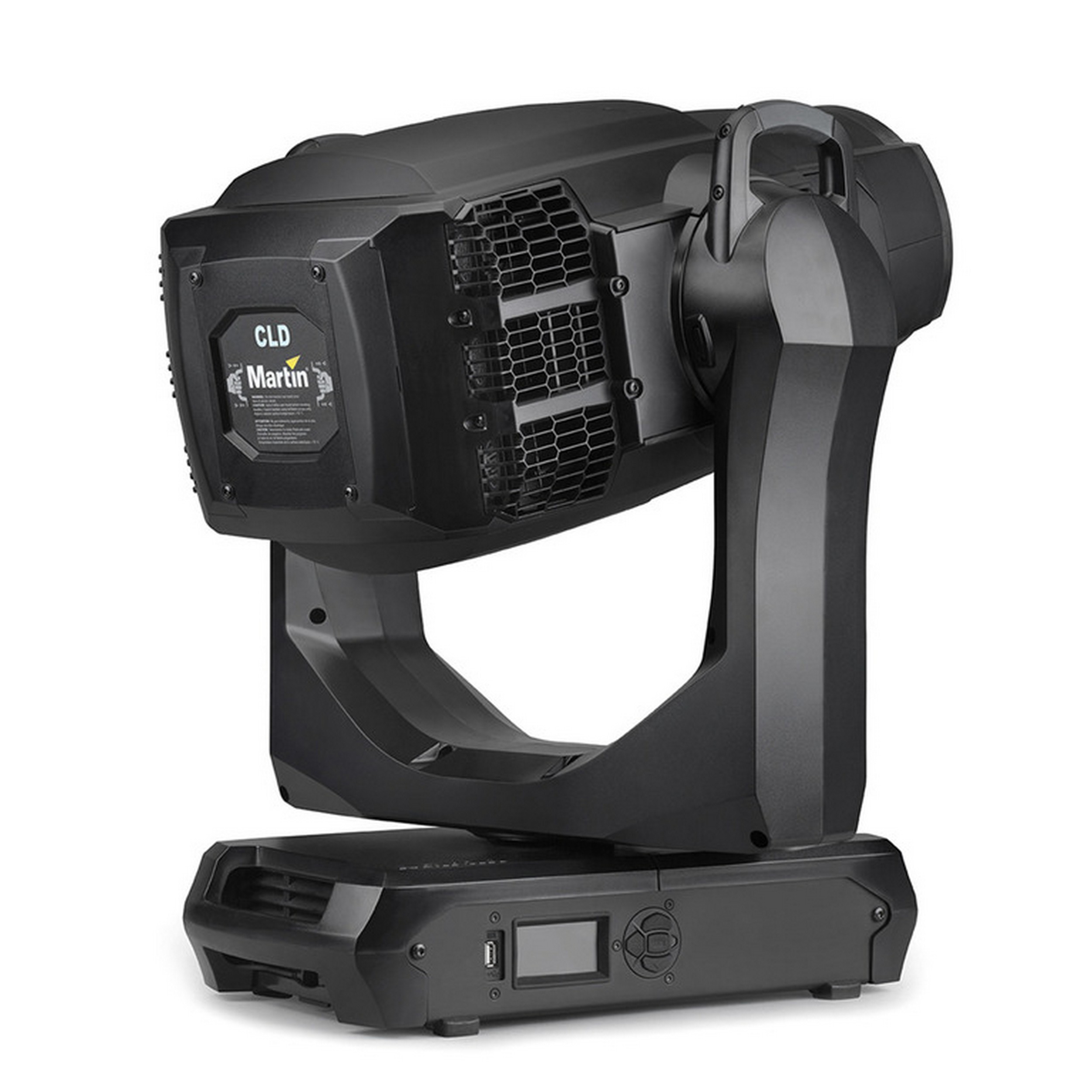

| Cooling |
Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
|
| Maximum surface temperature, steady state, at 40° C ambient |
75° C (167° F)
|
| Maximum ambient temperature (Ta max.) |
40° C (104° F)
|
| Minimum ambient temperature (Ta min.) |
5° C (41° F)
|
| Total heat dissipation (calculated, +/- 10%) |
2000 BTU/hr.
|
| EU safety |
EN 60598-2-17, EN 62471, EN62493
|
| EU EMC |
EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547
|
| US safety |
UL 1573
|
| US EMC |
FCC Part 15 Class A
|
| Canadian safety |
CSA C22.2 No. E598-2-17
|
| Canadian EMC |
ICES-003 Class A
|
| Australia/NZ |
RCM
|
| Included Items notes |
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
|
| Gelframe MAC Encore |
P/N 91001000
|
| Set of Followspot Handles MAC Encore |
P/N 91001001HU
|
| PC Lens Assy MAC Encore Wash |
P/N 91616110HU
|
| SIP Packaging MAC Encore Family |
P/N 91616115HU
|
| Cables and connectors |
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
|
| Installation hardware |
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
|
| Flightcase |
Two-unit Flightcase for MAC Encore™*: P/N 91515048
|
| Accessories notes |
*Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| MAC Encore™ Wash CLD EPS (in cardboard box, polystyrene packaging) |
P/N 90234040
|
| MAC Encore™ Wash CLD SIP (in cardboard box with SIP foam flightcase insert) |
P/N 90234045
|
| MAC Encore™ Wash CLD, white finish, EPS (in cardboard box, polystyrene packaging) |
P/N 90234050HU
|
| Martin Companion Cable |
P/N 91616091
|
| Martin Companion Software Suite (including firmware uploader) |
Free download from www.martin.com
|
