Martin

JEM COMPACT HAZER

Su Bazlı Sis Makinası

Marka:	Martin
Ürün Kodu:	JEM COMPACT HAZER
Kategori:	Sis ve Duman Makineleri
Barkod:	688705005041

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Height	298 mm (11.8 in.)
Height with rigging kit	294 mm (11.6 in.)
Length	565 mm (22.3 in.)
Weight, dry	15 kg (33.1 lbs.)
Weight, filled	17.5 kg (38.6 lbs.)
Width	271 mm (10.7 in.)
Coverage volume	5500 m³ (194,231 ft³) per hour
Operating time with 2.5 l fluid (minimum/maximum)	10.5/65 hours
Operating time	Continuous
Ready time	6-minutes
Ambient noise	Silent mode

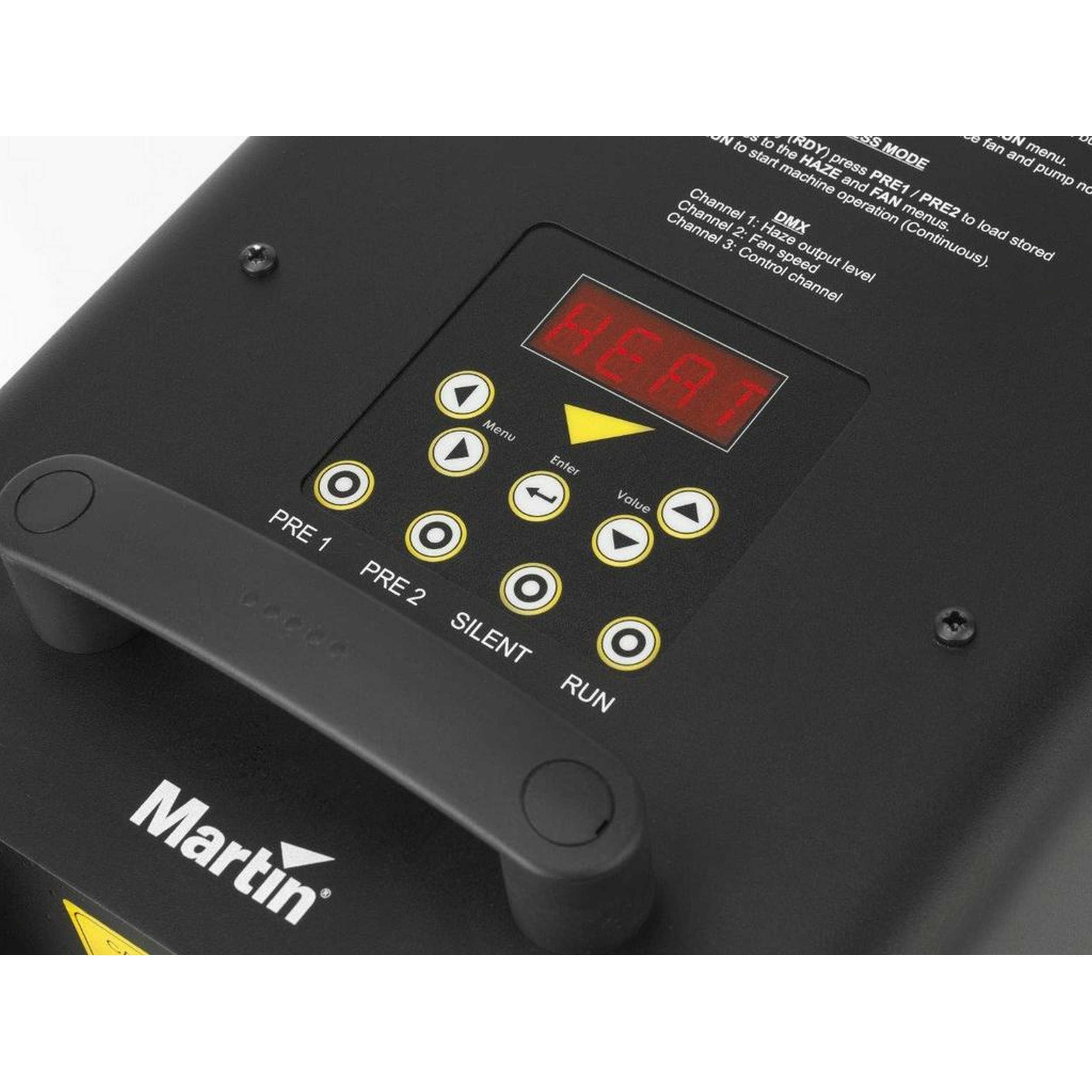

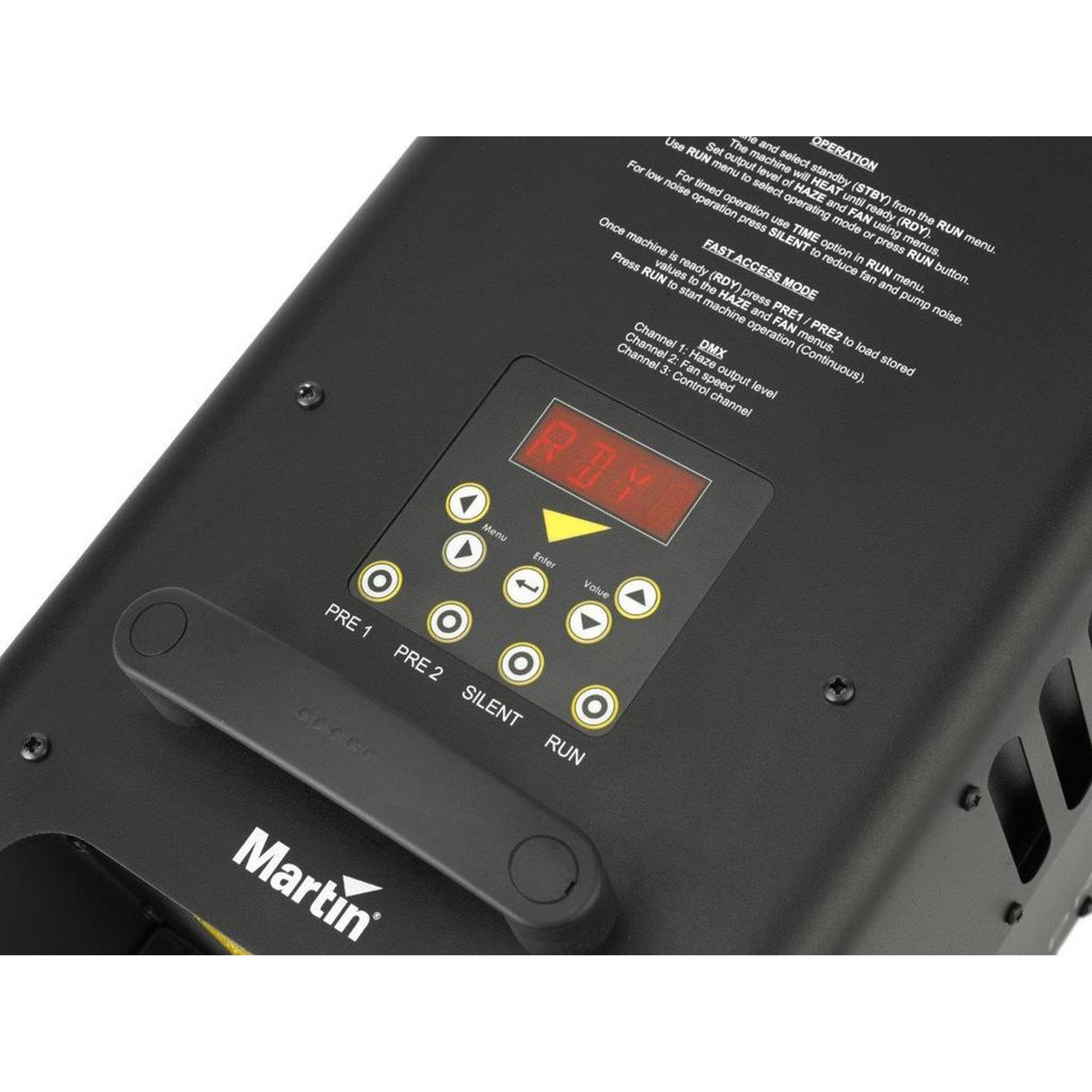

Control options	Digital control panel, programmable fast access keys, DMX, optional digital remote control, master/slave link mode
Control parameters	Continuous or timer-controlled output
Haze and fan	Independent variable output, 0-100%
DMX channels	3 (Haze, Fan, Control)
Self-cleaning cycle	Battery powered automatic shutdown, manually engaged, or DMX trigger
DMX compliance	ANSI E1.11 - USITT DMX512-A
RDM compliance	ANSI/ESTA E1.20 RDM
Housing	Steel and aluminum
Color	Black
Heat exchanger	600 W trackless heat exchanger, thermally protected
Blower fan	Integrated, 200-2500 RPM
Fluid pump	Oscillating piston, high pressure
Fluid management	Fluid out sensing, sealed for transportation

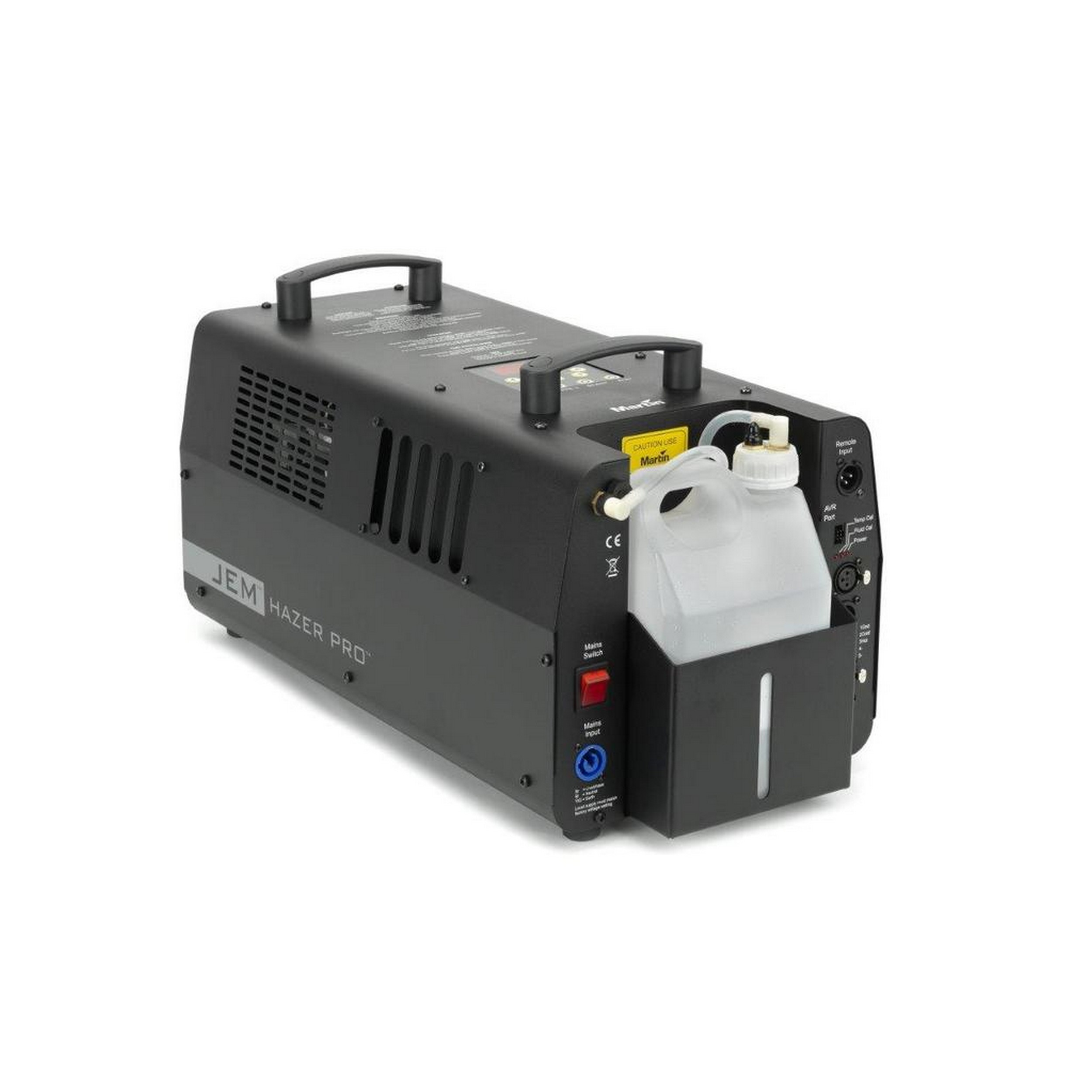

Fluid reservoir	2.5 l drop-in reservoir with quick-connect fitting
Mounting	Standing or optional flying kit
Orientation	Up to +/- 30° from horizontal
Clearance around machine	100 mm (4.0 in.)

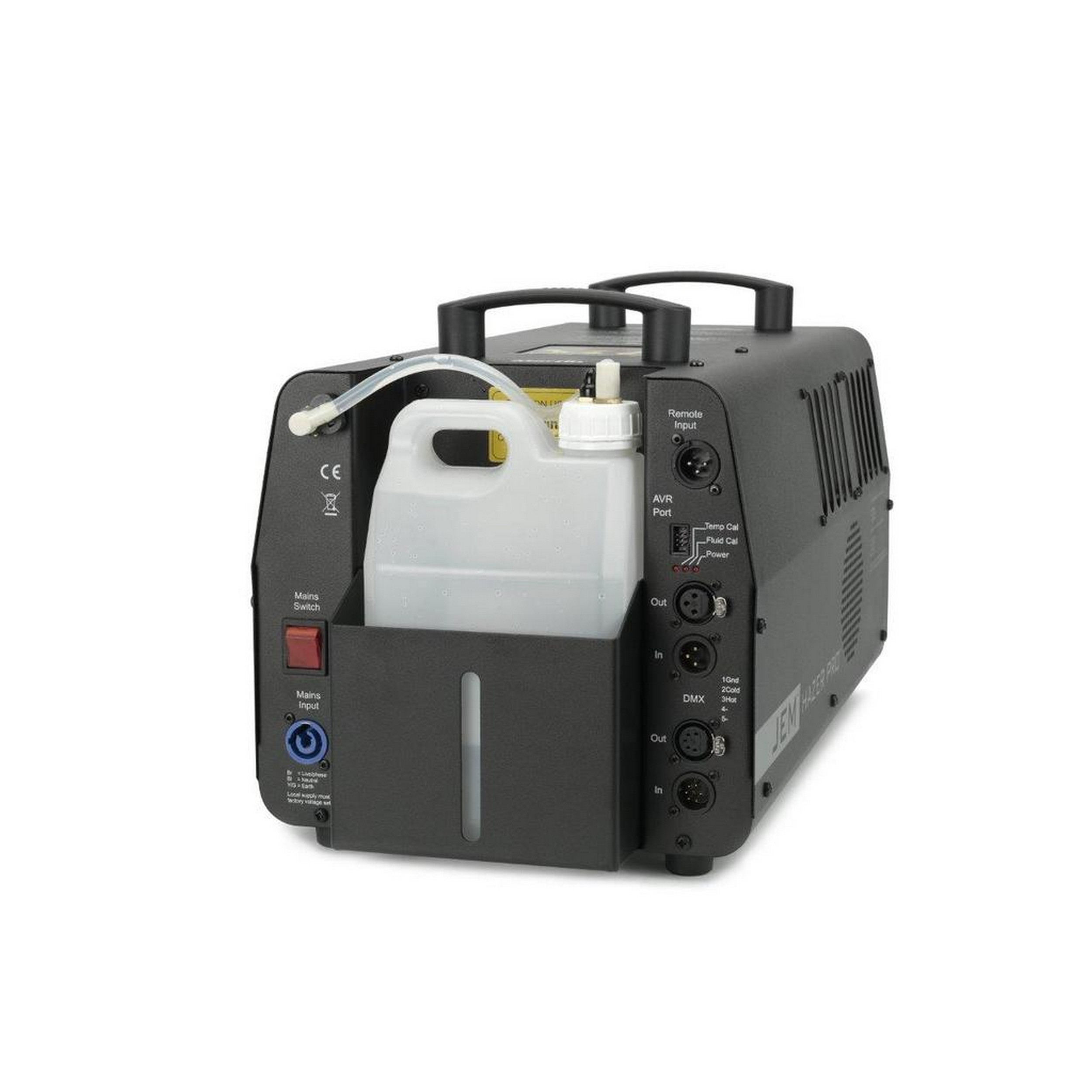

AC power	Neutrik powerCon
DMX, link mode in/out	3- and 5-pin locking XLR
Remote control	3-pin locking XLR
Firmware	AVR socket
EU Model	AC power: 220-240 V, 50/60 Hz Main fuse: 6.3 AT (slow blow), 250 V Typical power and current: 675 W, 3.1 A*
US Model	AC power: 100-130 V, 50/60 Hz Main fuse: 10 AT (slow blow), 125 V Typical power and current: 675 W, 6 A*
Electrical notes	*Measurements made at nominal voltage. Allow for a deviation of +/- 10%
Maximum ambient temperature (Ta max.)	40° C (104° F)
Minimum ambient temperature (Ta min.)	5° C (41° F)
Exterior surface temperature, steady state	30° C (86° F)
Maximum nozzle temperature	290° C (554° F)
EU EMC	EN 61000-6-3
EU safety	EN 60 335-1+A15, EN 62233
EU immunity	EN 61000-6-1
US safety	UL 998 (pending)
Canadian safety	CSA C22.2 No. 104-01 (pending)
Australia/NZ	RCM (pending)
Approvals notes	Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical haze with the JEM Hazer Pro and JEM C-Plus Haze Fluid.
Fluid reservoir, 2.5 l	P/N 34300521
Power input cable, EU, powerCON, stripped ends, 2.5 m (8.2 ft)	P/N 11501041
Power input cable, US, powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft)	P/N 11501042
JEM Hazer Pro, Digital Remote Control	P/N 92765042
JEM Hazer Pro, Flying Kit	P/N 92610002
JEM External Fluid Reservoir Kit, 25 l	P/N 92620035
Approved fluids*	JEM C-Plus Haze Fluid Martin Pro Clean and Storage Fluid
Approved discontinued fluids*	Martin Pro Clean Supreme
Service Tools	Epsilon 5 AVR Programmer: P/N 50502004 Temperature Calibration Box: P/N 92620005
Accessories notes	*Contact your dealer or see 'Fluids' product pages for details
JEM Hazer Pro, US	P/N 92225945
JEM Hazer Pro, EU	P/N 92225940

DETAYLAR

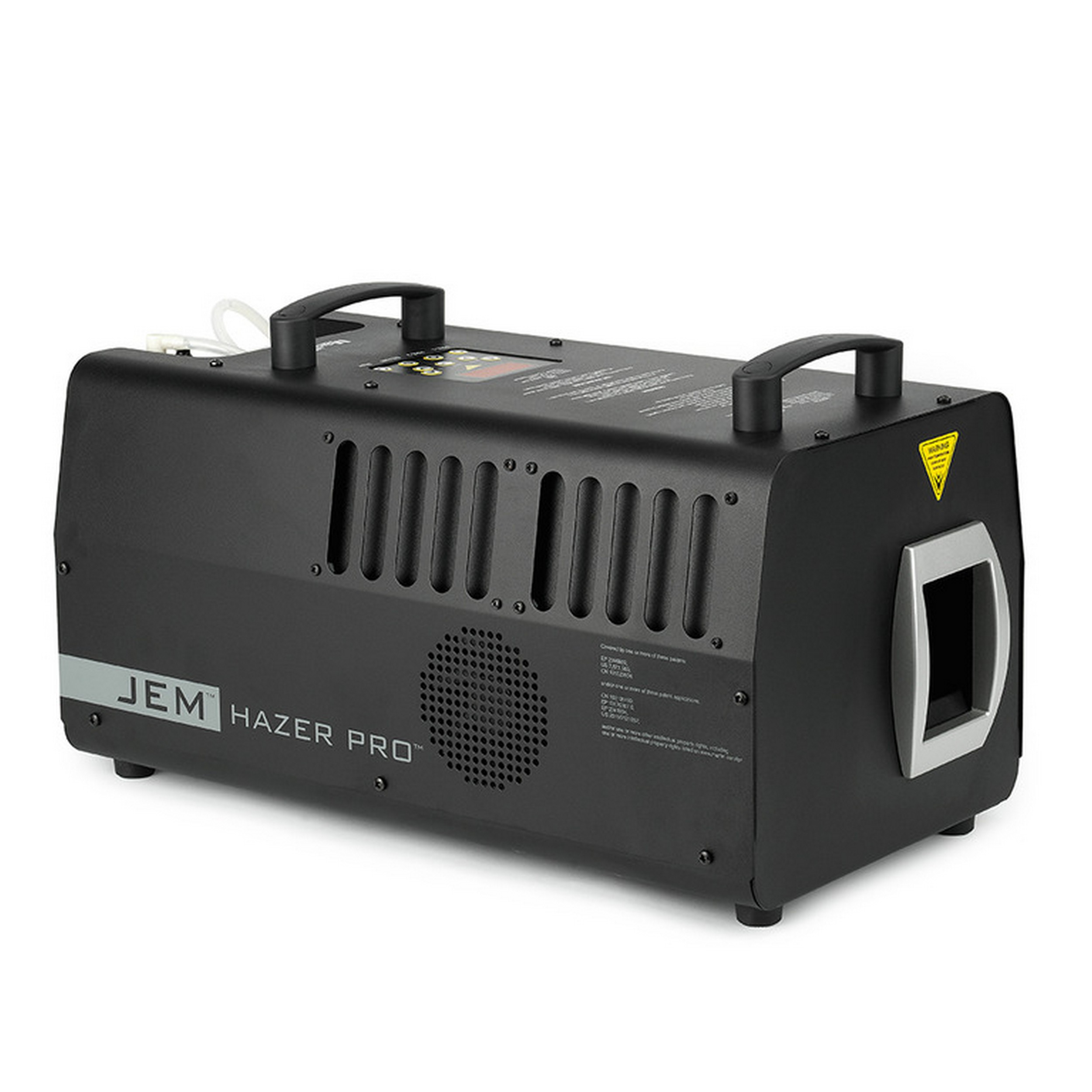

The JEM Hazer Pro is a top of the range water-based haze machine designed for the highly demanding professional market. Its ability to produce exceptionally fine atmospheric haze in a short period of time while operating at low noise levels makes it an ideal choice for rental houses, medium to large shows, theatres, studios, clubs, bars, cruise ships, theme parks and more.

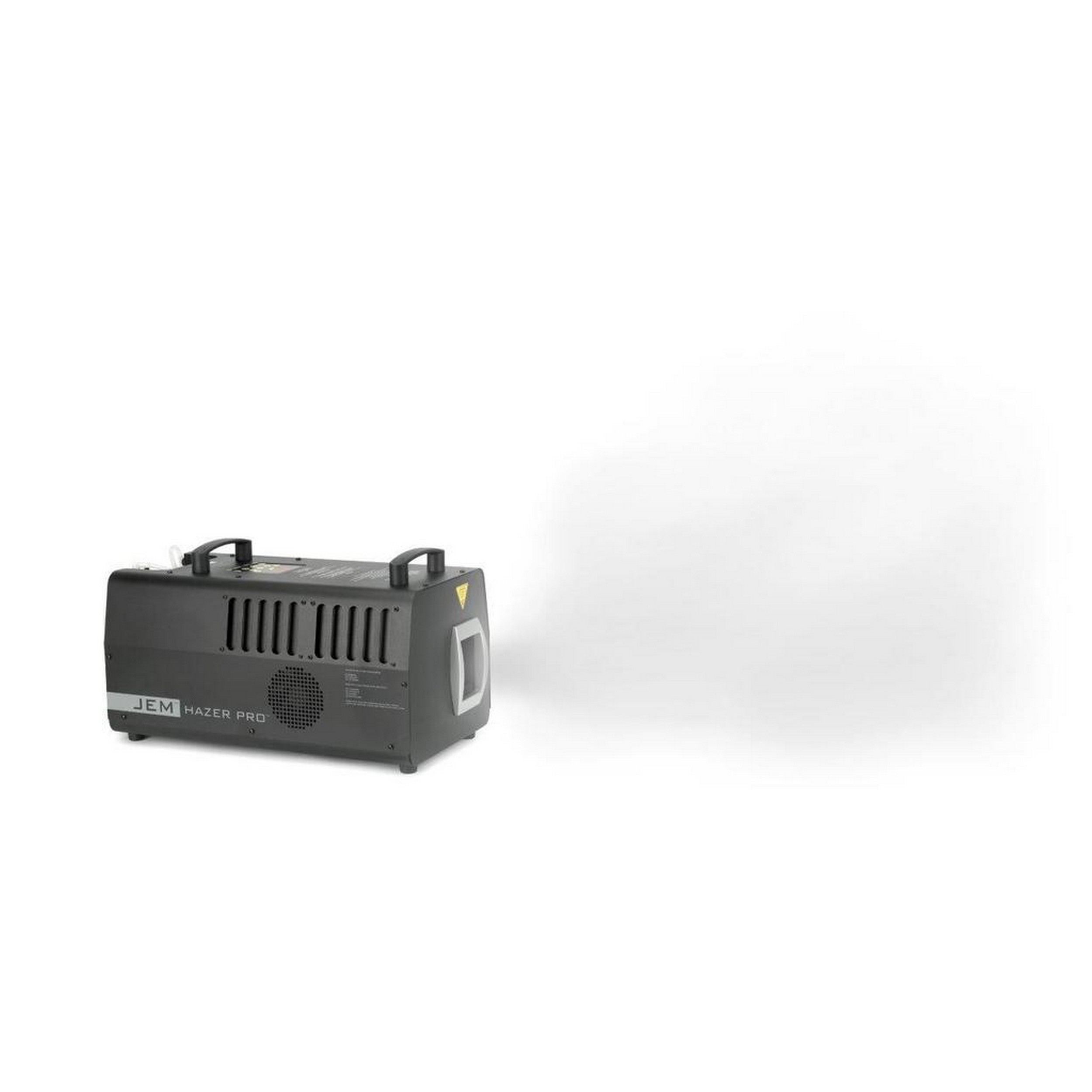

Robust yet small and lightweight, the JEM Hazer Pro is capable of dispersing an even, continuous haze with superior optical clarity and reflectivity, the perfect small-particle haze for highlighting today’s highly defined light beams. The highly efficent JEM C-Plus Haze fluid was developed for the JEM Hazer Pro and a full reservoir can yield up to 65-hours of run time before refilling is neccessary.

The JEM Hazer Pro features a battery-powered automatic shutdown system that purges the trackless heat exchanger system, thus preventing clogging, reducing maintenance and extending product life. Robust control options allow the machine to be controlled independently, remotely or with DMX featuring RDM compatability.
