AMX

HPX-N102-ETH-R

Cat6 Ethernet Modülü
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)
Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • Ethernet Cat6 Retractable Cable
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)
  • Pigtail Connector: RJ-45 Male
  • Data Rate: 1000Base-T (Gigabit Ethernet)
Front Panel Components Pull-Out Connector: RJ-45 Male
Long-Term Reliability Tested to 10,000 pull and release cycles
Recommended Accessories CBL-ETH-FL2, Cat6 Ethernet Flat Cable (FG10-2194-16)
FG Numbers FG552-34
DETAYLAR
DETAYLAR

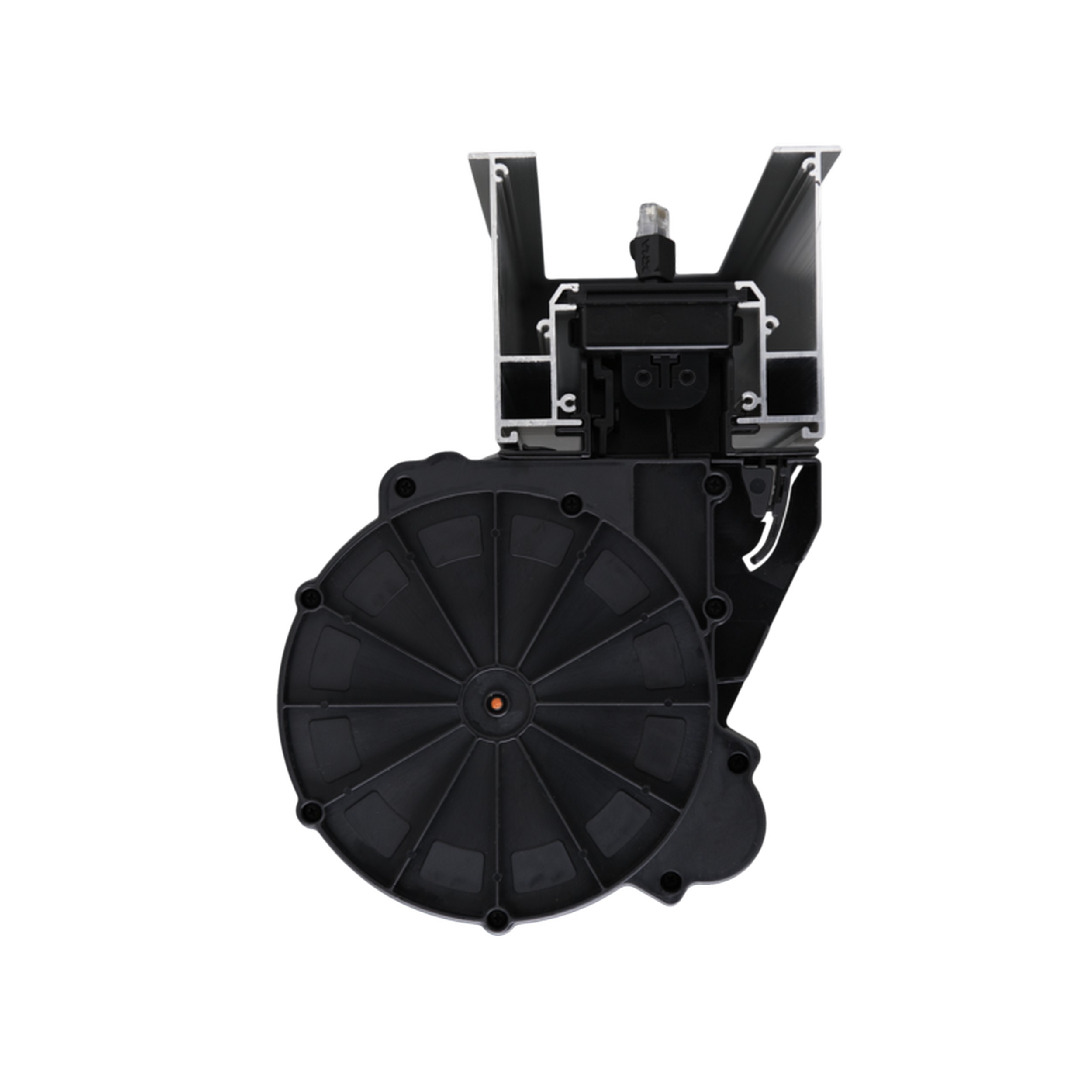

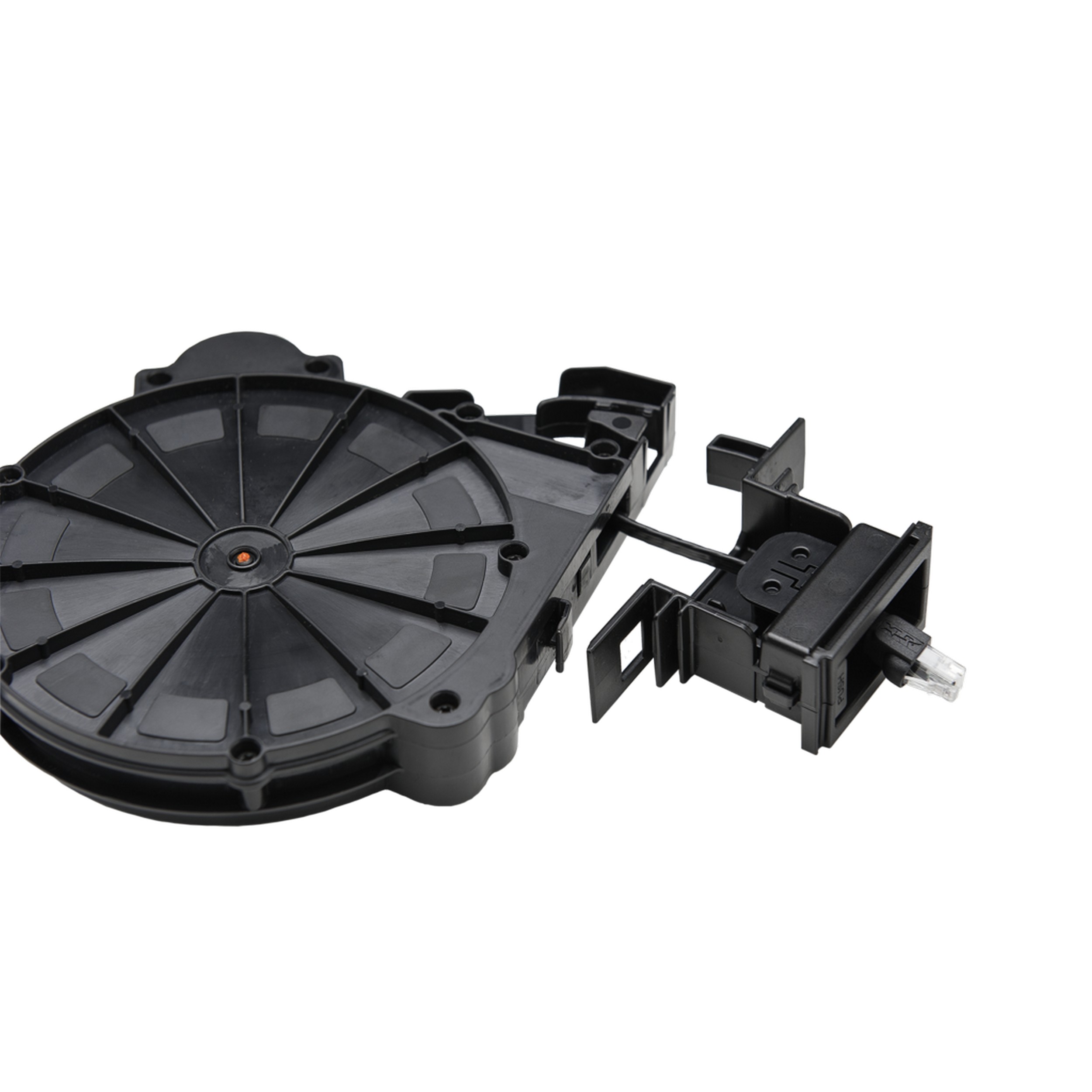

The HydraPort® Category 6 Ethernet Module with Retractable Cable delivers a compact, easy to install solution that organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay.

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.
