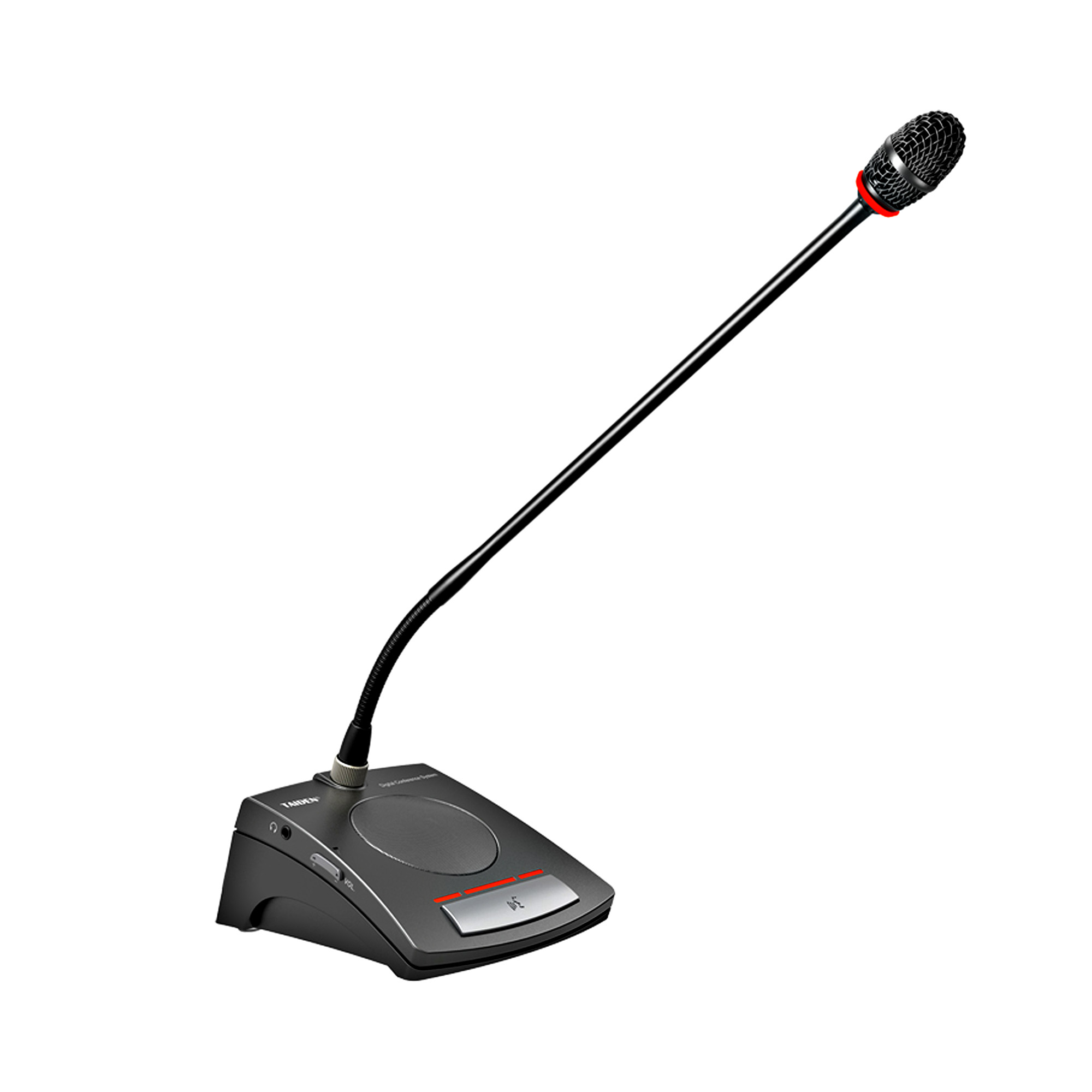

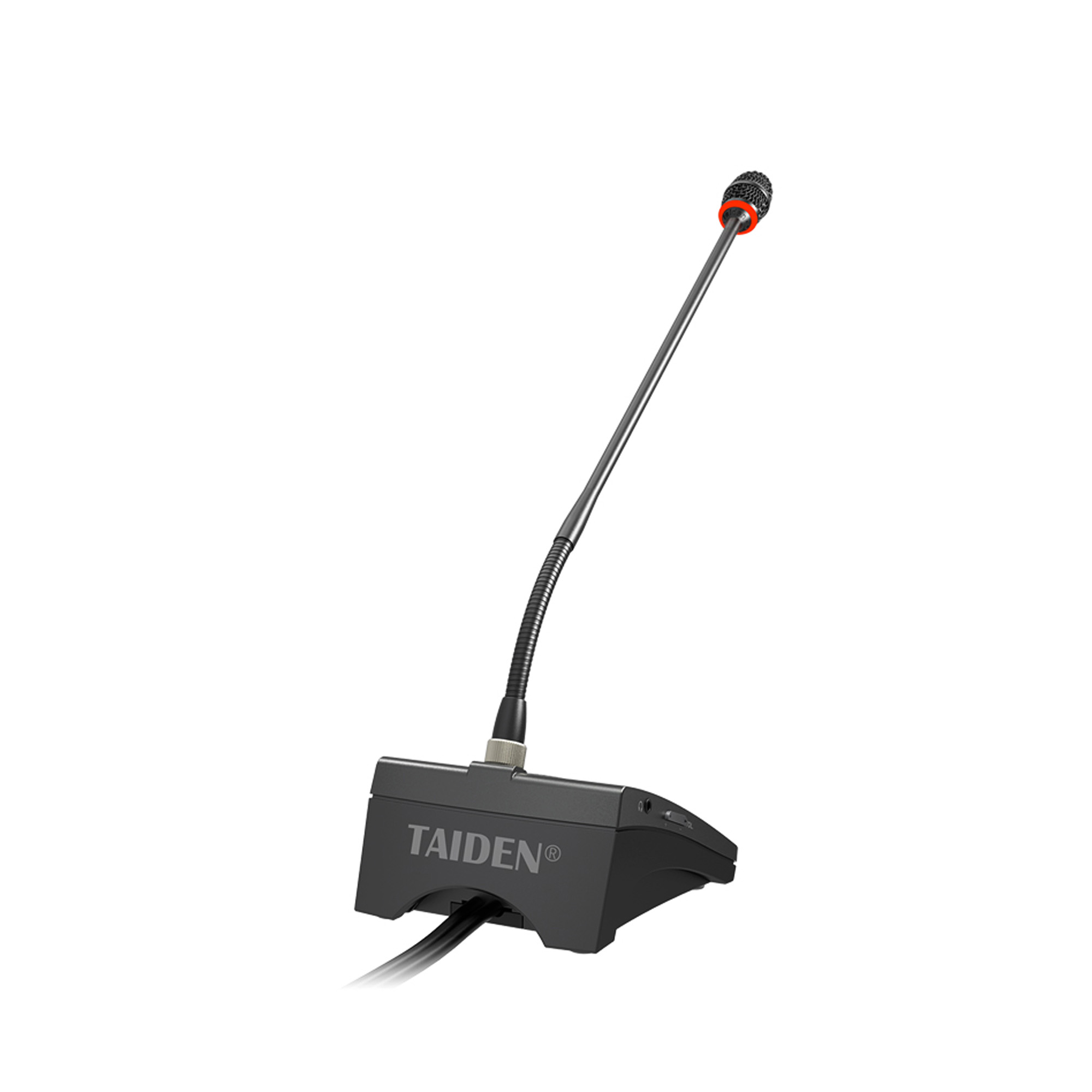

3900 Serisi için Başkan Mikrofonu
Technical Specifications
Electrical
Headphone connection
-
Frequency response 40 Hz to 16 kHz
-
Earphone load impedance >16 Ohm
-
Earphone output 10 mW
Microphone
-
Transducer Electret-condenser
-
Polar pattern Uni-directional
-
Sensitivity -46 dBV/Pa
-
Frequency response 80 Hz to 18 kHz
-
Input impedance 2 kOhm
-
Directivity 0°/180° > 20 dB (1 kHz)
-
Equivalent noise 20 dBA (SPL)
-
Maximum sound pressure level 125 dB (THD<3%)
Interface data
-
Connector Ø 3.5 mm stereo jack for headphone
Mechanical
-
Mounting Tabletop
-
Dimensions (h x w x d) (w/o stem microphone) 71 x 124 x 138 mm
-
Weight (incl. stem microphone) 0.9 kg
-
Color Champagne (PANTONE 401 C) panel + black (PANTONE419 C) base / Charcoal gray (PANTONE Cool Gray 11 C)panel + black (PANTONE 419 C) base
-
Stem length 410 mm (standard version),240 mm, 330 mm, 470 mm
