JBL Professional

CONTROL 26DT

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 80 Hz - 20 kHz
Power Rating See transformer taps
Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle 90° conical
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
Rated Maximum SPL (1m) 106 dB (top 70V/100V tap)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)
Input Connectors Screw locking barrier strip for bare wire
Outside Dimensions (H x Dia) 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each) 4.2 kg (10 lb)
Shipping Weight (pair) 9.7 kg (21 lb)
Sensitivity (1W, 1m) 89 dB (100 Hz - 10 kHz)
Safety Agency In accordance with IEC60849 / EN60849.
Plenum Usage Requires third-party plenum rated backcan
DETAYLAR
DETAYLAR

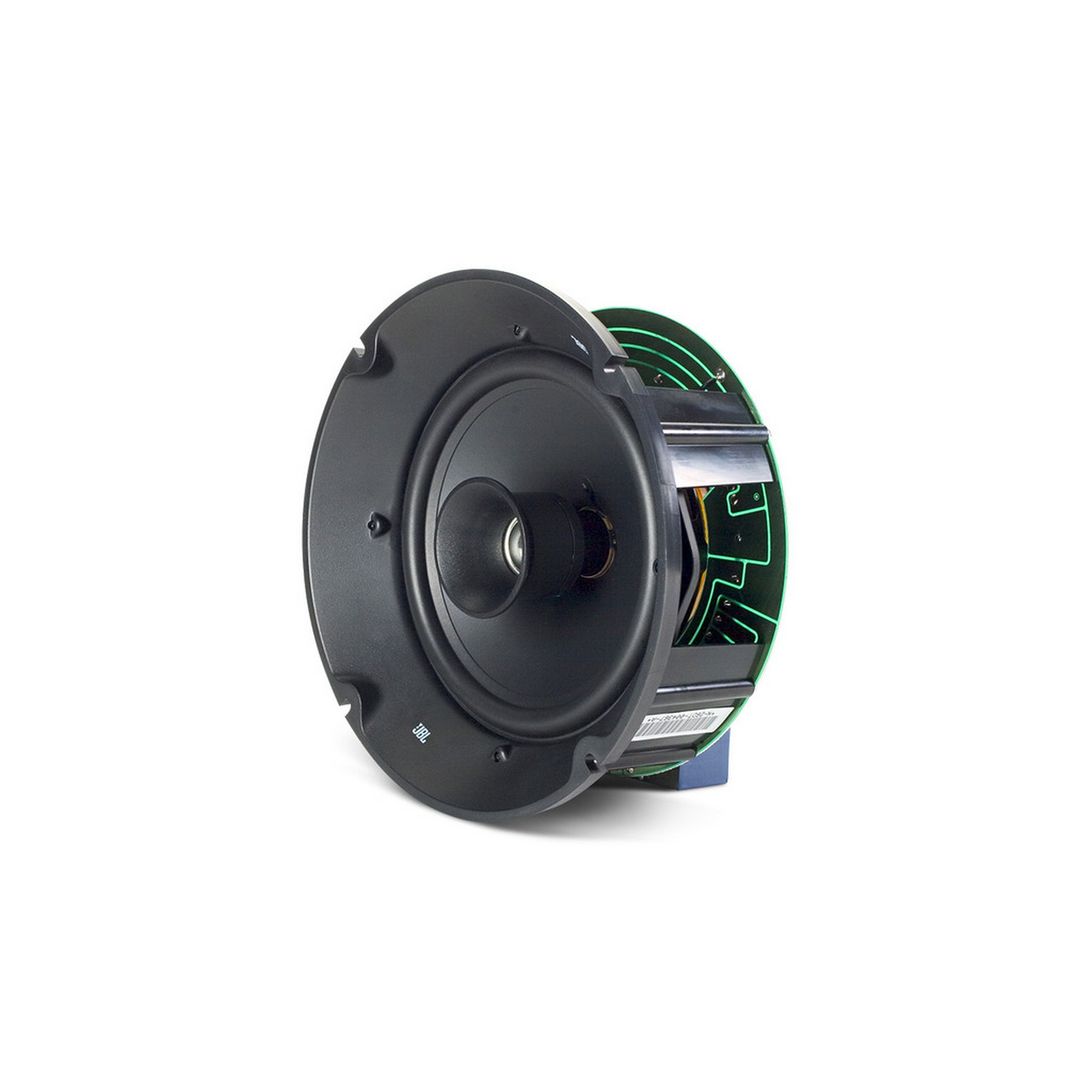

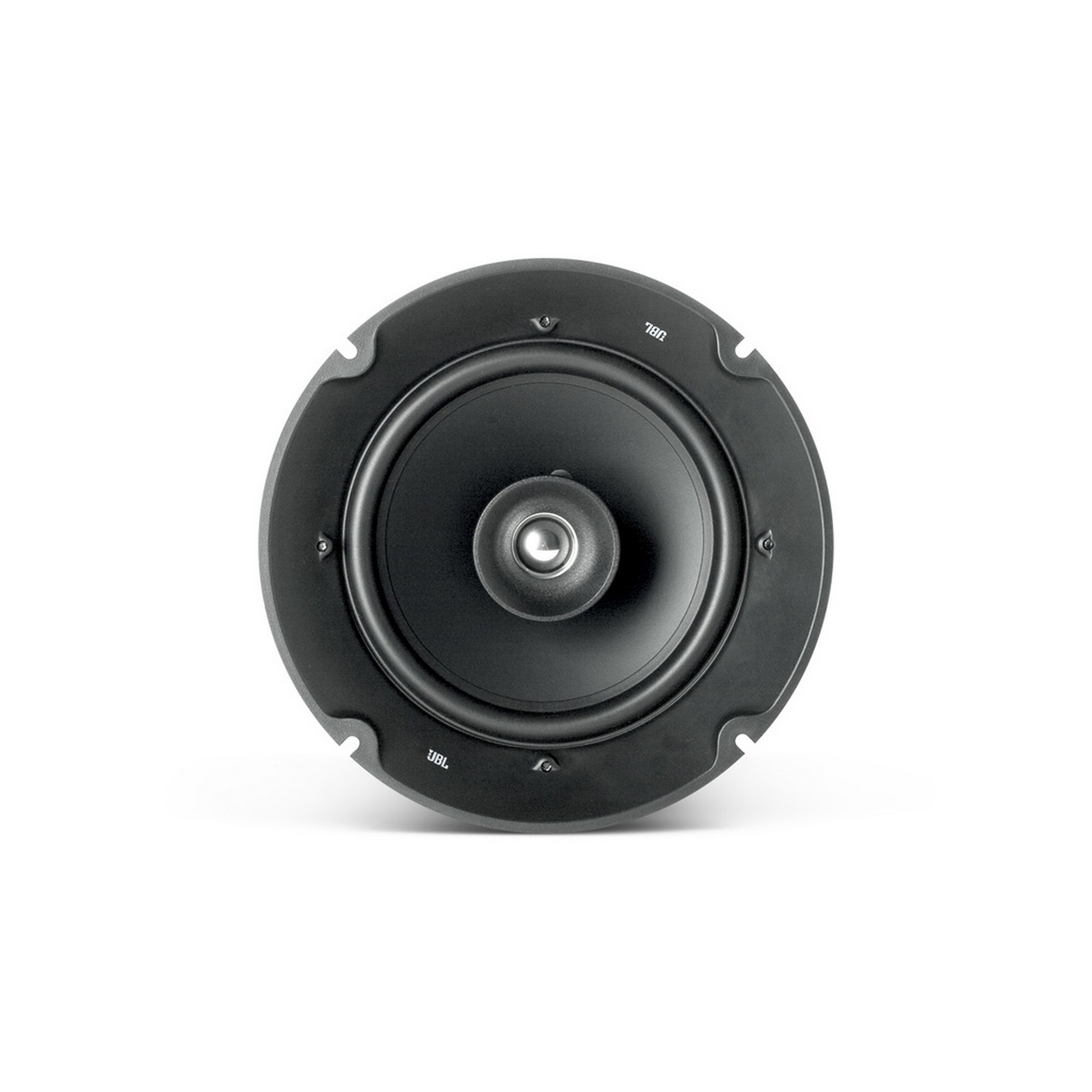

6.5" Ceiling Loudspeaker Transducer Assembly

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.
