JBL Professional

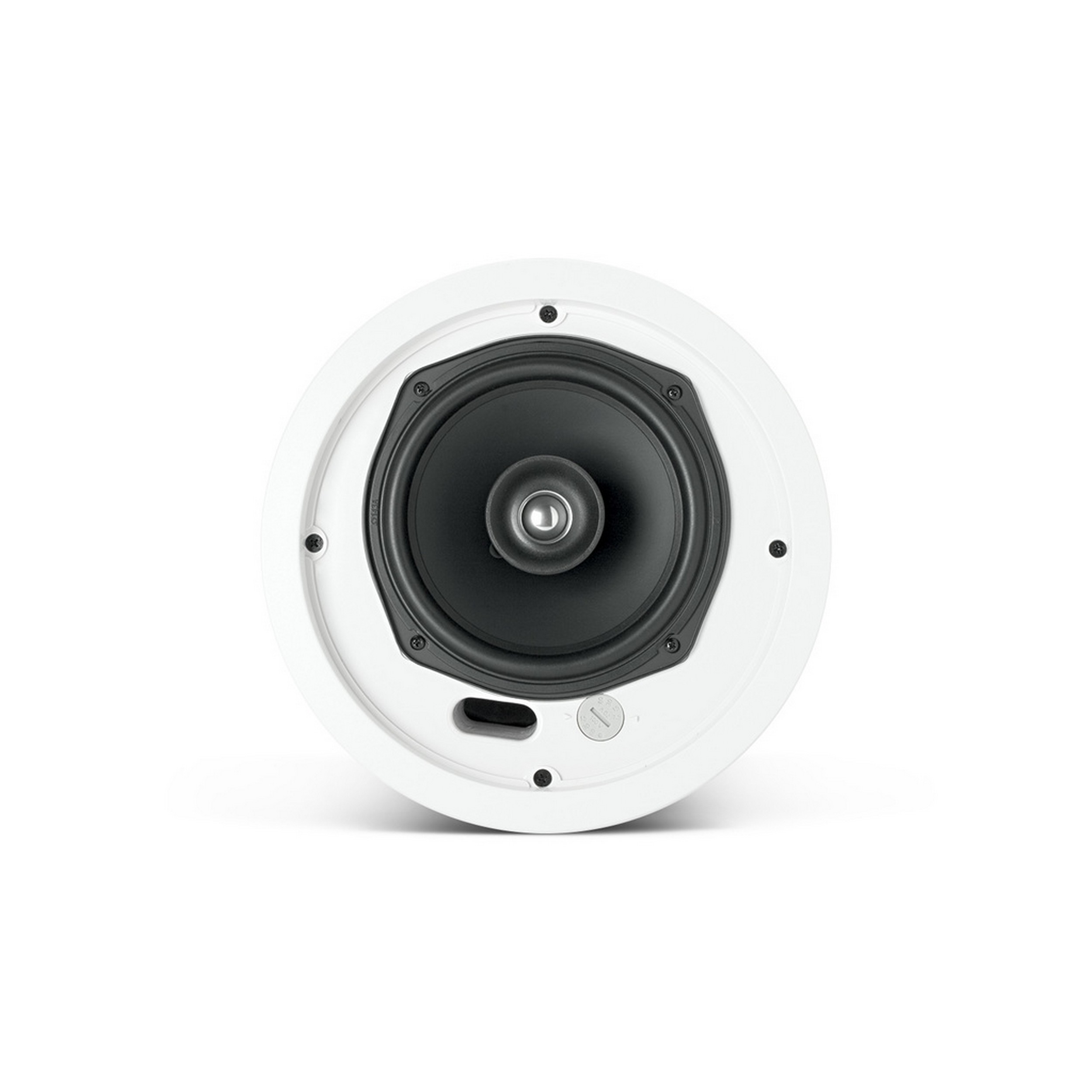

CONTROL 26CT-LS

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 80 Hz - 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), 100 hrs
Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle 110° conical
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
Rated Maximum SPL 107 dB (top 70V/100V tap)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)
Input Connectors Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia) 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each) 4.2 kg (10 lb)
Shipping Weight (pair) 9.7 kg (21 lb)
Sensitivity (1W, 1m) 89 dB (100 Hz - 10 kHz)
Color White
Safety Agency UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 220 mm (8.75 in) diamter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
Plenum Usage Yes, backcan included
DETAYLAR
DETAYLAR

Ceiling Loudspeaker Assembly for Life Safety Applications

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.
