JBL Professional

CONTROL 26C

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 75 Hz - 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (150W peak), 100 hrs
Nominal Sensitivity 89 dB, 1m/1 W
Coverage Angle 110° conical
Directivity Index (DI) 4.6 averaged 500 Hz to 4 KHz
Impedance 16 ohms
Rated Maximum SPL (1m) 107 dB (low-impedance, 113 dB peak)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)

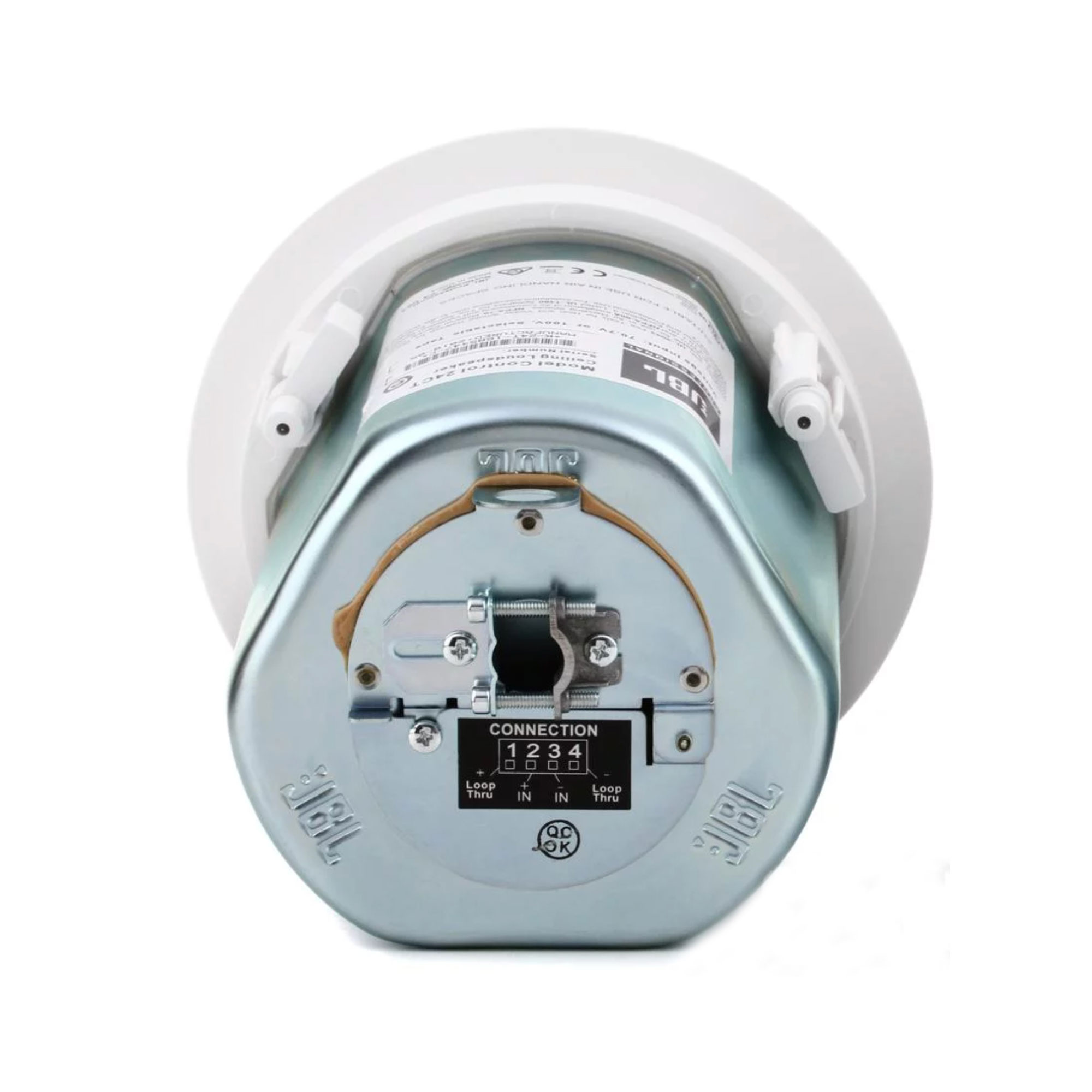

Terminations Removable 4-pin locking connector with screw-down terminals.
Dimensions (H x Dia) 210 mm x 252 mm (8.3 in x 9.9 in)
Net Weight (each) 2.7 kg (6 lbs)
Shipping Weight (pair) 6.4 kg (15 lbs)
Sensitivity (1W, 1m) 89 dB (100 Hz - 10 kHz)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 220 mm (8.75 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage Yes, backcan included
DETAYLAR
DETAYLAR

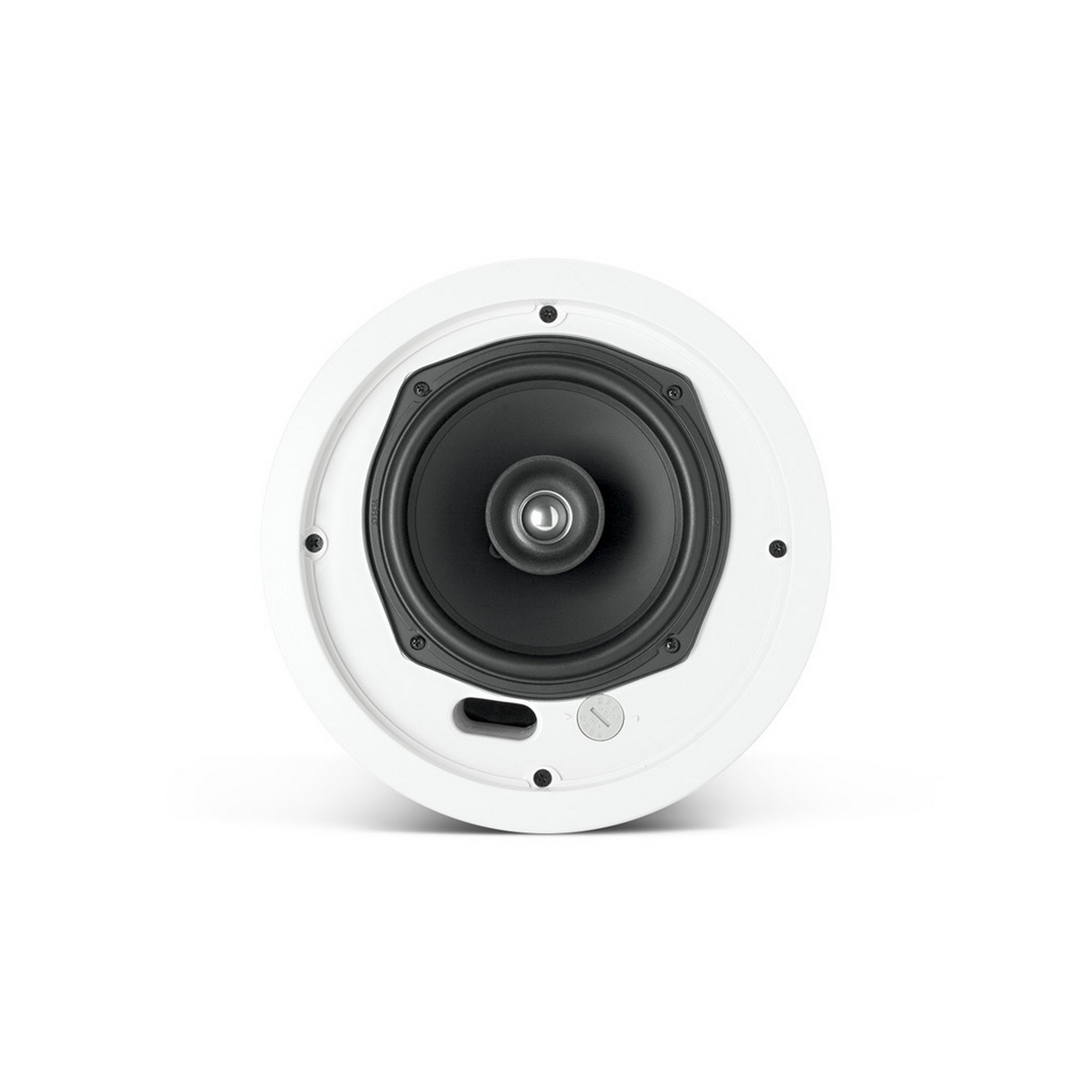

6.5" Ceiling Loudspeaker Transducer Assembly

The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.
