JBL Professional

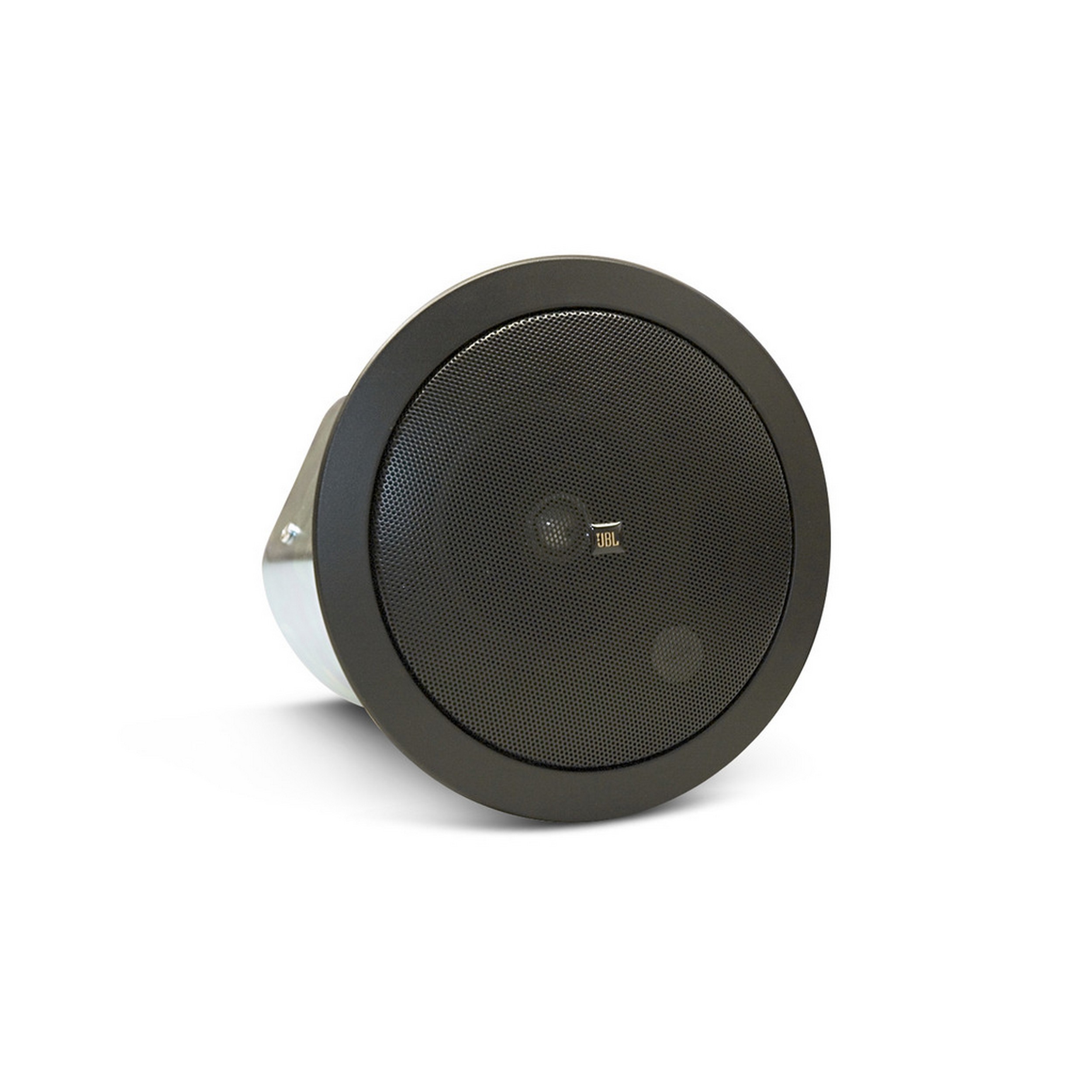

CONTROL 24CT-BK

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 80 Hz - 20 kHz
Power Rating See transformer taps
Transformer Taps 70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
Coverage Angle 130° conical
Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
Rated Maximum SPL (1m) 102 dB (top 70V/100V tap)
Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz)
Sensitivity (1W, 1m) 86 dB (100 Hz - 10 kHz)
Input Connectors Removable 4-pin locking connector with screw-down terminals.
Drivers LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (0.75 in)
Color Black
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage Yes, backcan included
DETAYLAR
DETAYLAR

Background/Foreground Ceiling Speaker

The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.
