JBL Professional

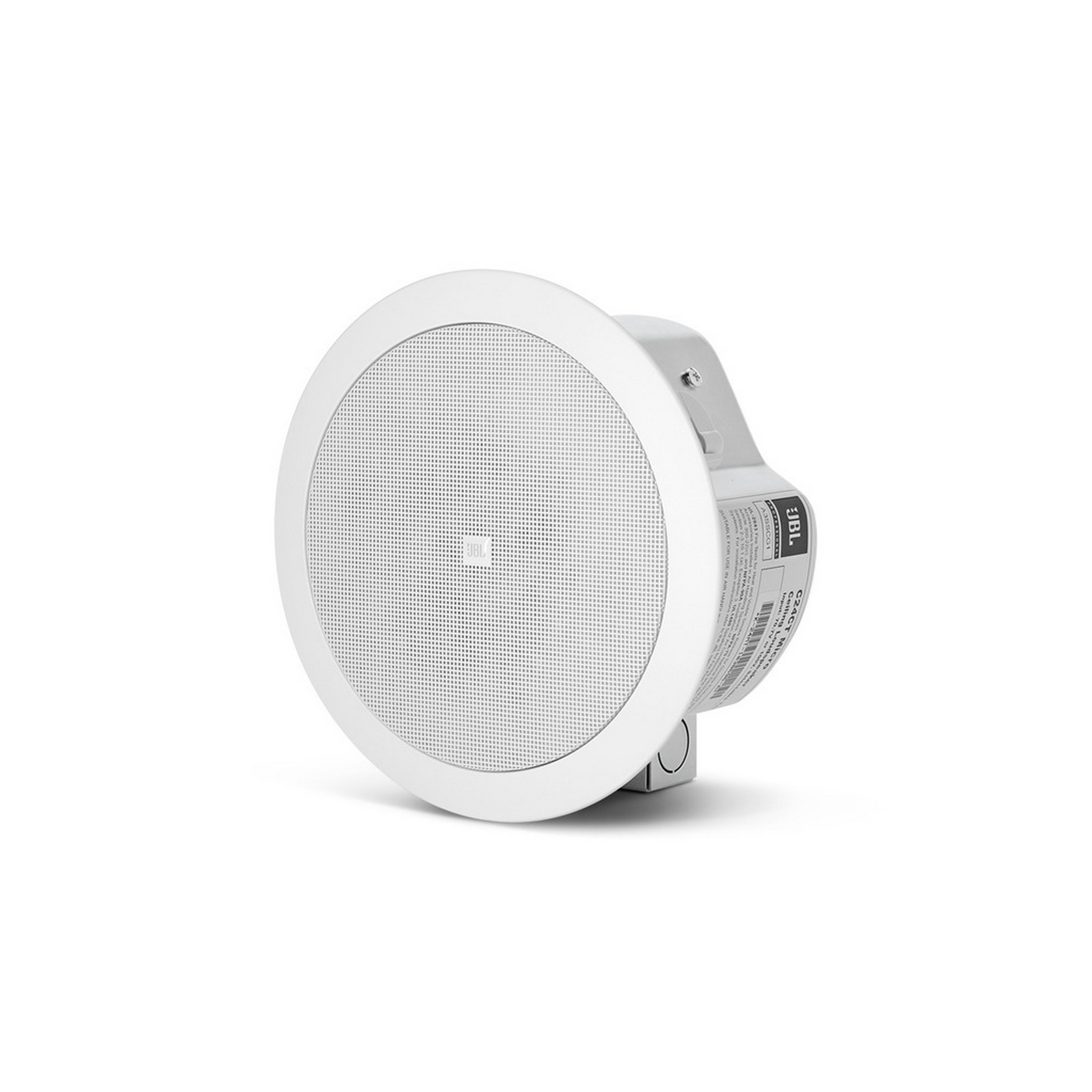

CONTROL 24CT MICRO

100 mm (4 in) Depth. 70V/100V 25W,12WCutout Size: 167 mm
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 85 Hz - 25 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
30 Watts Continuous Program Power
15 Watts Continuous Pink Noise (60W peak), 100 hrs
Sensitivity (1W, 1m) 86 dB (100 Hz - 10 kHz)
Crossover Frequency 3.5 kHz
Rated Maximum SPL (1m) 98 dB (104 dB peak)
Coverage Angle 150° conical
Impedance 7.1 ohms

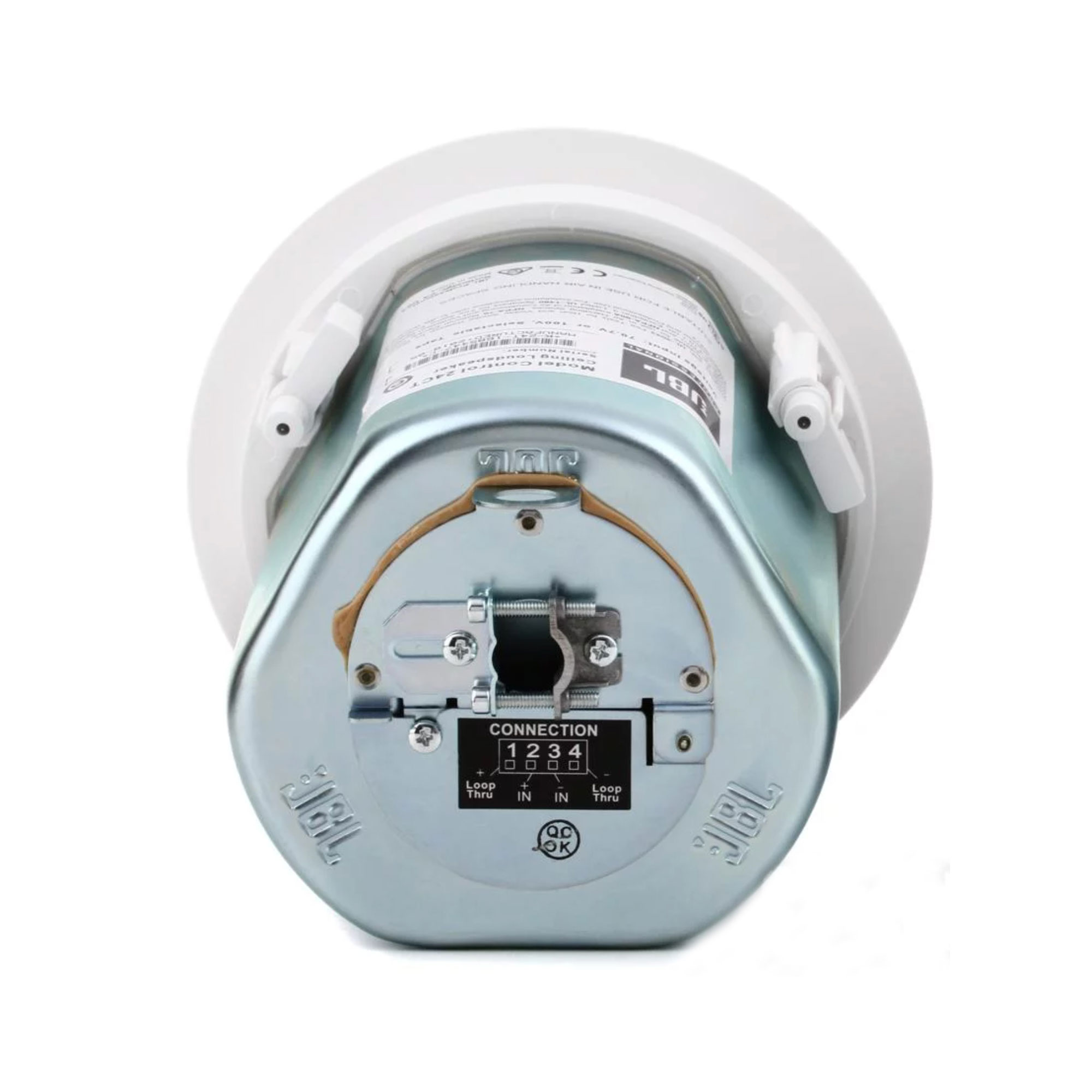

Input Connectors Screw-down terminals.

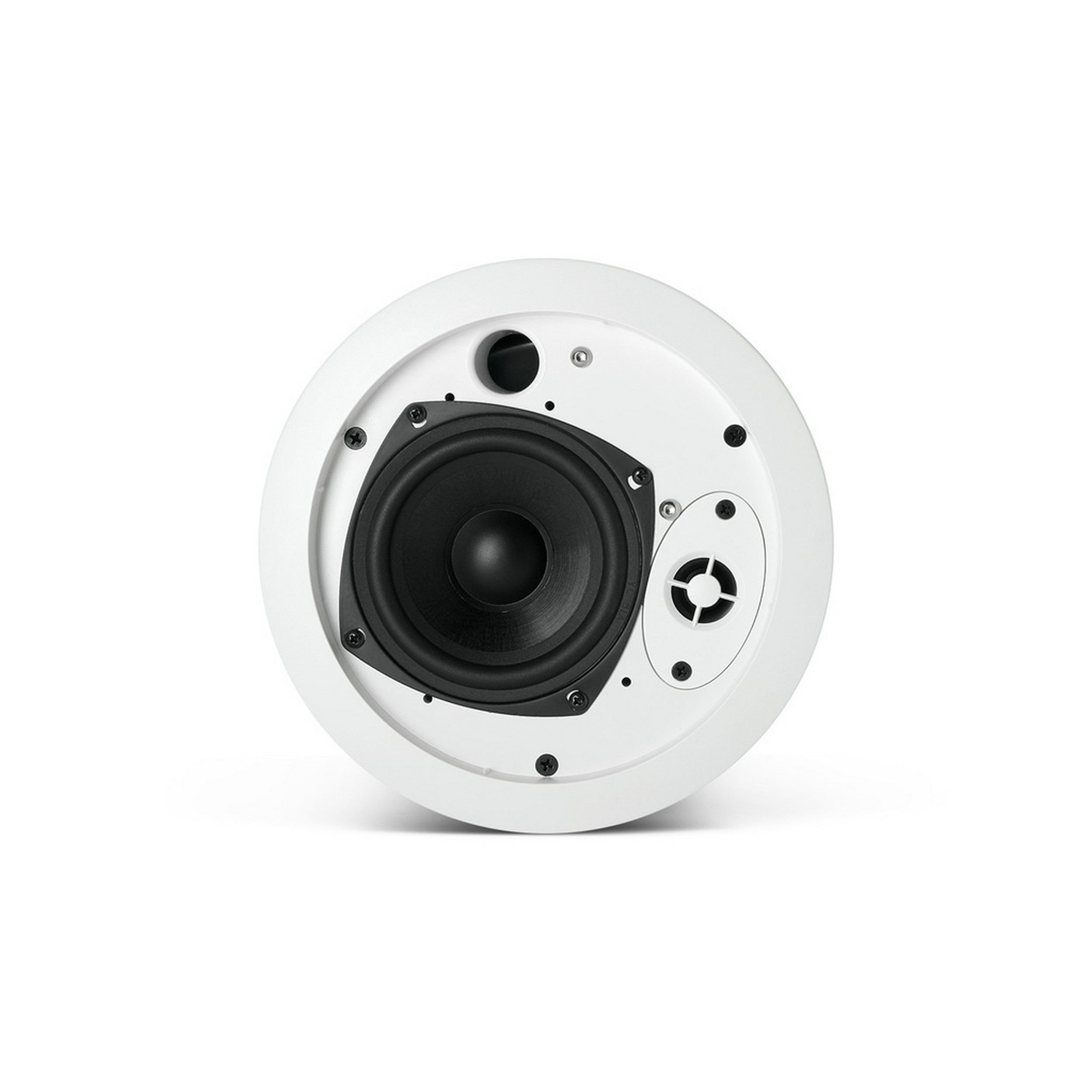

Drivers LF Driver: 115 mm (4.5 in)
HF Driver: 12 mm (0.5 in)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-O
Ceiling Cutout Size 167 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard
Optional Accessories MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket
Plenum Usage Yes, backcan included
DETAYLAR
DETAYLAR

Background Music Ceiling Loudspeaker

The Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.
