JBL Professional

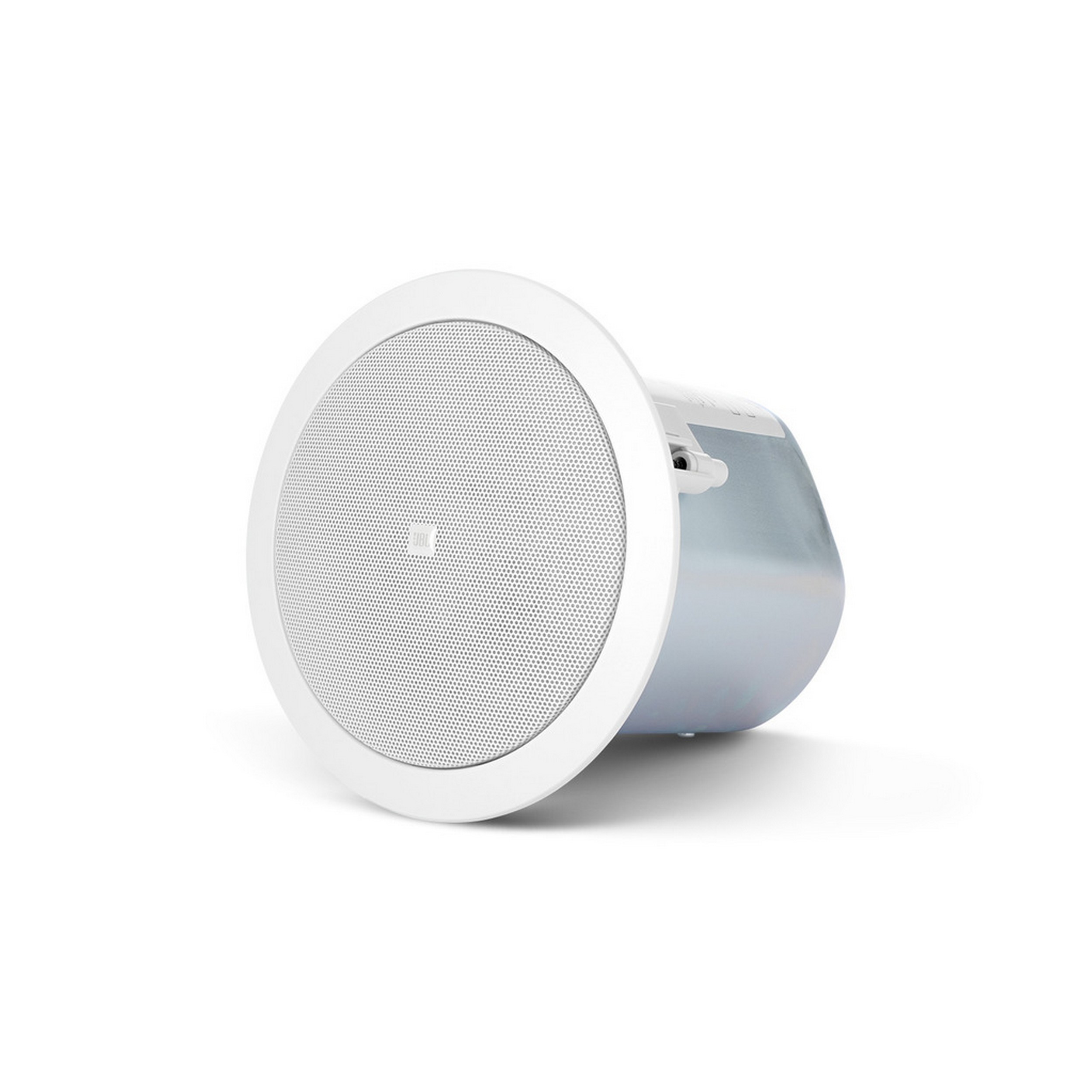

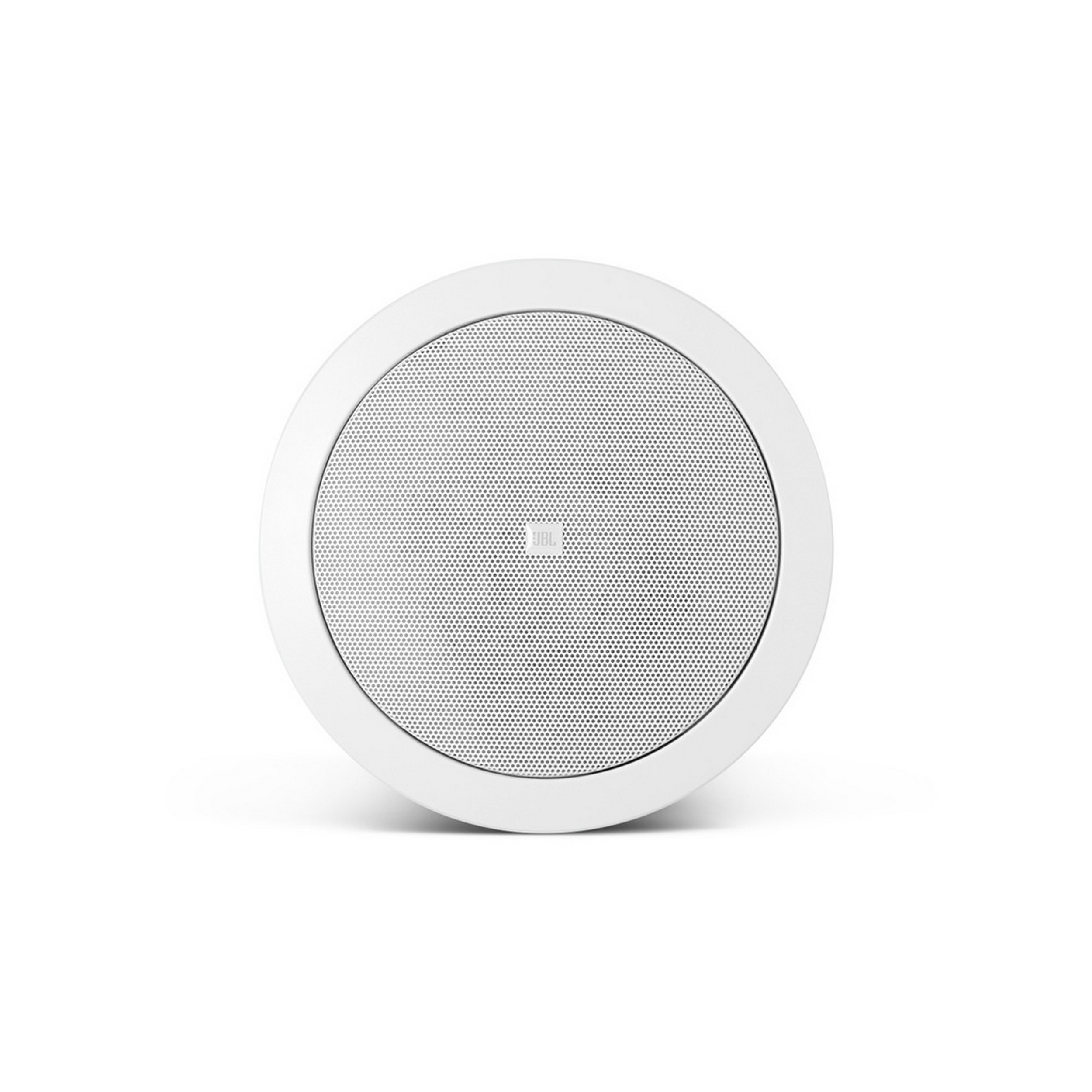

CONTROL 24CT

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 80 Hz - 20 kHz
Power Rating See transformer taps
Transformer Taps 70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
Coverage Angle 130° conical
Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
Rated Maximum SPL (1m) 102 dB (top 70V/100V tap)
Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz)
Sensitivity (1W, 1m) 86 dB (100 Hz - 10 kHz)

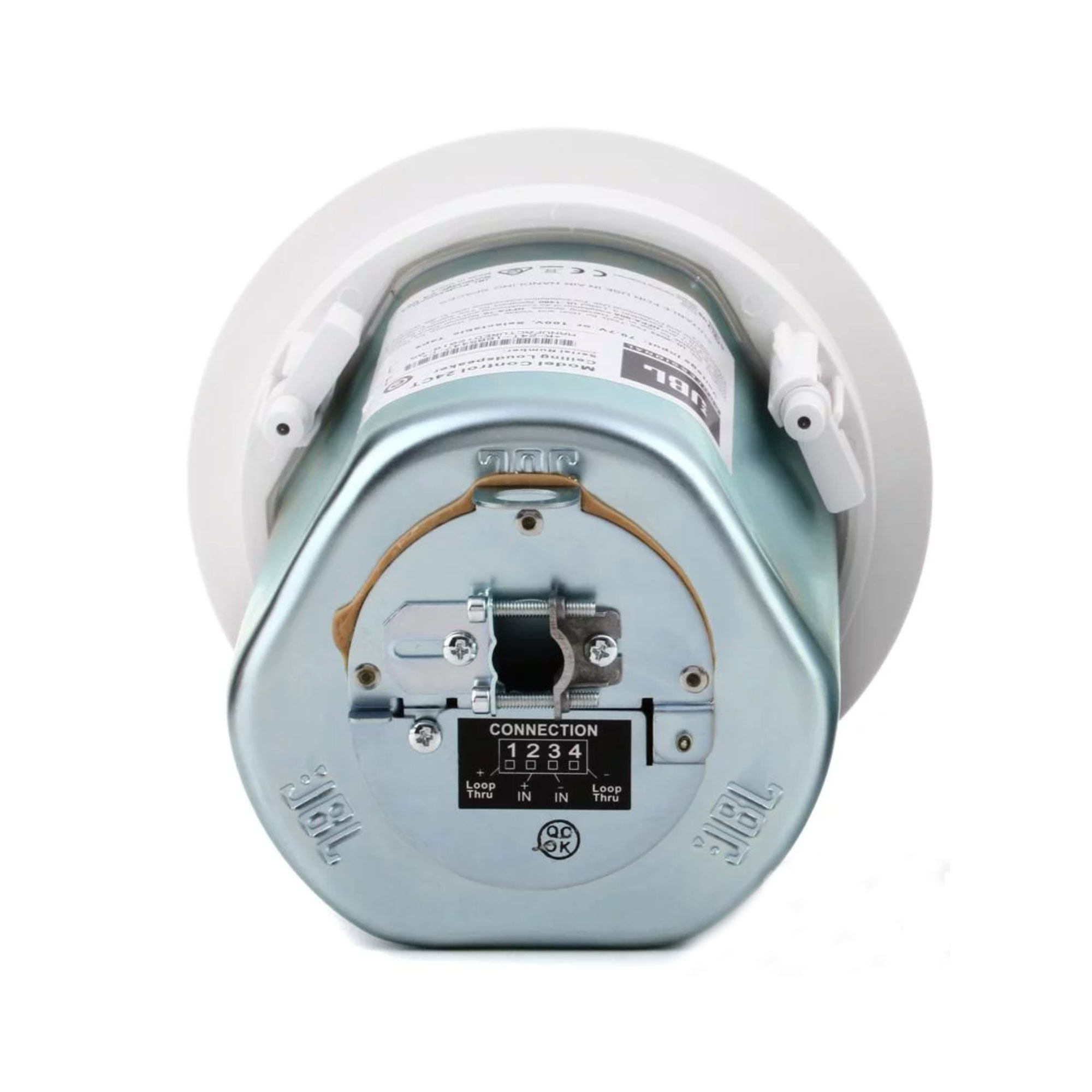

Input Connectors Removable 4-pin locking connector with screw-down terminals.

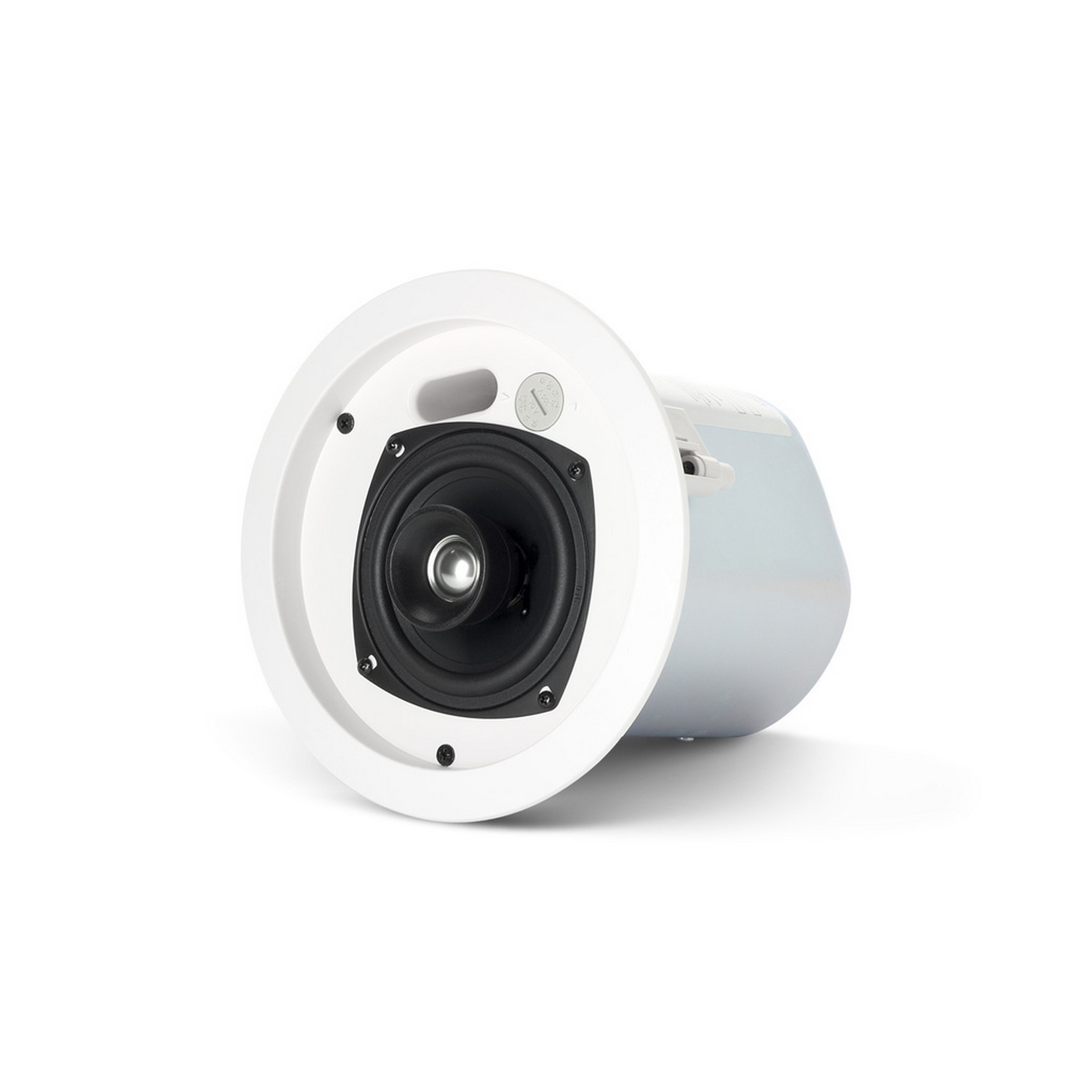

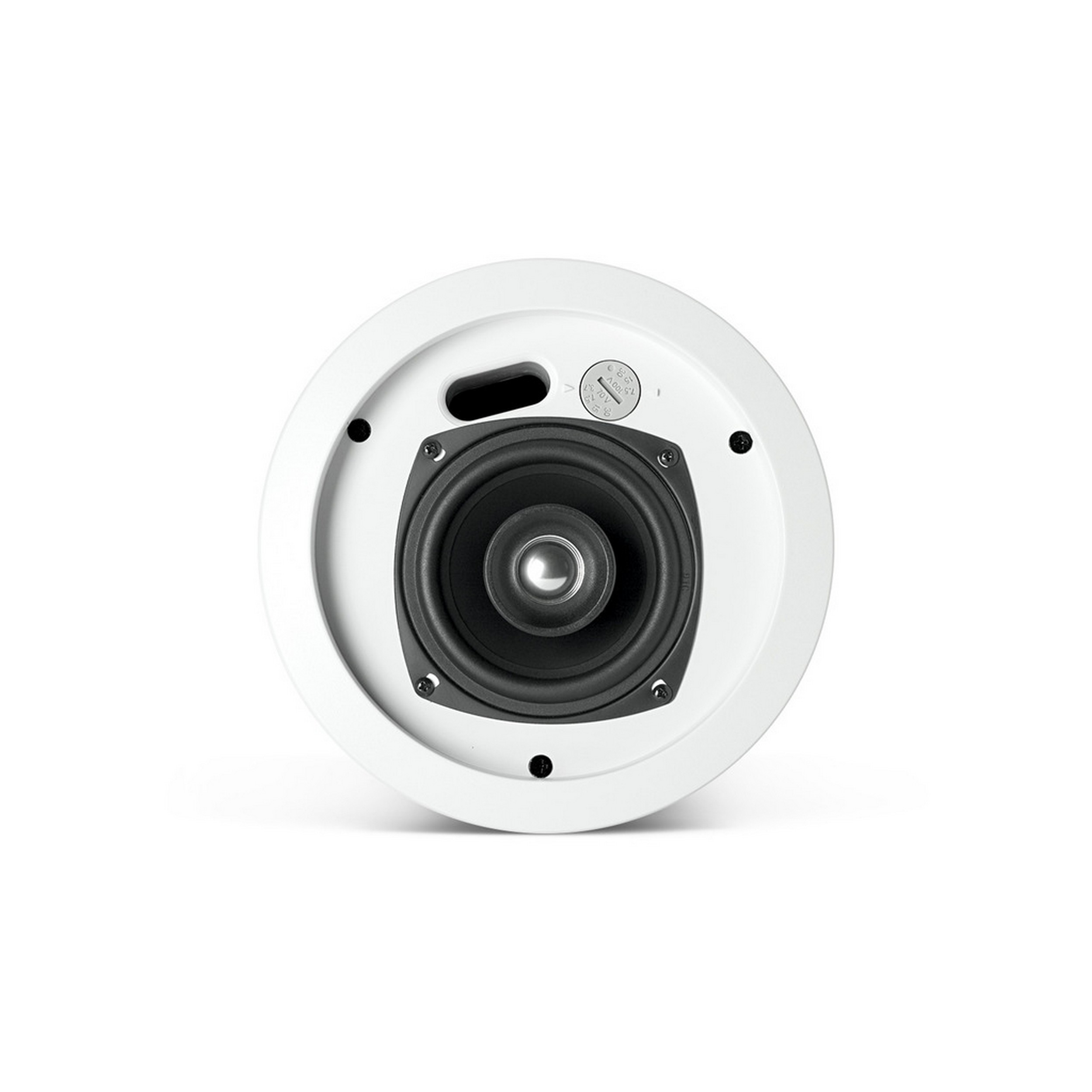

Drivers LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (0.75 in)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage Yes, backcan included
DETAYLAR
DETAYLAR

Background/ Foreground Ceiling Loudspeakers

The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

DÖKÜMANLAR
DÖKÜMANLAR
RESİMLER
RESİMLER
ETİKETLER
ETİKETLER

ÜRÜN AİLESİ

CELO2
2" Asma Tavan Hoparlörü 10W 8Ohm
CELO6
6" Asma Tavan Hoparlörü 60W 8Ohm
CELO8
8" Asma Tavan Hoparlörü 80W 8Ohm
CELO2D
2" Asma Tavan Hoparlörü 10W 16Ohm
CIRA506/W
5,25" Asma Tavan Hoparlör 8Ohm/100V 6W
WS524/W
2 Yollu Duvar Hoparlörü 24W 100V
WS624/W
2 Yollu Duvar Hoparlörü 24W 100V
SSP500/W
2 Yollu Sauna Hoparlörü 20W 8Ohm
CSF506
Asma Tavan Yangın Hoparlörü 6W/100V
AWP06/W
Suya Dayanıklı Asma Tavan Hoparlör 8Ohm/100V 6W
CENA506/W
5" Asma Tavan Hoparlör 6W 100V
CENA506/B
5" Asma Tavan Hoparlör 6W 100V
CENA706/W
6,5" Asma Tavan Hoparlör 6W 100V
CENA706/B
6,5" Asma Tavan Hoparlör 6W 100V
CIRA524/W
5,25" Asma Tavan Hoparlör 8Ohm/100V 24W
CIRA724/W
6,5" Asma Tavan Hoparlör 8Ohm/100V 24W
CENA812/W
8" Asma Tavan Hoparlör 12W 100V
CENA812/B
8" Asma Tavan Hoparlör 12W 100V
CENA306/W
2,5" Asma Tavan Hoparlör 6W 100V
CONTROL 126 WT
Tavan-İçi Hoparlörler
CONTROL 128 W
Tavan-İçi Hoparlörler
CONTROL 128 WT
Tavan-İçi Hoparlörler
CONTROL 12C VA
Tavan-İçi Hoparlörler
CONTROL 14C VA
Tavan-İçi Hoparlörler
CONTROL 16C VA
Tavan-İçi Hoparlörler
CONTROL 18C/T
Ceiling Loudspeaker with 100 mm (8" in) 90 W 70V/100V 60W
CONTROL 226C/T
Tavan-İçi Hoparlörler
CONTROL 227C
Tavan-İçi Hoparlörler
CONTROL 227C/T
Tavan-İçi Hoparlörler
CONTROL 24C
Tavan-İçi Hoparlörler

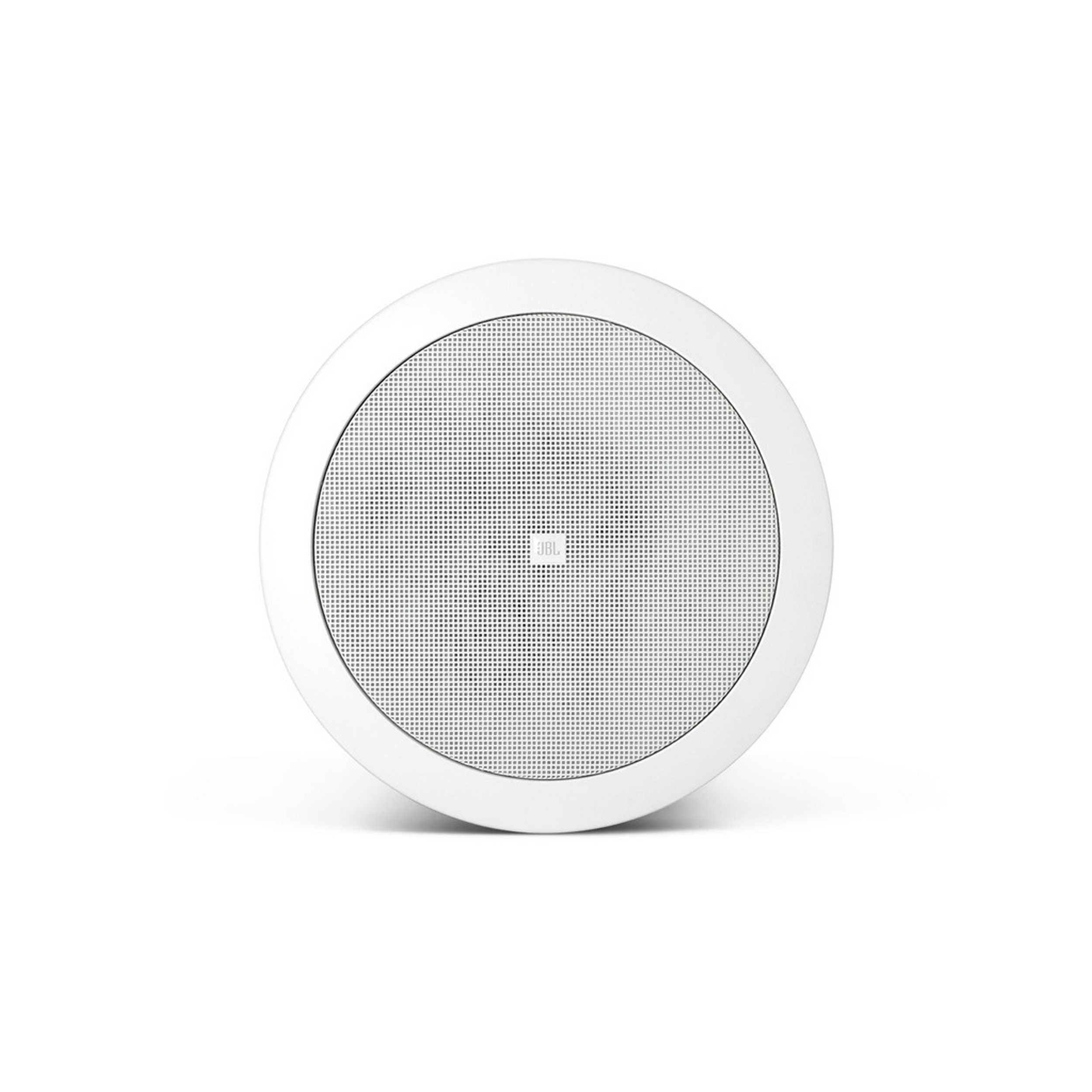

CONTROL 24CT MICRO
