JBL Professional

CONTROL 24C

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 80 Hz - 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
80 Watts Continuous Program Power
40 Watts Continuous Pink Noise (160W peak), 100 hrs
Sensitivity (1W, 1m) 86 dB SPL @ 1 m (3.3 ft)
Coverage Angle 130° conical
Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
Rated Maximum SPL (1m) 102 dB (low-impedance, 108 dB peak)
Impedance 16 ohms

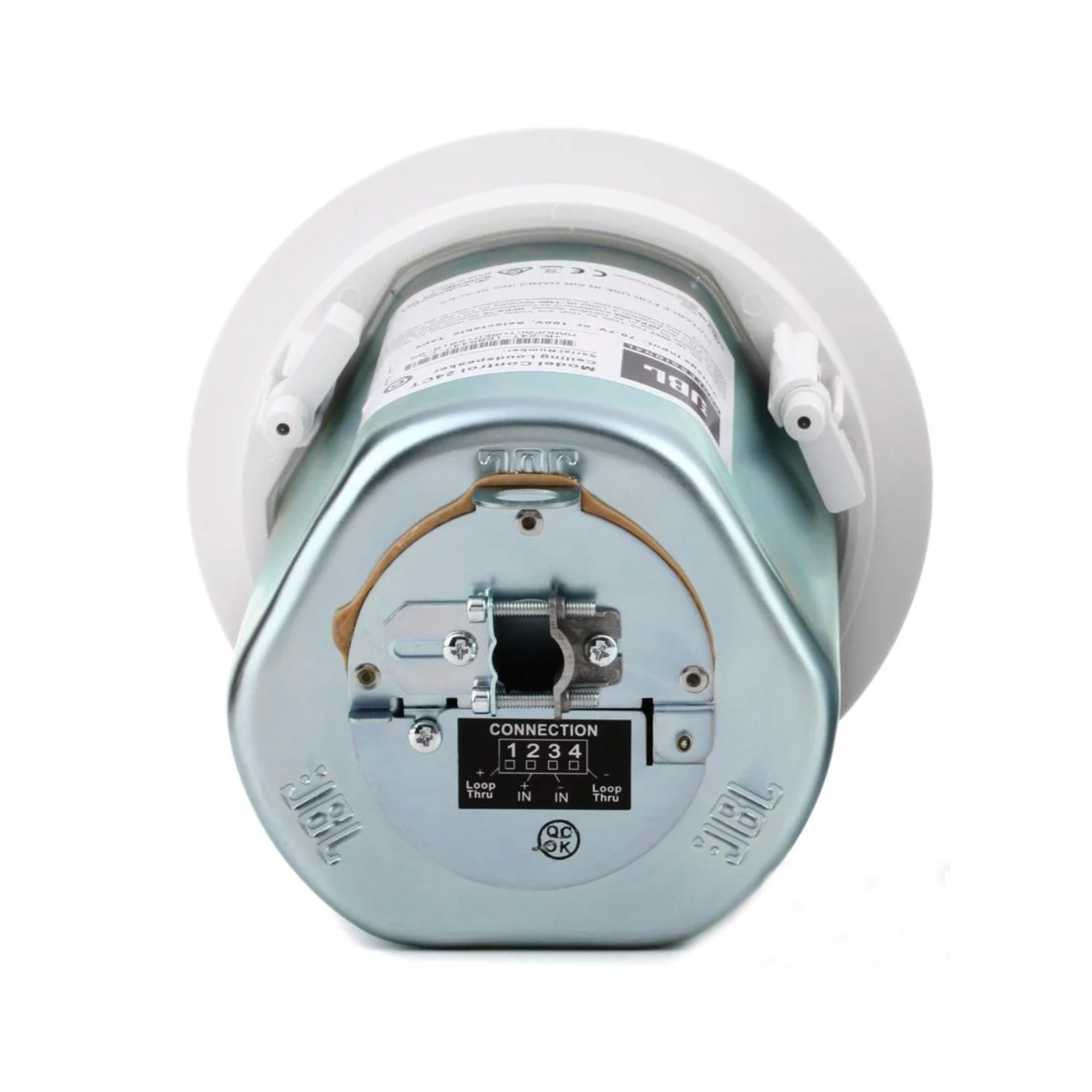

Input Connectors Removable 4-pin locking connector with screw-down terminals.
Drivers LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (0.75 in)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage Yes, backcan included
DETAYLAR
DETAYLAR

Background/ Foreground Ceiling Loudspeakers

The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
