JBL Professional

CONTROL 227C

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range (-10 dB) 43 Hz - 19 kHz
Power Rating IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs
Sensitivity (1W, 1m) 90 dB (1 kHz - 16 kHz)
Coverage Angle 120 degrees
Frequency Response (-3 dB) 75 Hz - 17 kHz
Impedance 8 ohms
Drivers LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil
Color White
Dimensions (H x Dia) Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
Net Weight (each) 4.1 kg (9.0 lb)
Shipping Weight (pair) 227C: 5.4 kg (12.0 lb)
Rated Maximum SPL (1m) 112 dB (118 dB peak)
Input Connectors Screw locking barrier strip for bare wire
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (wood-lined; accessory)
Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
Optional Accessories MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)
Plenum Usage Yes, with accessory backcan
DETAYLAR
DETAYLAR

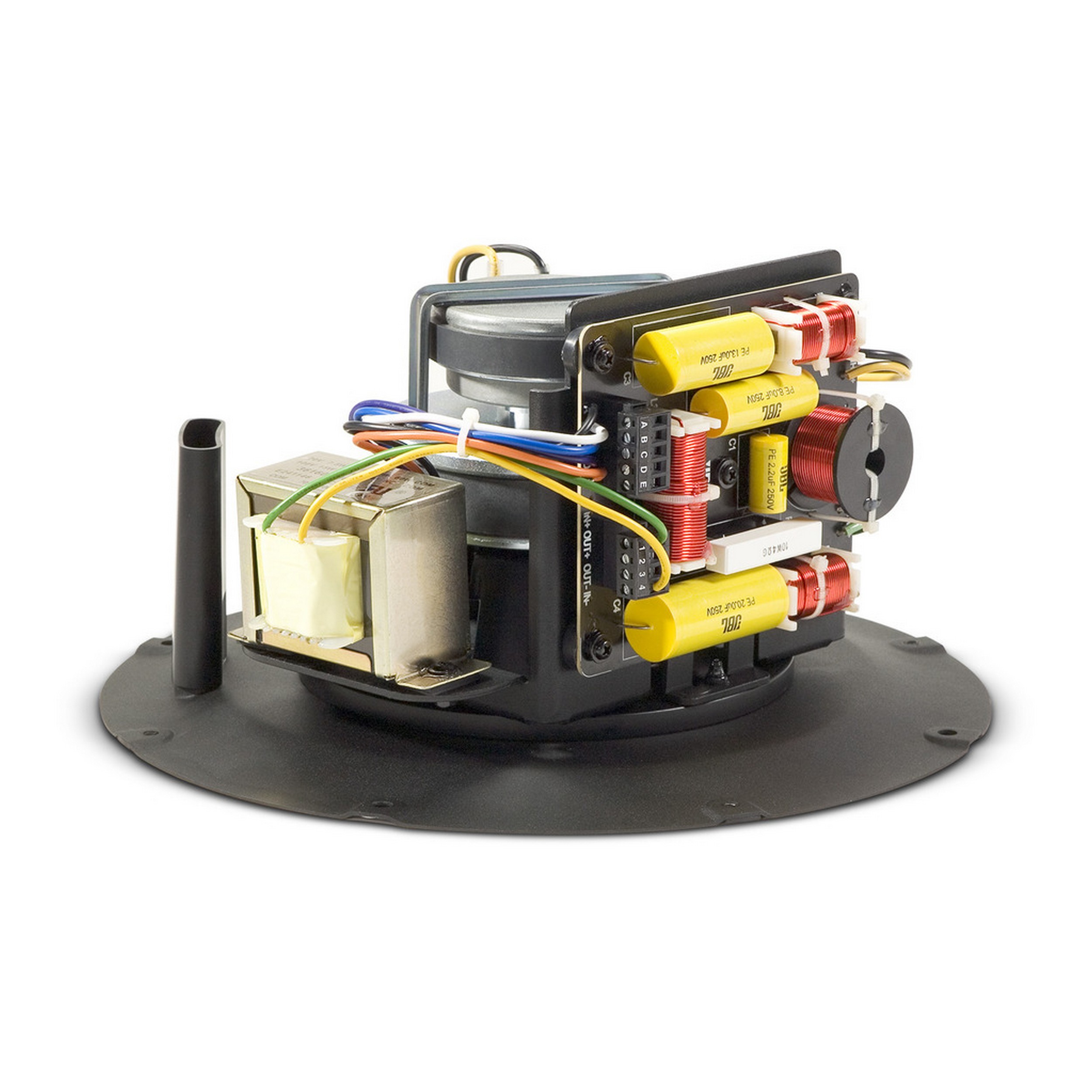

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver For Use with Pre-Install Backcan

The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in ceilingmount applications.
