JBL Professional

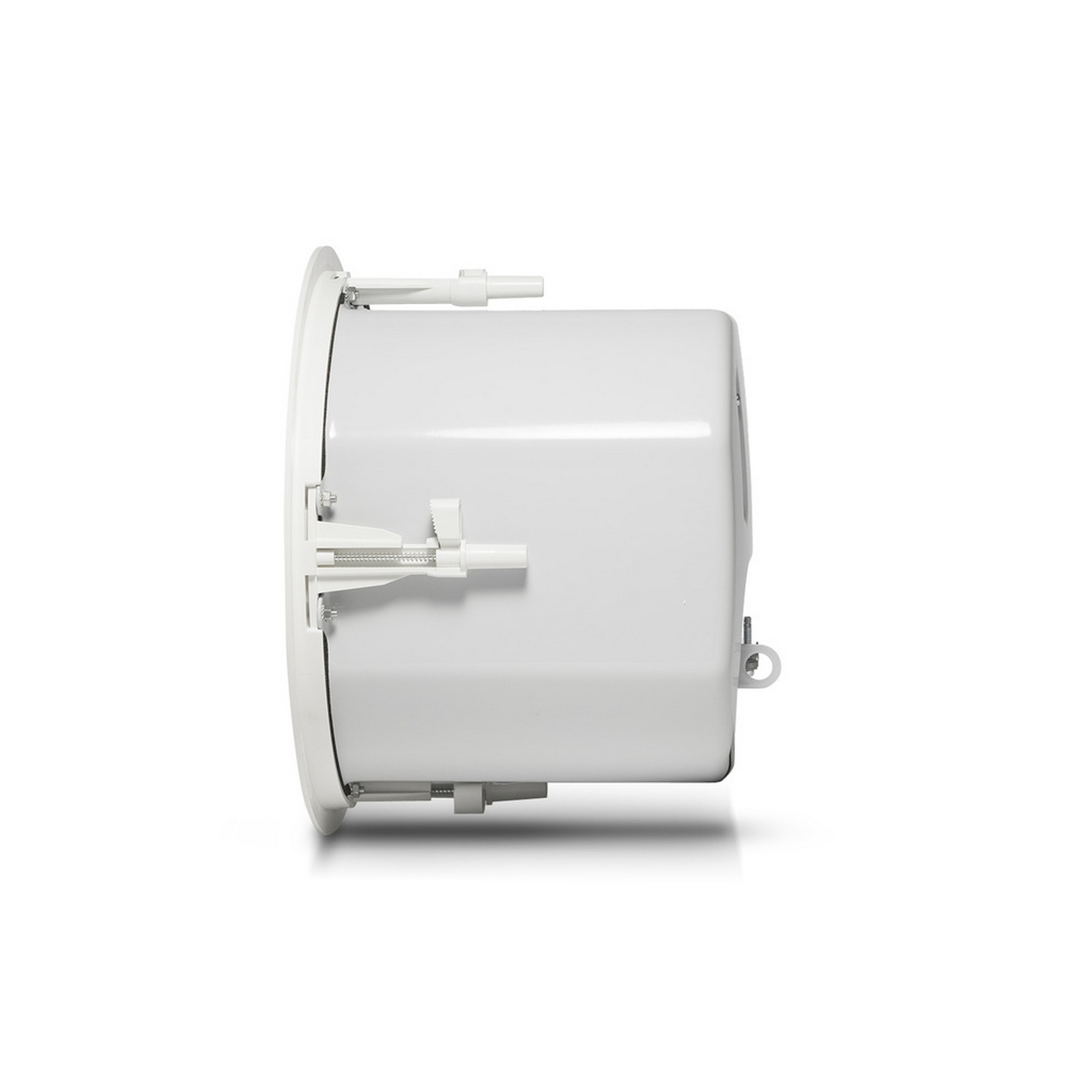

CONTROL 226C/T

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range (-10 dB) 47 Hz - 19 kHz
Power Rating IEC Long-Term System Power Rating:
150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise
(400 W peak), 100 hrs
Transformer Taps 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass
Sensitivity (1W, 1m) 90 dB (1 kHz - 16 kHz)
Coverage Angle 120° conical, constant directivity
Drivers LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil
Dimensions (H x Dia) Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)
Net Weight (each) 9.1 kg (20.0 lb)
Shipping Weight (pair) 23.9 kg (52.5 lb)
Rated Maximum SPL (1m) 112 dB (low-impedance, 118 dB peak)
108 dB (top 70V/100V tap)
Impedance 8 ohms (in direct/bypass setting)

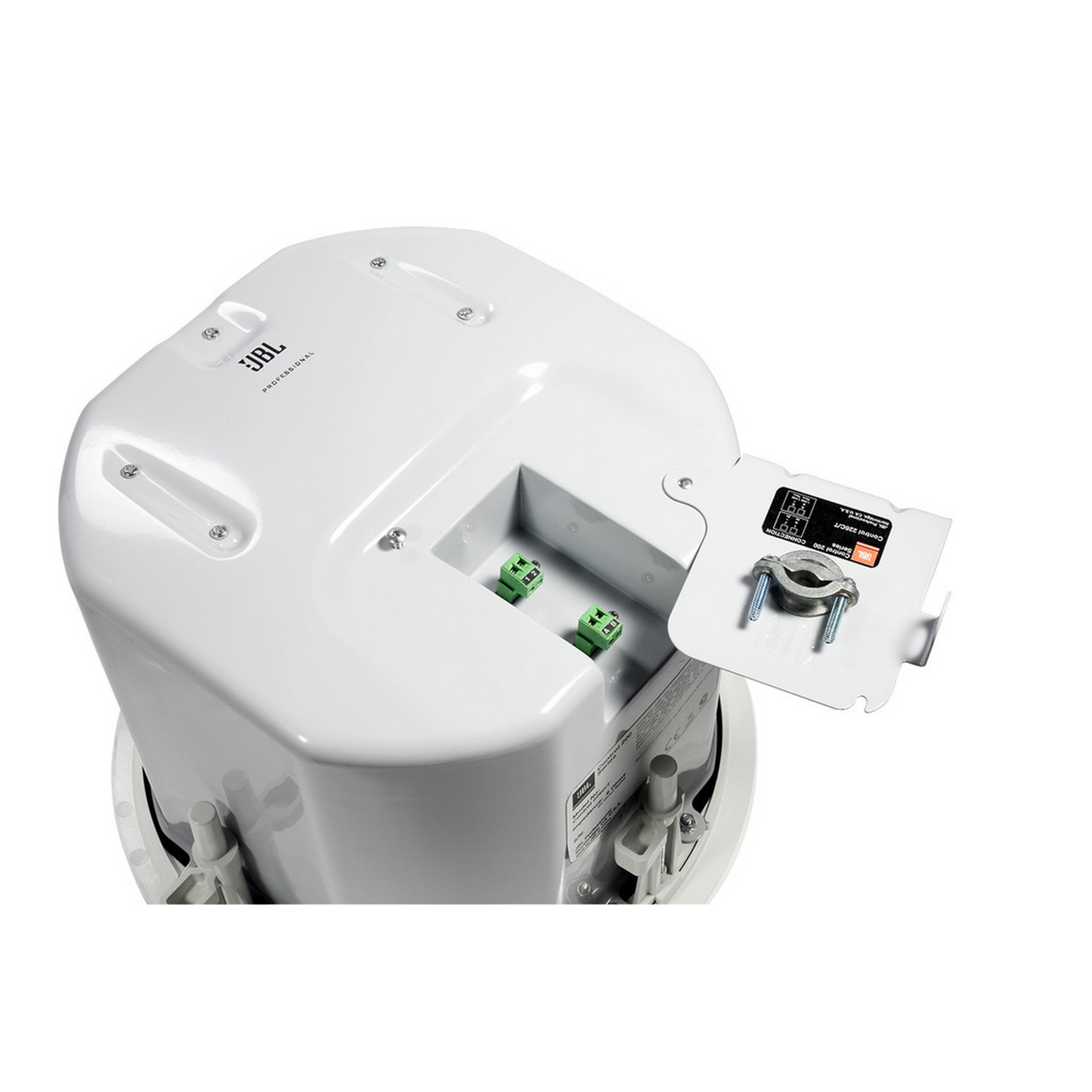

Input Connectors Removable locking connector with screw-down terminals.
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size 307 mm (12.1 in) diameter (cardboard cutout template included)
Included Accessories Press-in Grille, C-Ring, Tile Rails.
Optional Accessories MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket
Plenum Usage Yes, backcan included
DETAYLAR
DETAYLAR

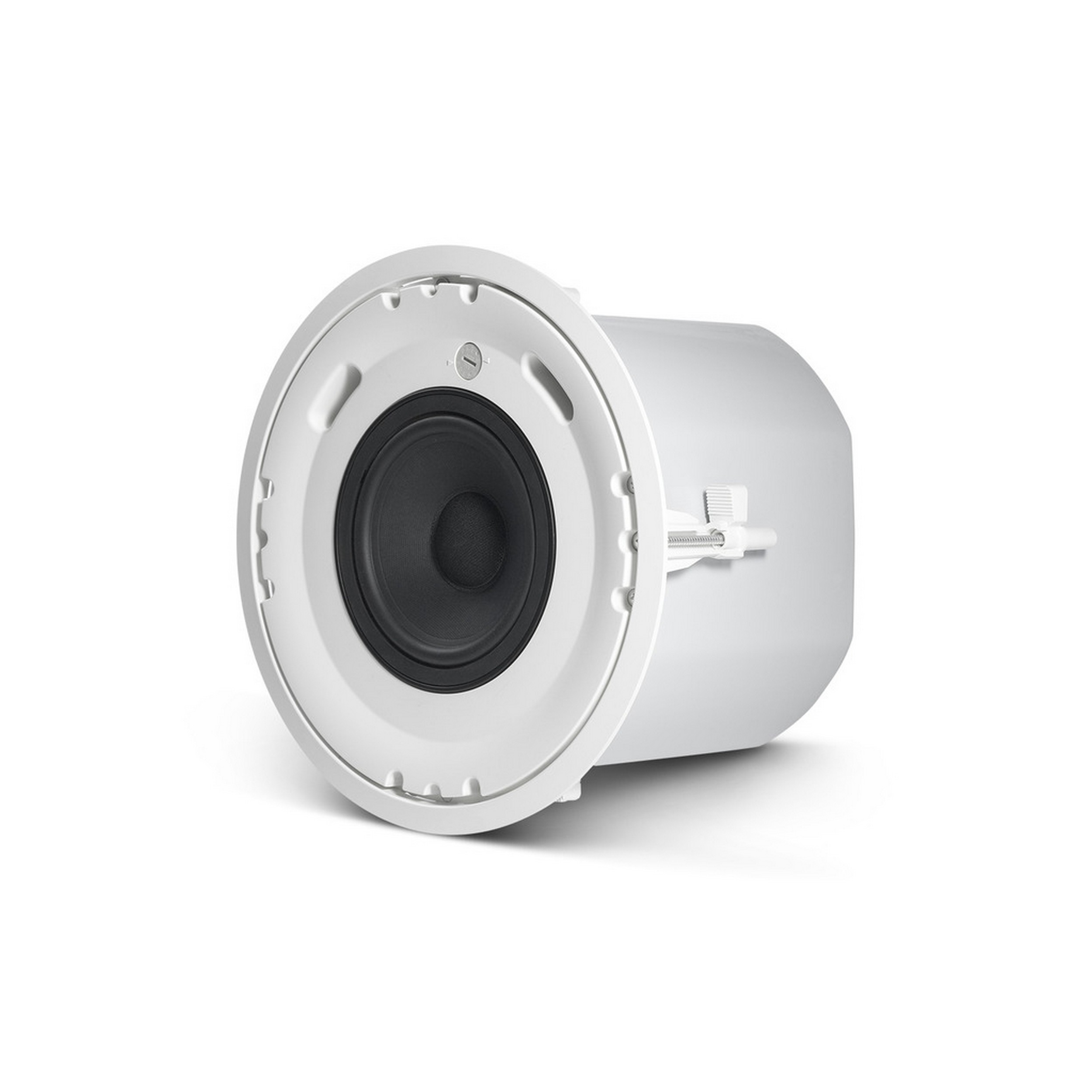

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver

The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.
