JBL Professional

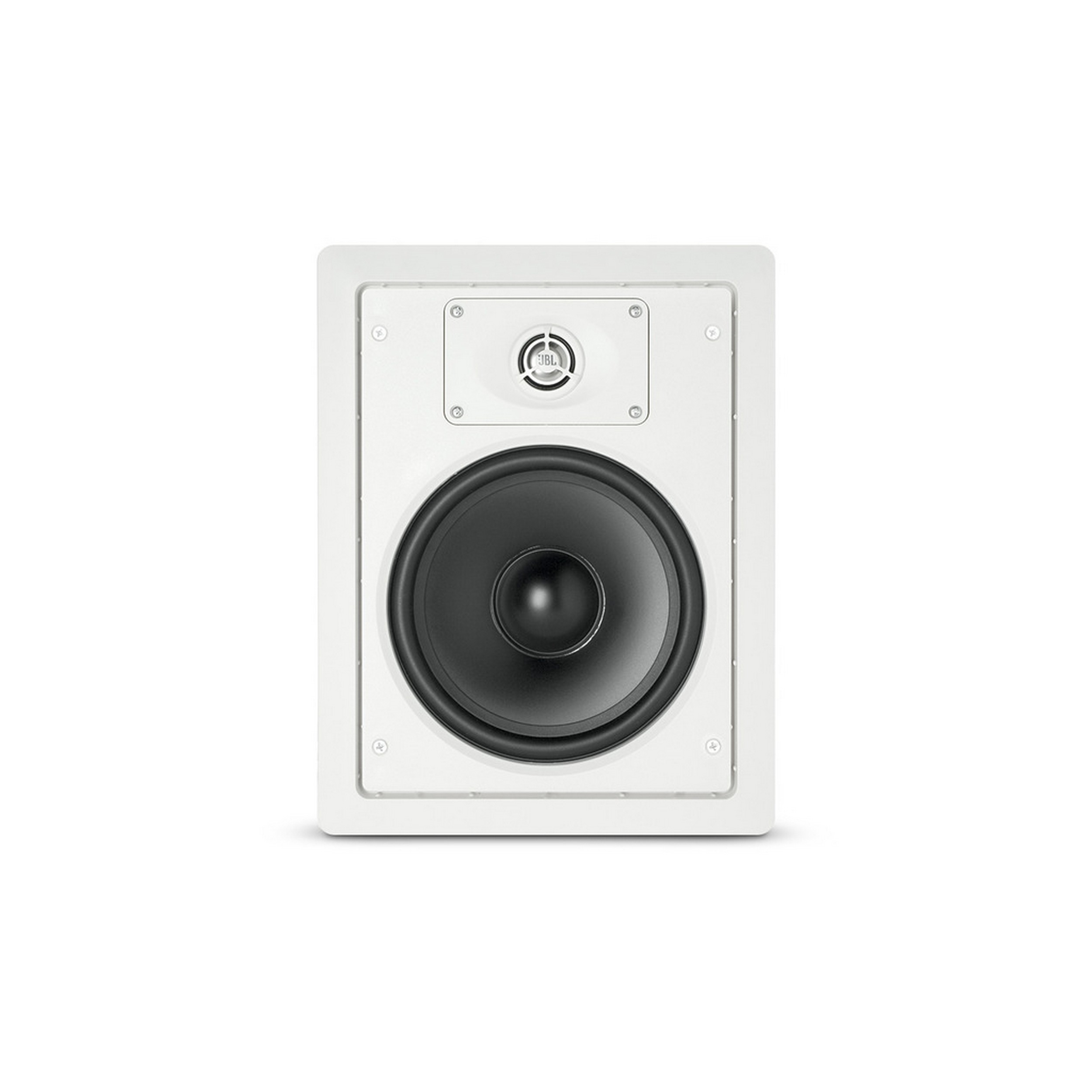

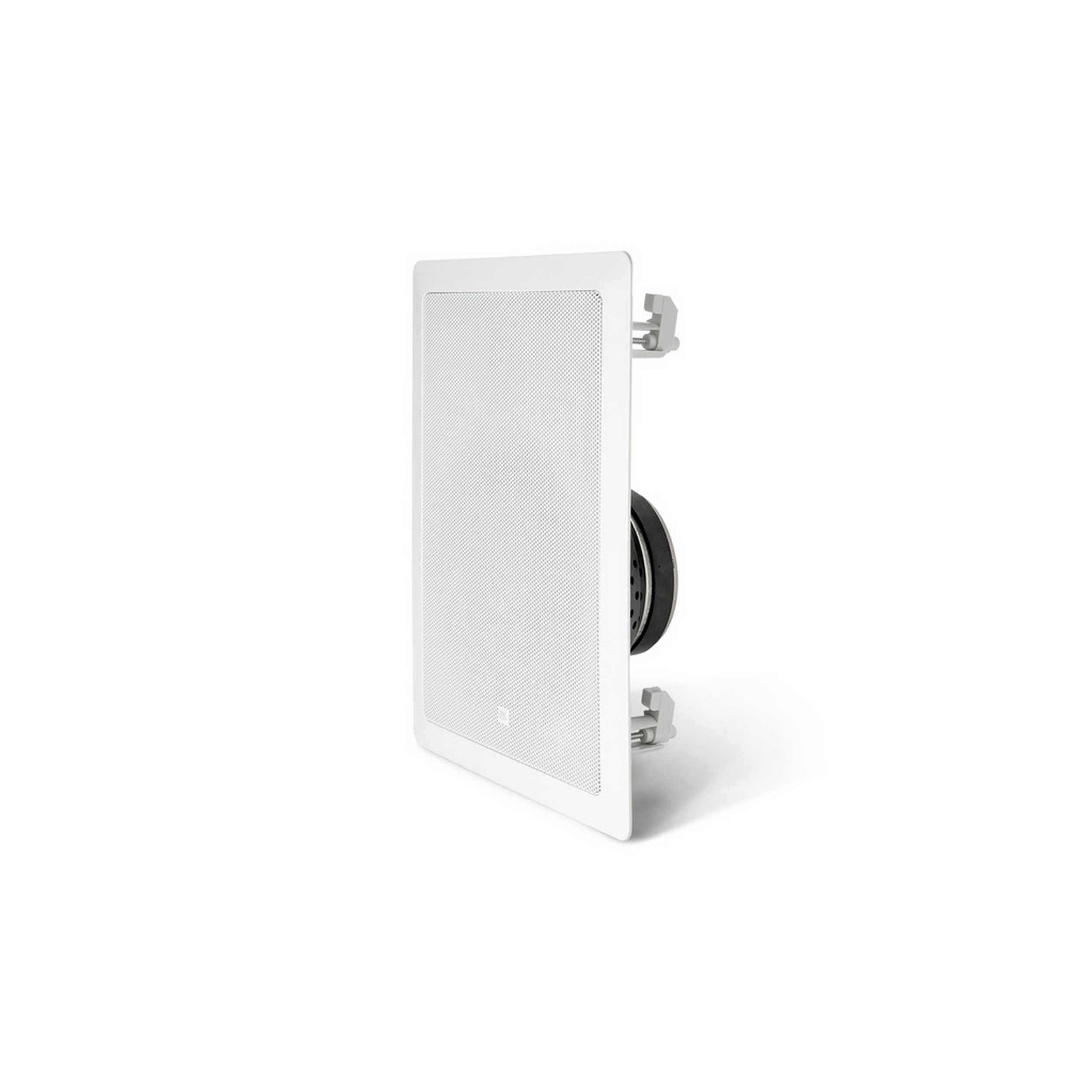

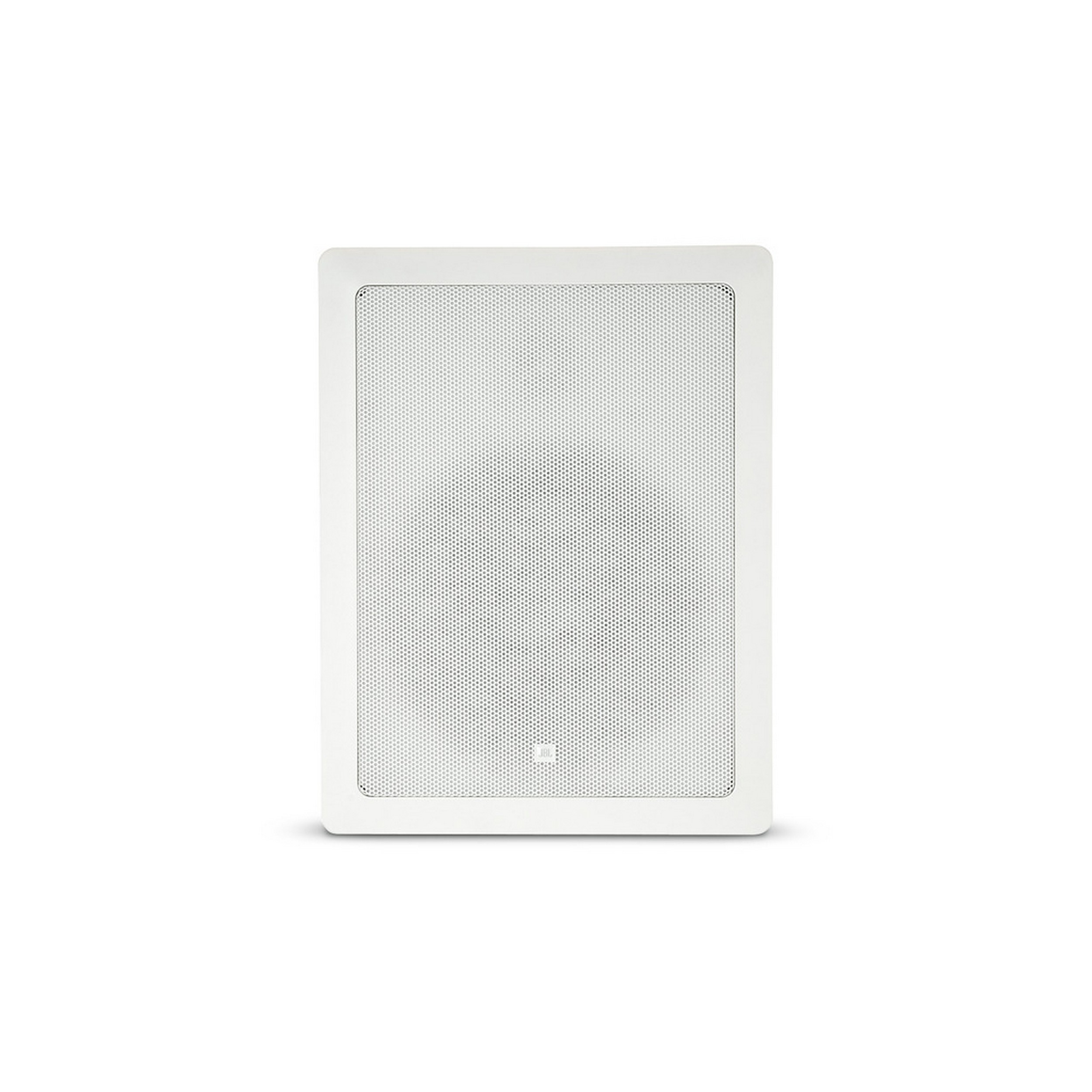

CONTROL 128 WT

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 38 Hz - 20 kHz (-10 dB)
Power Rating 200 W Peak 100 W Continuous Program Power 50W Continuous Pink Noise
Transformer Taps 70 V: 50 W, 25 W, 12 W & 6 W 100 V: 50 W, 25 W, & 12 W
Impedance 8 ohms
Drivers LF: 200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround.
HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Input Connectors Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
Optimum Air Cavity Behind Speaker 40 to 80 liters (1.4 to 2.8 cu ft)
Outside Dimensions (H x W x D) 334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), 102 mm (4.0 in) front of wall to back of speaker.
Maximum Wall Thickness 32 mm (1.25 in)
Cutout Size (H x W) 300 x 225 mm (11.9 x 8.9 in)Cutout template included.
Net Weight (each) 3.3 kg (7.2 lb)
Shipping Weight (ea) 7.8 kg (17.2 lb)
Included Accessories Cutout template & paint shield
Optional Accessories WB8 Rough-In Frame for newconstruction installation to wallstuds
Sensitivity (1W, 1m) 90 dB SPL
DETAYLAR
DETAYLAR

Premium In-Wall Loudspeaker

The Control 128WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

DÖKÜMANLAR
DÖKÜMANLAR
RESİMLER
RESİMLER
ETİKETLER
ETİKETLER

ÜRÜN AİLESİ

CELO2
2" Asma Tavan Hoparlörü 10W 8Ohm
CELO6
6" Asma Tavan Hoparlörü 60W 8Ohm
CELO8
8" Asma Tavan Hoparlörü 80W 8Ohm
CELO2D
2" Asma Tavan Hoparlörü 10W 16Ohm
CIRA506/W
5,25" Asma Tavan Hoparlör 8Ohm/100V 6W
WS524/W
2 Yollu Duvar Hoparlörü 24W 100V
WS624/W
2 Yollu Duvar Hoparlörü 24W 100V
SSP500/W
2 Yollu Sauna Hoparlörü 20W 8Ohm
CSF506
Asma Tavan Yangın Hoparlörü 6W/100V
AWP06/W
Suya Dayanıklı Asma Tavan Hoparlör 8Ohm/100V 6W
CENA506/W
5" Asma Tavan Hoparlör 6W 100V
CENA506/B
5" Asma Tavan Hoparlör 6W 100V
CENA706/W
6,5" Asma Tavan Hoparlör 6W 100V
CENA706/B
6,5" Asma Tavan Hoparlör 6W 100V
CIRA524/W
5,25" Asma Tavan Hoparlör 8Ohm/100V 24W
CIRA724/W
6,5" Asma Tavan Hoparlör 8Ohm/100V 24W
CENA812/W
8" Asma Tavan Hoparlör 12W 100V
CENA812/B
8" Asma Tavan Hoparlör 12W 100V
CENA306/W
2,5" Asma Tavan Hoparlör 6W 100V
CONTROL 126 WT
Tavan-İçi Hoparlörler
CONTROL 128 W
Tavan-İçi Hoparlörler
CONTROL 128 WT
Tavan-İçi Hoparlörler

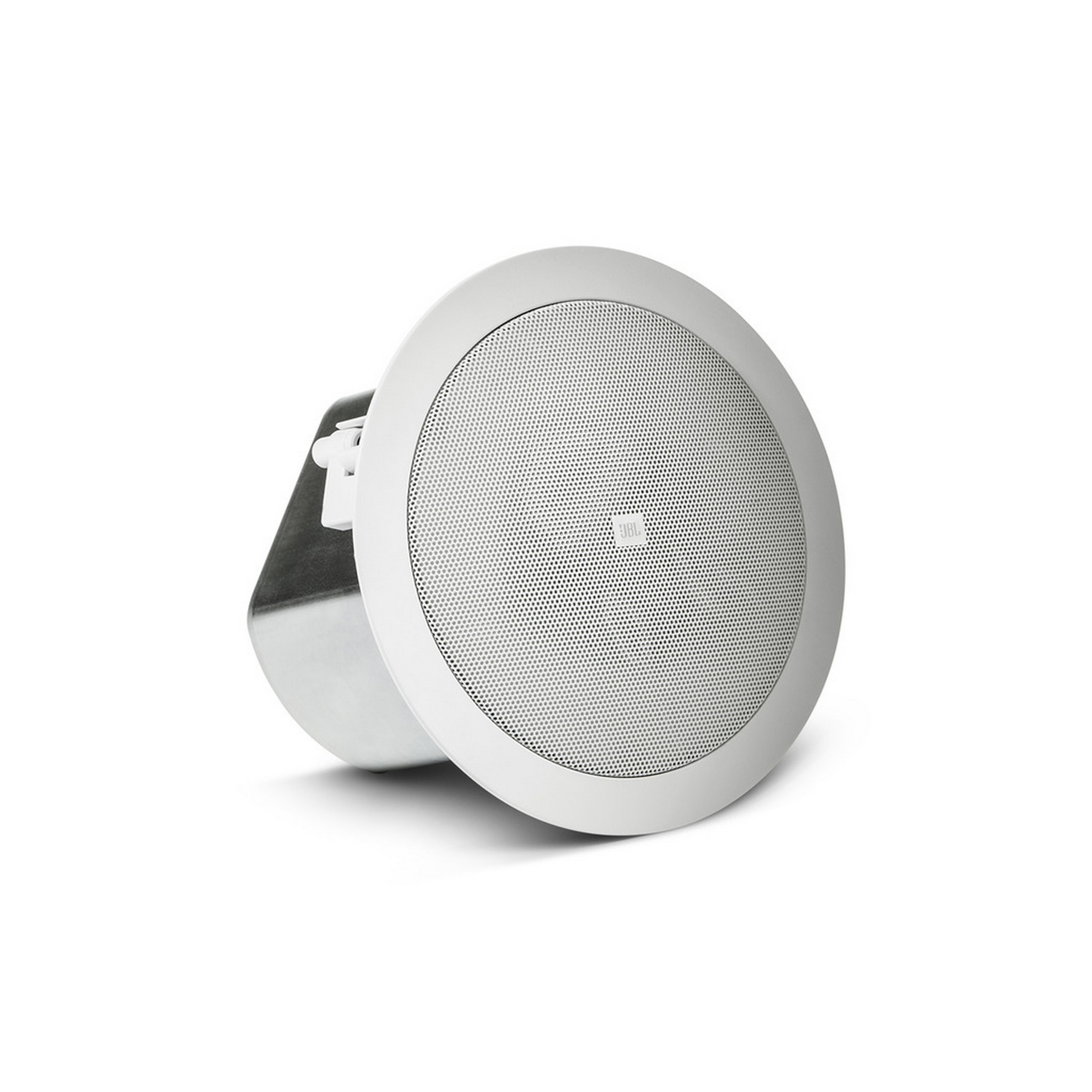

CONTROL 12C VA
