JBL Professional

CONTROL 126 WT

Tavan-İçi Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range 38 Hz - 20 kHz (-10 dB)
Power Rating 200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
Impedance 8 ohms
Drivers LF: 165 mm (6.5 in) polymer-coated aluminum cone.
HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Input Connectors Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
Optimum Air Cavity Behind Speaker 20 to 40 liters (0.7 to 1.4 cu ft)
Outside Dimensions (H x W x D) 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.
Maximum Wall Thickness 2 mm (1.25 in)
Cutout Size (H x W) 246 x 181 mm (9.7 x 7.2 in),
Net Weight (each) 2.7 kg (5.9 lb)
Shipping Weight (ea) 6.2 kg (13.5 lb)
Included Accessories Cutout template & paint shield
Optional Accessories WB6 Rough-In Frame for newconstruction installation to wallstuds
Sensitivity (1W, 1m) 88 dB SPL
DETAYLAR
DETAYLAR

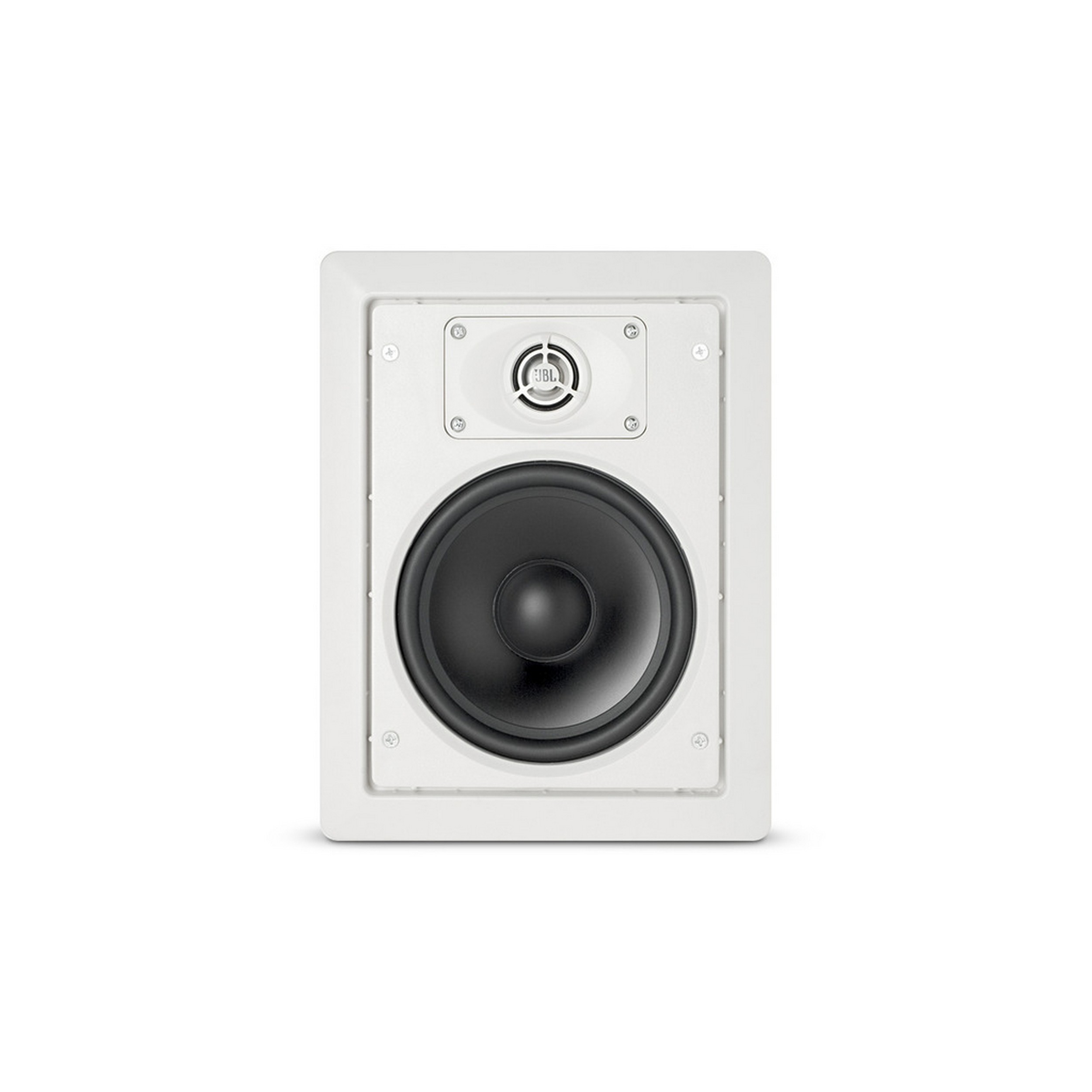

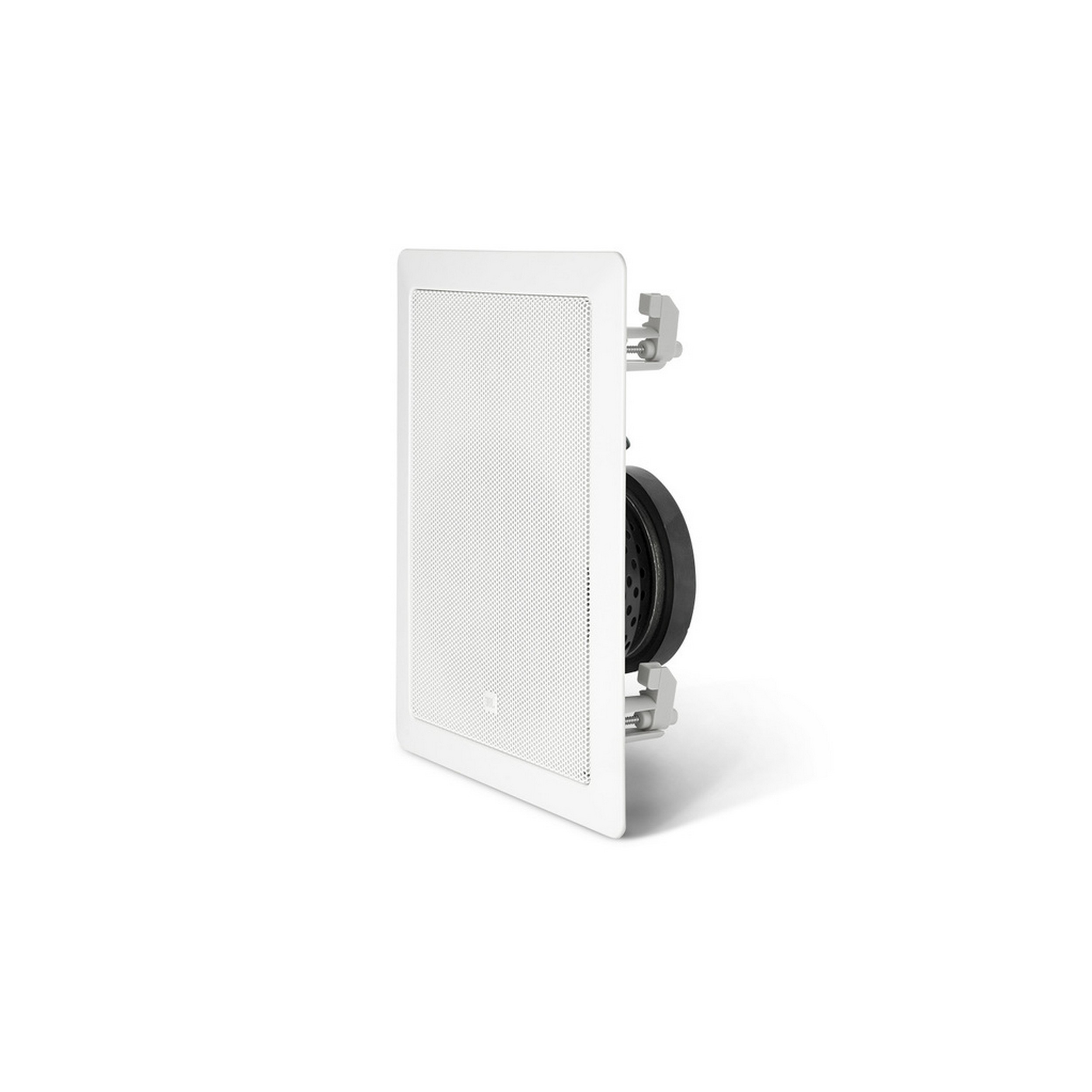

Premium In-Wall Loudspeaker

The Control 126WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.
