JBL Professional

308P MKII

8" Stüdyo Monitörü
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
LF DRIVER SIZE 203mm (8")
HF DRIVER SIZE 25mm (1")
HF DRIVER TYPE Soft dome
Crossover 1800Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT Yes
INPUT SENSITIVITY (-10dBV INPUT) 92dB / 1m
Power Configuration Bi-amplified
HF DRIVER POWER AMP 56W, Class-D
LF DRIVER POWER AMP 56W, Class-D
FREQUENCY RESPONSE (±3dB) 45Hz – 20kHz
Frequency Range (-10dB) 37Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB) 37Hz
MAXIMUM CONTINUOUS SPL 102dB
Maximum Peak SPL 112dB
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) +6dBV / +20.3dBu
SYSTEM DISTORTION CRITERIA <10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
COVERAGE HORIZONTAL x VERTICAL 120° x 90°

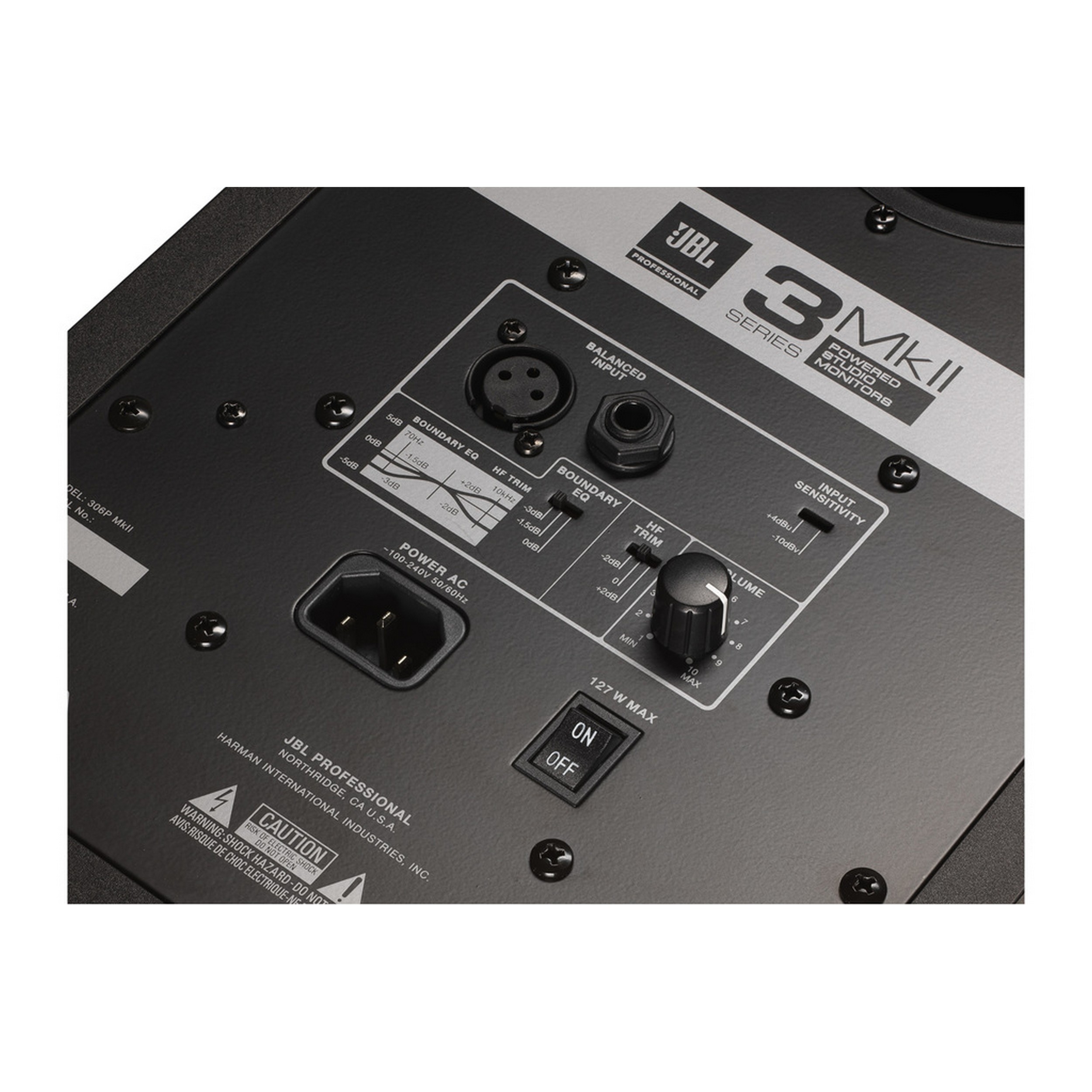

ANALOG INPUT TYPES 1 x XLR female, 1 x TRS female, balanced
HF TRIM CONTROL -2dB, 0dB, +2dB
BOUNDARY EQ LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC INPUT VOLTAGE 100 – 240VAC (±10%), 50 / 60Hz
ENCLOSURE TYPE Ported
ENCLOSURE CONSTRUCTION 15mm MDF
ENCLOSURE FINISH Matte black PVC
BAFFLE CONSTRUCTION Injection-molded structural ABS
CABINET DIMENSIONS (H x W x D) 419 x 254 x 308mm (16.5" x 10" x 12.1")
DISPLAY CARTON (H x W x D) 473 x 312 x 358mm (18.6" x 12.3" x 14")
SHIPPING CARTON (H x W x D) 491 x 326 x 372mm (19.3" x 12.8" x 14.6")
Net Weight 8.1 kg (17.87 lbs)
SHIPPING GROSS WEIGHT 9.4 kg (20.73 lbs)
DETAYLAR
DETAYLAR

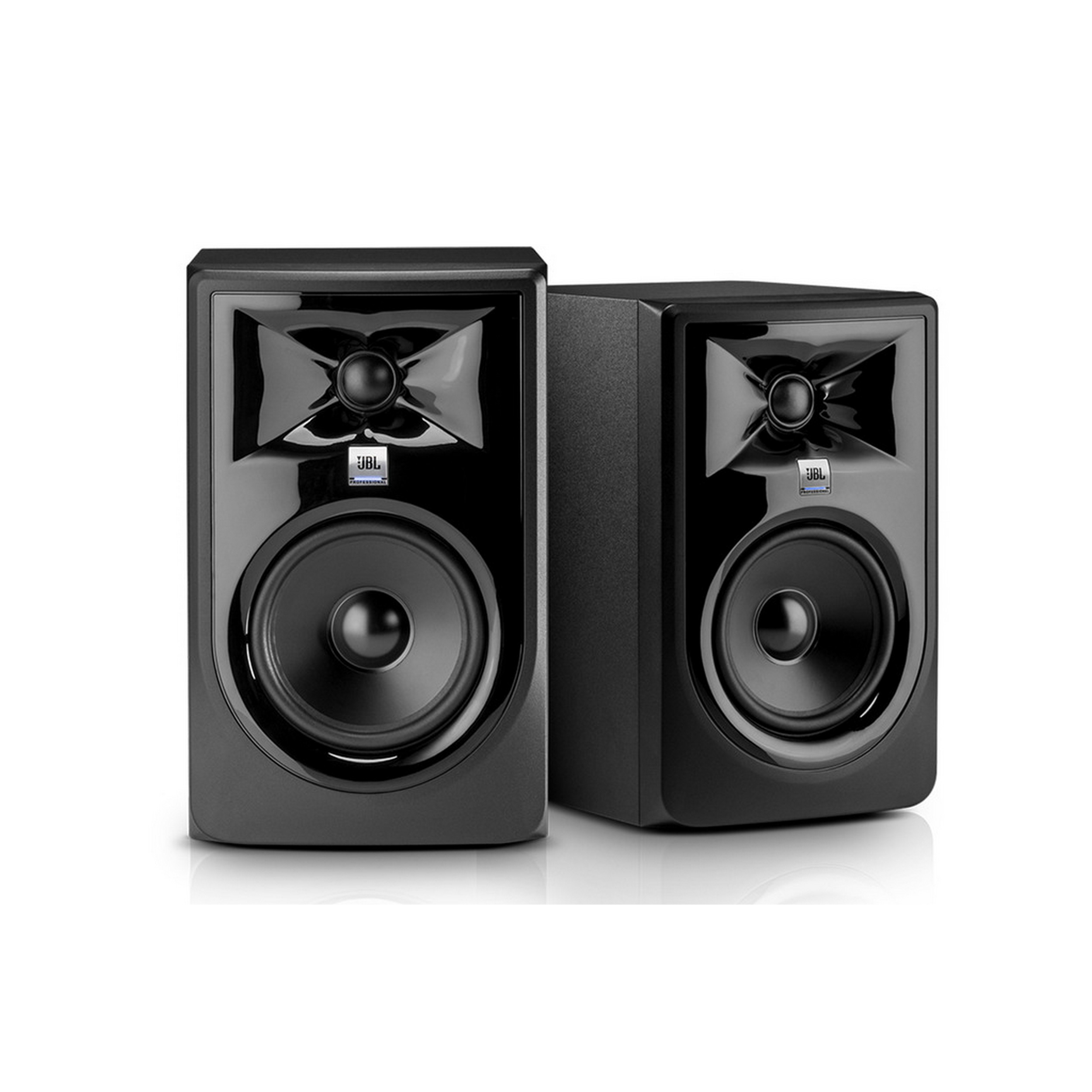

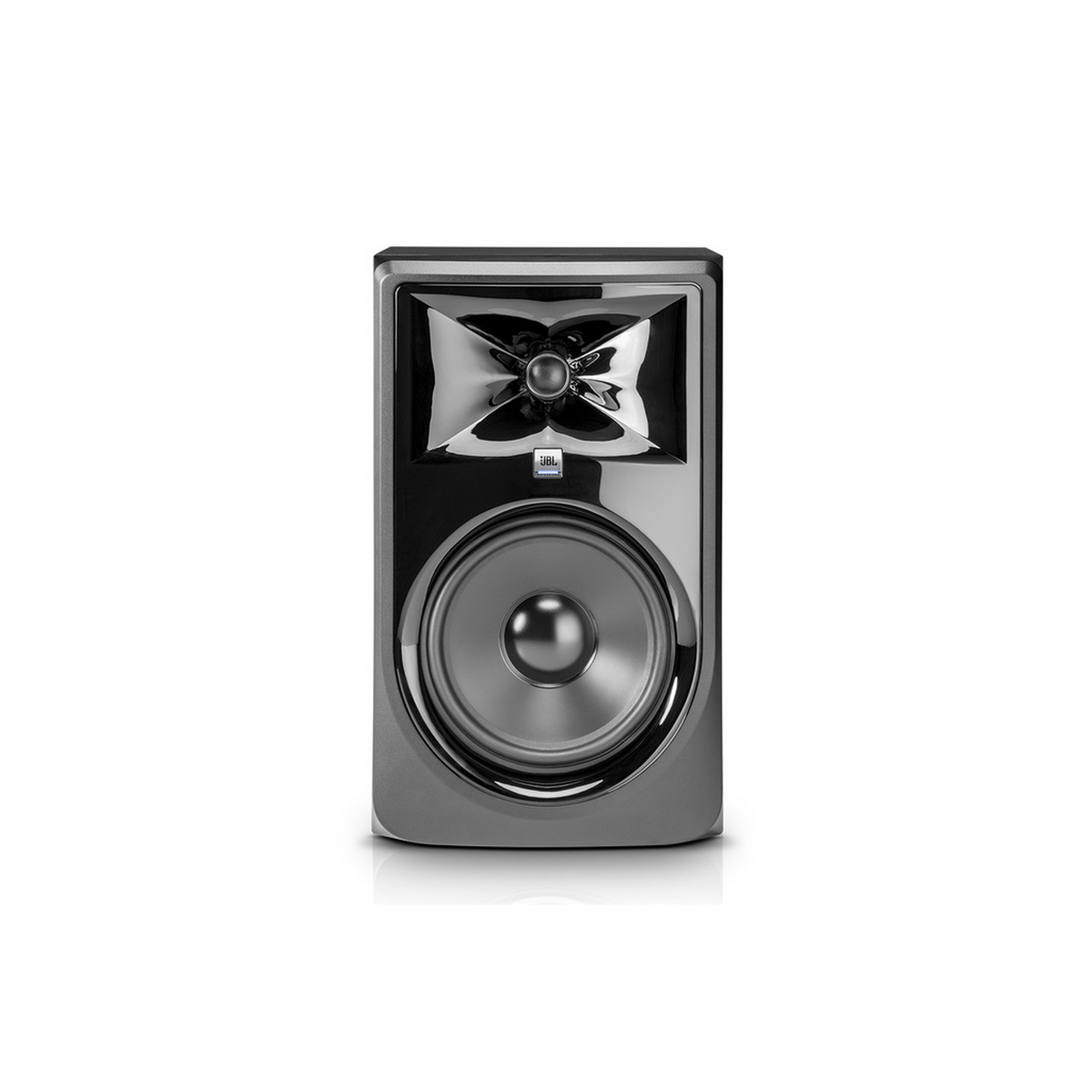

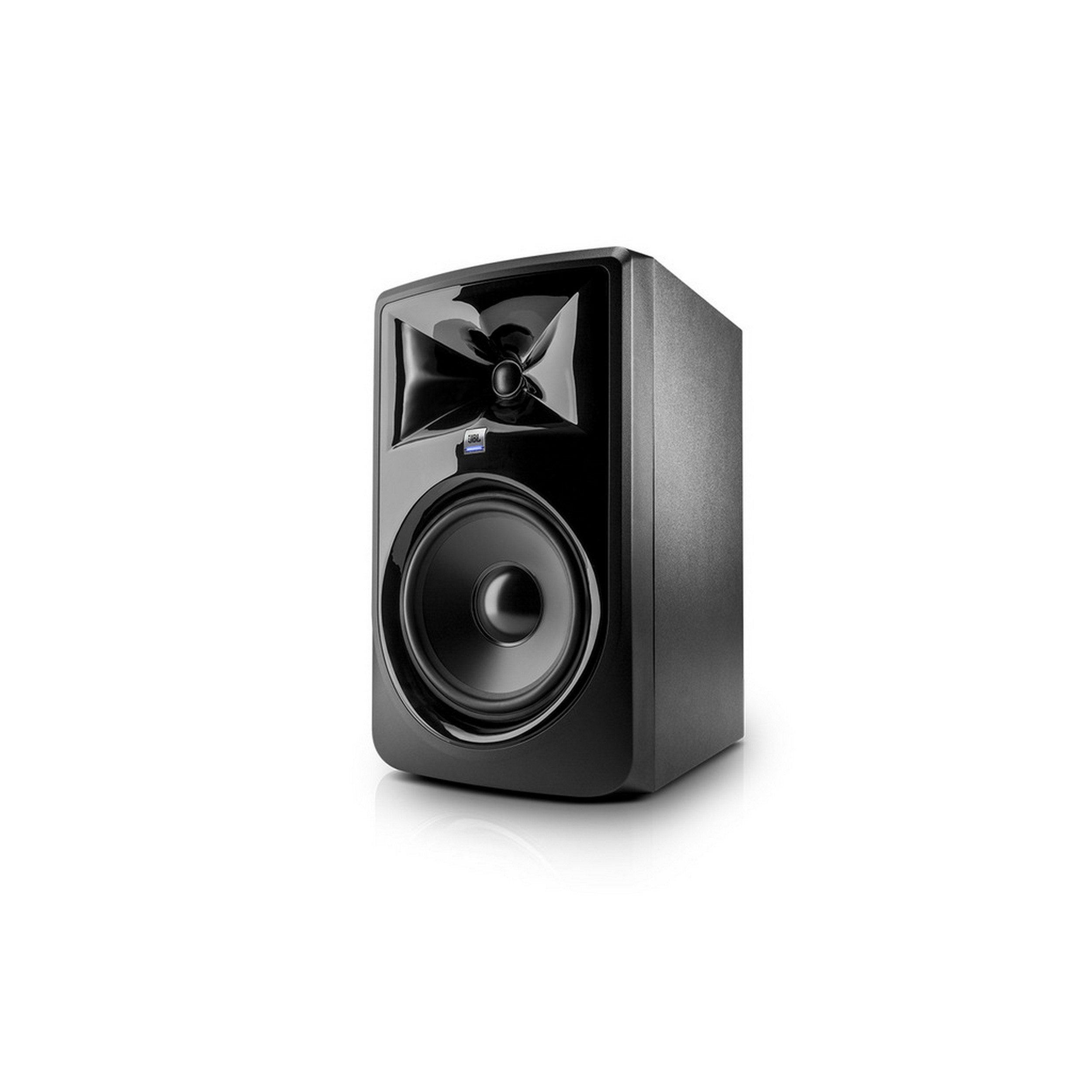

Powered 8" Two-Way Studio Monitor

The next-generation JBL 308P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 308P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
